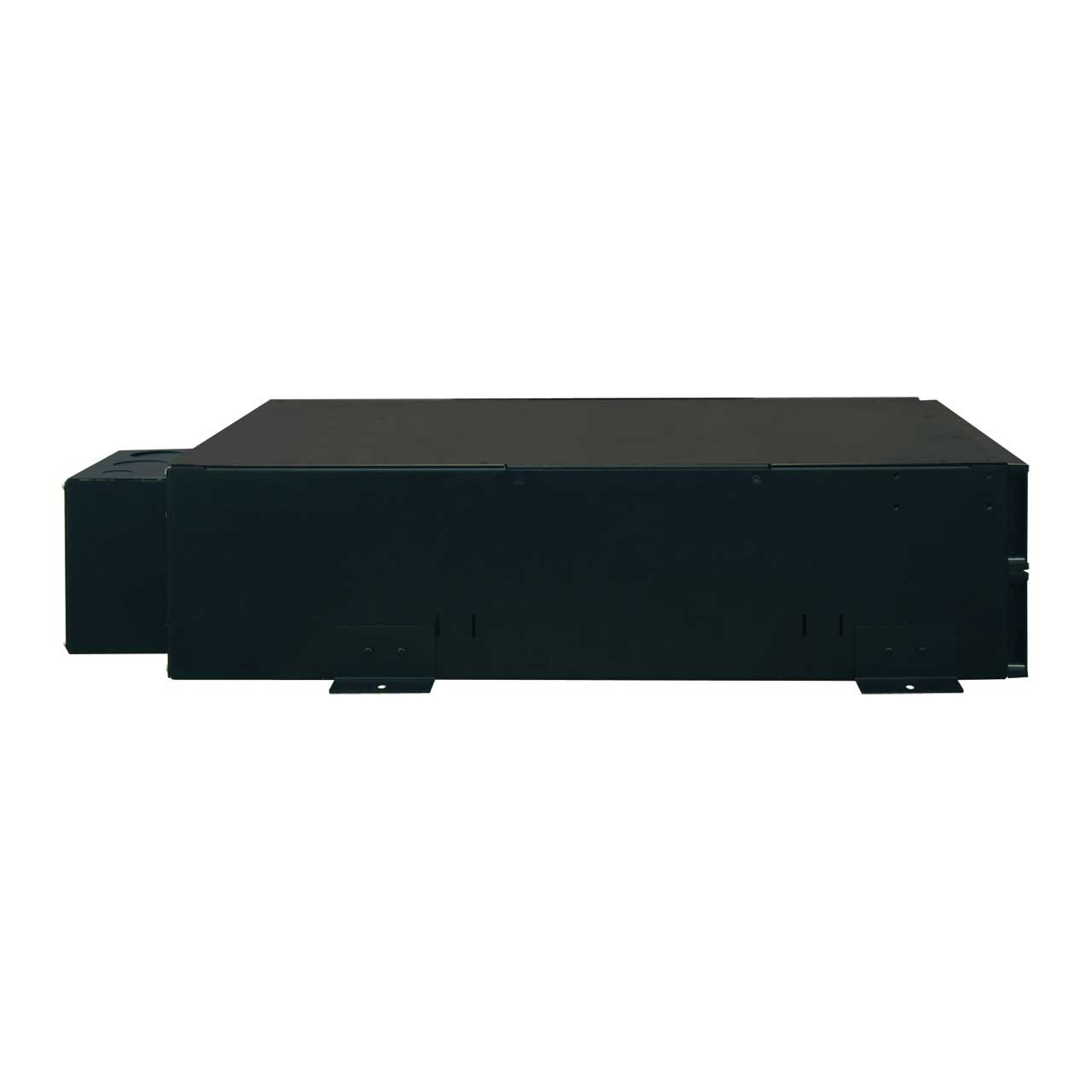

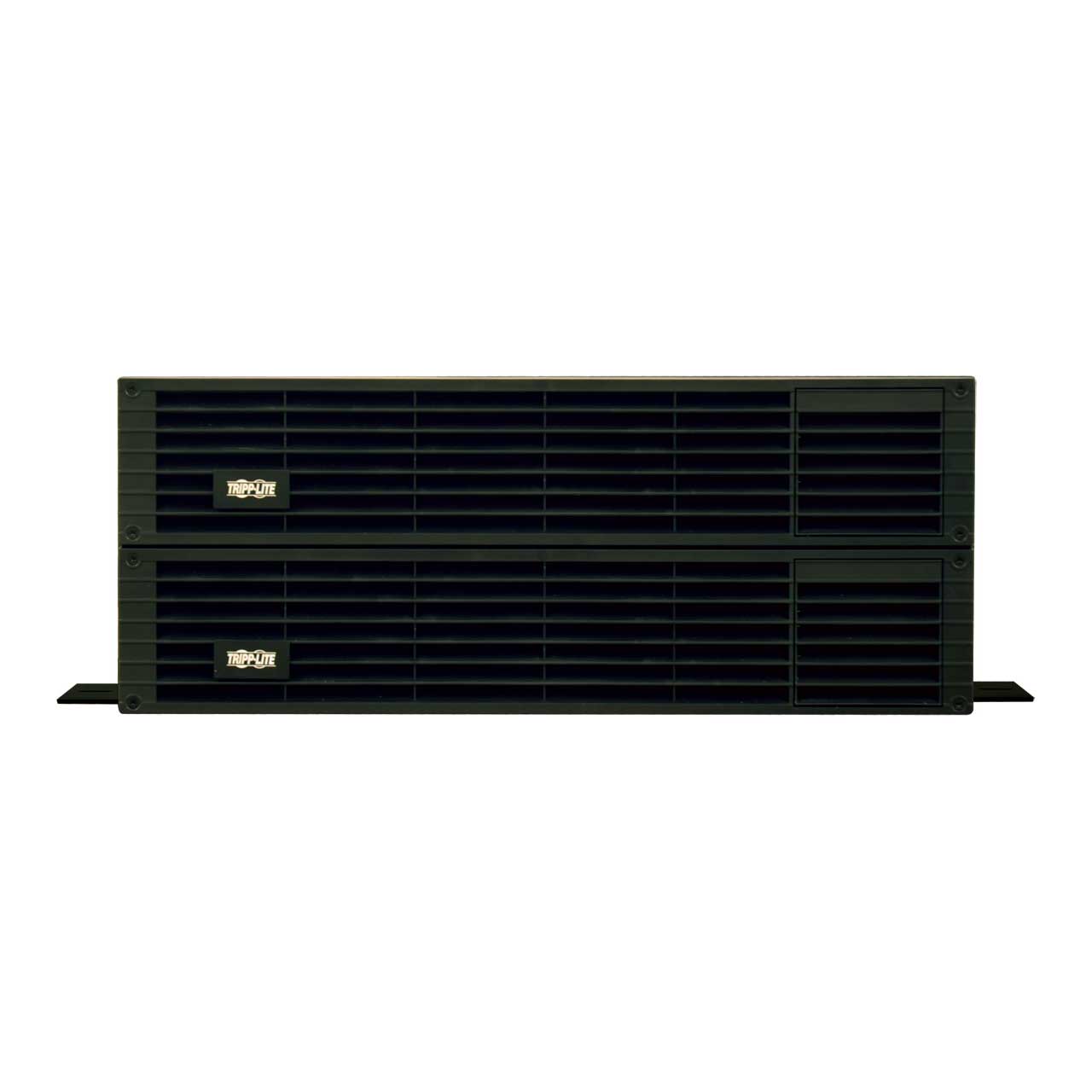

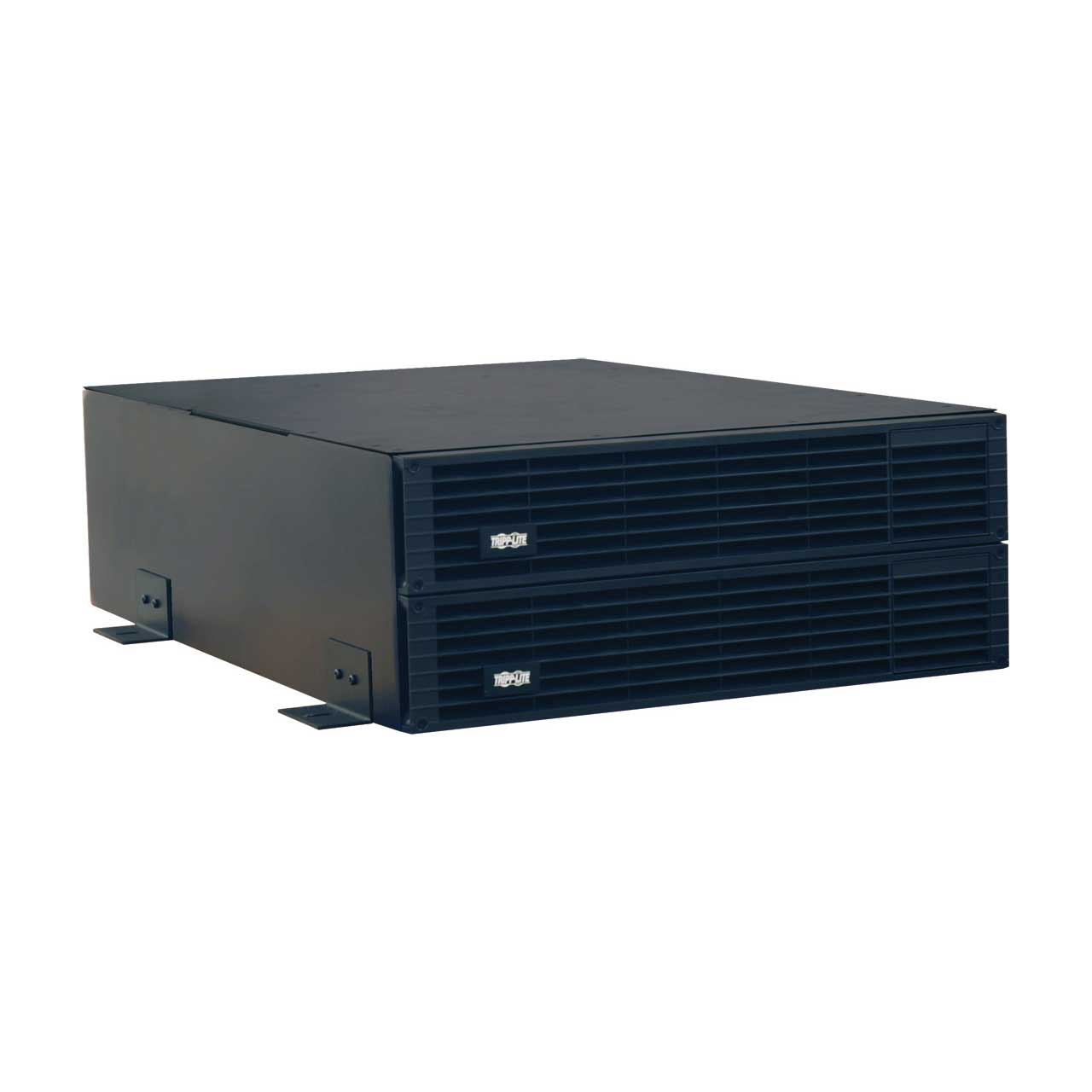

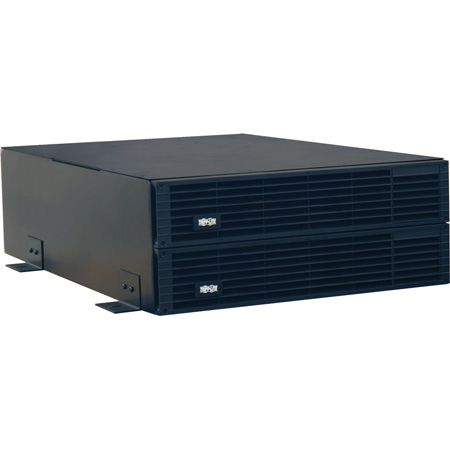

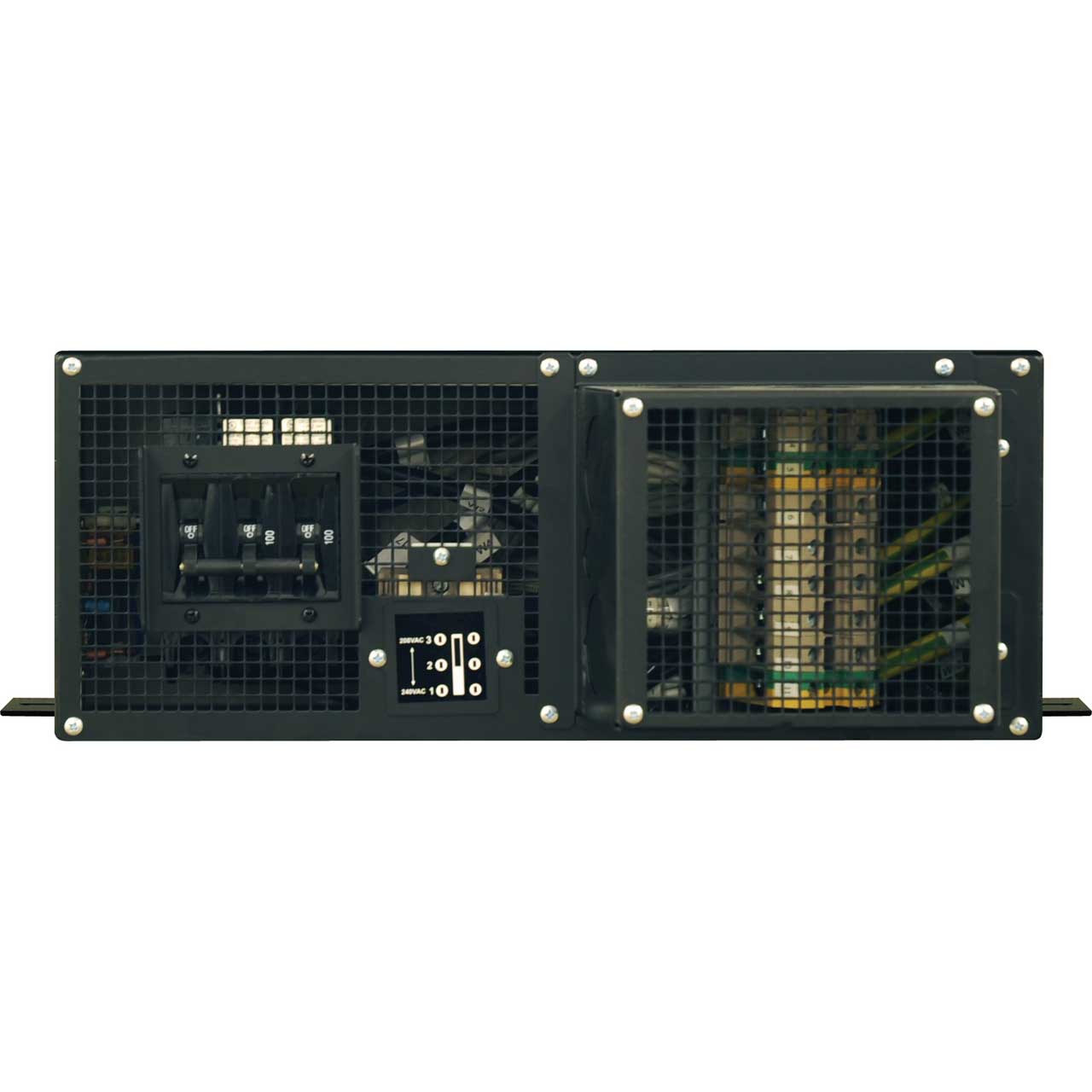

Tripp Lite SU20KXFMRT4U 18kVA / 18kW Step-down Transformer 208V/240V to 240V/120V 4URM

SU20KXFMRT4U - Overview

• Features:

  • Green Energy-Saving Features High efficiency economy mode operation; Individually controllable load banks; Schedulable daily hours of economy mode operation, UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI).
  • Product Warranty Period (Worldwide) 2-year limited warranty.

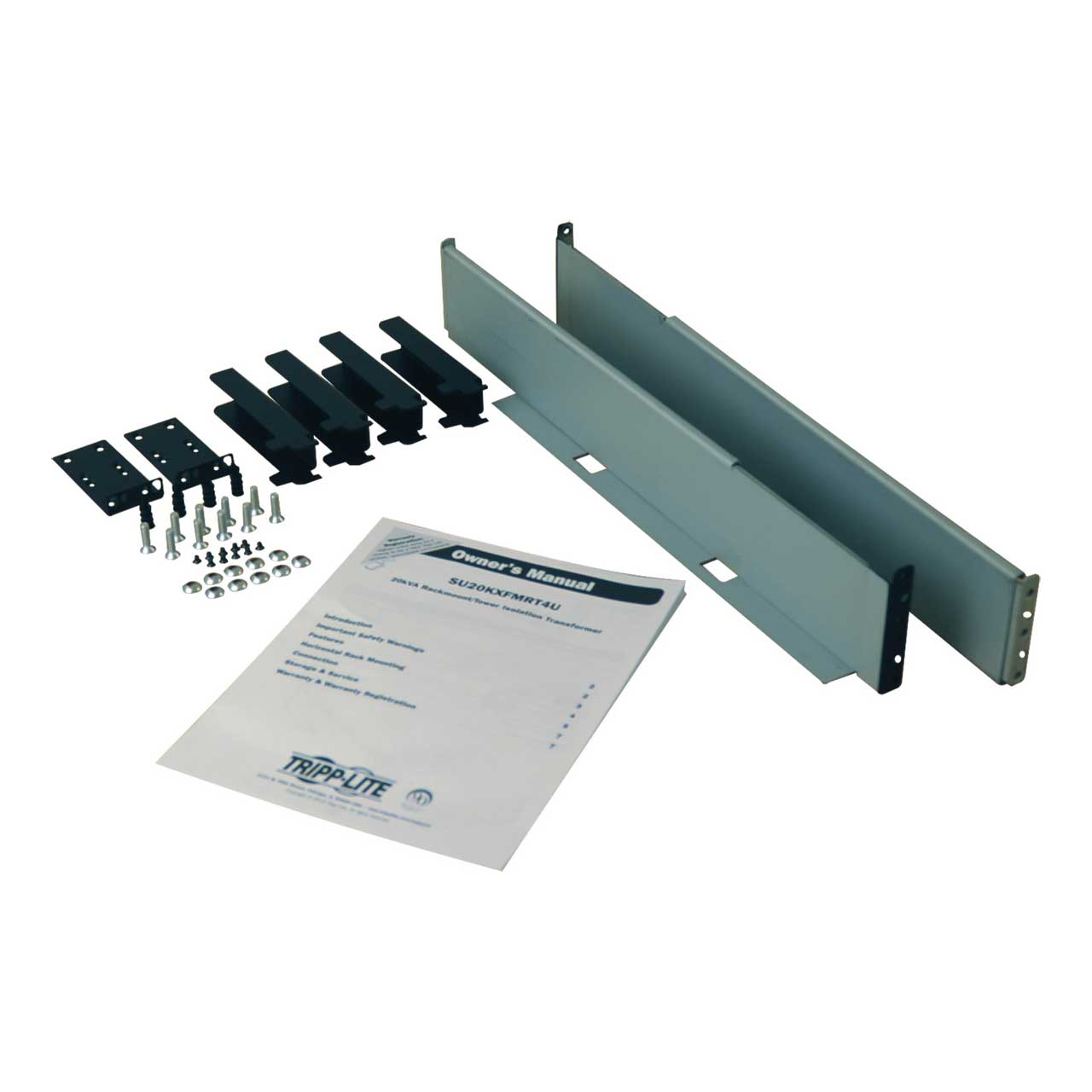

  • Connected Equipment Insurance (U.S., Canada & Puerto Rico) $250,000 Ultimate Lifetime Insurance. Includes 4 post rackmount installation accessories
  • Installation Form Factors Supported with Optional Accessories, 2 post rackmount (2POSTRMKITWM); Wallmount (2POSTRMKITWM); Tower (2-9USTAND).
  • Expandable Battery Runtime Extended runtime supported via optional external battery packs.
  • External Battery Pack Compatibility BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible).
  • Expandable Runtime Description BP48V24-2U (limit 2 w/ 48VDCSPLITTER).
  • Internal UPS Replacement Battery Cartridge RBC94-2U.
  • Battery Access Front panel battery access door.
  • PowerAlert Software Included.
  • Communications Cable USB and DB9 cabling included.
  • Battery Replacement Description Hot-swappable, user replaceable sealed, flame retardant, non-spillable batteries.


• Specifications:

  • Output Volt Amp Capacity (VA) 2200
  • Output kVA Capacity (kVA) 2.2
  • Output Watt Capacity (Watts) 1600
  • Output kW Capacity (kW) 1.6
  • Power Factor 0.7
  • Crest Factor 0.125694444444444
  • Nominal Output Voltage(s) Supported 110V; 120V
  • Nominal Voltage Details 120V default
  • Frequency Compatibility 50 / 60 Hz
  • Frequency Compatibility Details Output frequency matches input nominal on startup, defaults to 60 Hz on cold-start
  • Output Voltage Regulation (Line Mode) +/- 2%
  • Output Voltage Regulation (Economy Line Mode) +/- 10%
  • Output Voltage Regulation (Battery Mode) +/- 2%
  • Output Receptacles (6) 5-15/20R; (1) L5-20R
  • Load Management Receptacles Two switchable three-outlet 5-15/20R load banks
  • Output AC Waveform (AC ) Sine wave
  • Output AC Waveform (Battery) Pure Sine wave
  • Rated input current (Max Load) 16A
  • Nominal Input Voltage(s) Supported 110V AC; 120V AC
  • UPS Input Connection Type 5-20P
  • UPS Input Connection Description NULL
  • Input Circuit Breakers 30A
  • UPS Input Cord Length 10'
  • UPS Input Cord Length Details Built-in
  • Recommended Electrical Service 20A 120V
  • Input Phase Single-Phase
  • Full Load Runtime 4.5 min. (1600w)
  • Half Load Runtime 14 min. (800w)
  • DC System Voltage (VDC) 48
  • Battery Recharge Rate (Included Batteries) Less than 6 hours from 10% to 80% (typical, full load discharge)
  • Voltage Regulation Description Online, double-conversion power conditioning
  • Overvoltage Correction 2% output voltage regulation during overvoltages to 150
  • Undervoltage Correction 2% output voltage regulation during undervoltages to 80
  • Severe Undervoltage Correction 2% output voltage regulation during undervoltages to 65 (under 70% load only)
  • Switches 2 switches control off/on power status and alarm-cancel/self-test operation
  • Alarm Cancel Operation Power-fail alarm can be silenced using alarm-cancel switch
  • Audible Alarm Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
  • LED Indicators 14 LEDs indicate line power, online mode, economy/bypass mode, on-battery, overload, battery low, replace battery and fault status information; 4-LED meter displays load and battery charge levels; LED panel rotates for viewing in rack/tower formats
  • UPS AC Suppression Joule Rating 570
  • UPS AC Suppression Response Time Instantaneous
  • UPS Dataline Suppression 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
  • EMI / RFI AC Noise Suppression Yes
  • UPS Power Module Dimensions 3.5" x 17.5" x 19"
  • Rack Height 2U
  • UPS Power Module Weight 47.4 lbs
  • UPS Shipping Dimensions 9.8" x 20.2" x 24"
  • Shipping Weight 57.3 lbs
  • Cooling Method Fan
  • UPS Housing Material Steel
  • Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
  • Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
  • Relative Humidity 0 to 95%, non-condensing
  • AC Mode BTU / Hr. (Full Load) 812.9
  • AC Economy Mode BTU / Hr. (Full Load) 347.2
  • Battery Mode BTU / Hr. (Full Load) 885.6
  • AC Mode Efficiency Rating (100% Load) 0.87
  • AC Economy Mode Efficiency Rating (100% Load) 0.94
  • Audible Noise < 45dB at 1m
  • Communications Interface USB ; DB9 Serial; Contact closure; EPO Slot for SNMP/Web interface
  • Network Monitoring Port Description Supports detailed monitoring of UPS and site power conditions; DB9 port supports RS232 and contact closure communications
  • WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
  • Transfer Time No transfer time (0 ms.) in online, double-conversion mode
  • Low Voltage Transfer to Battery Power (Setpoint) 80V (100% load), 65V ( <70% load)
  • High Voltage Transfer to Battery Power (Setpoint) 150
  • Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported
  • High Availability UPS Features Automatic inverter bypass; Hot swappable batteries


• GTIN:

  0037332176608
