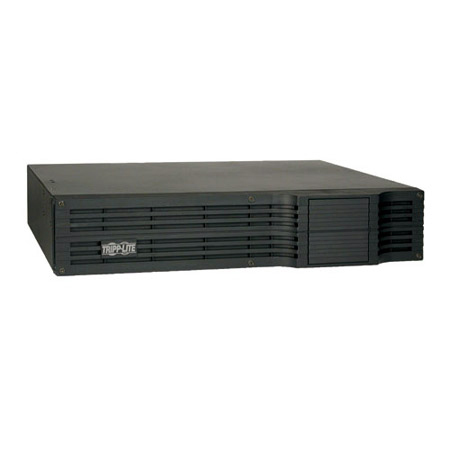

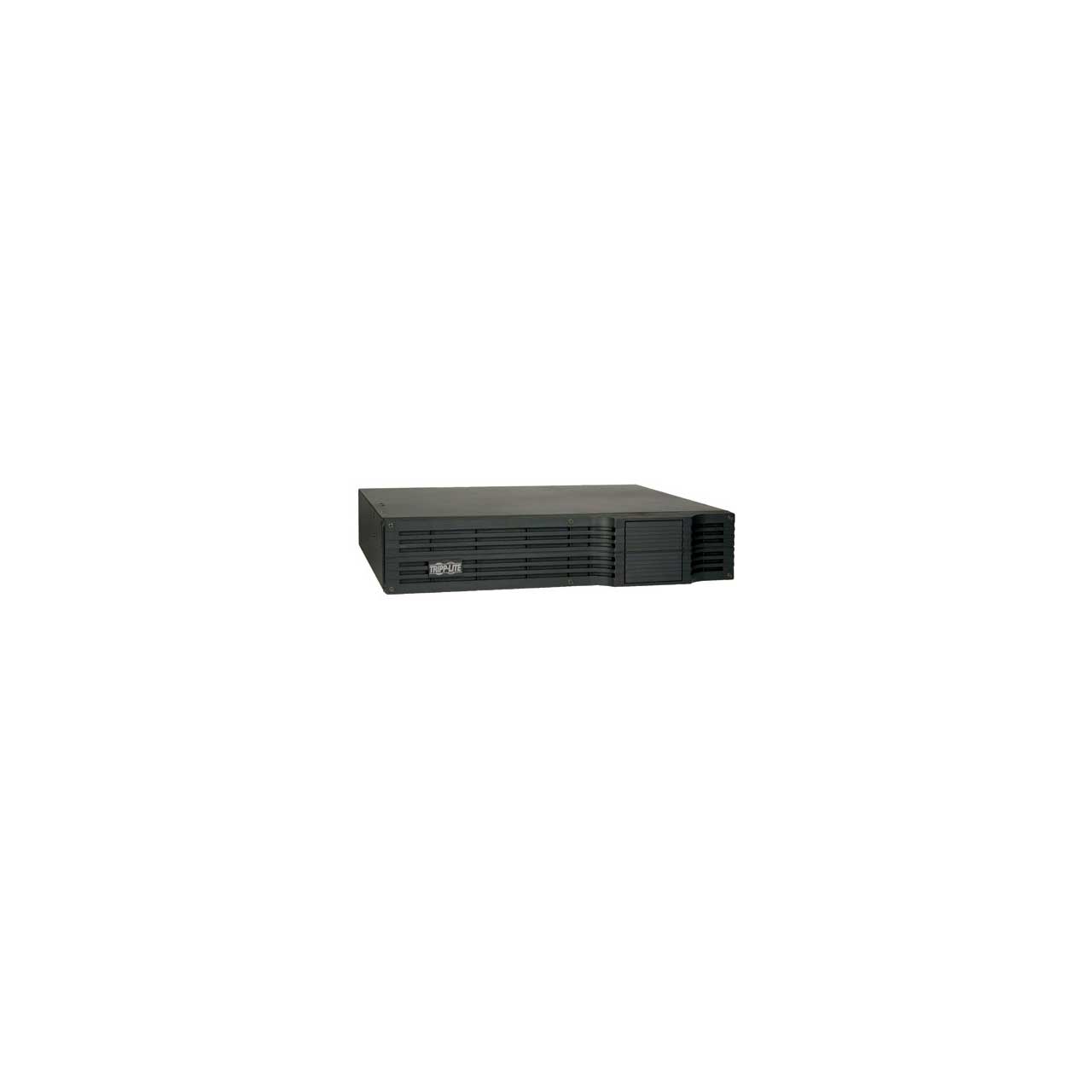

Tripp Lite SU5000XFMRT2U 5kVA / 5kW Step-down Transformer - Convert 208V to 120V 2URM

ITEM #: TRL-SU5XFMRT2U MFG #: SU5000XFMRT2U

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$2,079.80

Our Price:

$1,305.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.


SU5000XFMRT2U - Overview

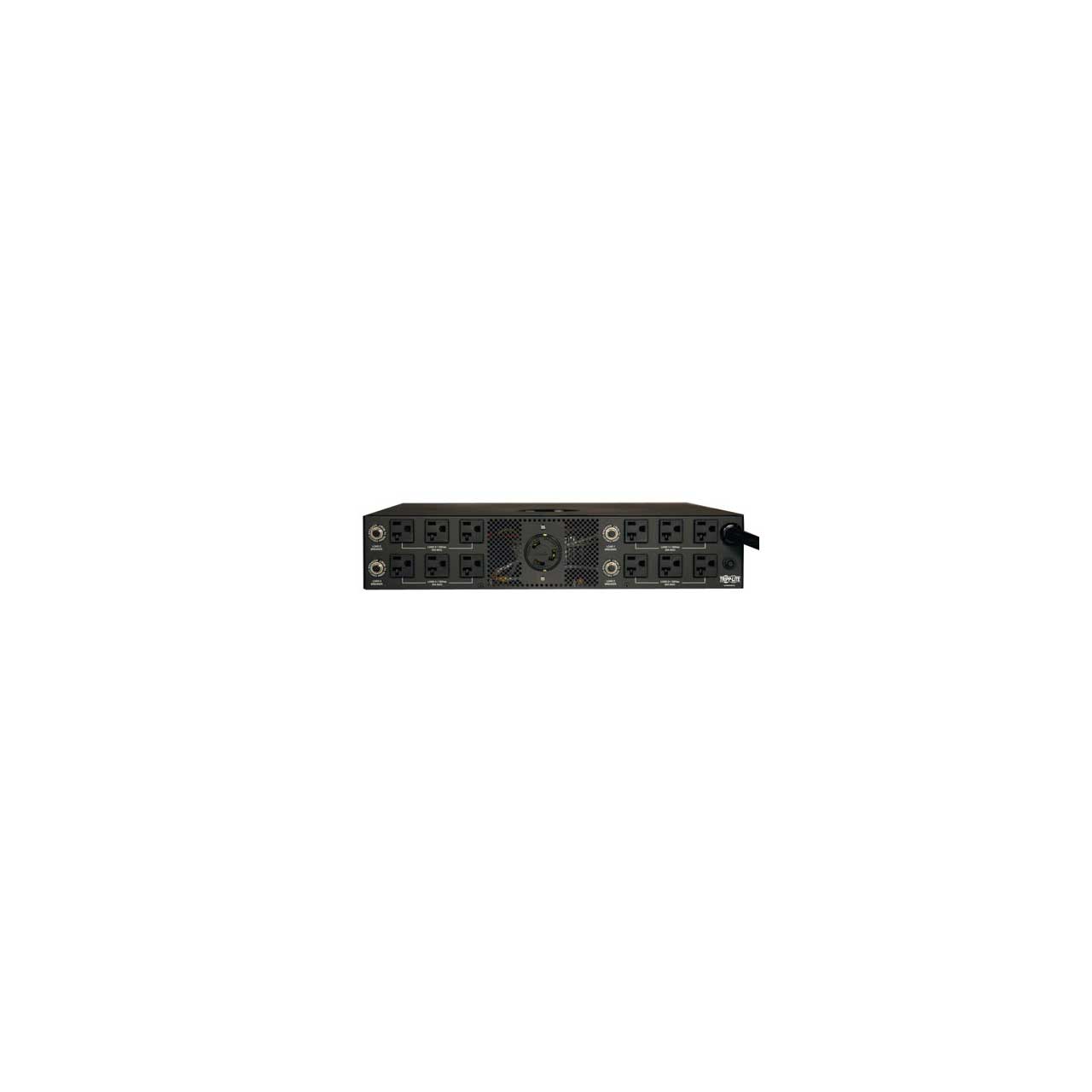

Tripp Lite's SU5000XFMRT2U step-down, isolation transformer converts 208V input from generator, utility or UPS high voltage source to 120V low voltage output. 208V 30A input plug with 10 foot AC cord connects to L6-30R socket. 12 NEMA 5-15/20R output receptacles accommodate 5-15P or 5-20P equipment plugs. Built-in L6-30R outlet supports high voltage output. Supports 2U rackmount installation with included brackets for 4 post enclosures. Supports 2 post rackmount installation with optional 2POSTRMKITWM. Supports upright tower installation with 2-9USTAND.

  • Features:

    • Expandable Battery Runtime Runtime is expandable with external battery packs
    • External Battery Pack Compatibility BP192V1037C-1PH; BP192V12-3U; BP192V1407C-1PH; BP192V557C-1PH; BP192V787C-1PH; BP192V5RT2U (limit 1)
    • DC System Voltage (VDC) 192
    • Battery Recharge Rate (Included Batteries) 6 hours from 10% to 90% (typical, full load discharge)
    • Internal UPS Replacement Battery Cartridge RBC5-192
    • Battery Replacement Description Hot-swappable, user replaceable internal batteries

  • Specifications:

    • Output Capacity Details Output capacity de-rates to 4992 watts when used at 208V nominal; Supports up to 105% load continuously in double conversion mode, 106 to 125% for 1 minute, 126% to 150% for 30 seconds; Loads over 150% trigger immediate bypass mode operation to support loads directly from mains power; Double conversion mode is automatically restored as the overload is cleared
    • Output Volt Amp Capacity (VA) 6000
    • Output kVA Capacity (kVA) 6
    • Output Watt Capacity (Watts) 5400
    • Output kW Capacity (kW) 5.4
    • Power Factor 0.9
    • Crest Factor 0.125694444444444
    • Nominal Output Voltage(s) Supported 200V; 208V; 240V
    • Nominal Voltage Details Voltage selection via front panel LCD interface
    • Frequency Compatibility 50 / 60 Hz
    • Frequency Compatibility Details Output frequency matches input nominal on startup; Frequency conversion mode enables conversion of 60Hz to 50Hz or 50Hz to 60Hz (no de-rating)
    • Output Voltage Regulation (Line ) +/- 2%
    • Output Voltage Regulation (Economy Line) +/- 10%
    • Output Voltage Regulation (Battery) +/- 2%
    • Output Receptacles (2) L6-20R; (2) L6-30R
    • Output Receptacle Details Output receptacles and input line cord are mounted on a detachable PDU backplate with bypass switch to enable hot-swappable power module replacement
    • Output Circuit Breakers 20A breaker protects L6-20R outlets, L6-30R outlets are unbreakered
    • Output AC Waveform (AC) Pure Sine wave
    • Output AC Waveform (Battery) Pure Sine wave
    • Rated input current (Max Load) 31.9A (200V), 30.6A (208V), 29A (220V), 27.7A (230V), 26.6A (240V)
    • Nominal Input Voltage(s) Supported 200V AC; 208V AC; 240V AC
    • Nominal Input Voltage Description Factory configured to 208V
    • UPS Input Connection Type L6-30P
    • UPS Input Cord Length 10'
    • Recommended Electrical Service 30A
    • Input Phase Single-Phase
    • Full Load Runtime 2 minutes (5400 watts)
    • Half Load Runtime 8.5 minutes (2700 watts)
    • Voltage Regulation Description Online, double-conversion power conditioning
    • Overvoltage Correction Corrects overvoltages as high as 300V (<90% load) and 280V (full load)
    • Undervoltage Correction Corrects undervoltages as low as 100 (<50% load) and 155V (full load); derates linearly
    • Front Panel LCD Display Selectable LCD display with scroll and selection buttons enables UPS control and detailed monitoring options; LED/LCD panel rotates for viewing in rack/tower formats (see manual)
    • Switches Includes main power off/on switch, plus 2 switches to set and execute scrollable LCD functions. A manual bypass switch featured on the detachable PDU allows for complete removal of the UPS during routine maintenance without disrupting power to connected loads.
    • Alarm Cancel Operation Alarm cancel switch
    • Audible Alarm Unique audible alarms for all major UPS, environmental and power conditions (see manual)
    • LED Indicators 6 LEDs indicate line power, online mode, economy/bypass mode, on-battery, charger and AC output status; LCD screen offers additional information and control options
    • UPS AC Suppression Response Time Instantaneous
    • EMI / RFI AC Noise Suppression Yes
    • AC Suppression Response Time NULL
    • Included Mounting Accessory Description Includes 4 post rackmount installation accessories
    • Installation Form Factors Supported with Optional Accessories 2 post rackmount (2POSTRMKITHD); Tower (2-9USTAND)
    • UPS Power Module Dimensions 6.85" x 17.5" x 20.7"
    • Installed Whole System Maximum Rack Depth 20.7"
    • Rack Height 4U
    • UPS Power Module Weight 108 lbs
    • UPS Shipping Dimensions 12.7" x 23.6" x 29.1"
    • Shipping Weight 158 lbs

  • GTIN:

    0037332122087
