Tripp Lite SUT40KMBP UPS Maintenance Bypass Panel for SUT40K - 3 Breakers

ITEM #: TRL-SUT40KMBP MFG #: SUT40KMBP

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Tripp Lite
Free Shipping with $49 Minimum Order
We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.
Report Lower PriceLarge Quantity Quote

SUT40KMBP - Overview

Bypass an SUT40K UPS to Perform Maintenance

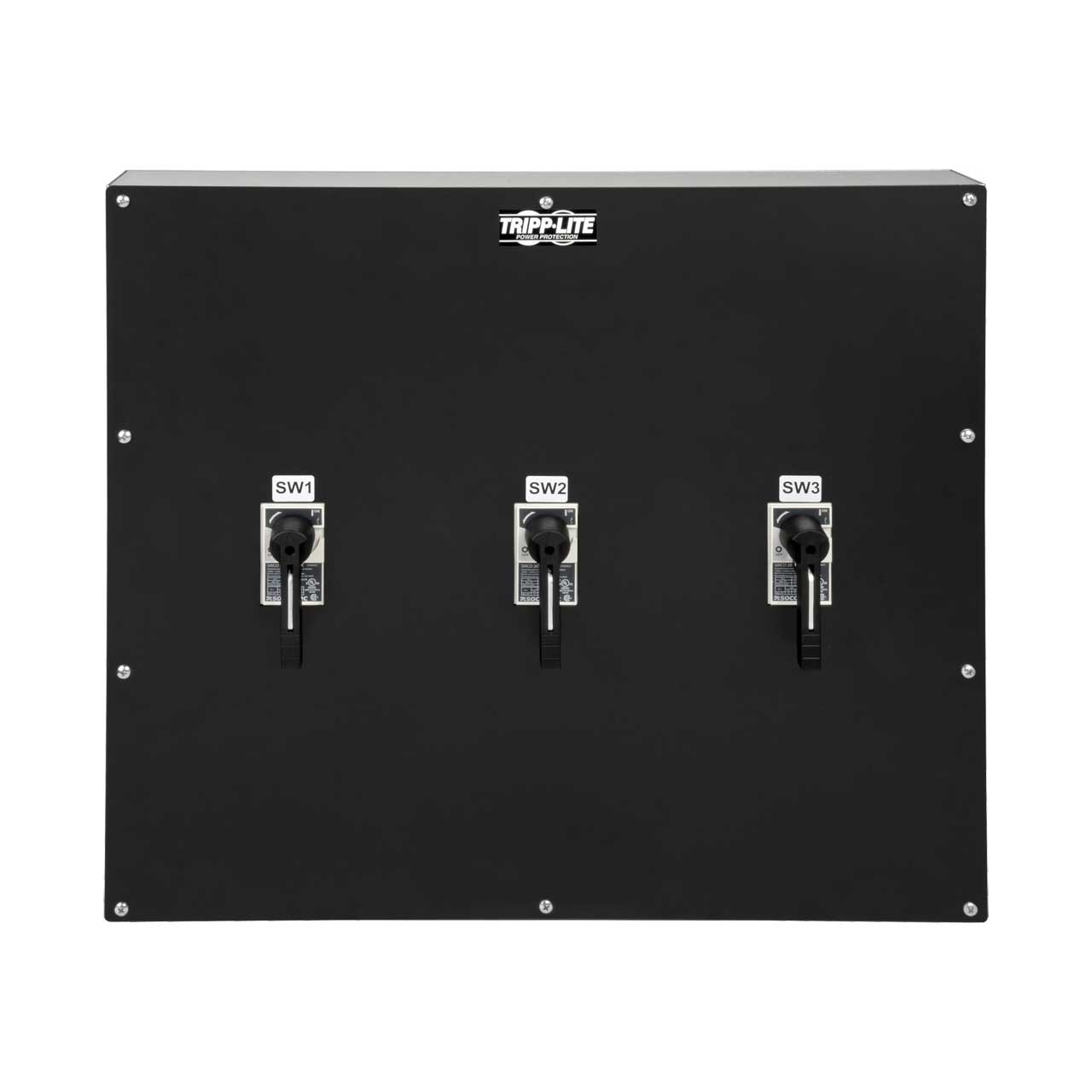

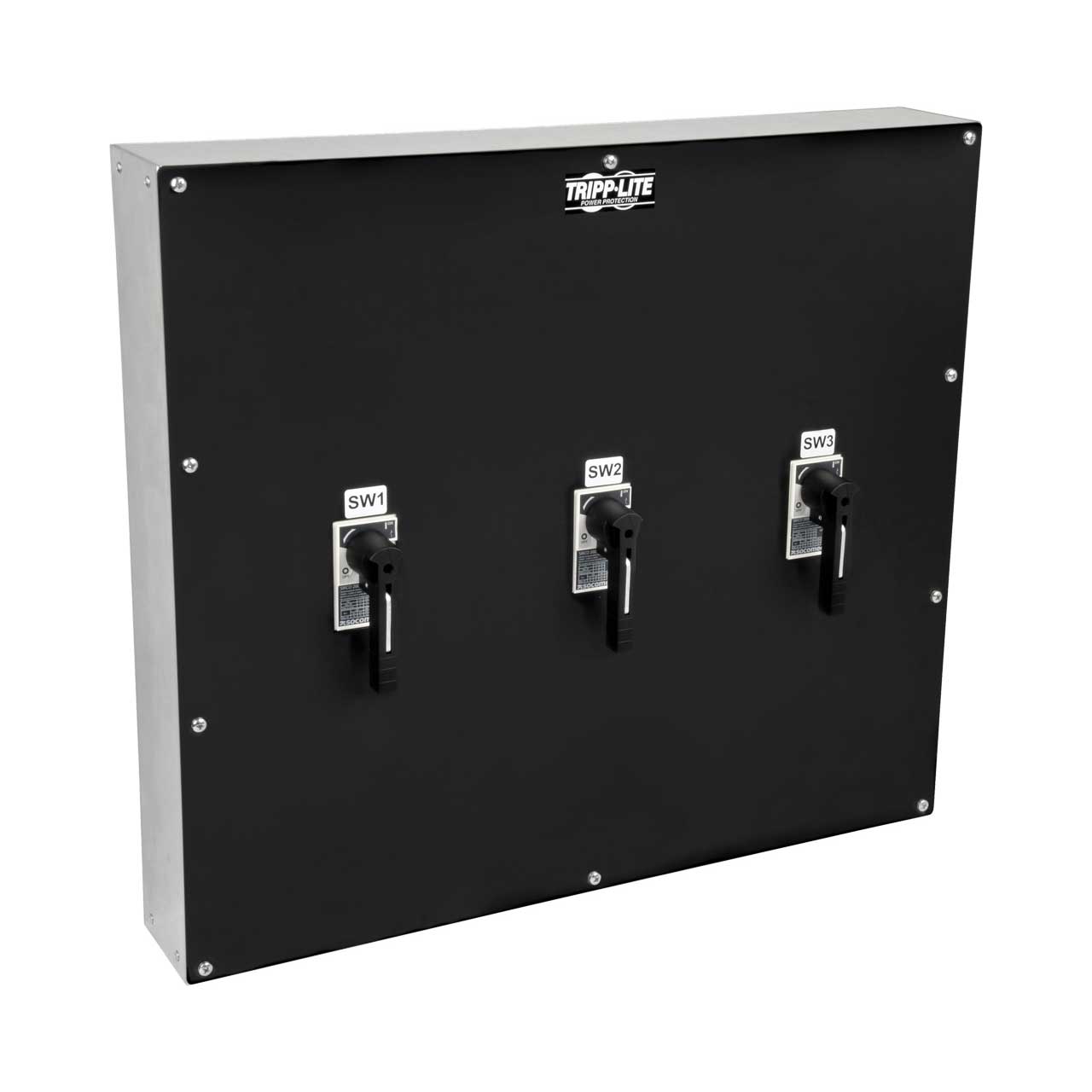

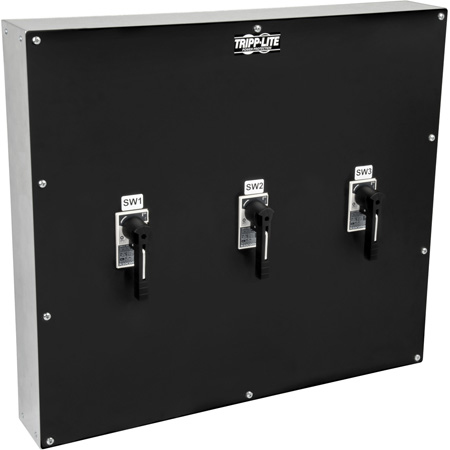

For use with Tripp Lite's SUT40K 3-phase UPS system, the Tripp Lite SUT40KMBP maintenance bypass panel (MBP) maintains total continuity of power to connected load circuits when bypass of the UPS is required for regular service and maintenance. This UPS maintenance bypass panel has three 4-pole circuit breakers for Input, Bypass and Output. The breakers have removable handles to allow the panel's trim cover to be removed for internal access. Maximum current capacity is 150A.

Convenient Wall-Mount Installation

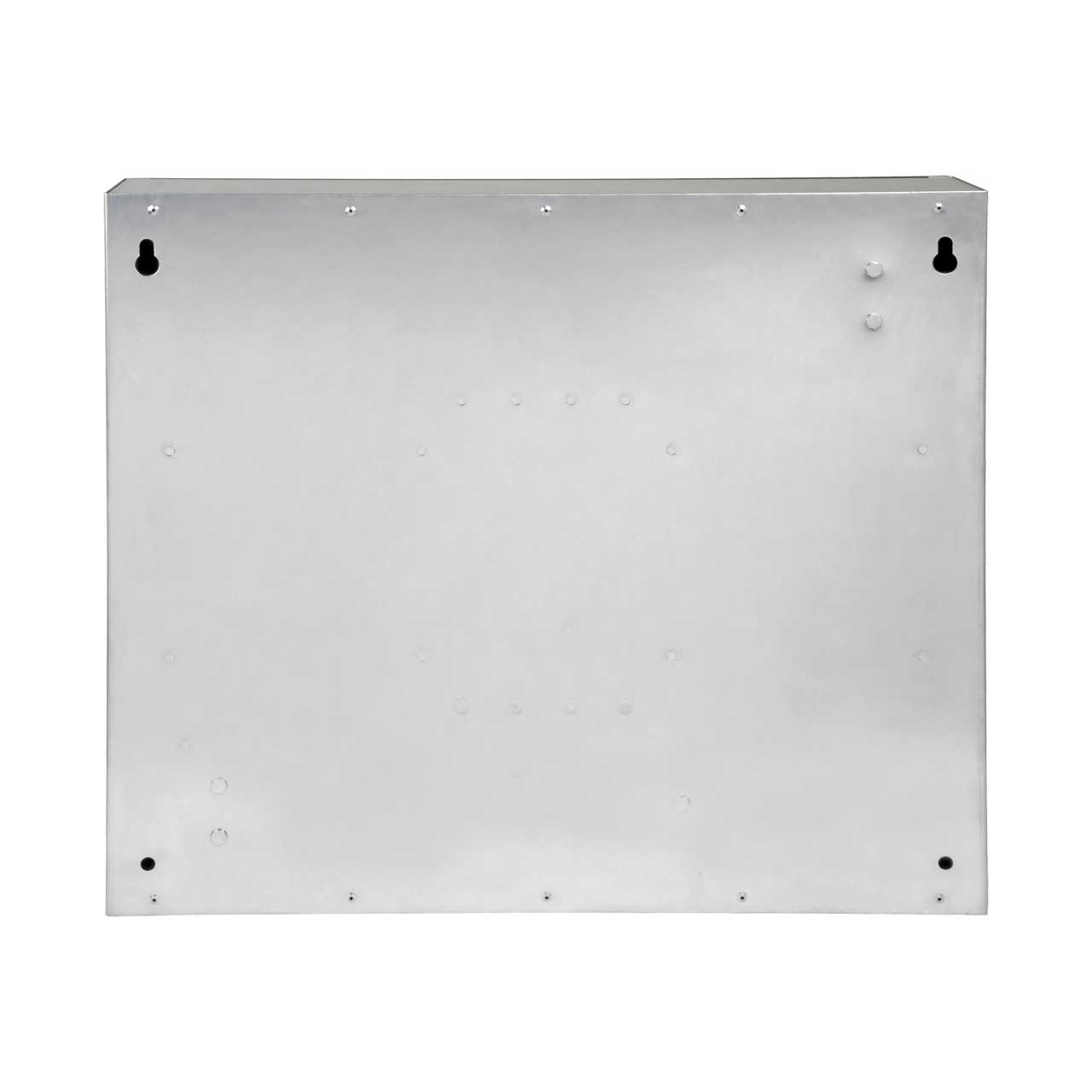

Made of galvanized steel, the service bypass panel has rear mounting holes for installation on a smooth and solid wall (mounting hardware not included).

  • Features:

    • Isolates a Tripp Lite SUT40K UPS from connected loads to permit maintenance
    • Allows connected loads to remain continuously powered
    • Three built-in 4-pole circuit breakers for Input, Bypass and Output
    • Mounting holes for convenient wall installation
    • Maximum current capacity is 150A


  • Specifications:

    • Output
    • Output Capacity Details: 150A maximum

      Input
    • Nominal Input Voltage Description: 208Y/120 VAC 3 phase, 4 wire (3P+N+E)

      Physical
    • Shipping Dimensions (hwd / in.): 13.50 x 42.00 x 36.00
    • Unit Dimensions (hwd / in.): 28.13 x 31.5 x 6.98
    • Unit Weight (lbs.): 124
    • Form Factors Supported: Wallmount


  • Item Includes:

    • SUT40KMBP UPS Maintenance Bypass Panel for SUT40K
    • Installation and Operation Manual


  • Warranty:

    • 1-year


  • GTIN:

    0037332222367
