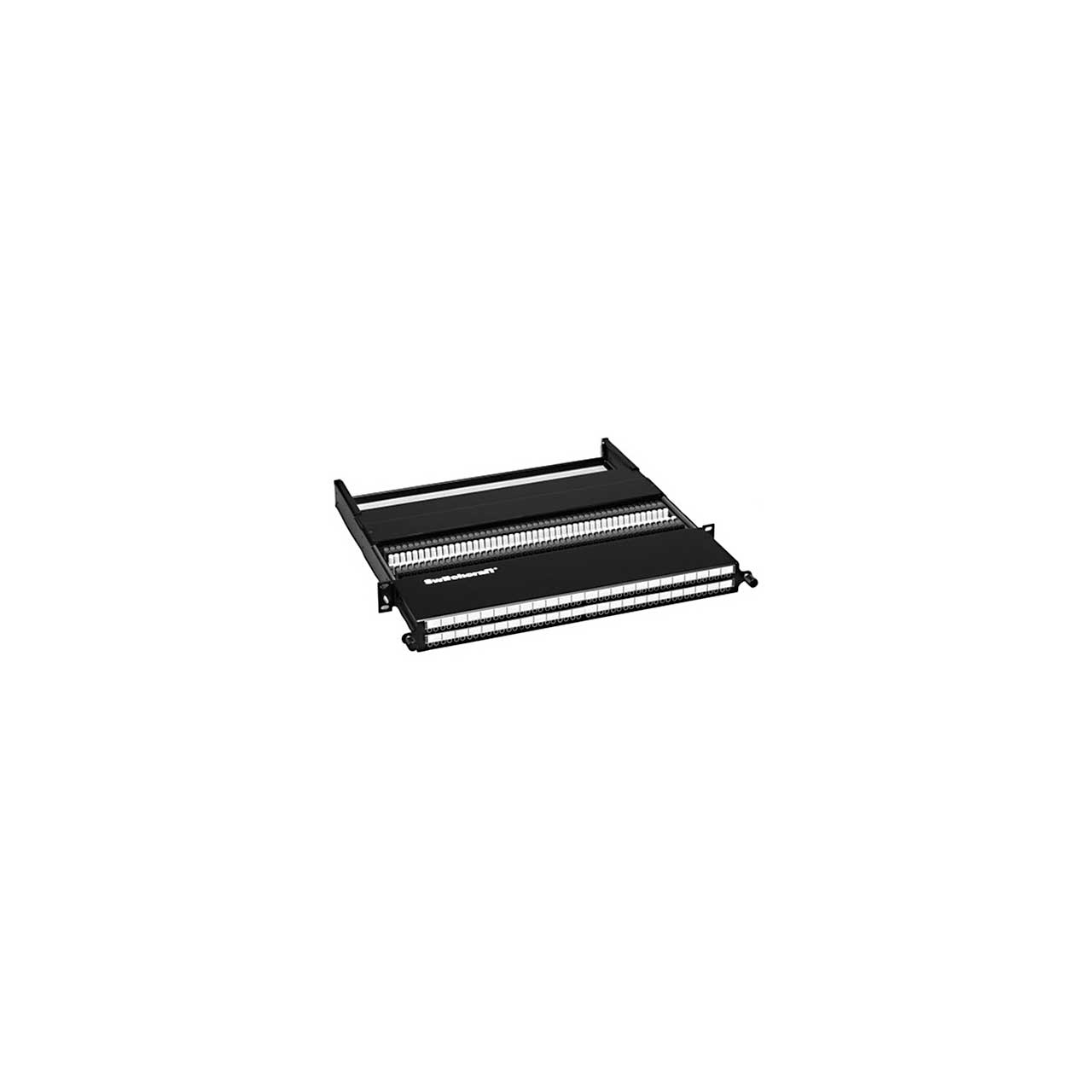

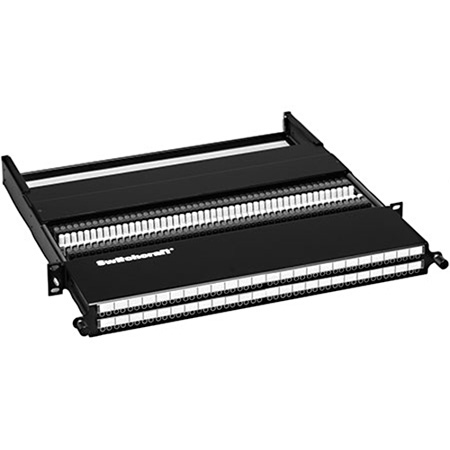

Switchcraft TTPFA96K1NSX 1RU 2x48 Bantam TT Front Access Bay - Normals Strapped

TTPFA96K1NS - Overview

• Features:

  • Easy access tray slides forward for easy re-termination from the front of the jack Attractive, corrosion resistant nickel plated steel jack frames Gold plated switch contacts Extra wide designation strip for easy identification Requires SW-PT1 punch down tool (not included) Jacks are paired for easy identification of left and right channels.


• Specifications:

  • Jacks
  • Frame: Nickel-plated steel
  • Bushing: Nickel-plated brass
  • Tip, Ring and Shunt Springs: Nickel silver with welded contacts
  • Assembly Screws: Nickel-plated steel
  • Welded Contacts: Gold alloy

    Panel
  • Frame: C.R.S. black epoxy painted
  • Designation Strips: Black polycarbonate 94V-0
  • Designation Strip Covers: Clear polycarbonate
  • Jack Inserts: Thermoplastic 94V-0

    Mechanical
  • Life: 30,000 cycles
  • Insertion Force: 7 lbs. maximum
  • Withdrawal Force: 1 lb. minimum
  • Operating: -20°C to +65°C

    Electrical
  • Jack Contact Resistance: 30 milliohms initial max.; 50 milliohms after life
  • Jack Insulation Resistance: 10,000 megohms maximum
  • Dielectric Withstanding Voltage: 500V at 60 Hz AC
  • Working Voltage: 100 milliamps or less; maximum 56.5 VDC
