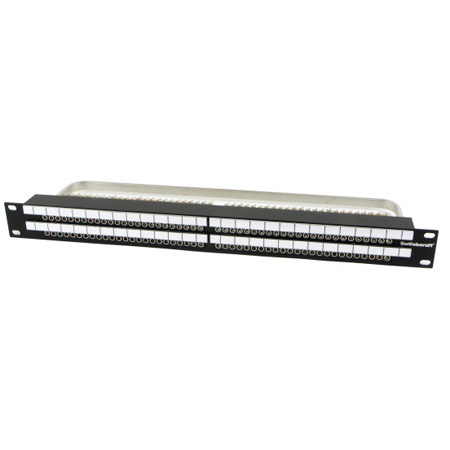

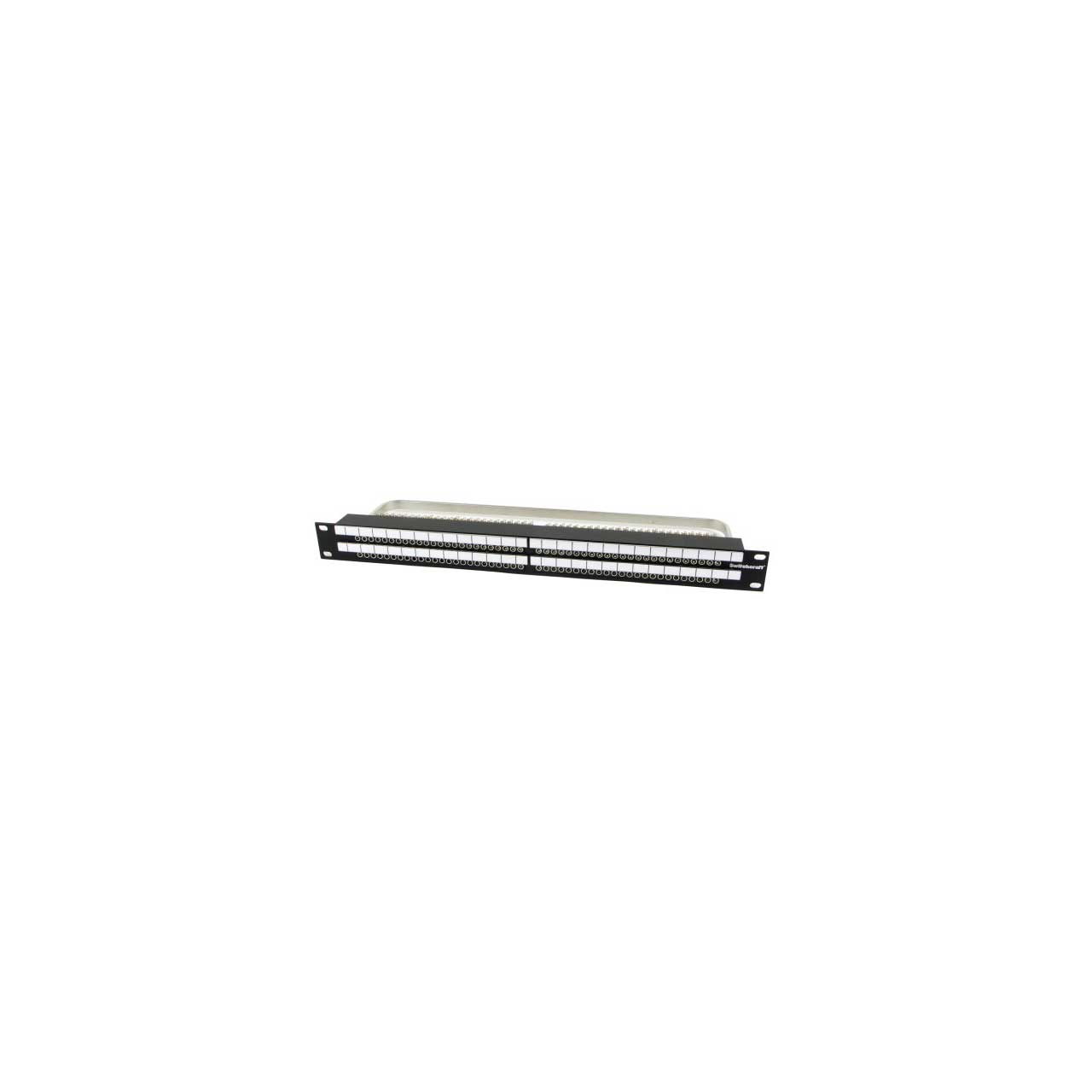

Switchcraft TTP96ASHNX 1RU 2x48 Bantam TT Bay with Solder Terminals - Half Normalled

Name: Switchcraft TTP96ASHNX 1RU 2x48 Bantam TT Bay with Solder Terminals - Half Normalled
Brand: Switchcraft
SKU: TTP96ASHN
Price: 634.39 USD
Availability: PreSale

ITEM #: TTP96ASHN MFG #: TTP96ASHNX

Switchcraft

Types:

Types

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$667.00

Our Price:

$634.39

Quantity Pricing

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

TTP96ASHNX - Overview

Switchcraft TTP96ASHNX is part their number one selling TT Patchbay. Multiple normalling configurations, pre-tinned and offset solder lugs, cable tie bar, changeable designation strips, and the most rugged, long lasting TT jacks available make this patchbay an industry leader.

Specifications:
- Jacks
- Frame: Steel, nickel-plated
- Bushing: Nickel-plated copper alloy
- Springs: Copper alloy solder lugs
- Ground Terminal: Steel, tin electro-deposited
- Switching Contacts: Welded, gold alloy inlay over palladium base
- Insulation: Rigid plastic spacers, rigid PVC tubing through stack
- Screws: Steel, plated

  Panel
- Frame: Black anodized aluminum
- Inserts: Polyester, glass filled, 94V-0
- Cable Support Bar: Cold rolled steel, nickel-plated
- Designation Strips: Thermoplastic, 94V-0
- Designation Strip Covers: Clear thermoplastic, SE-1
- Marking Strip: Rigid vinylite
- Jack Mounting Screws: Steel, plated
- Screws: Steel, black plated

  Mechanical
- Life: 30,000 cycles
- Insertion Force: 7 lbs. maximum
- Withdrawal Force: 1 lb. minimum
- Operating: 0°C to +50°C

  Electrical
- Contact Resistance: 30 milliohms maximum initial
- Insulation Resistance: 10,000 megohms maximum
- Dielectric Withstanding Voltage: 500V at 60 Hz AC
- Working Voltage: 140 VDC maximum
- Current Rating: 100 milliamps
