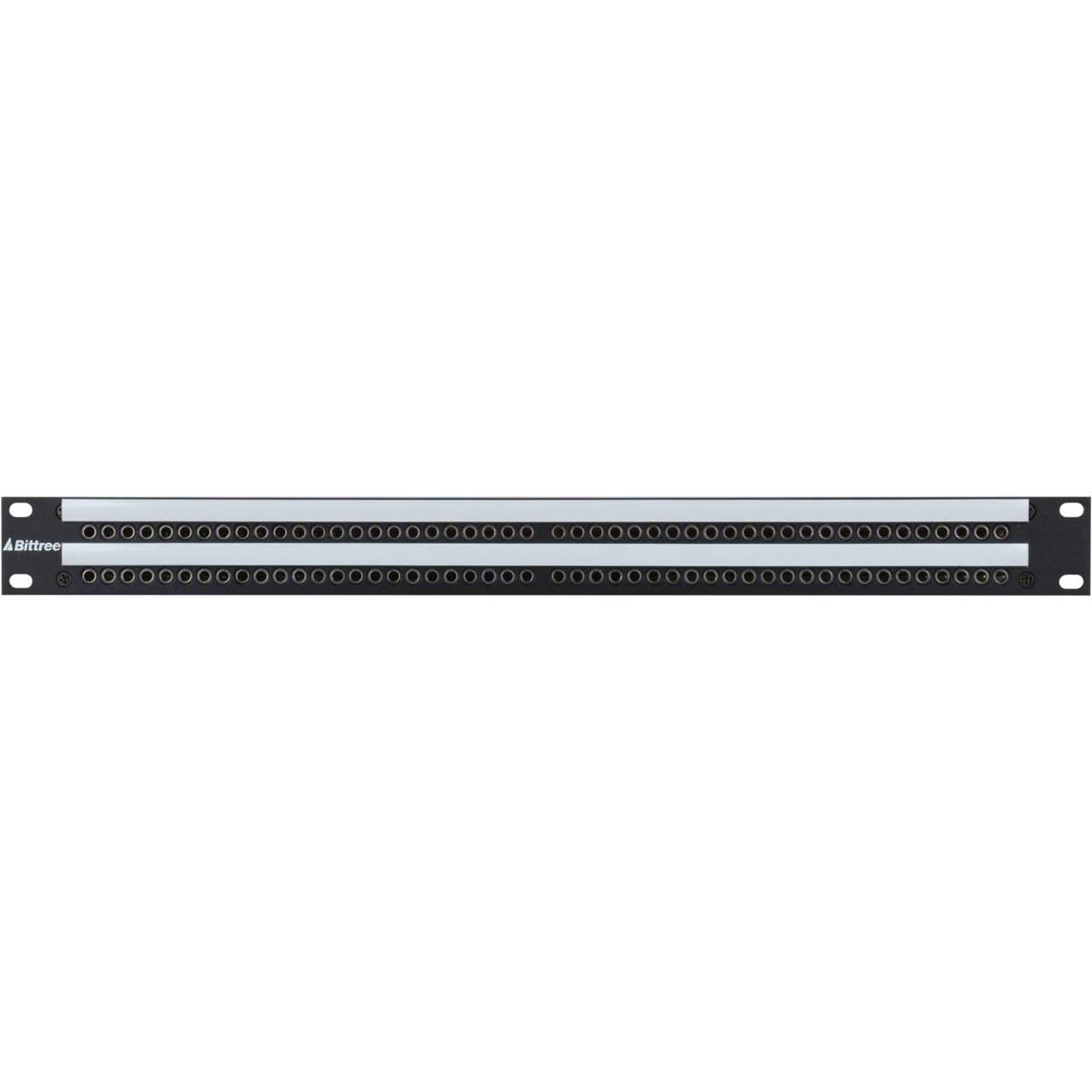

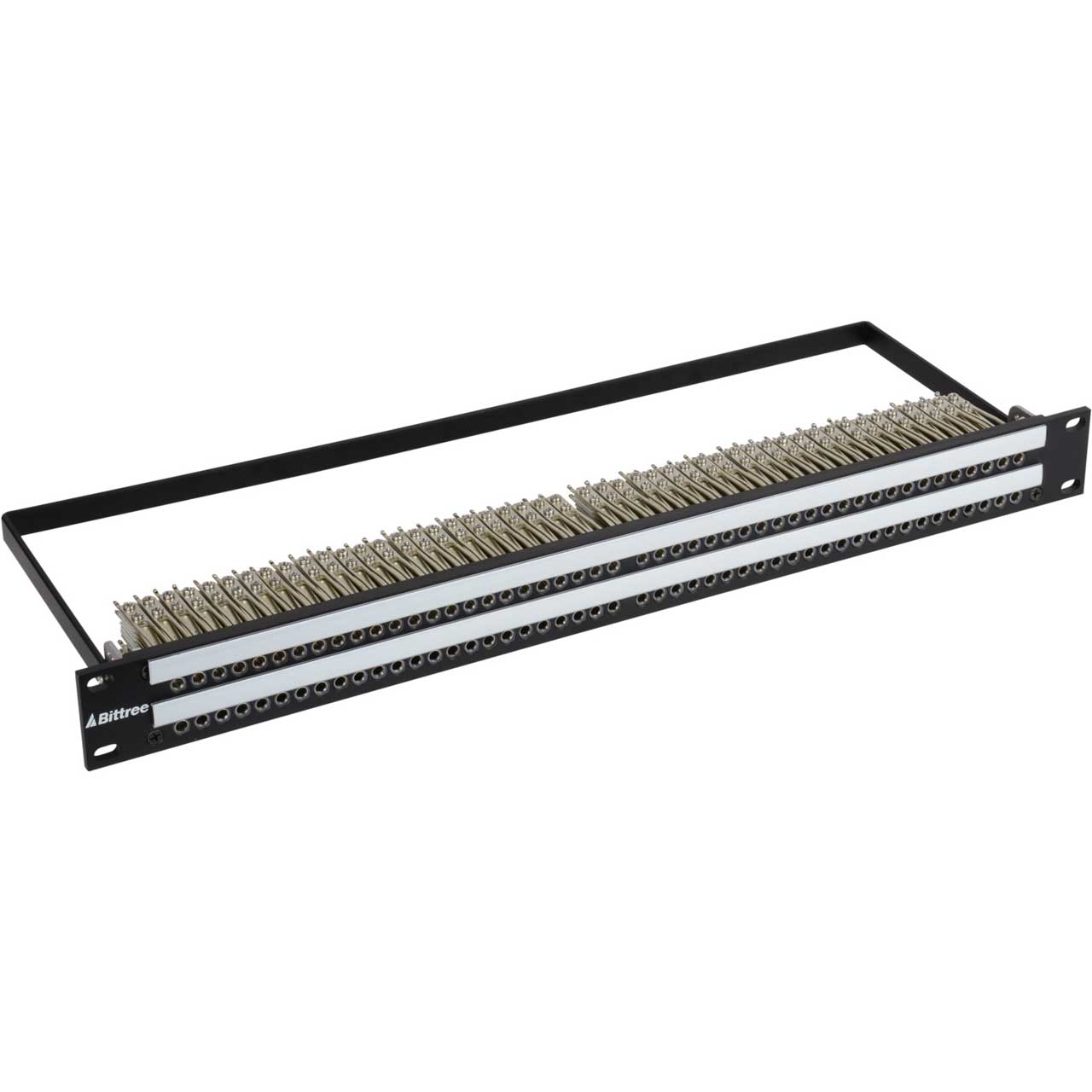

Bittree B96S-5M2OOB430 1RU 2x48 Non-Programmable Audio TT Bantam Patchbay - Pre-Tinned Jack Tails - No Chassis

ITEM #: BIT-B96S-5M2OOB4 MFG #: B96S-5M2OOB430

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$869.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    B96S-5M2OOB430 - Overview

    The Bittree B96S-5M2OOB430 has a high-density 2x48 jack configuration with mono (even) jack spacing, 5-lug jacks with two switching contacts support full, half, and non-normal circuit configurations with bussed, isolated, or looped grounds. Made from 3/16" (0.187"/4.76mm) machined aluminum and with a durable powder-coat finish.

    • Features:

      • High-density 2x48 jack configuration with mono (even) jack spacing
      • 5-lug jacks with two switching contacts support full, half, and non-normal circuit configurations with bussed, isolated, or looped grounds
      • 3/16" (0.187"/4.76mm) machined aluminum with a durable powder-coat finish
      • Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel
      • 2 x DS430-10 designation strips, "Over/Over" orientation
      • 6" (15.24cm) deep removable rear lacing bar included

    • Specifications:

      • TT (Bantam) Jack Properties
      • Rated to 30,000 minimum insertion cycles

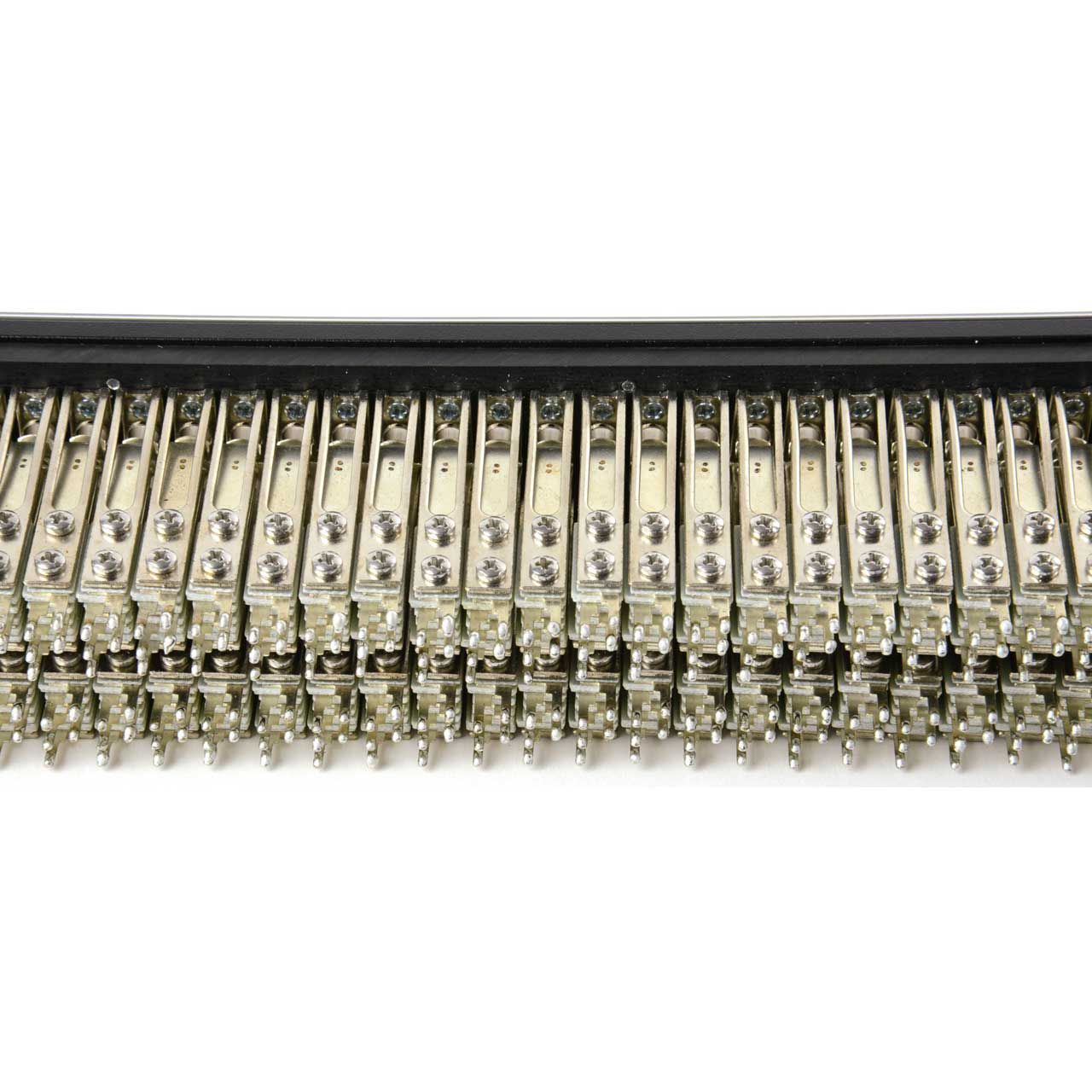

      • Copper-nickel-silver alloy leaf springs with gold-alloy cross bar switching contacts and nickel-plated sleeve bushings
      • Rugged nickel-plated, cold-rolled steel box-frame construction
      • Pre-tinned jack tails

    • Item Includes:

      • 6" (15.24cm) deep removable rear lacing bar included
