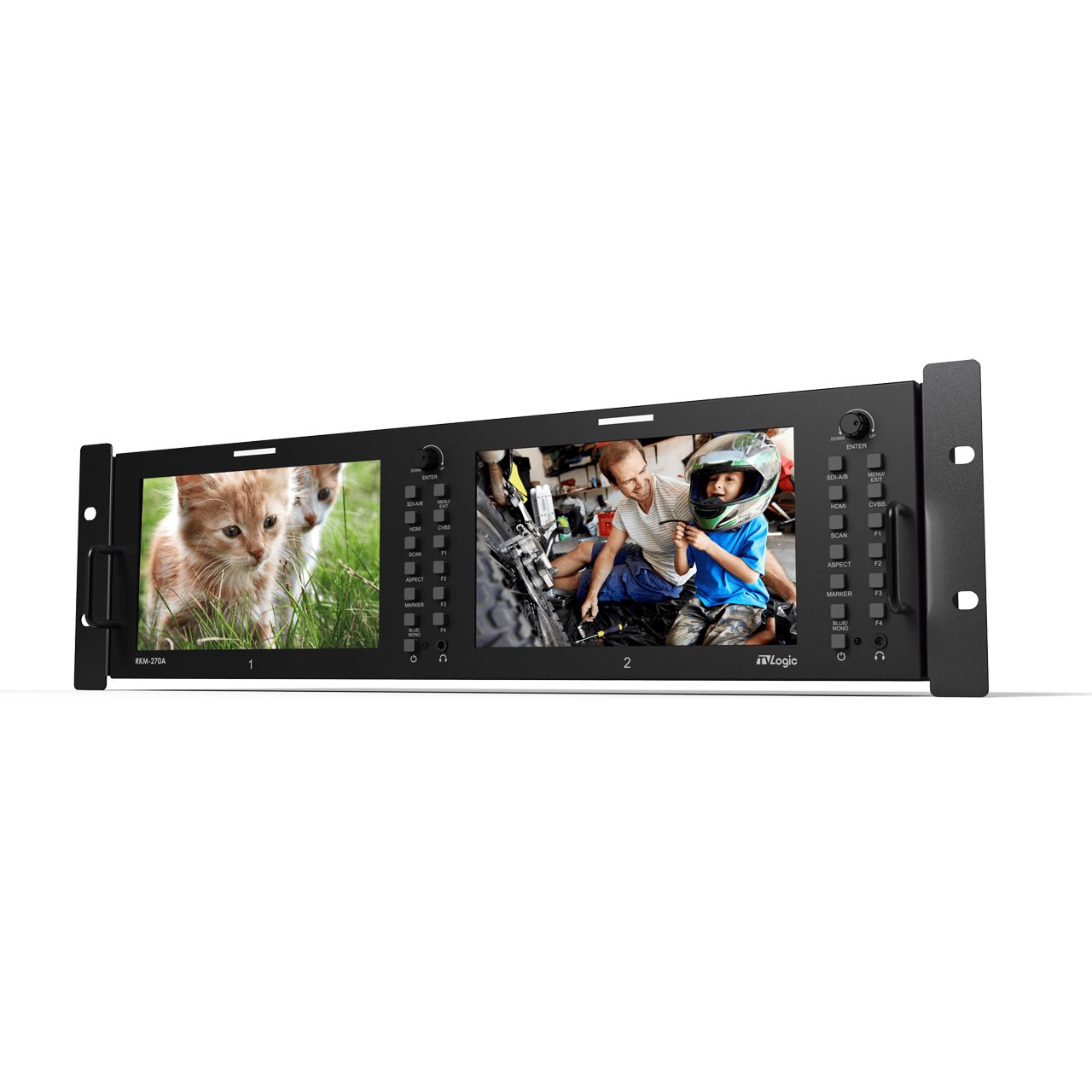

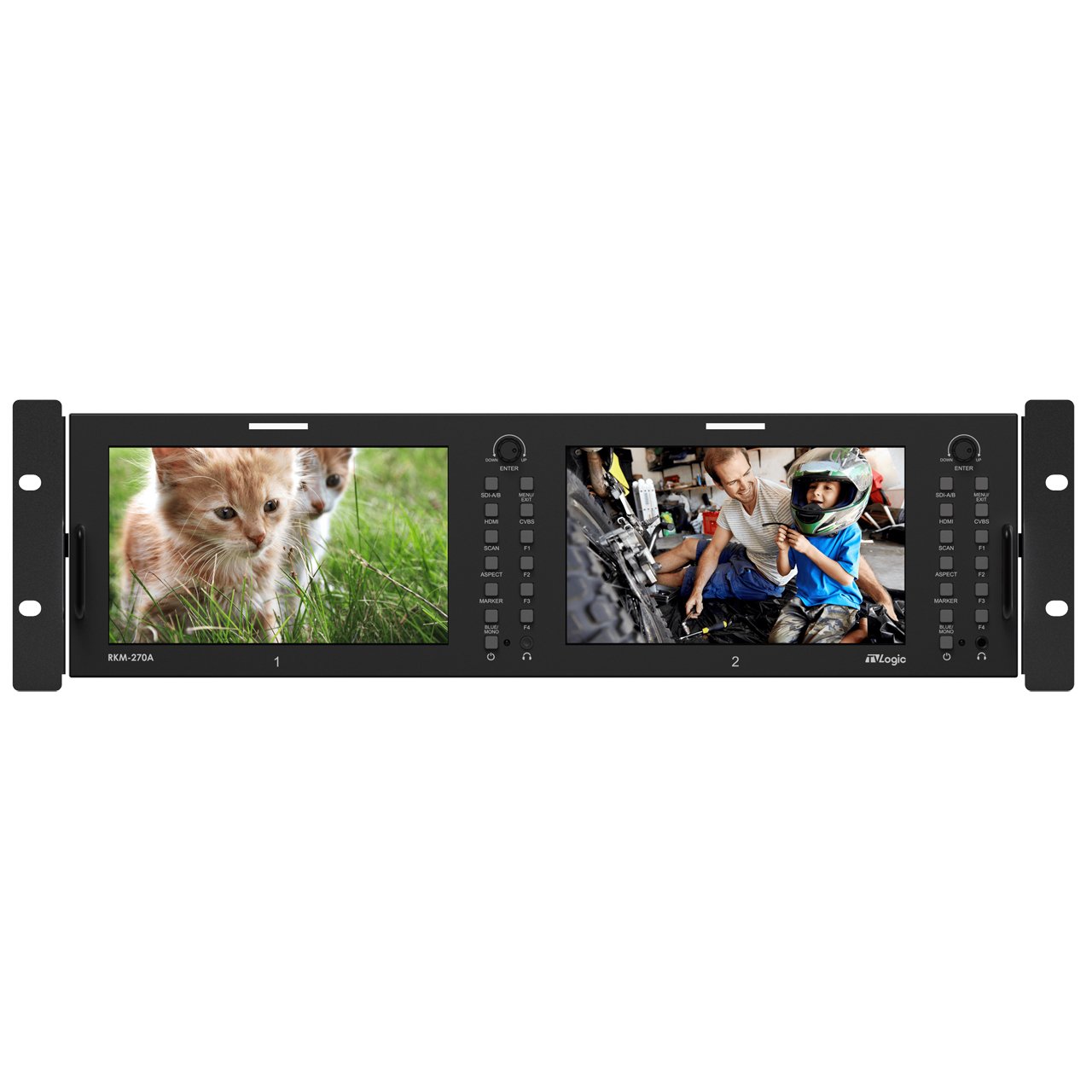

TVLogic RKM-270A Dual 7 Inch 3RU LCD Rack Monitor - Two 3G-SDI Inputs with Loop-out/ One Composite Input/ One HDMI Input

RKM-270A - Overview

• Features:

  • 1:1 Pixel Mapping Modes for SD/HD
  • Supports 3G-SDI Level A/B input
  • Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI
  • Only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar.
  • Closed caption
  • Focus Assist
  • H/V Delay
  • Key Lock
  • Luma(Y') Zone Check
  • Displays various kinds of aspect ratios on the screen with a wide range of markers and security areas that are available with line color and curtain transparency selection
  • Range Error analyzes the input signal's Luma (Y') and chroma (C') information
  • Time Code Display
  • UMD
  • Adjust the Width/Height display ratio
  • Various Scan Modes
  • Waveform/Vector Scope
  • Zoom


• Specifications:

  LCD
  • Size: 7"
  • Resolution: 1024 x 600 (16:9)
  • Pixel Pitch: 0.15(H) x 0.15(V) mm
  • Color Depth: 16.7M (Dithered 8bit)
  • Viewing Angle:
    - H: 170°
    - V: 170°
  • Luminance of White: 400 cd/m2 (Center)
  • Contrast Ratio: 800:1
  • Display Area: 153.6mm (H) x 90mm (V)

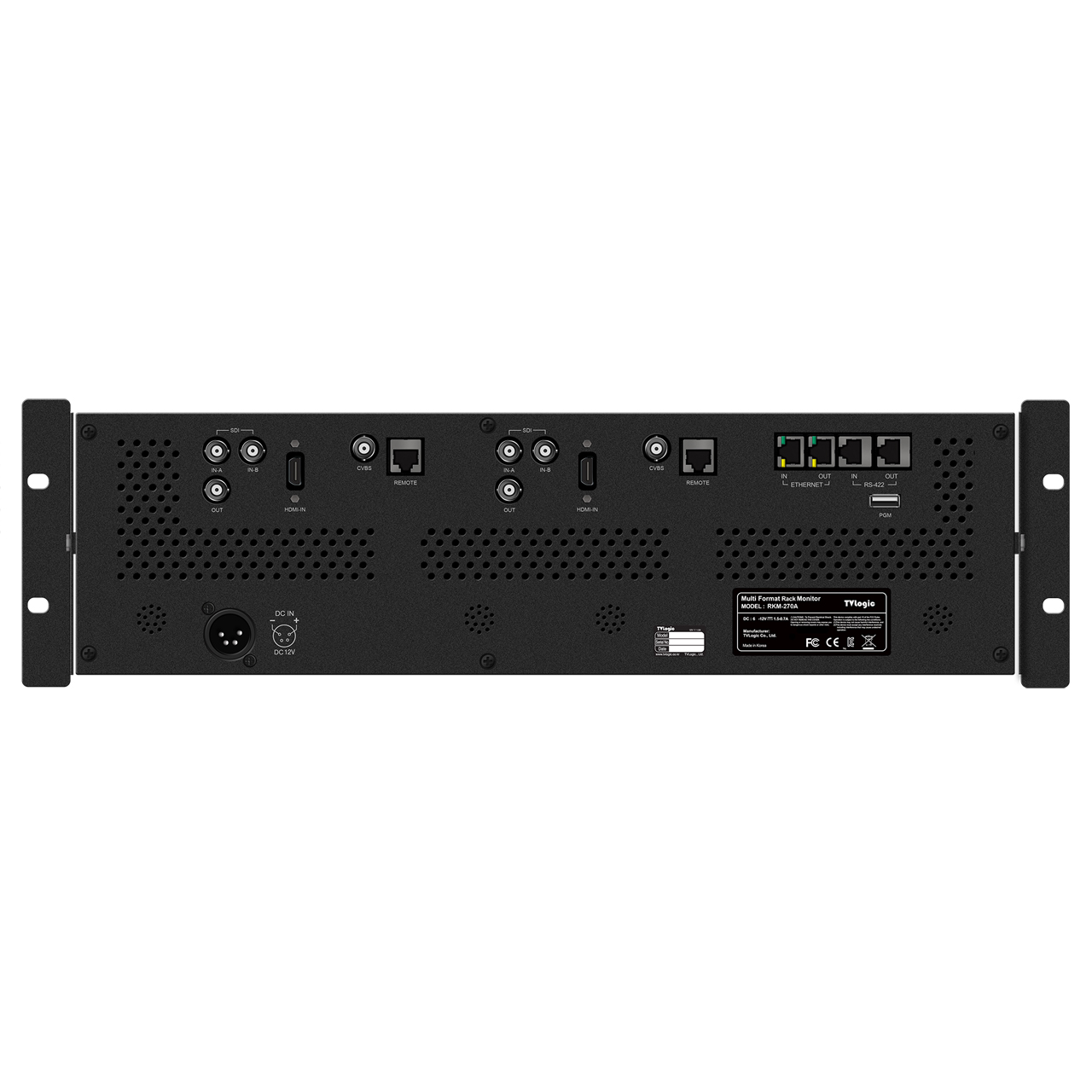

  • Input Connector:
    - 1x HDMI
    - 1x BNC
    - 1x BNC; CVBS
    - 2x BNC; SDI A/B Channel Input
  • Output: 1x BNC SDI Selected Channel
  • Analog Input Spec: Composite 1.0Vpp (With Sync.)

    Input Signal
  • Analog: Composite
  • 3G-SDI: 2.970Gbps
  • HD-SDI: 1.485Gbps
  • SD-SDI: 270Mbps
  • HDMI: 480i/480p/720p/1080i & VESA/IBM Modes

    SDI Input Signal Formats
  • SMPTE-425M-A/B: 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
  • SMPTE-274M:
    - 1080p (30/29.97/25/24/24sF/23.98/23.98sF/ 50/59.94/60)
    - 1080i (60/59.94/50)
  • SMPTE-296M: 720p (60/59.94/50)
  • SMPTE-260M: 1035i (60/59.94)
  • SMPTE-125M: 480i (59.94)
  • ITU-R BT.656: 576i (50)


  • Audio In: Embedded Audio/Analog Stereo (Phone Jack)
  • Audio Out: Analog Stereo (Phone Jack)/Speaker (Mixed mono)
  • Power: DC 12V
  • Power Consumption (Approx.): 60 Watts (DC)/Max 2.5A
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Main Body Dimensions: 16.93" x 4.72" x 2.74" (430mm x 120mm x 69.6mm)
  • Main Body Dimensions with RMK: 18.90" x 5.20" x 3.31" (480mm x 132mm x 84.1mm)
  • Box Dimensions: 21.85" x 6.50" x 9.06" (555mm x 165mm x 230mm)
  • Weight: 15.4lbs (4kg)
