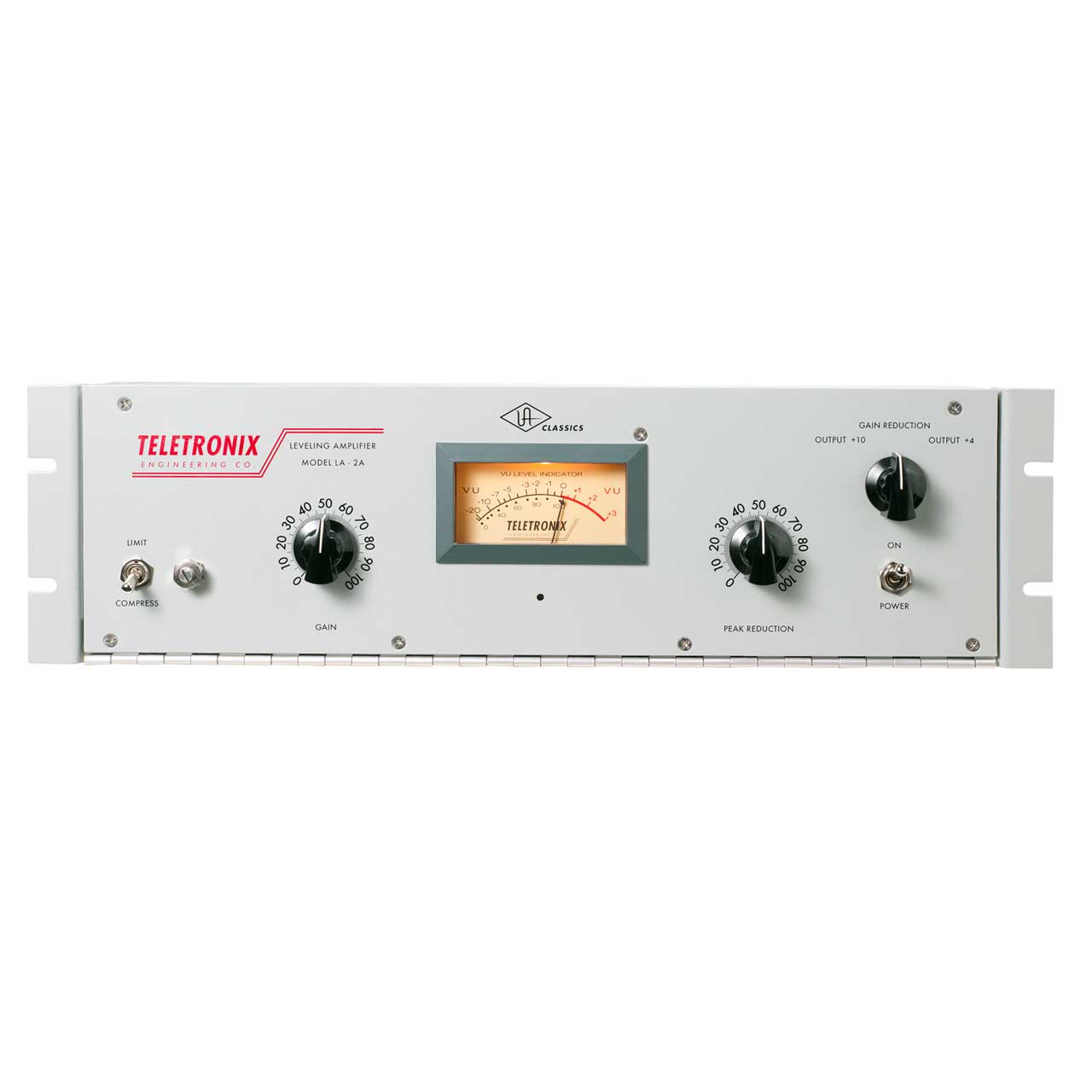

Universal Audio LA-2A Teletronix LA-2A Classic Leveling Amplifier

LA-2A - Overview

• Features:

  • True to the original in design, manufacturing and performance
  • Lag free, distortion free optical attenuator system
  • Distortion less than 0.5% THD
  • 0 to 40 dB gain limiting
  • Balanced stereo interconnection
  • Frequency response 1 dB, 30 to 15,000 cps
  • Output level of 10 dBm and 40 dB gain
  • Low noise – less than 70 dB below ±10 dBm output
  • Hand-built in USA; backed by 1-Year limited warranty


• Specifications:

  • Input Impedance: 50, 150, 250, 600 ohms
  • Output Load Impedance: 50, 150, 250, 600 ohms

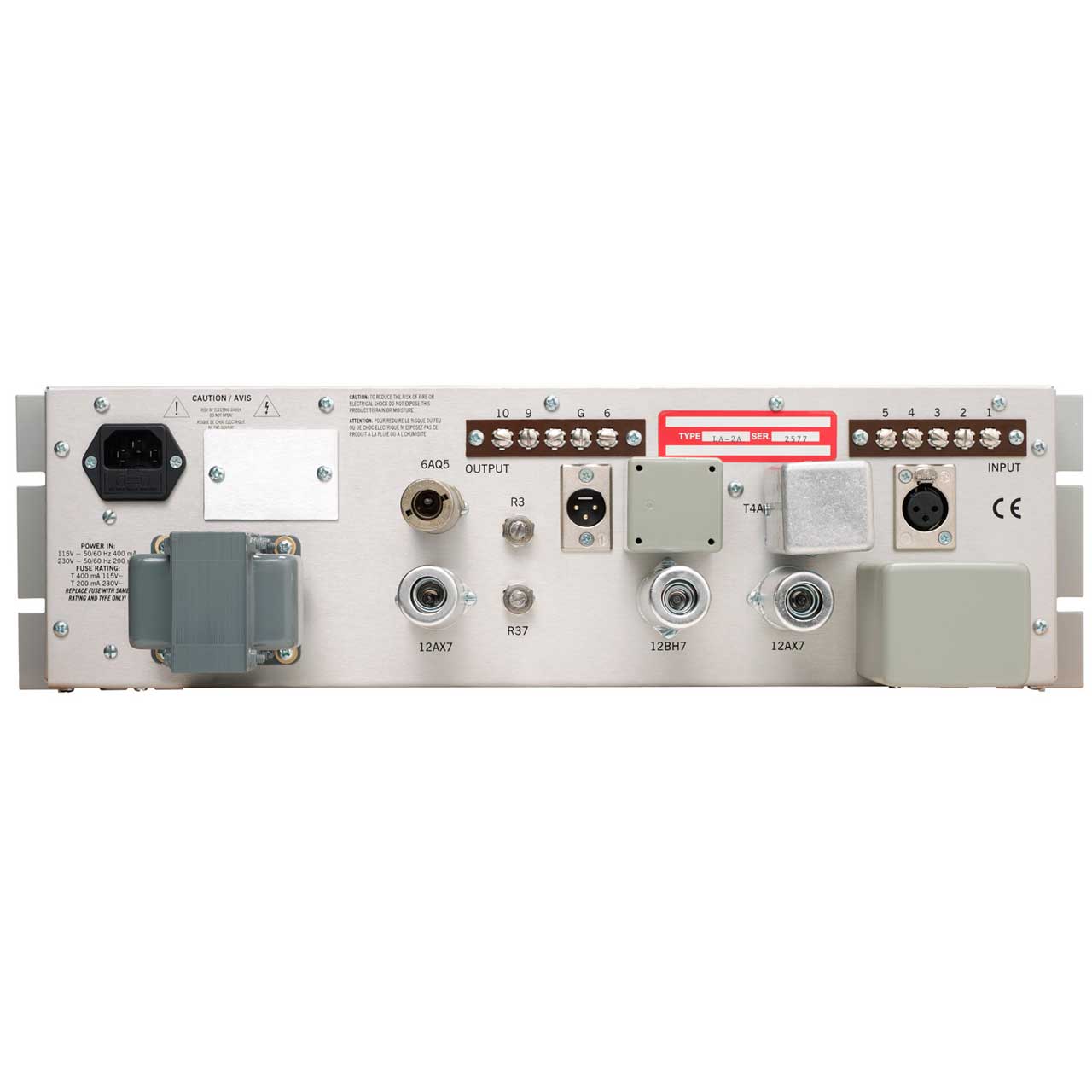

  • External Connections: Jones Barrier terminals and XLR connectors
  • Frequency Response: +0/-1 dB 30 Hz to 15kHz
  • Gain: 40 dB ±1dB
  • Input Level: +16 dB maximum
  • Output Level: +10 dB nominal, +16 dB maximum
  • Distortion: Less than 0.5% THD (0.25% typical) at ±10 dBm
  • Noise: 70 dB below +10 dBm output level
  • Attack Time: 10 milliseconds
  • Release Time: 0.06 seconds for 50% release; 0.5 to 5 seconds for complete release
  • Meter: dB gain reduction and dB output
  • Power Requirements: 35 watts, 120/240 volts, 50/60 Hz
  • Environmental: Maximum operating temperature 160°F
  • Dimensions: 19" Rackmount chassis, 3U
