Ubiquiti UAP-AC-HD UniFi AC HD UAP-AC-HD IEEE 802.11ac 1.69 Gbit/s Wireless Access Point

UAP-AC-HD - Overview

• Features:

  • Centrally manage multiple networks from an intuitive interface.
  • Enjoy real-time device insights and deep configuration options.
  • Upgrade device firmware remotely.
  • Manage network users and guests with ease.
  • Personalize the design, architecture, and privacy of guest hotspots.
  • Set up devices quickly and manage them on the go with a powerful mobile app.
  • 802.11ac Wave 2 WiFi technology
  • 5 GHz (4x4 MU-MIMO) band with a 1.7 Gbps throughput rate
  • 2.4 GHz (4x4 MIMO) band with a 800 Mbps throughput rate
  • Powered with PoE+*
  • (2) GbE RJ45 ports
  • (1) USB port


• Specifications:

  • Dimensions 220 x 220 x 48.1 mm (8.66 x 8.66 x 1.89").
  • Weight With Mounting Kits: 700 g (1.54 lb), 830 g (1.83 lb).
  • Networking Interface: (2) 10/100/1000 Ethernet Ports.
  • Buttons: Reset.
  • Power Method: 802.3at PoE+.
  • Supported Voltage Range: 44 to 57VDC.
  • Power Supply: UniFi Switch (PoE).
  • Power Save Supported
  • Beamforming Supported
  • Maximum Power Consumption 17W
  • TX Power
  • 2.4 GHz
  • 5 GHz
  • 6-25 dBm
  • 6-25 dBm
  • Antennas
  • 2.4 GHz
  • 5 GHz
  • (2) Dual-Port, Dual-Polarity Antennas, 3 dBi each
  • (2) Dual-Port, Dual-Polarity Antennas, 4 dBi each
  • Wi-Fi Standards 802.11 a/b/g/n/r/k/v/ac/ac-wave2
  • Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
  • 802.11w/PMF
  • BSSID Up to 8 per Radio

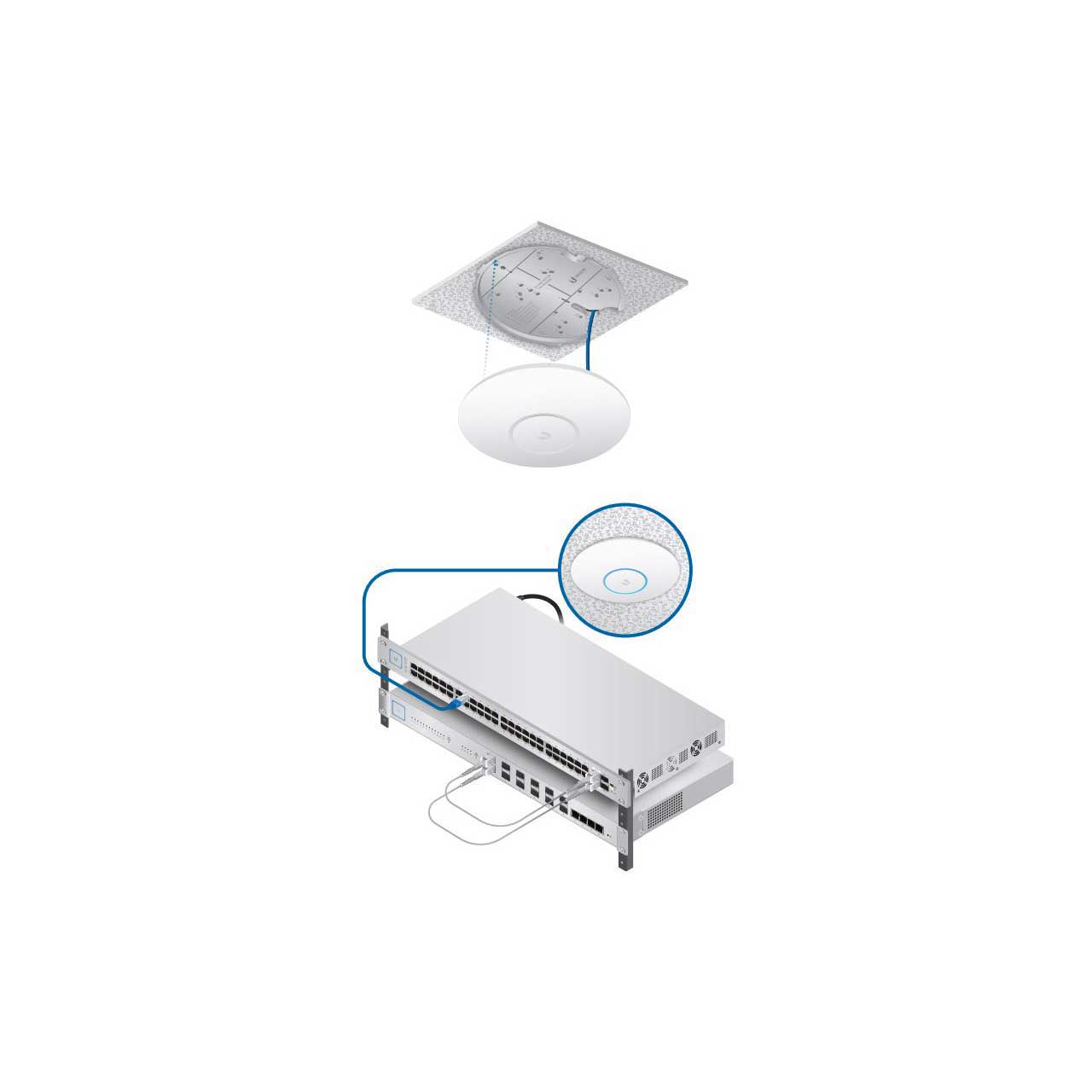

  • Mounting Wall/Ceiling (Kits Included)
  • Operating Temperature -10 to 70° C (14 to 158° F)
  • Operating Humidity 5 to 95% Noncondensing
  • Certifications CE, FCC, IC
