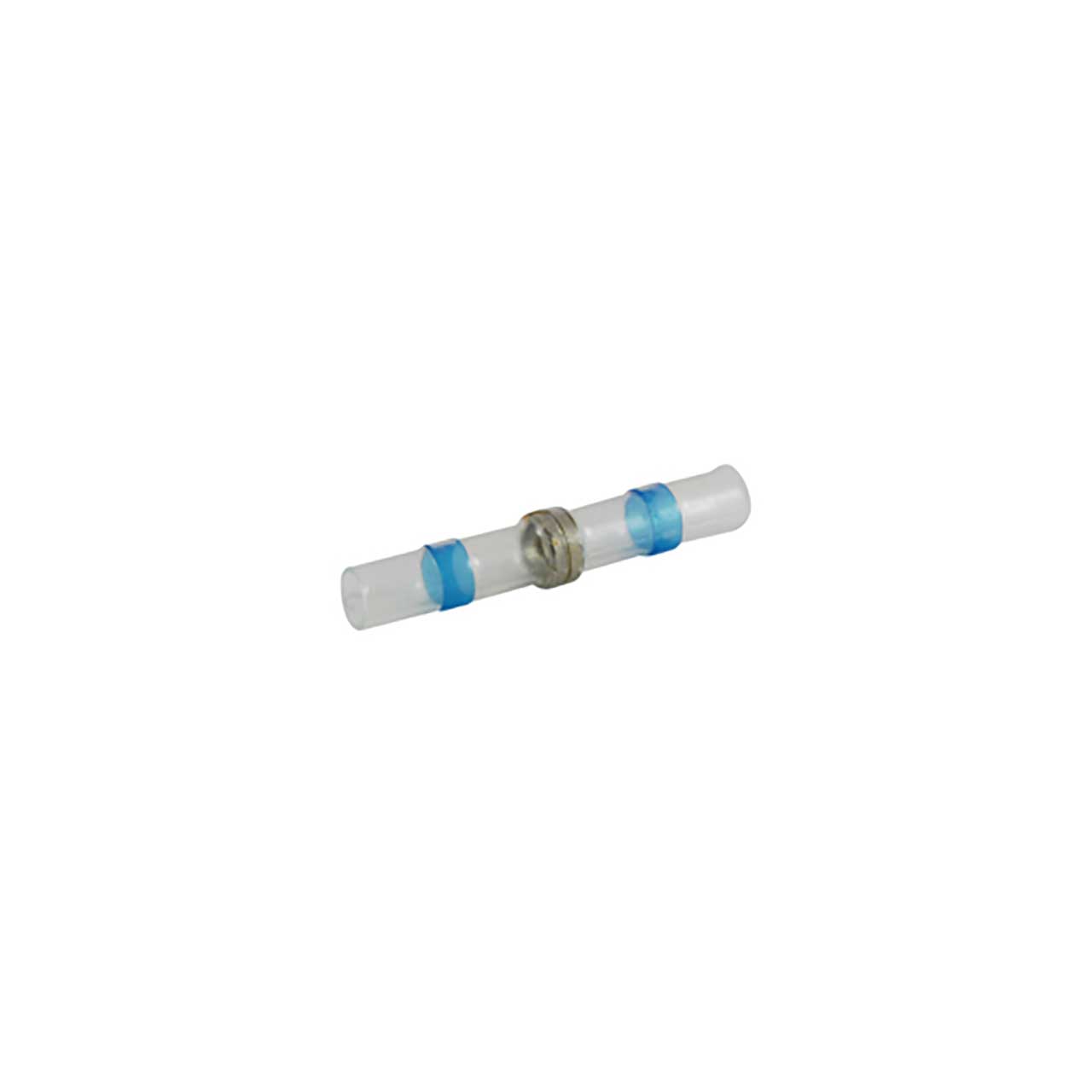

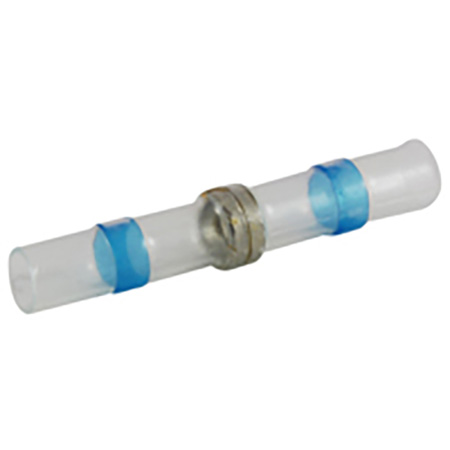

Waterproof Heat Shrink Butt Connector with Internal Lead Free Solder for 16-14awg Wire - 100 Pack

ITEM #: UPS-BUTCON-1614 MFG #: BUTCON-1614

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the UPS-BUTCON-1614

BUTCON-1614 - Overview

Waterproof heat shrink butt connector with internal lead free solder solder for 16-14awg wire. No crimping required. The heat shrink is adhesive lined and color coded to industry standard wire gauges and the transparent heat shrink sleeve allows for precise visual inspection. Greater pull strength when compared to PVC or Nylon insulated butt connectors.

  • Features:

    • No crimping required
    • Heat shrink is adhesive lined and color coded to industry standard wire gauges
    • Transparent heat shrink sleeve allows for precise visual inspection
    • Greater pull strength when compared to PVC or Nylon insulated butt connectors
    • Protect against corrosion due to a fully waterproof seal
    • Rated for 1000V and +125C with a 2:1 shrink ratio
    • Waterproof Hot Melt Adhesive


  • Specifications:

    • Insulated Color: Blue
    • Maximum Electrical Rating: 1k Volts
    • Shrink Temperature: +60°C
    • Starting Temperature of Solder Melt: +138°C
    • Operating Temperature: -55° to +125°C
    • Solder Material: SnBi (42% Tin, 58% Bismuth)
    • Terminal Material: Tin
    • Plating: None
    • Insulated Material: Heat Shrinkable Tube
