Ubiquiti USW-PRO-MAX-48-POE Pro Max 48 PoE - 48 Ports/3 Layers - 2.5 Gigabit Ethernet Switch - 720W Total PoE

USW-PRO-MAX-48-POE - Overview

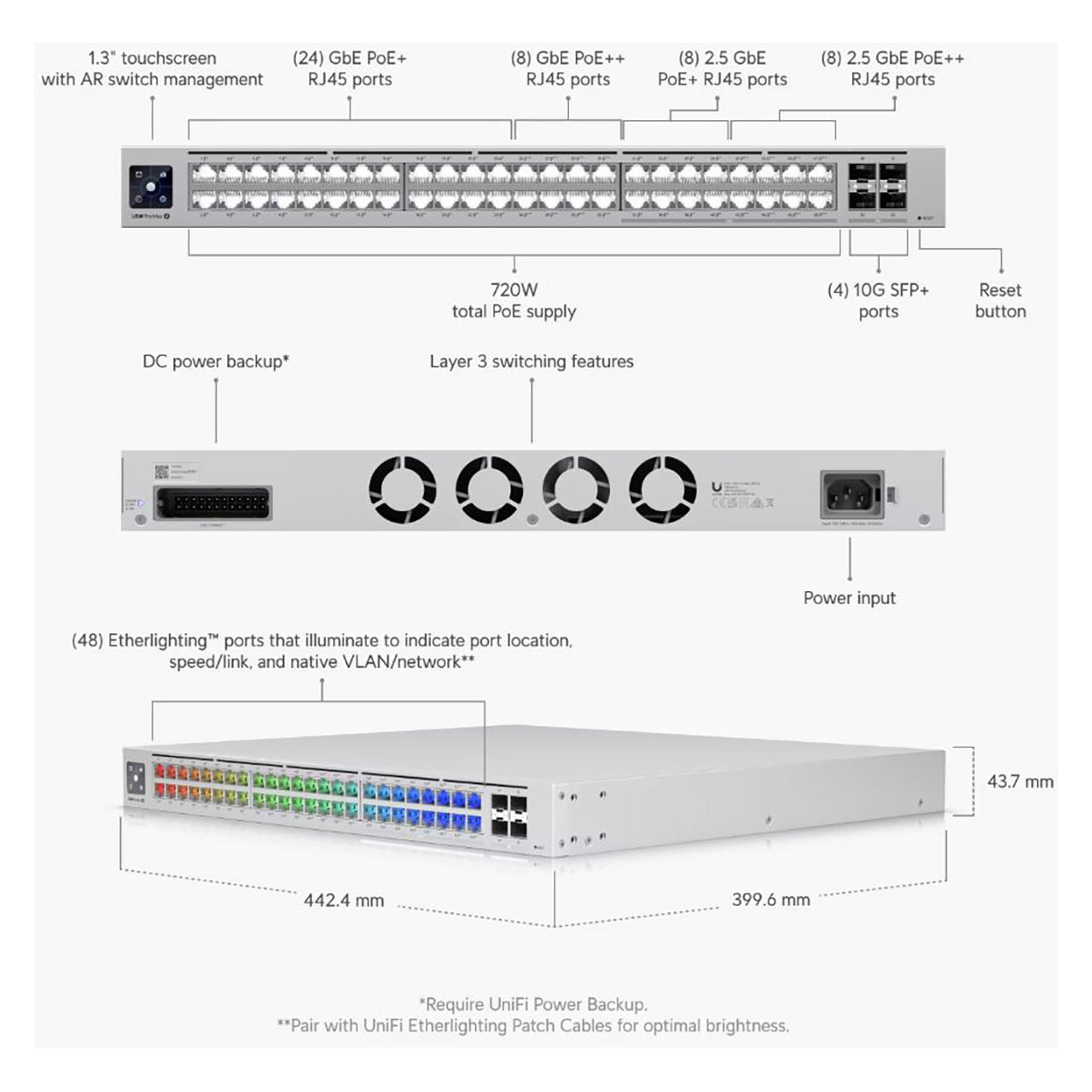

• Features:

  • Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network.
  • (16) 2.5 GbE ports including (8) PoE+ and (8) PoE++
  • (32) GbE ports including (24) PoE+ and (8) PoE++
  • (4) 10G SFP+ ports
  • DC power backup ready
  • 720W total PoE availability
  • Managed with UniFi Network 8.0.24 and later


• Specifications:

  • Management interface: Ethernet In-Band
  • Networking interface: (32) GbE RJ45 ports, (16) 1/2.5 GbE RJ45 ports, (4) 10G SFP+ ports.
  • PoE interface: (32) PoE/PoE+ (Pins 1, 2+; 3, 6-), (16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-).
  • Total non-blocking throughput: 112 Gbps.
  • Switching capacity: 224 Gbps.
  • Power method: (1) Universal input, 100-240V AC, 50/60 Hz, (1) USP-RPS DC input.
  • Power supply: AC/DC, internal, 820W.
  • Supported voltage range: 100-240V AC.
  • Max. power consumption: 100W (Excluding PoE output).
  • Total available PoE: 720W.
  • Max. PoE wattage per port by PSE: PoE: 15.4W, PoE+: 30W, PoE++: 60W.
  • Voltage range PoE mode: PoE: 44-57V, PoE+: 50-57V.
  • LCM display: (1) 1.3" touchscreen.
  • Ambient operating temperature: -5 to 40° C (23 to 104° F).
  • Ambient operating humidity: 10 to 90% noncondensing.
  • Application Requirements: UniFi Network Version 8.0.24 and later.

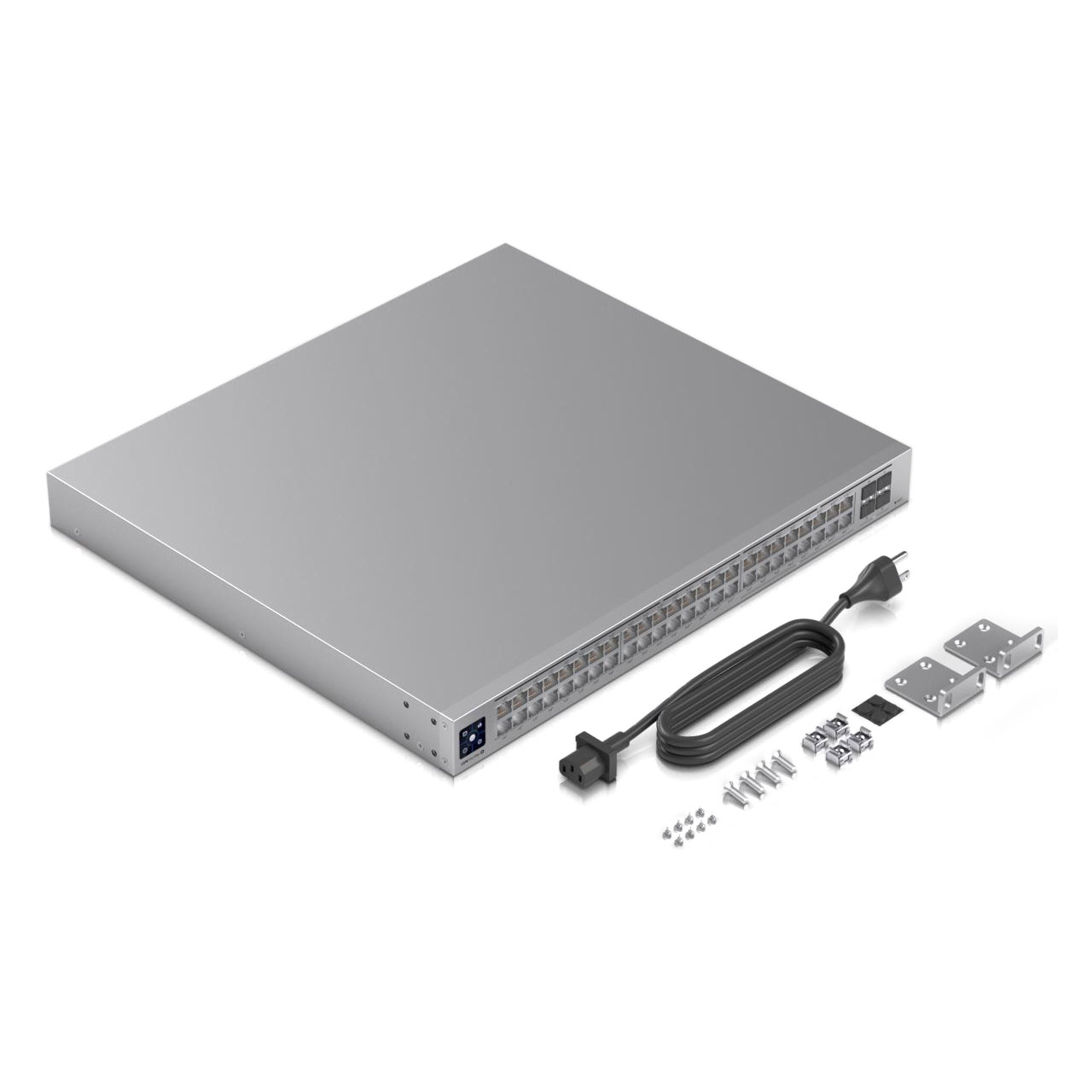

• Item Includes:

  • Ubiquiti Networks Pro Max 48 PoE 48-Port 2.5G / 1G PoE++ Compliant Managed Network Switch
  • Power Cable
  • Rackmount Kit
  • Display Cover
  • Limited 1-Year Manufacturer Warranty


• GTIN:

  0810084692615
