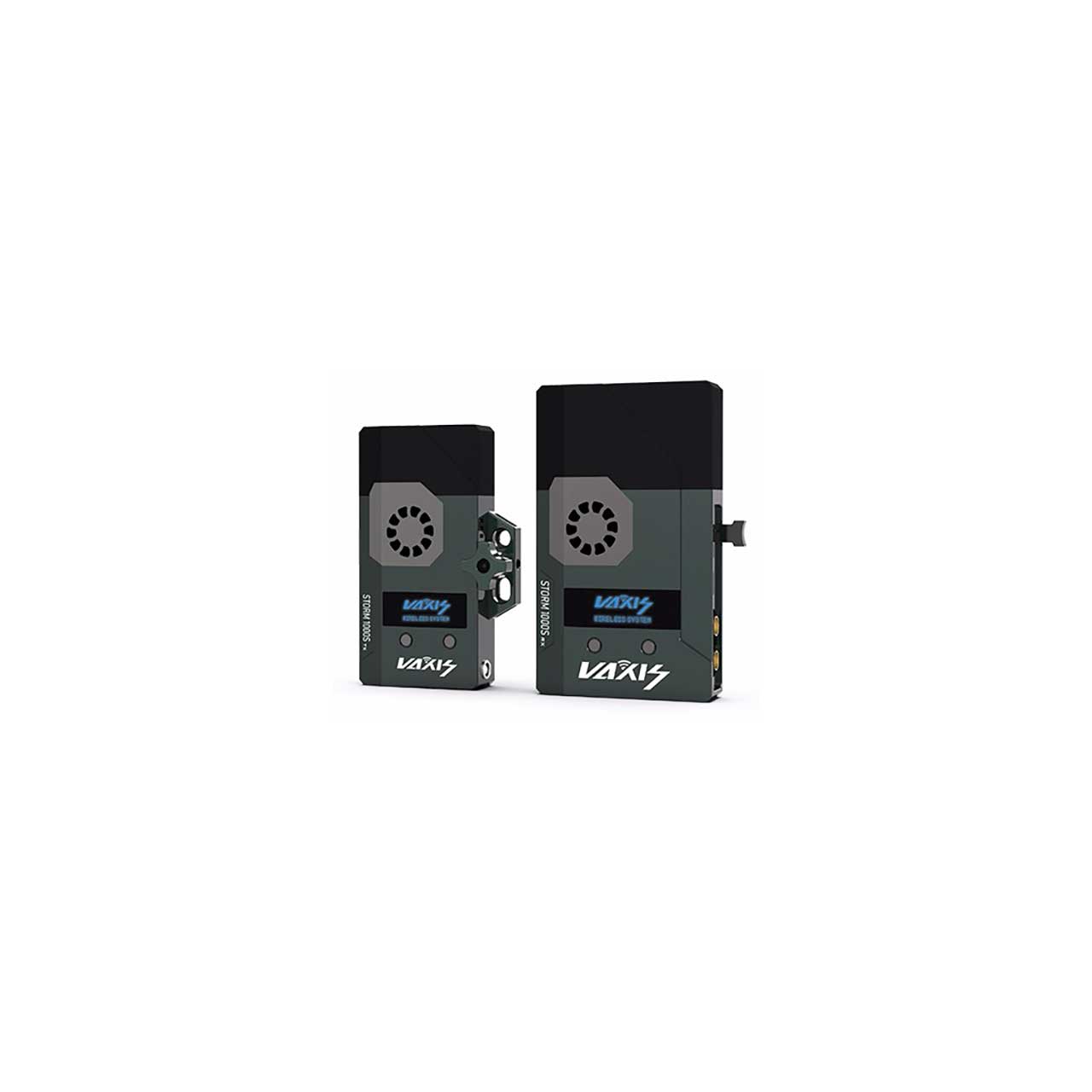

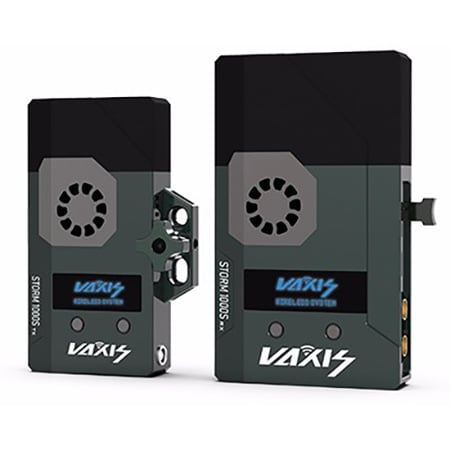

Vaxis STORM 1000S VS19-1000-TR02 SDI and HDMI Video Transmission System with 1000 Foot Range - V Mount

Name: Vaxis STORM 1000S VS19-1000-TR02 SDI and HDMI Video Transmission System with 1000 Foot Range - V Mount
Brand: VAXIS
SKU: VAX-STORM-1000S
Price: 2880.00 USD
Availability: PreSale

ITEM #: VAX-STORM-1000S MFG #: STORM-1000S

VAXIS

Our Price:

$2,880.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

STORM-1000S - Overview

The Vaxis Storm 1000S is an SDI and HDMI video transmission system with a 1000 foot range and a V Mount battery plate. The Storm 1000s was engineered with a new motherboard design which can reduce the signal interference and improve the transmission distance up to 1000 feet. Vaxis Storm 1000s features a new antenna-free design. The TX also has a built-in mounting bracket that uses a 3/8" thread. No external antennas means there's less chance of them getting broken or in the way. The TX features an SDI in/out as well as a HDMI input. The RX has two SDI and one HDMI output. It has a maximum range of 350m (1150 feet).

Features:
- Hidden, built-in antenna
- Supports 20 channels
- Better ventilation, improved compatibility
- More power options
- New motherboard supports 1000 foot mode
Specifications:
- General
- Outdoor Max Distance: 1000' (350m)
- Delay: less than 1ms
- Frequency: 20MHz or 40 Mhz
- Video Format: 1080p24/23.98, 1080p60/59.94, 1080p/50, 1080i60/59.94, 1080i50, 1080psf30/29.97, 1080psf24/25/23.98, 720p60/59.94, 720p50, 576p60
- Operating Temperature: 32° to 104°F (0° to 40°C)

  Transmitter
- Video Interface:
  1x SDI Input (BNC female)/SDI Loopout
  1x HDMI Input
  DC Input (2-pin Lemo female)/MicroUSB
- Antenna: Built-In
- Power Connector: 2-pin Lemo (Input)
- Voltage: 7.36V
- Dimensions: 5.43 x 2.74 x 0.96" (138 x 69.5 x 24.5mm)
- Weight: 0.64Lbs (290g)

  Receiver
- Video Interface:
  2x SDI OUTPUT (BNC female)
  1x HDMI Output
  DC Input (2-pin Lemo female)/MicroUSB
- Antenna: Built-In
- Power Connector: 2-pin Lemo (input), intergrated v-lock power input
- Voltage: 7-36V
- Dimensions: 6.16 x 3.60 x 0.96" (156.50 x 91.5 x 24.5mm)
- Weight: 0.96Lbs (435g)
Item Includes:
- 1x 1000s Transmitter
- 1x 1000s Receiver
- 2x Power Cable
- 1x SDI Cable
- 1x Flight Case
