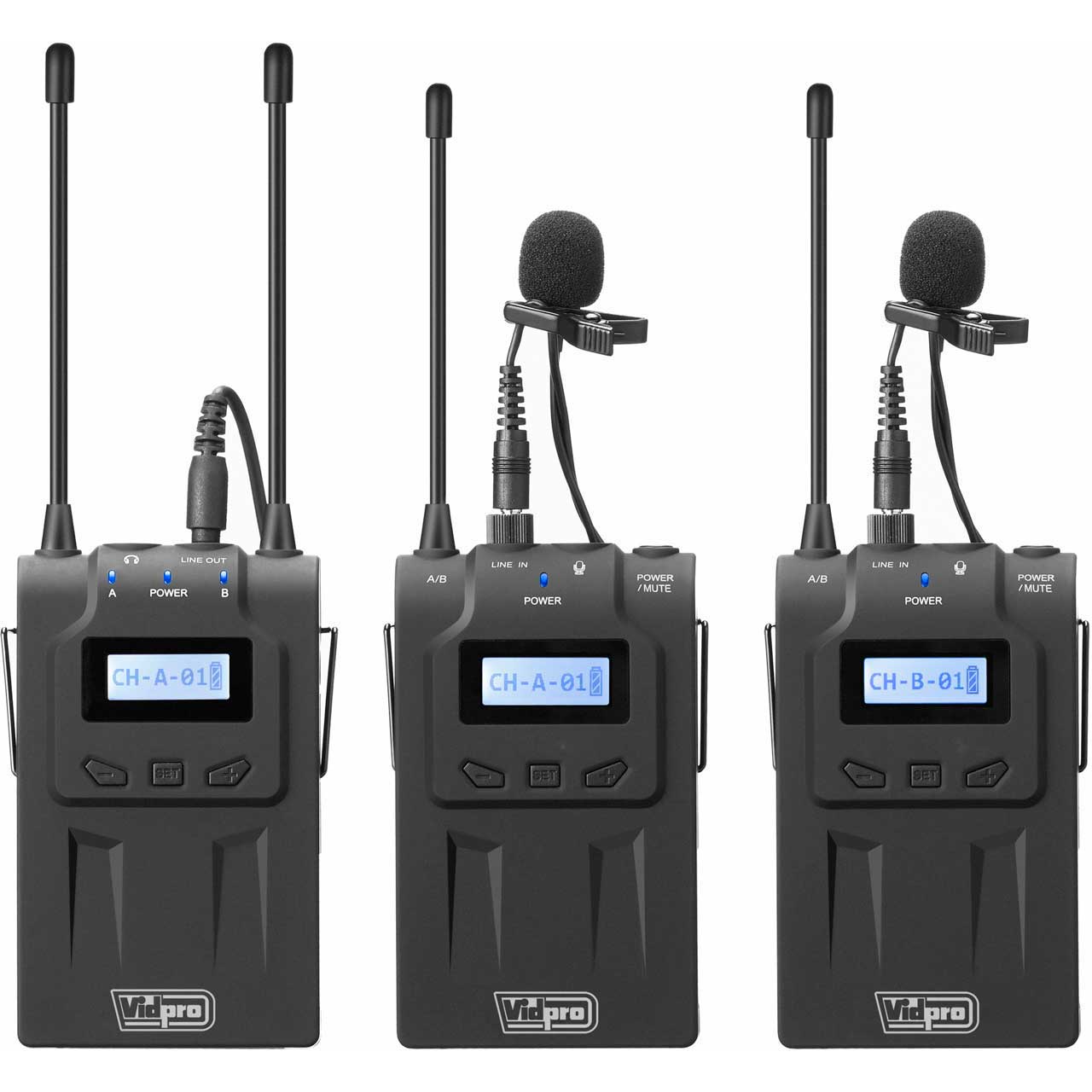

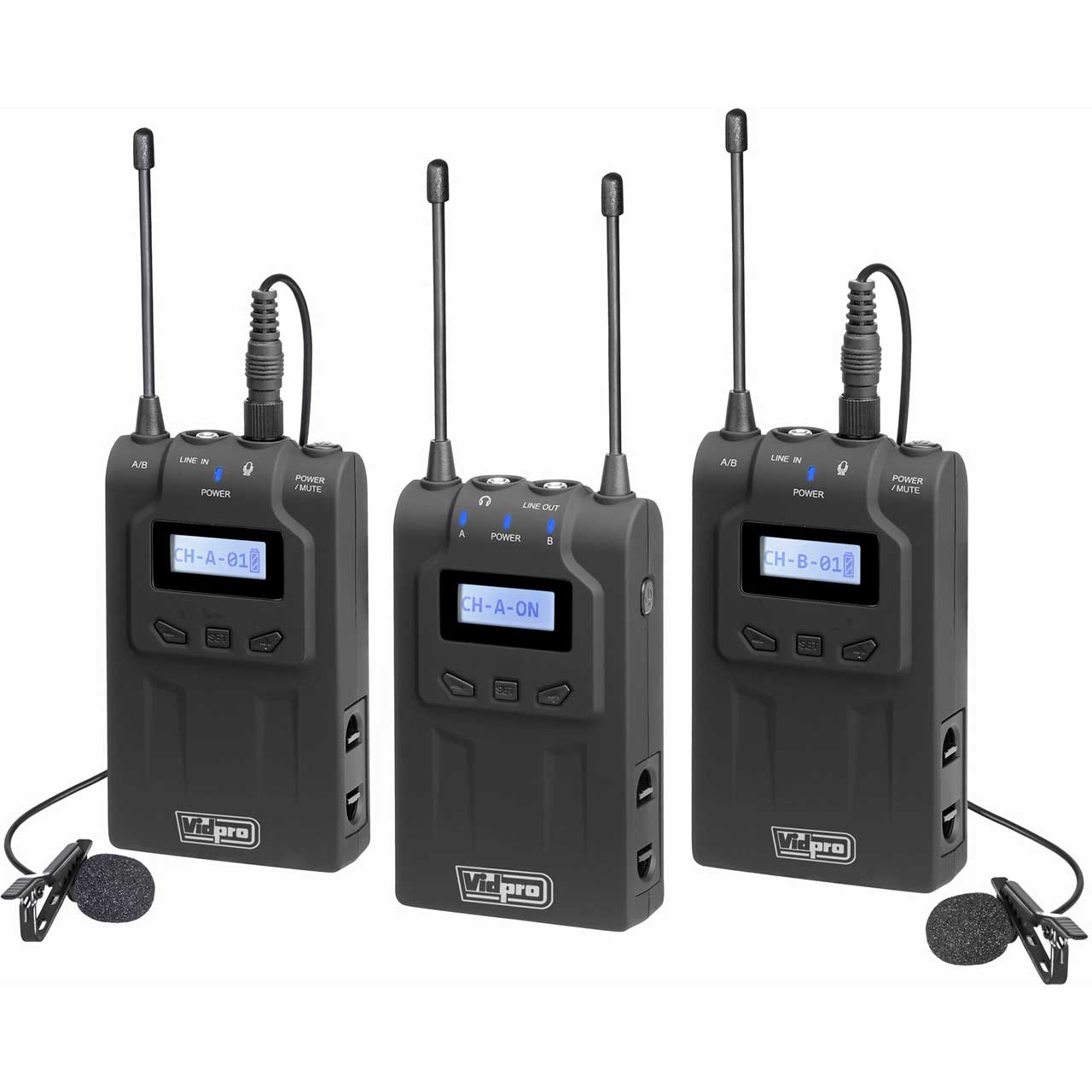

Vidpro XM-WTTR Dual Channel UHF Wireless Lavalier Microphone Set with 2 Transmitters and 1 Receiver

XM-WTTR - Overview

• Features:

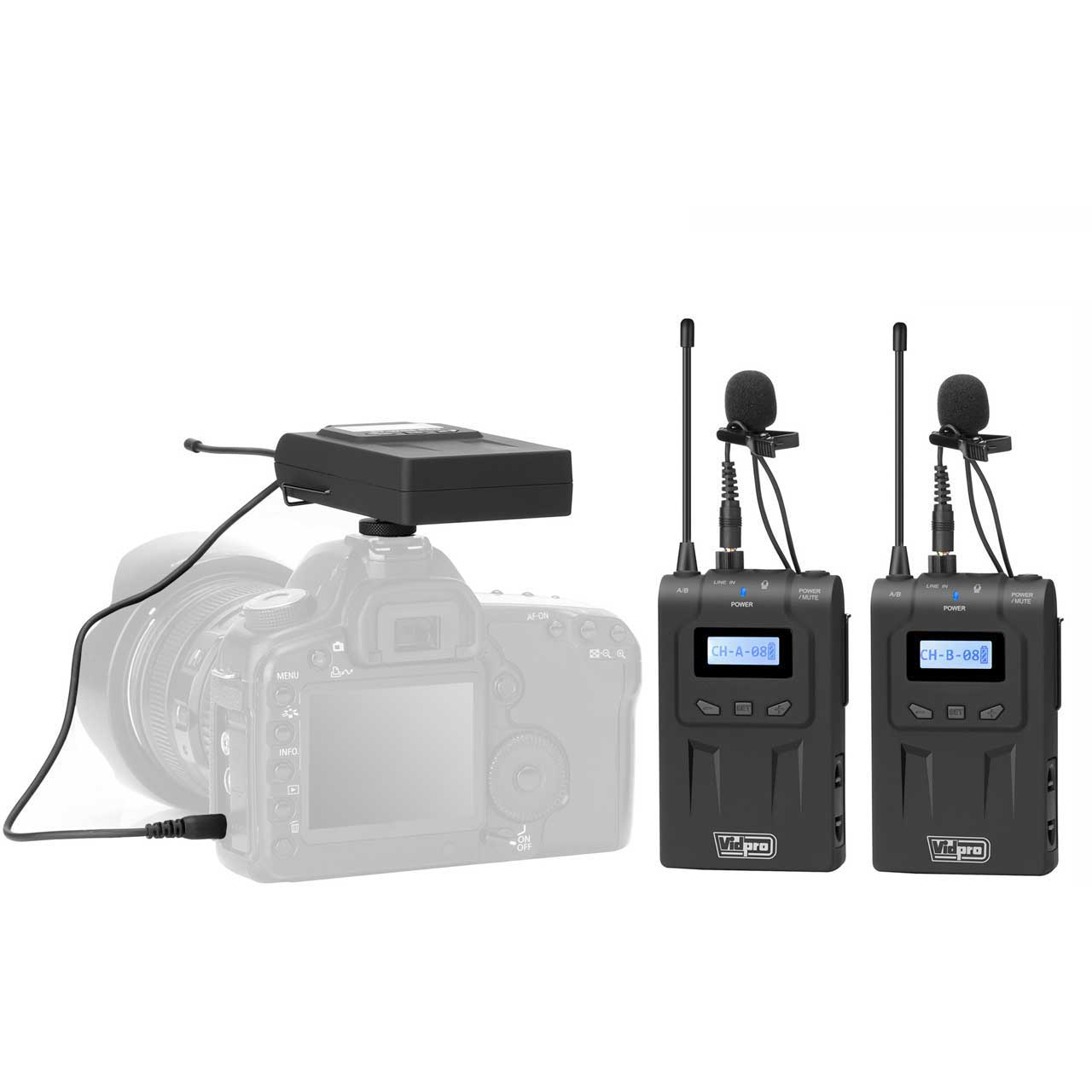

  • Two body-pack transmitters with lav mics communicate with one receiver unit combining the audio in 2-person interviews, ENG/EFP and DSLR video recording.
  • Latest UHF technology delivers ultra-high quality, crystal clear pro-grade audio with 48 user-selectable UHF Channels to choose from.
  • Powerful transmit range of up to 300 feet (line of sight) and over 6 hours of continuous operation using 2 AA batteries (sold separately)
  • Transmitter units feature backlit LCD displays, line-in and MIC inputs plus a selectable mute switch.
  • Dual channel wireless receiver unit features stereo and mono modes plus an additional output for live headphone monitoring.


• Specifications:

  • System
  • Oscillator Type: PLL Synthesized Control
  • Carrier Frequency Range: 556mHz-595mHz
  • 556.71 MHz-575.98 MHz (Transmitter A)
  • 576.39 MHz-595.66 MHz (Transmitter B)
  • Channels: 48
  • Frequency Response: 40Hz-18KHz +/- 3db
  • Operational Range: 300' (100m) unobstructed
  • Package Dimensions: 11"W x 9.5"H x 2"D
  • Package Weight: 2lb 2oz

    Transmitter
  • RF Output Power: 10mw
  • Spurious Emissions: 250nW or less
  • Audio input connector: 3.5mm Mini-Jack
  • Audio input level: -60 DBV
  • Reference Deviation: 5Khz
  • Input Frequency: 20Hz - 20KHz
  • Power Supply: 2 AA Batteries
  • Dimensions: (HxWxL) 4.2" x 2.6" x 1.1"
  • Weight: 95g (3.4oz) without batteries

    Receiver
  • Audio input connector: 3.5mm Mini-Jack
  • Signal to noise ratio: 70dB
  • Distortion: 0.8% (-60dBV, 1 KHz input)
  • Earphone output: 30mW, 15 Ohms/1Khz
  • Audio Output Level: -60 DBV
  • Power Supply: 2 AA Batteries
  • Dimensions: (HxWxL) 4.2" x 2.6" x 1.1"
  • Weight: 98g (3.5oz) without batteries

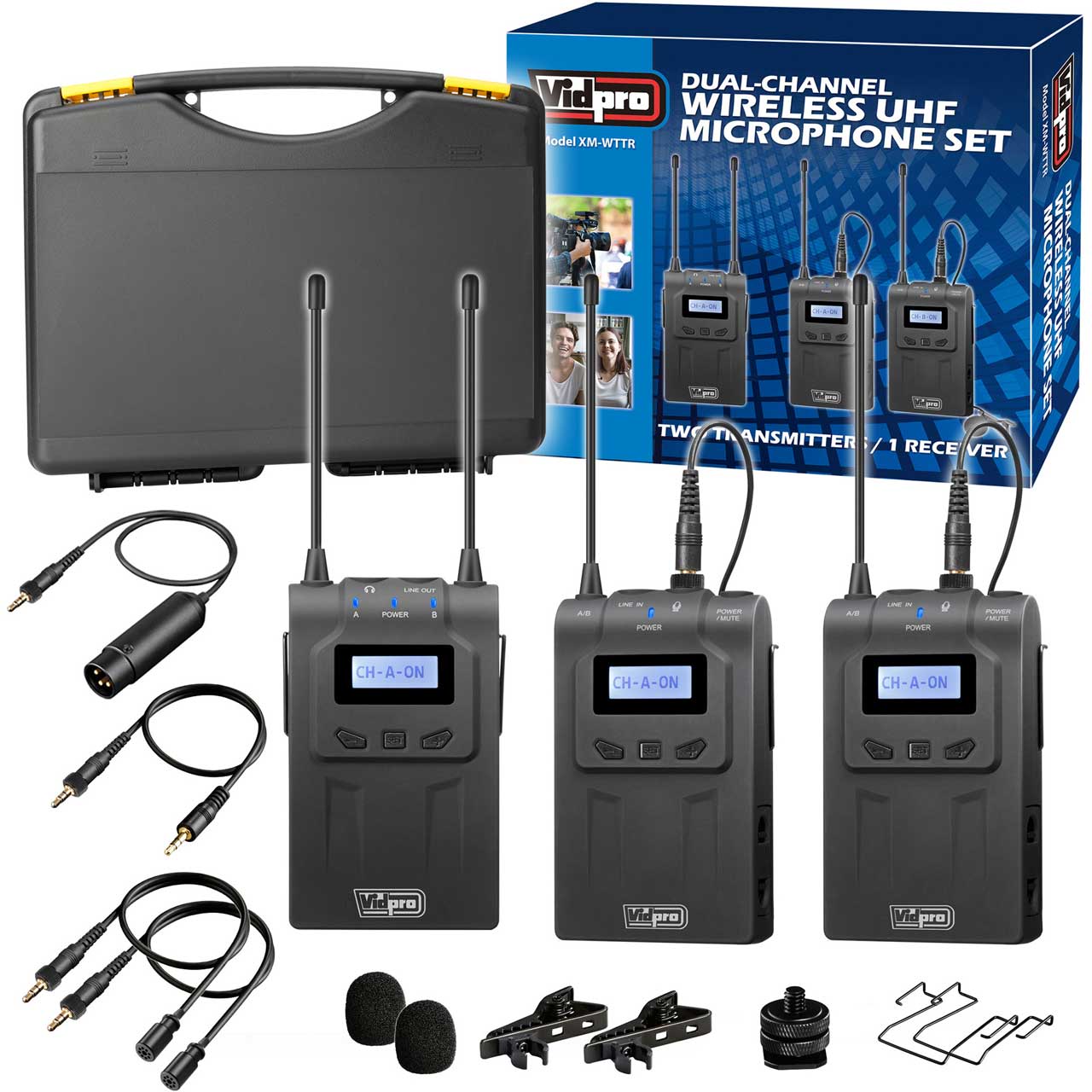

• Item Includes:

  • 2x Wireless Transmitters
  • 1x Wireless Receiver
  • 2x Lavalier Microphones
  • 2x Clip Holders & Foam Windscreens
  • 1x Stereo 3.5mm Audio Cable
  • 1x Stereo XLR Audio Cable
  • 1x Camera Shoe Mount
  • 2x Belt Clips


• GTIN:

  0026127771258
