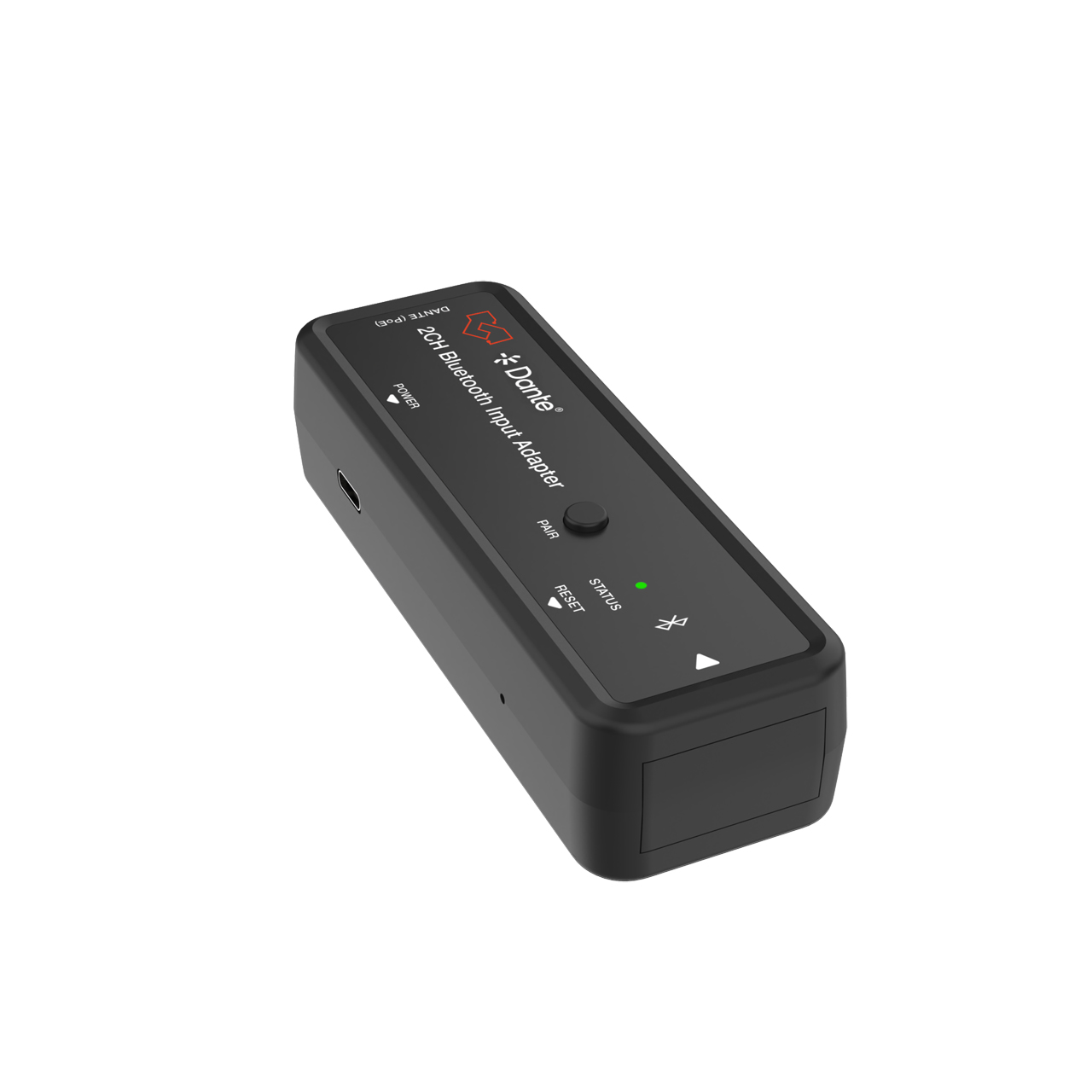

VigilLink VLDT-BT2DT 2-Channel Dante Bluetooth Input Adapter

VLDT-BT2DT - Overview

• Features:

  • 2-Channel Bluetooth audio to Dante® 2CH digital audio
  • Supports Bluetooth V5.1, SBC/AAC/APTX/APTX-LL/APTX-HD, up to 192KHz@24bi
  • Dante® audio sampling rate supports 48KHz@24bit
  • Dante® audio delay supports 1/2/5ms (configurable)
  • Supports local USB-C port power supply and PoE function (Class 0 802.3af PoE)
  • Compact design for easy and flexible installation


• Specifications:

  Technical
  • Audio Formats: LPCM 2.0
  • Frequency Response: 20Hz - 20kHz (-/+0dB)
  • Dynamic Range: >130dB, 1kHzA-weighted
  • Audio S/N Ratio: >130dB, 1kHzA-weighted
  • Audio THD+N: < 0.01% at +4dBu, 1KHz
  • Audio Output Sync Delay: <10ms
  • Audio Latency: Configurable Dante® device latency (Supports 1, 2 or 5ms configurable using Dante® Controller)

    Connections
  • Input Ports: Bluetooth Input (Wireless)

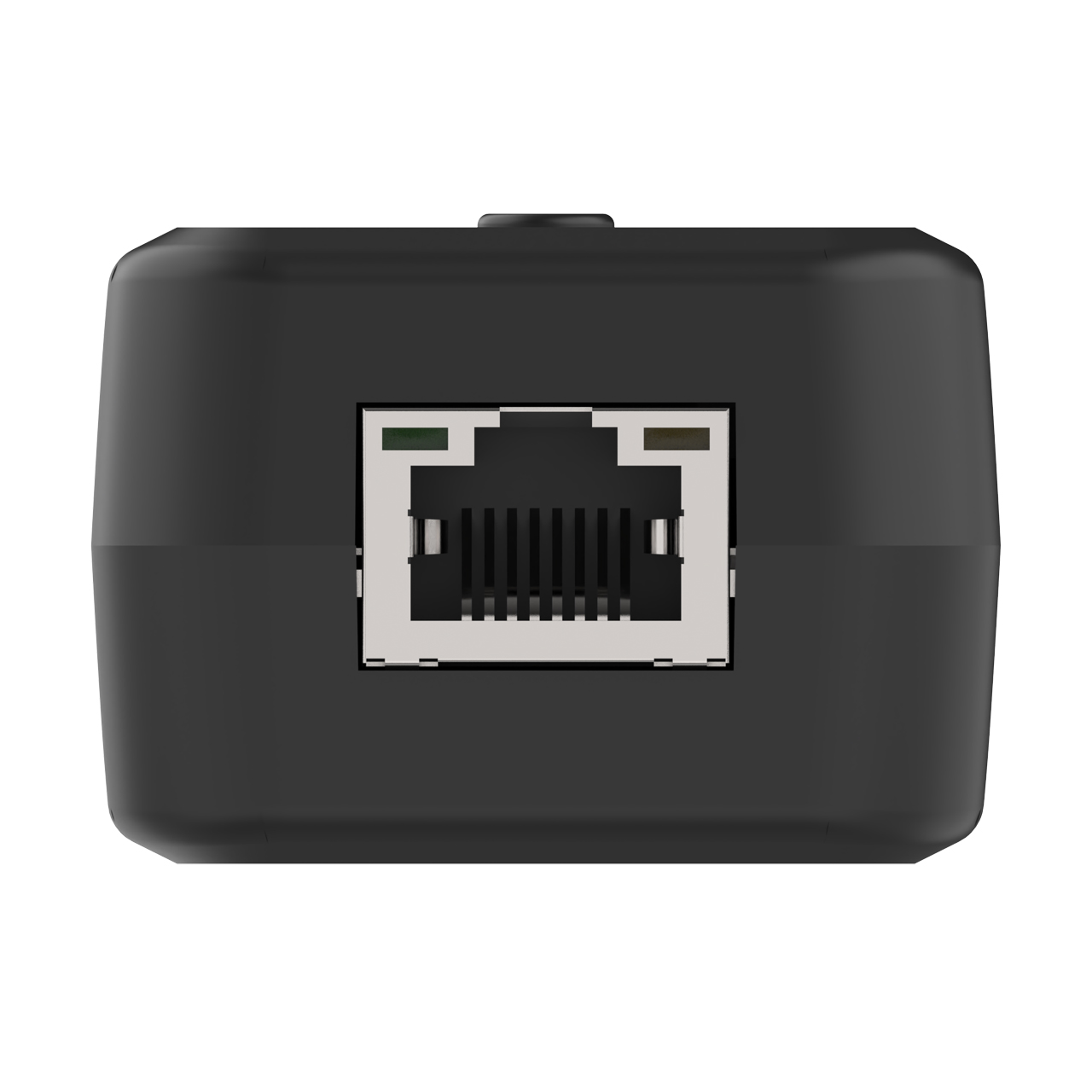

  • Output Ports: 1x DANTE [RJ45 connector, Digital audio in/out, PoE]
  • Control Ports:
    - 1x POWER [USB-C power and firmware update port, 12-pin female]
    - 1x RESET button [System reboot button]
    - 1x USB-C LED [Green color, USB 5V indicator]

    Mechanical
  • Housing: Plastic Enclosure
  • Color: Black
  • Dimensions: 4.53" x 1.57" x 1.00" (115mm x 40mm x 28mm)
  • Weight: 0.20lbs (0.09g)
  • Power Supply Voltage: 5V
  • Power Consumption: 0.65W
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (No condensation)
  • ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)


• Item Includes:

  • 1x VigilLink VLDT-BT2DT 2-Channel Dante Bluetooth Input Adapter


• Warranty:

  • 6 Years
