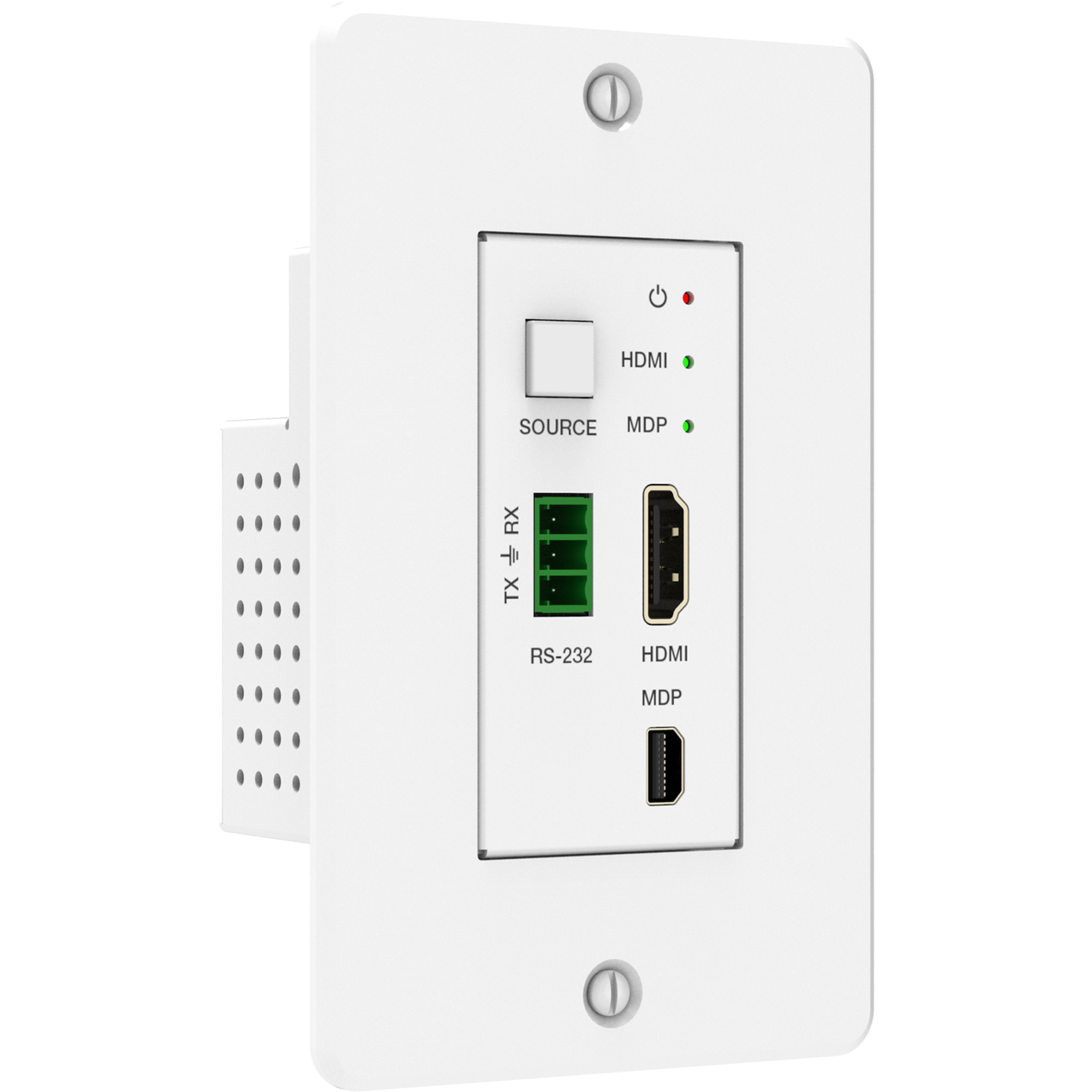

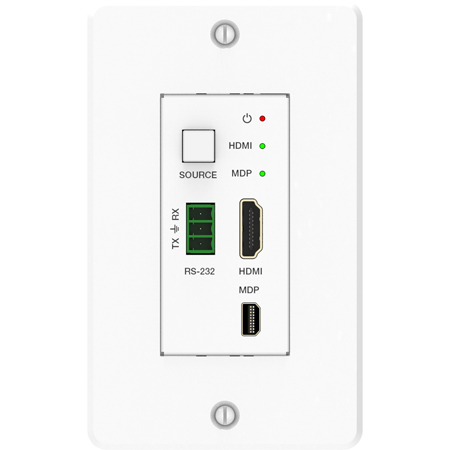

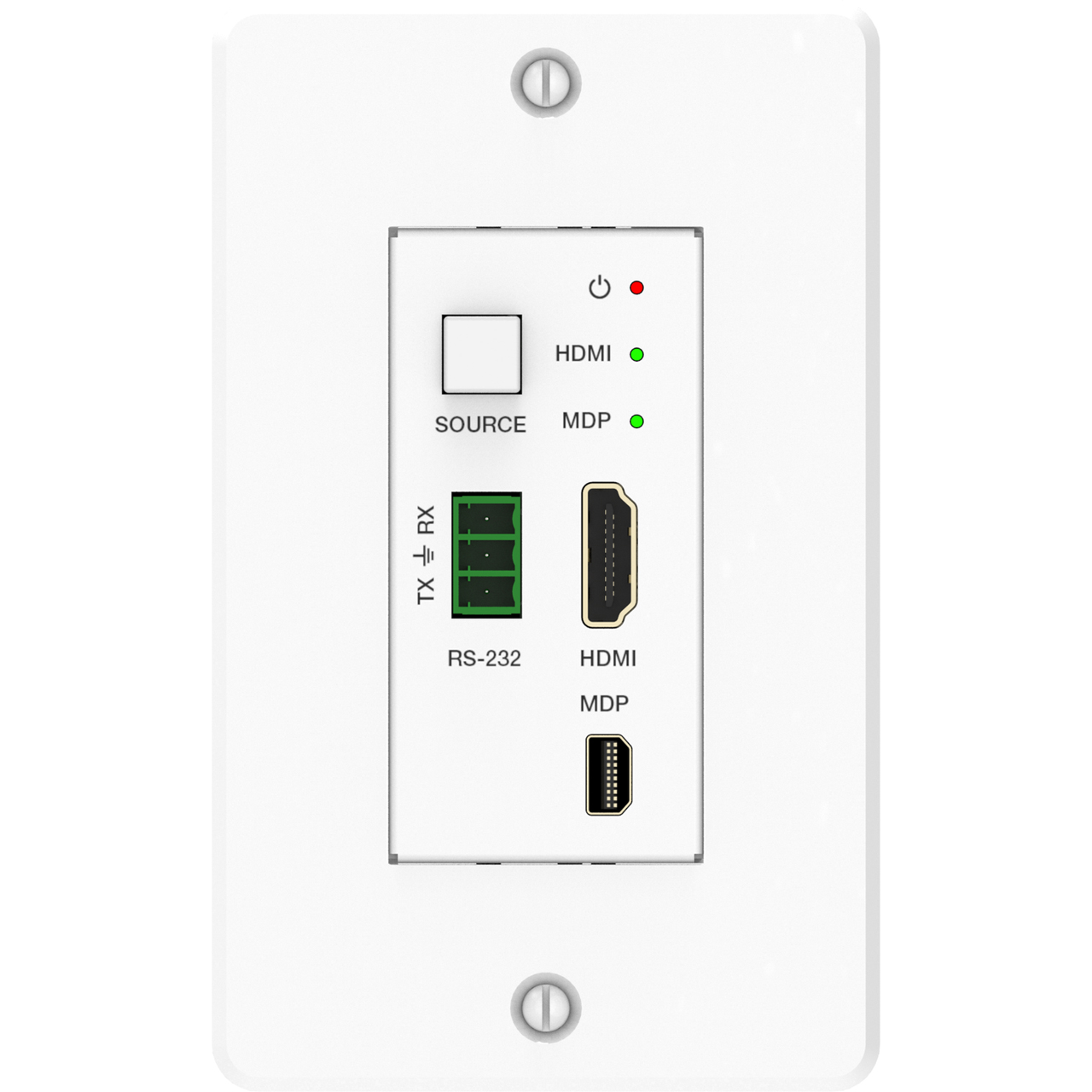

VigilLink VLWP-DHS-TR 2x1 18Gbps 1-Gang Wall Plate TX w/ Auto-Switching HDBaseT2.0/Mini DP/HDMI2.0/RS-232 to RX - White

VLWP-DHS-TR - Overview

• Features:

  • Compliant with HDMI 2.0b, HDCP 2.2, and Display Port 1.2a
  • Supports 18Gbps video bandwidth
  • Video resolution up to 4K2K@50/60Hz 4:4:4
  • HDBaseT output can extend video transmission distance up to 230ft / 70m for 1080P@60 or 131ft / 40m for 4K@60 via a single CAT6/6a/7 cable
  • Supports 3D, HDR10 and Dolby Vision
  • HDMI audio formats support LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High-Res, DTS-HD Master Audio, DSD
  • Supports HDMI and MDP input
  • US one-gang enclosure for Decora-style wall plate openings
  • Input signal selection supports automatic mode and manual mode
  • Supports POE function (only from Receiver to Transmitter)
  • Available in white or black coating


• Specifications:

  Technical
  • HDMI Compliance: HDMI 2.0b
  • DisplayPort Compliance: 1.2a
  • HDCP Compliance: HDCP 2.2
  • Video Bandwidth:
    - DP: 5.4 Gbps
    - HDMI: 18 Gbps
  • Video Resolutions:
    - 480i~1080p50/60Hz
    - 4Kx2K@24/30Hz
    - 4k2k@60Hz
  • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0
  • Color Depth:
    - 8/10/12-bit (1080P@60Hz)
    - 8-bit (4K@60Hz)
  • HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
  • HDR: 3D, HDR10 and Dolby Vision
  • High Resolution Audio, 5.1; PCM 2-8Ch
  • Transmission Distance: Max distance (1080p) : 230ft / 70m over CAT6/6a/7
  • Max distance (UHD/4K): 131ft / 40m over CAT6/6a/7
  • ESD Protection: Human body model - ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

    Connections
  • Transmitter Inputs:
    - 1x HDMI Type A [19-pin female]
    - 1x miniDP [20-pin female]
  • Transmitter Outputs:

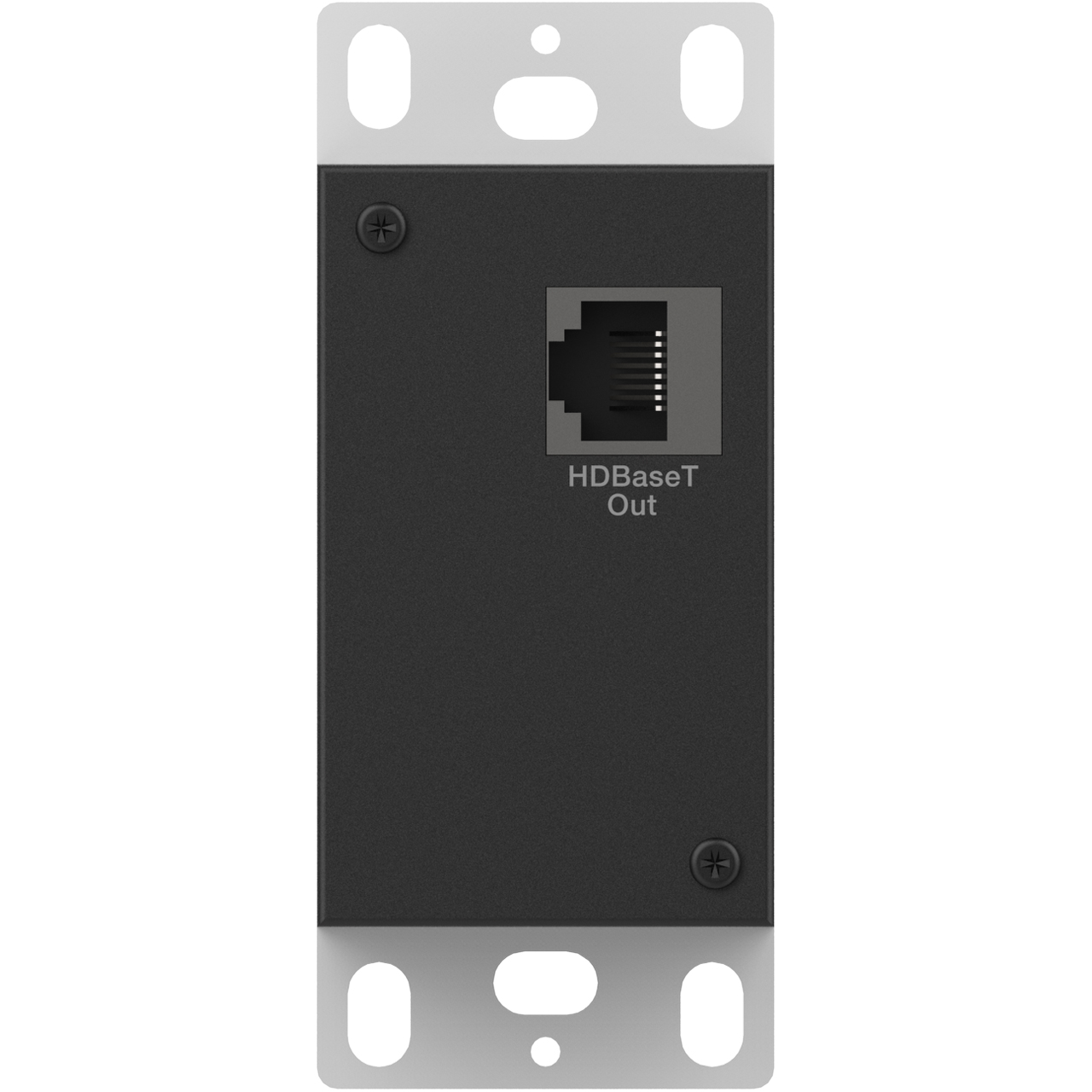

    - 1x HDBaseT Out [RJ45, 8-pin female]
  • Transmitter Controls:
    - 1x RS-232 [3-pin phoenix connector]

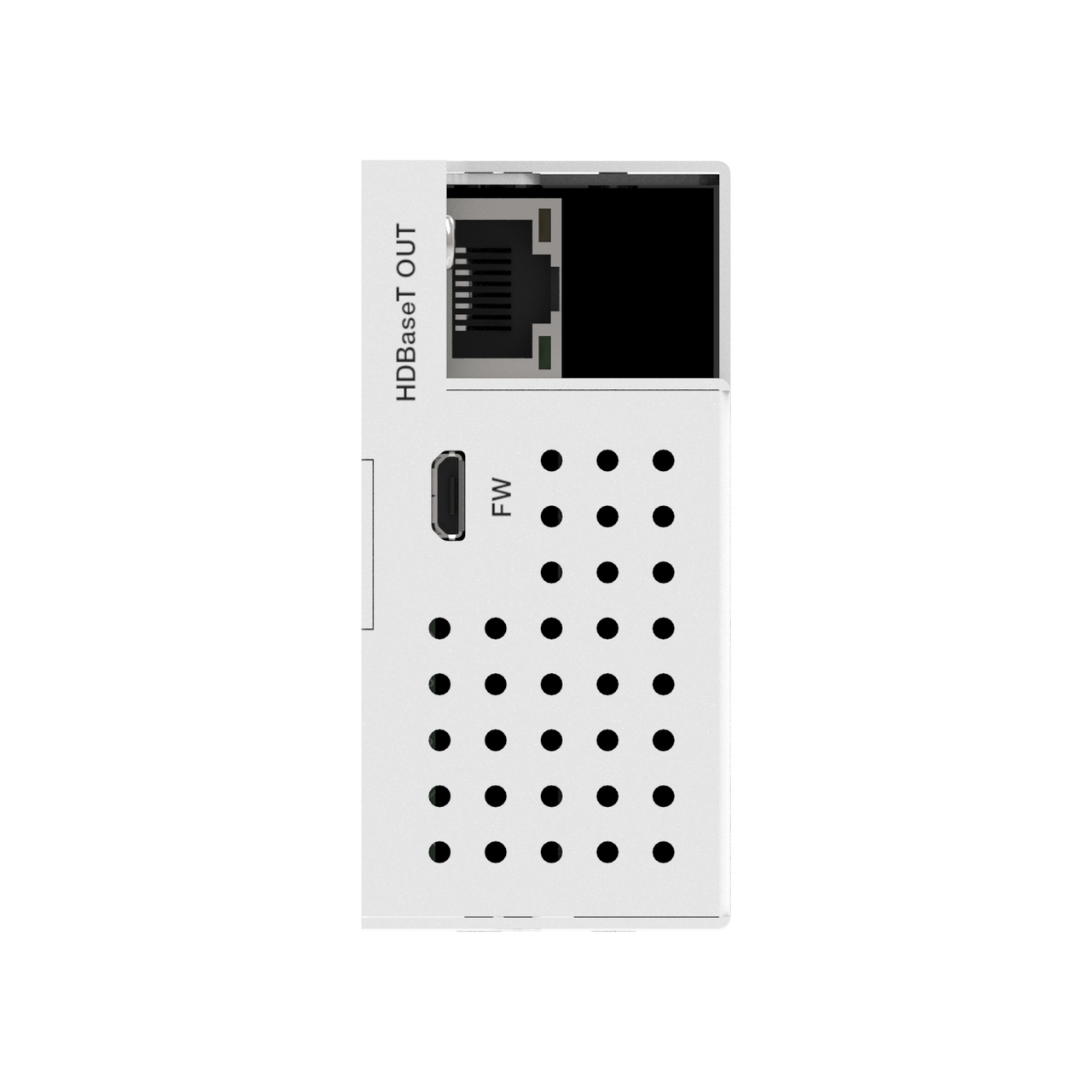

    - 1x FW [Micro USB, Update port]
  • Receiver Inputs:
    - 1x HDMI IN [Type A, 19-pin female]
    - 1x HDBaseT IN [RJ45, 8-pin female]
  • Receiver Outputs:
    - 1x HDMI OUT [Type A, 19-pin female]
    - 1x AUDIO OUT [Phoenix jack]
  • Receiver Controls:
    - 1x RS-232 [3-pin phoenix connector]
    - 1x FW [Micro USB, Update port]

    Mechanical
  • Housing: Metal Enclosure
  • Color: White / Black
  • Dimensions:
    - Wall plate: 2.59 x 1.31 x 2.70 (33.3 x 65.7 x 68.7mm)
    - Faceplate: 0.12 x 2.75 x 4.5 (69.9 x 3 x 114.3mm)
    - Receiver: 4.05 x 7.87 x 0.08 (200 x 98 x 23mm)
  • Weight:
    - Wall plate: 0.43lb (196g)
    - Receiver: 1.12lb (511g)
  • Power Supply: PoE (only from Receiver to Transmitter)
  • Power Consumption: Wall plate: 9W (Max), Receiver: 11W (Max)
  • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
  • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
  • Relative Humidity: 20 - 90% RH (No condensation)


• Item Includes:

  • 1x 18Gbps HDBaseT 70M with MDP/HDMI Wall Plate Transmitter
  • 1x User Manual


• Warranty:

  • 6 Years
