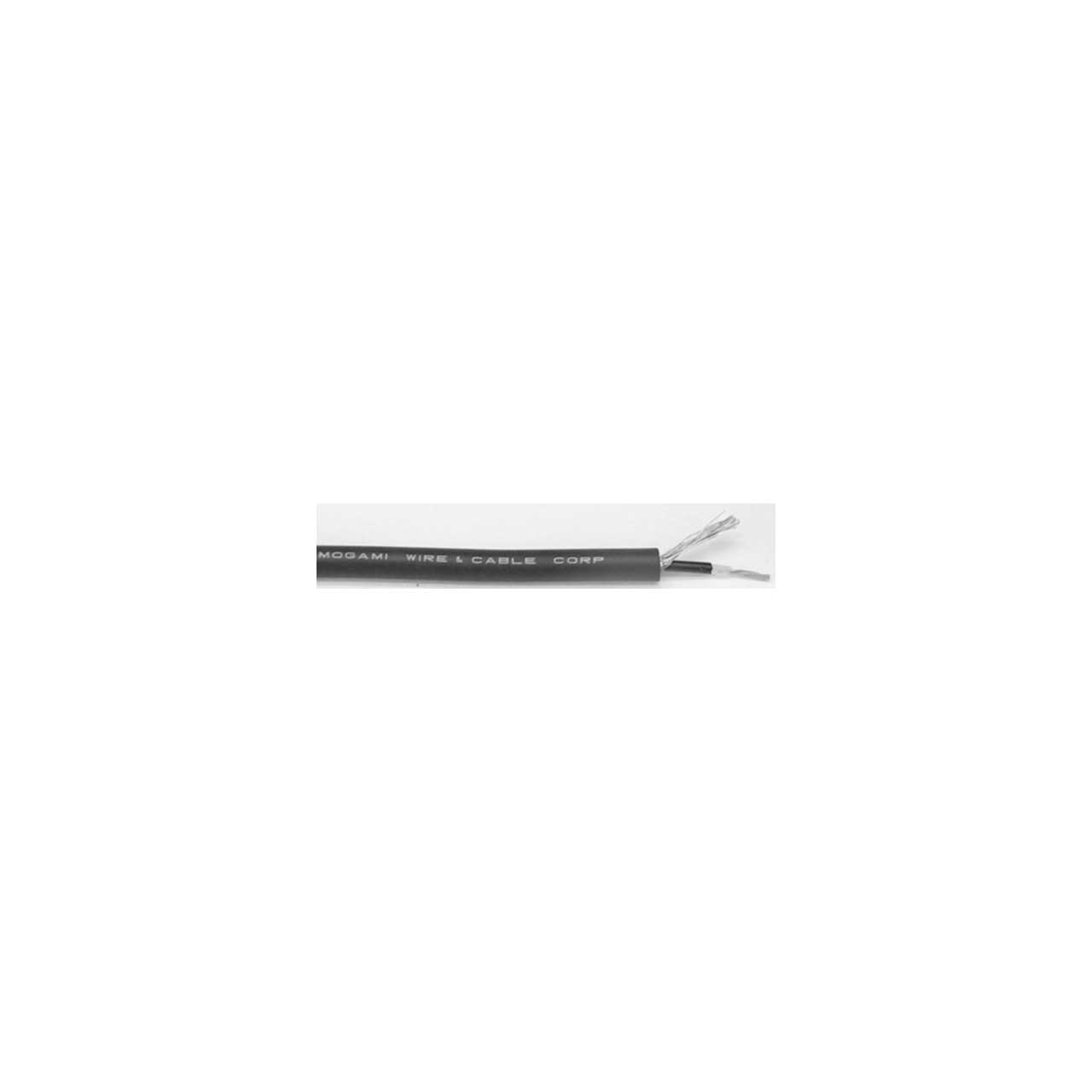

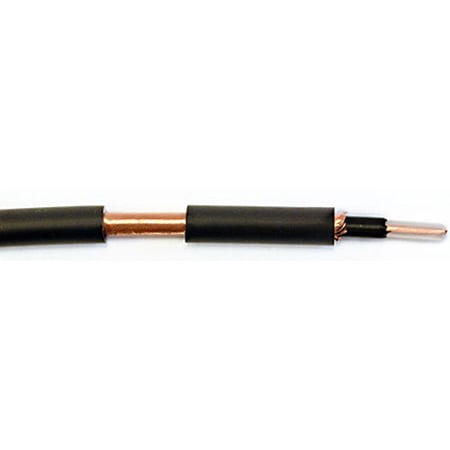

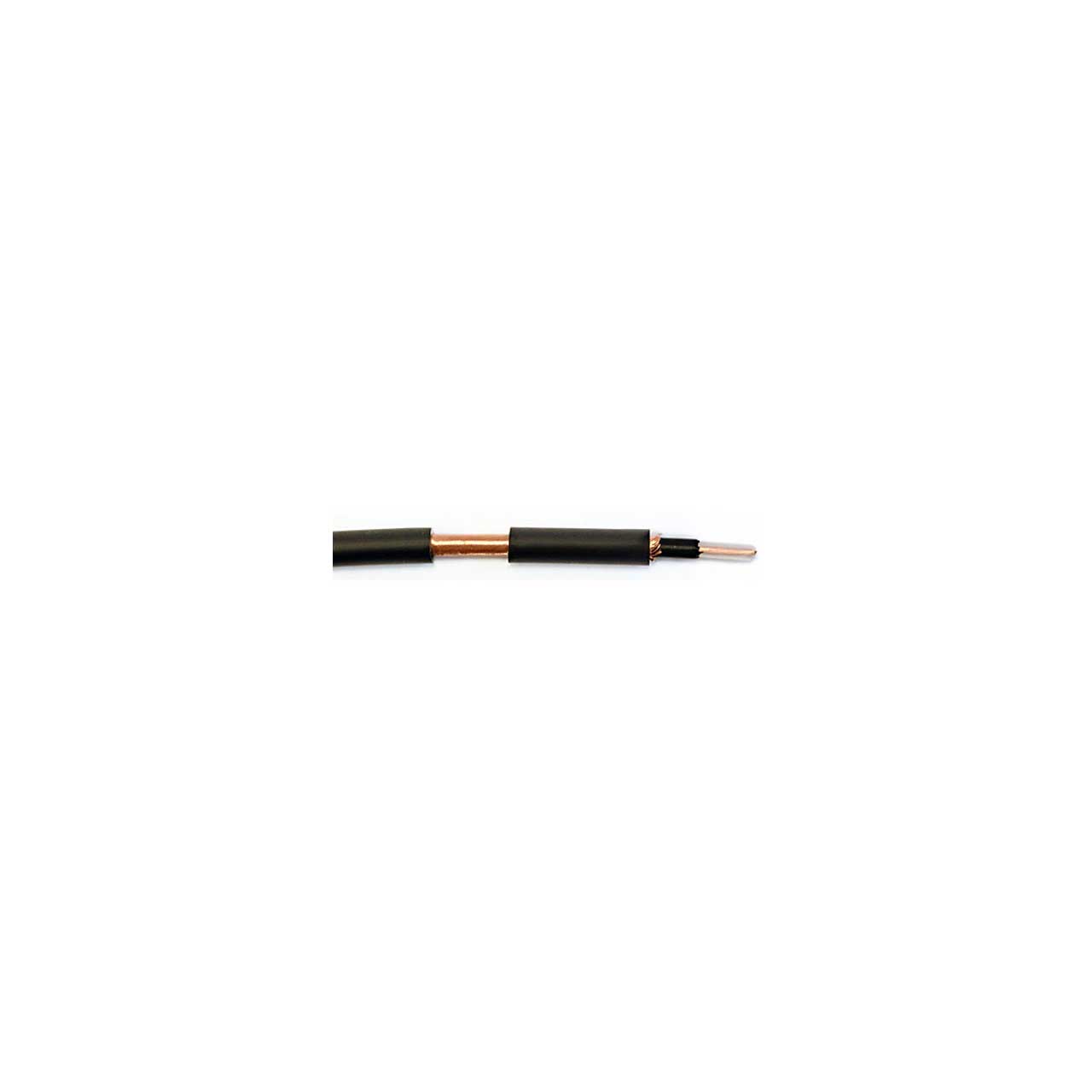

Mogami W2319 High Impedance Bulk Instrument Cable - Per Foot - Black

ITEM #: W2319-FT MFG #: W2319-FT

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$0.79

Our Price:

$0.69

Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


W2319-FT - Overview

The Mogami W2319 is designed to eliminate interference in your instrument cable. Most musical instrument sound pick-ups, for example those in electric guitars, are comprised of high impedance circuits driven mainly by voltage, with very little electrical current flow. That is why handling noise (microphonics) can be a problem for guitar cables. Microphonic noise is caused by the minute voltage generated when a cable is flexed, stepped on, etc. Guitar cables must be designed to prevent this, so a conductive PVC layer is placed under the shield conductor to drain away this voltage.

NOTE: This conductive layer must be stripped back when wiring, or a partial short will result.

  • Specifications:

    • Cable
    • Conductor:
      - Details: 12/0.18TA
      - Size (mm²): 0.305mm² (#23AWG)
    • Insulation:
      - Ov. Dia. (mm): 1.6∅ (0.063")
      - Material: PE
    • Sub-Shield:
      - Ov. Dia. (mm): 1.8∅ (0.071")
      - Material: Conductive PVC (Carbon PVC)
    • Main-Shield: Served-Shield - Approx. 38/0.16TA
    • Jacket:
      - Ov. Dia. (mm): 5.0∅ (0.197")
      - Material: PVC

      Electrical & Mechanical
    • DC Resistance at 68°F (20°C):
      - Inner Conductor: 0.064Ω/m (0.020W/ft)
      - Shield Conductor: 0.026Ω/m (0.0079Ω/ft)
    • Capacitance at 1kHz, 68°F (20°C): 155pF/m (47.3pF/ft)
    • Inductance: 0.3µH/m (0.092µH/ft)
    • Electrostatic Noize: 0.13mV Max
    • Electromagnetic Noise At 10kHz: 0.07mV Max
    • Microphonics: 0.3mV Max
    • Voltage Breakdown: Must withstand at DC 500V/15 sec
    • Insulation Resistance: 100000MΩ x m Min. at DC 500V, 68°F (20°C)
    • Flex Life: 11,000 cyles
    • Tensile Strength (79°F (26°C), 65%RH): 303 N
    • Emigration: Non-emigrant to ABS resin
    • Applicable Temperature: -4°F - 140°F (-20°C - 60°C)
