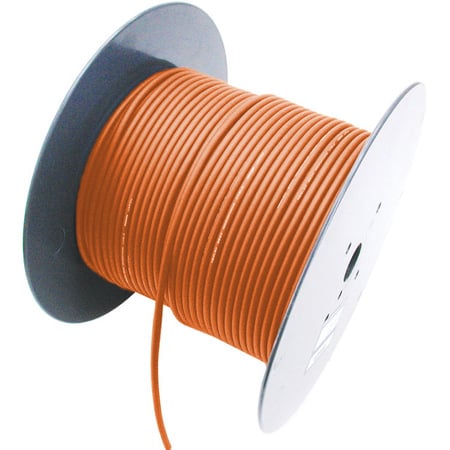

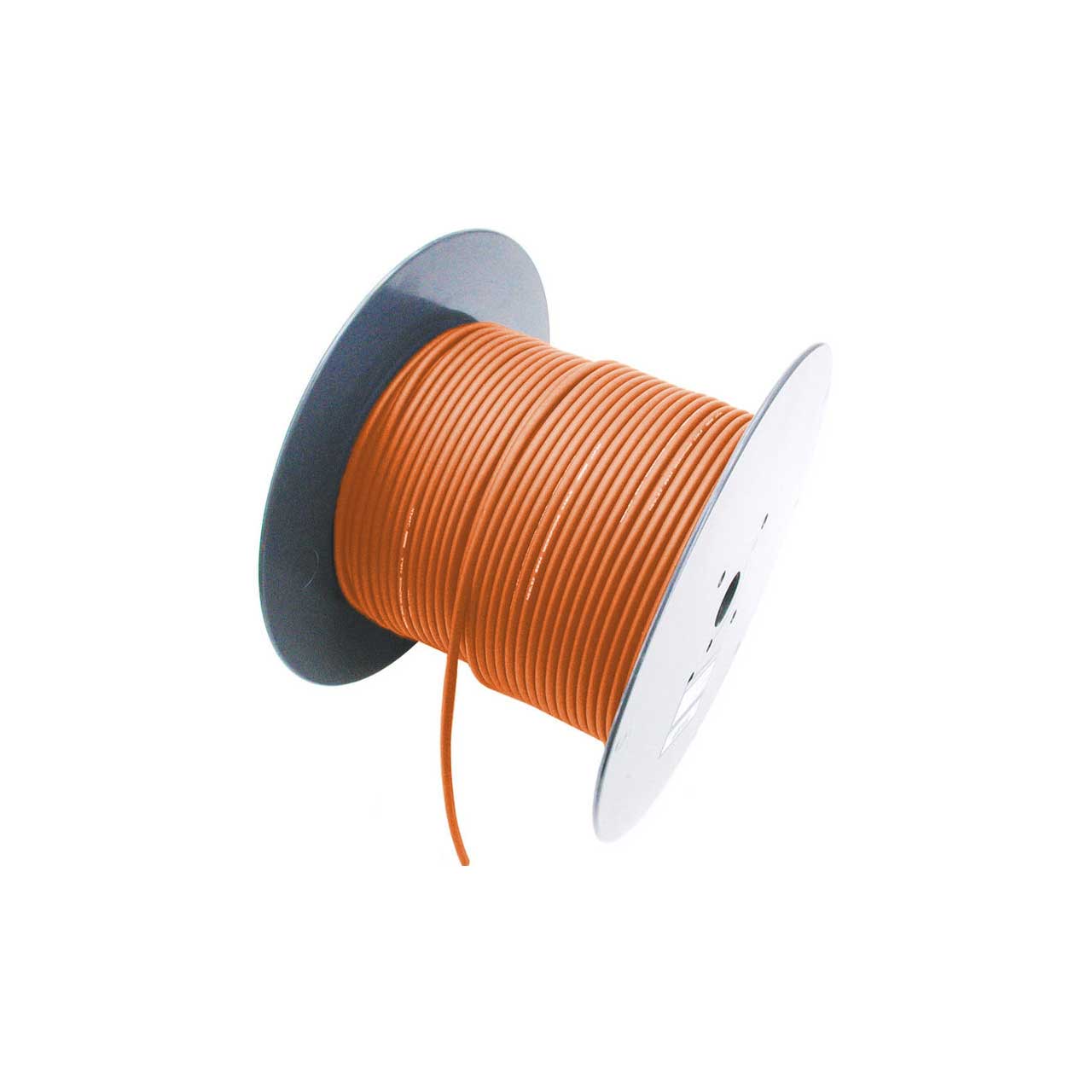

Mogami W2944 2-Conductor Standard Internal/External Neglex Console Wiring Cable - 656 Foot - Orange

W2944-03-E - Overview

• Features:

  • Small size for space saving
  • Very flexible and easy to use
  • Ten colors available for easy identification
  • Same configuration as the core of our standard multi mic snake cable series (EZID models)
  • Additional drain wire makes wiring efficient, as it can be crimped by the same size crimp terminal, as the conductors


• Specifications:

  • No. of Conductors: 2
  • Conductor:
    - Details: 30/0.08 OFC
    - Size (mm²): 0.15mm² (#26AWG)
  • Insulation:
    - Ov. Dia.(mm): 1.0∅ (0.039")
    - Material: XLPE (Cross-Linked Polyethylene)
  • Drain Wire:
    - Details: 7/0.18A
    - Size: 0.18mm² (#25AWG)
  • Served Shield: Approx. 58/0.10A
  • Jacket:
  • - Ov. Dia.(mm): 2.5∅ (0.098")
    - Material: PVC
  • DC Resistance at 68°F (20°C):
    - Inner Cond.: 0.13Ω/m(0.040Ω/ft)
    - Shield: 0.035Ω/m (0.011Ω/ft)
  • Capacitance at 1kHz, 68°F (20°C):
    - K₀: 130pF/m (40pF/ft)
    - K₁: 12pF/m (3.7pF/ft)
  • Inductance Between Conductors at 1kHz, 68°F (20°C): 0.6µH/m (0.18µH/ft)
  • Electrostatic Noise: 20mV Max
  • Electromagnetic Noise: 0.1mV Max
  • Voltage Breakdown: Must withstand at DC 500V/15 sec
  • Insulation Resistance: 100000MΩ/ x m Min. at DC 125V, 68°F (20°C)


• GTIN:

  0801813200904
