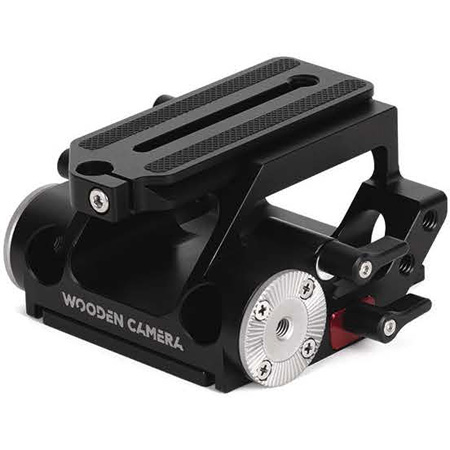

Wooden Camera 279300 LW15mm Baseplate (RED® KOMODO™) provides 15mm lightweight rod openings at the correct distance to the center of the lens. ARRI standard M6 rosettes are on both sides along with 1/4-20 threaded holes. 3/8-16 ARRI accessory mount also available on camera-right side.
Baseplate features upper ARCA Swiss standard dovetail with center screw channel and vertical lens support post system. Attach one 1/4-20 and 3/8-16 screw to camera bottom and position vertical, 1/4-20 rod post underneath lens adapter like Canon RF to PL Mount Pro (RED KOMODO).
Lower dovetail slot is ARRI standard for attaching to ARRI dovetails or the includes Quick Dovetail. With Quick Dovetail attached, the baseplate and camera combination can be combined with an ARRI standard bridge plate like Quick Release Bridgeplate (19mm) or Quick Release Bridgeplate (15mm Studio).
