Weller WE1010NAS Zero Smog Shield and WE1010NA 1-Channel 70W Soldering Station Kit

ITEM #: WEL-WE1010NAS MFG #: WE1010NAS

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$346.00

Our Price:

$325.59

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


WE1010NAS - Overview

For a seamless and health-conscious soldering experience, Weller bundled its best seller, the WE1010NA soldering station, with the new Zero Smog Shield single filtration unit. This easy-to-use soldering bundle not only ensures precision in your soldering projects, but also prioritizes your health. The advanced filtration system efficiently captures and removes harmful fumes and particles, protecting the operator's respiratory health. With adjustable temperature control and an ergonomic design, this soldering station offers ease of use, making it ideal for beginners and seasoned professionals alike. Get your project soldered and breathe easy.

  • Features:

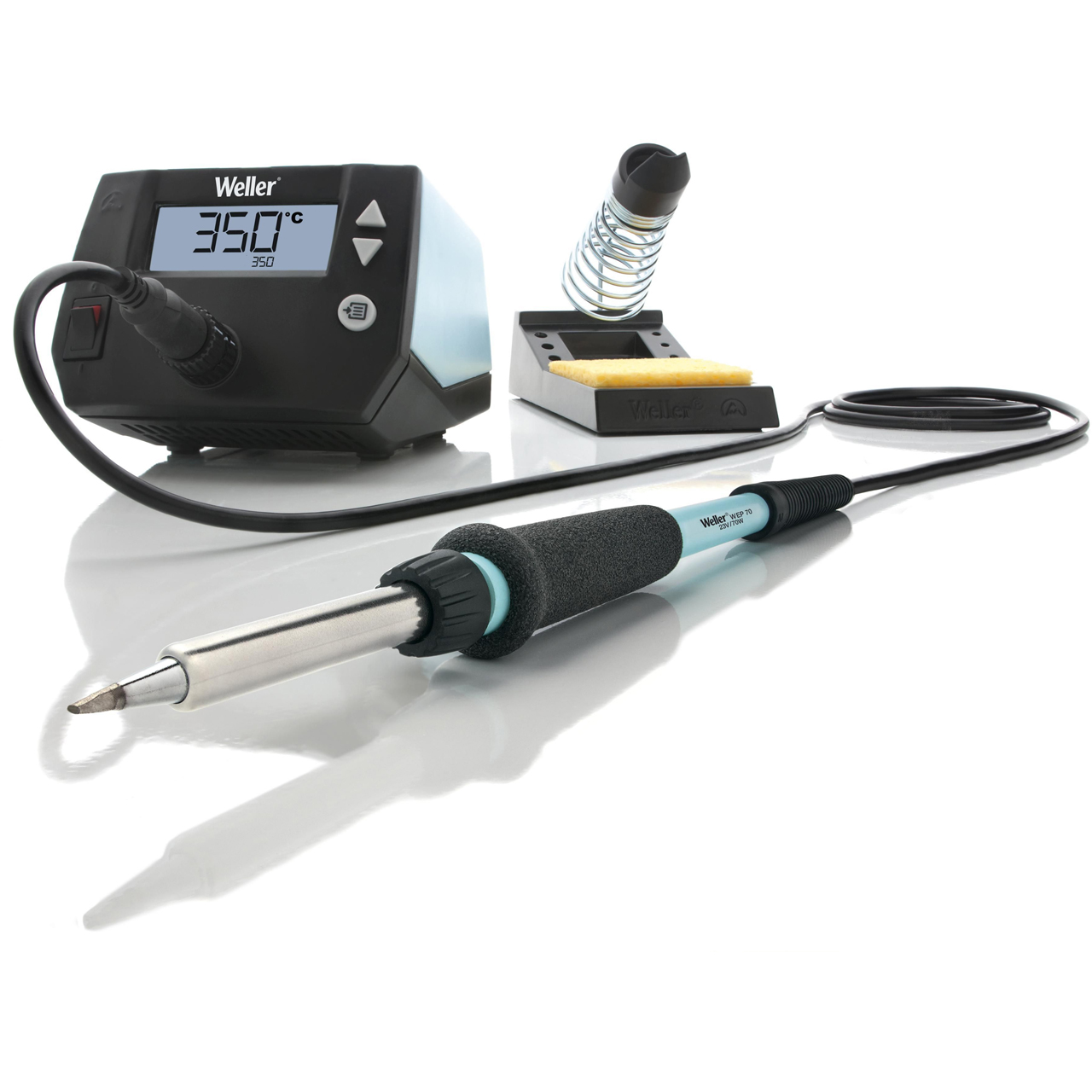

    • WE1010NA Soldering Station
    • 70 W soldering powerhouse with fast heat-up and recovery times
    • 70 W Soldering Iron with toolless tip change for more precision
    • Digital LCD screen and easy navigation for temperature and includes stand-by mode
    • Suitable for a wide range of prosumer and professional soldering tasks

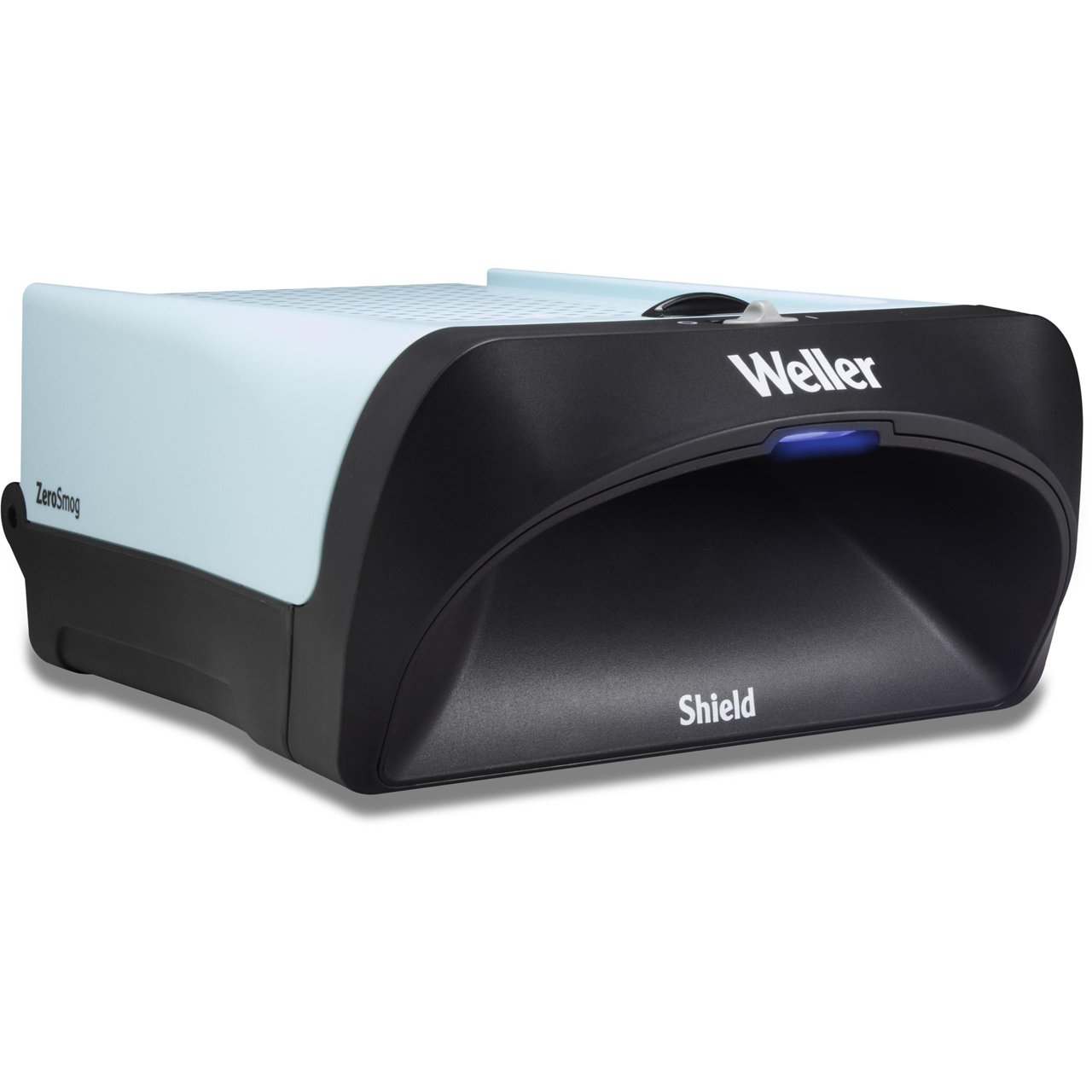

      Zero Smog Shield

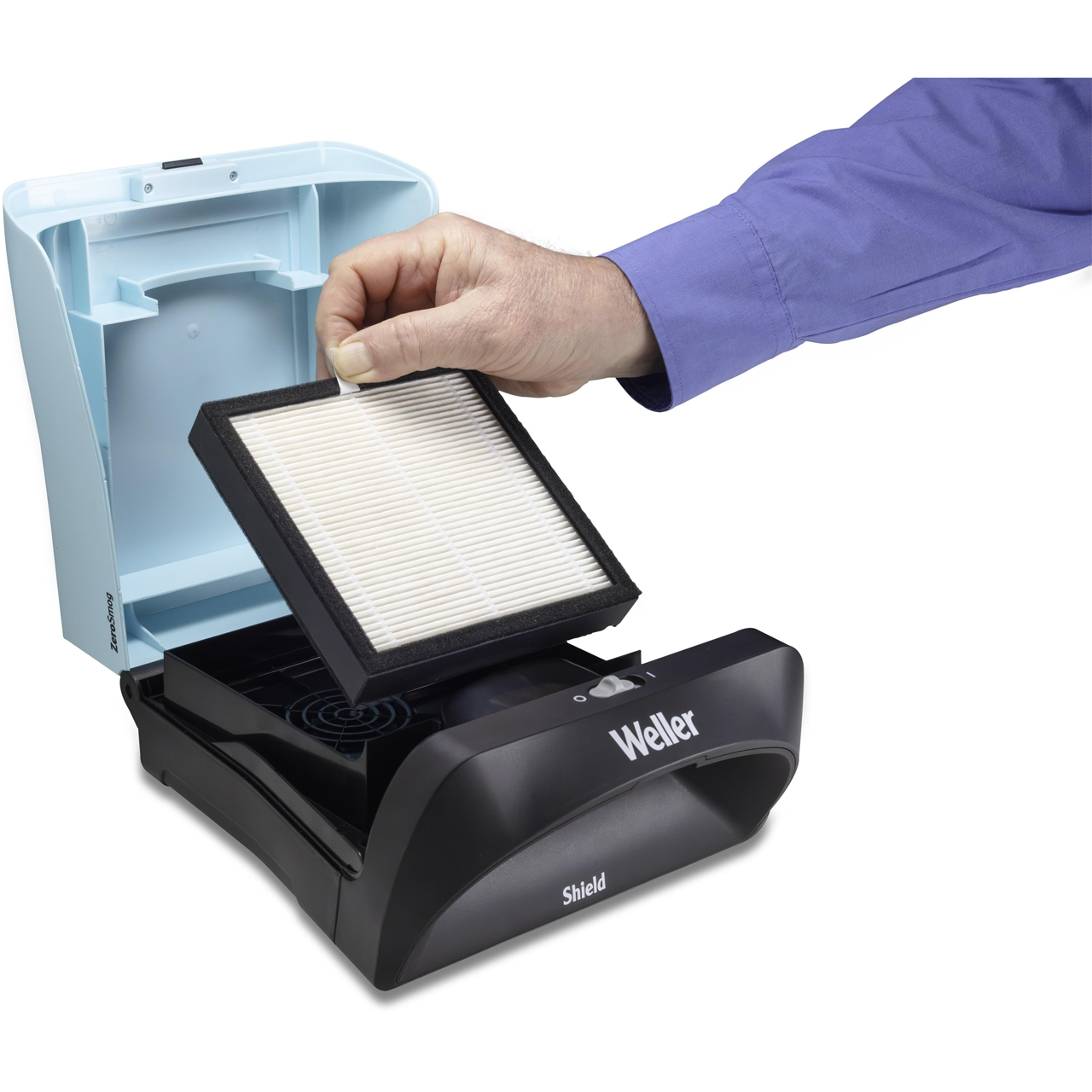

    • Low maintenance extraction unit with easy to change filter
    • Work light for an optimal work environment

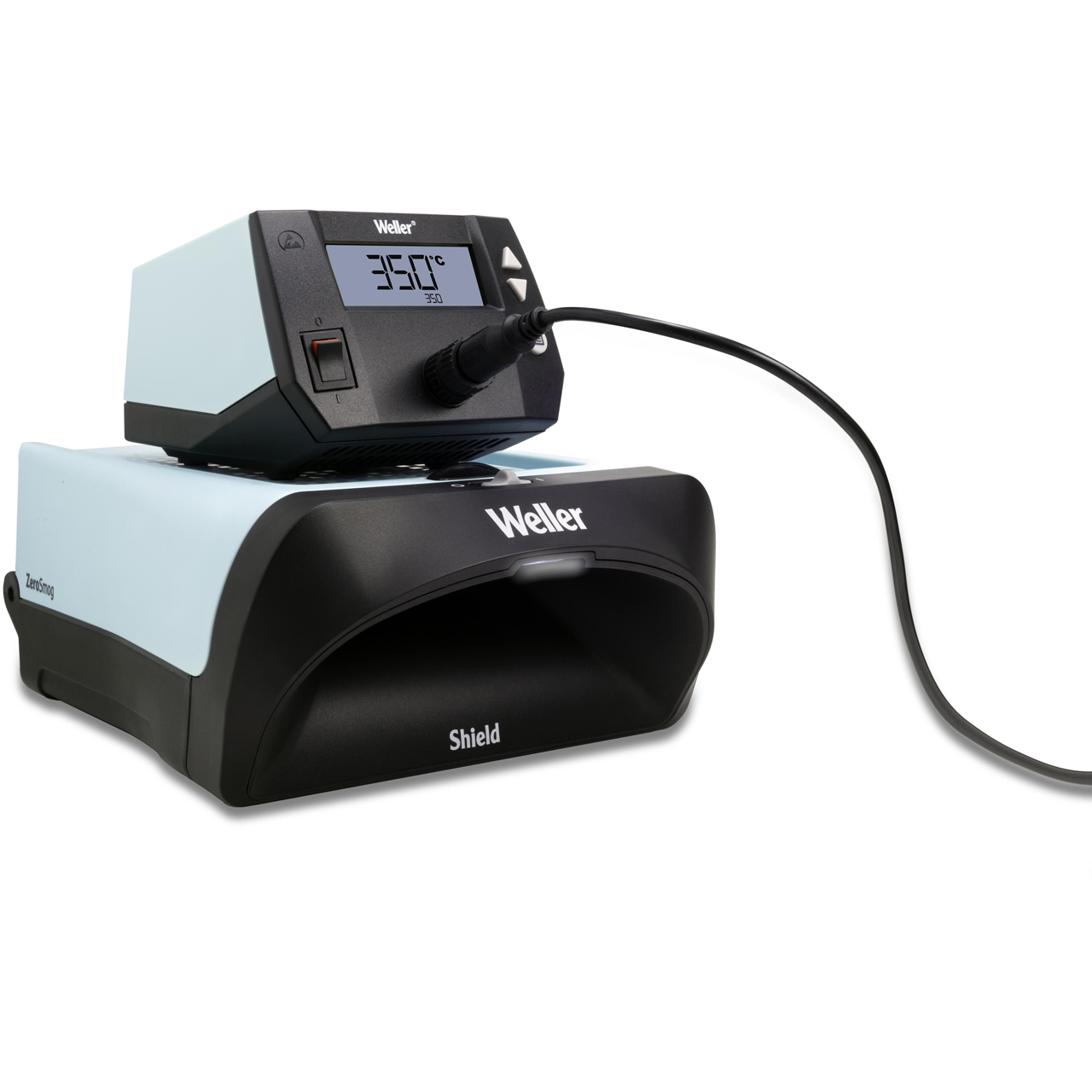

    • Stackable with WE1010 and easily moveable
    • Highly Cost Efficient Bundle
    • Efficient airborne particle and gas filtration
    • Antistatic housing (ESD safe)

  • Specifications:

    • WE1010NA
    • ESD Safe: Yes
    • Number of Channels: 1
    • Power: 85 W
    • Tempurature Accuracy: ±9°F (±5°C)
    • Temperature Range: 200 - 850 °F (100 - 450 °C)
    • Temperature Stability: ±10°F (±6°C)
    • Tip Type: ET EW
    • Voltage: 120 V
    • Dimensions (LxWxH): 5.8" x 4.72" x 3.85" (150.0mm x 120mm x 98mm)

      Zero Smog Shield
    • Mains Supply Voltage: 50/60 Hz
    • Operating Voltage: 24 VDC
    • Power Consumption: 10 W
    • Weight: 4.4lbs (2kg)
    • Combined Filter: E10 EPA / Activated carbon foam
    • Maximum Vacuum: 285 pa
    • Capacity (m³/h): 26
    • Operating Sound Level from 1m Distance: 50 dBA
    • Dimensions (LxWxH): 10.6" x 8.3" x 4.3" (269.5mm x 212mm x 110mm)

  • Warranty:

    • 1-Year Limited Warranty

  • GTIN:

    0037103377340
