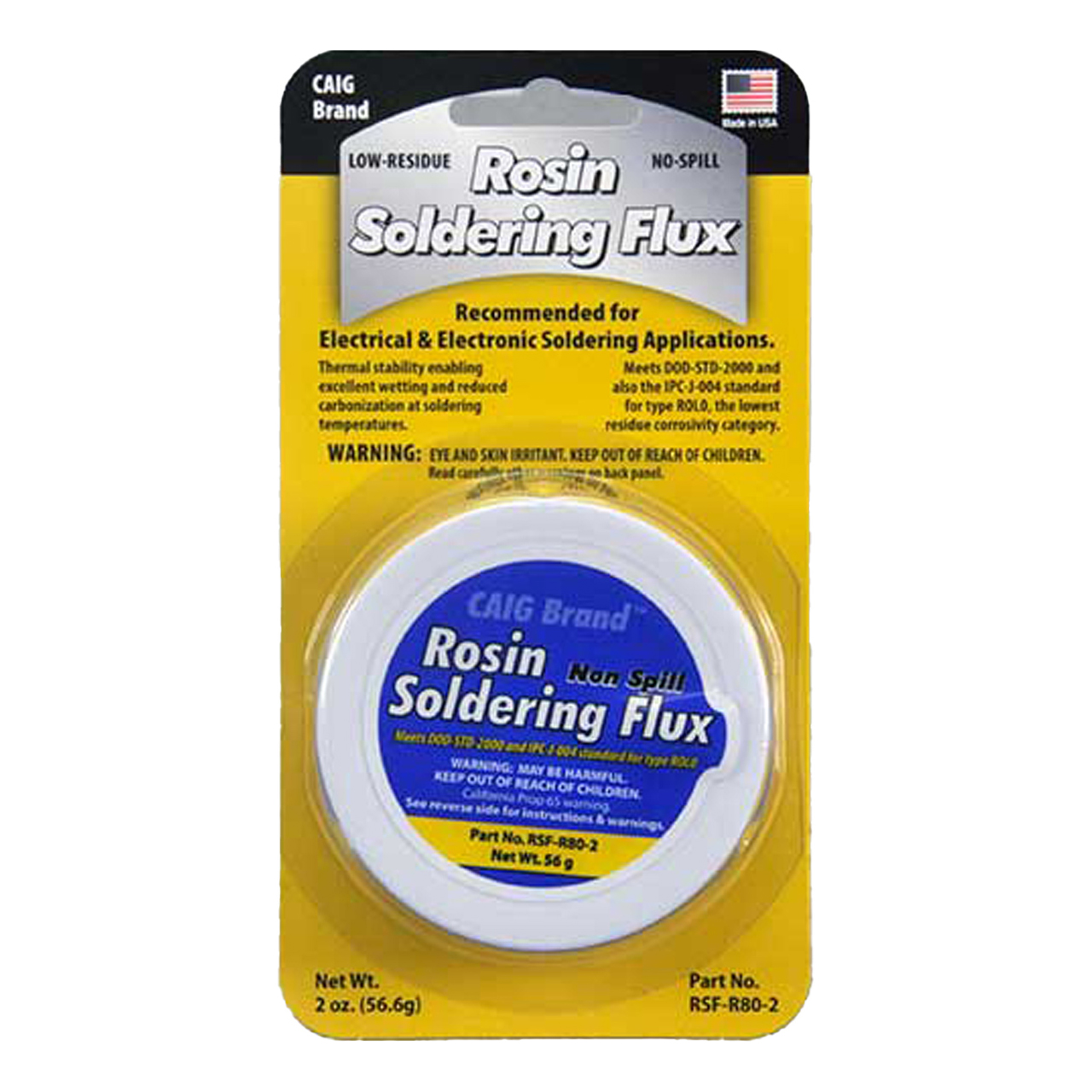

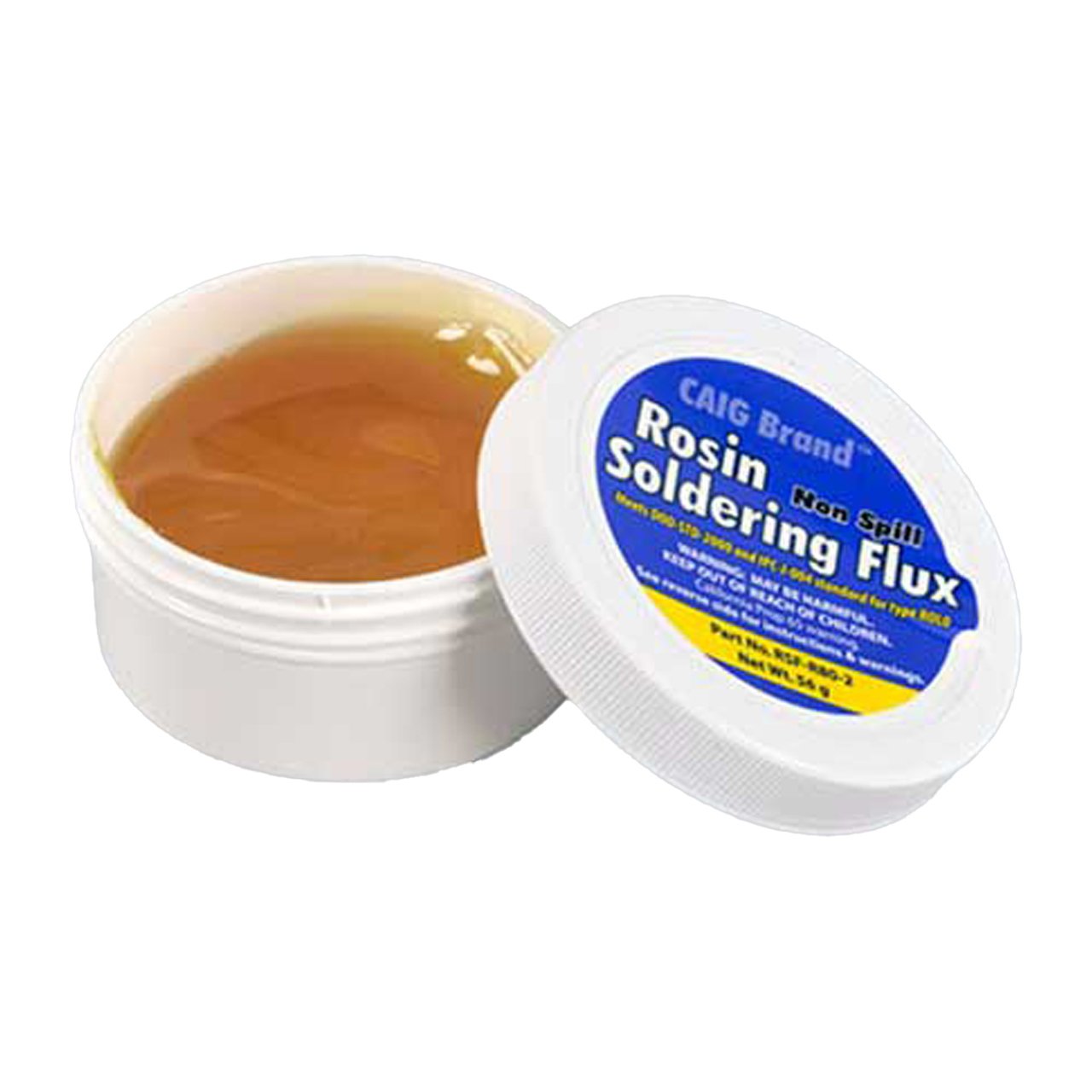

CAIG Products RSF-R80-2 Rosin Soldering Flux - 56gram Jar

RSF-R80-2 - Overview

• Features:

  • RSF Rosin Flux is a mildly-activated rosin flux that is considerably more active than water-white rosin
  • Activity closely approaches that of fully activated rosins
  • Conforms to all of the requirements of Type RMA
  • Rosin Core, Mildly Activated of Federal Specification QQ-S-571
  • The RSF paste ux meets DOD-STD-2000 & also the IPC-J-004 standard for type ROL0, the lowest residue corrosivity category
  • Thermal stability enabling excellent wetting and reduced
  • carbonization at soldering temperatures


• Specifications:

  • Softening Point: 160 F (71 C)
  • Rosin Grade: WW per Fed. Spec. LLL-R-626
  • Acid No. (of Rosin): 150
  • Water Extract Resisitivity: 110,000 ohm-cm
  • Effect on Copper Mirror: None
  • Fungus Resistance Per MIL-E-5272
  • Nonflammable, noncorrosive.


• Item Includes:

  • 1x CAIG Products RSF-R80-2 Rosin Soldering Flux - 56gram Jar
