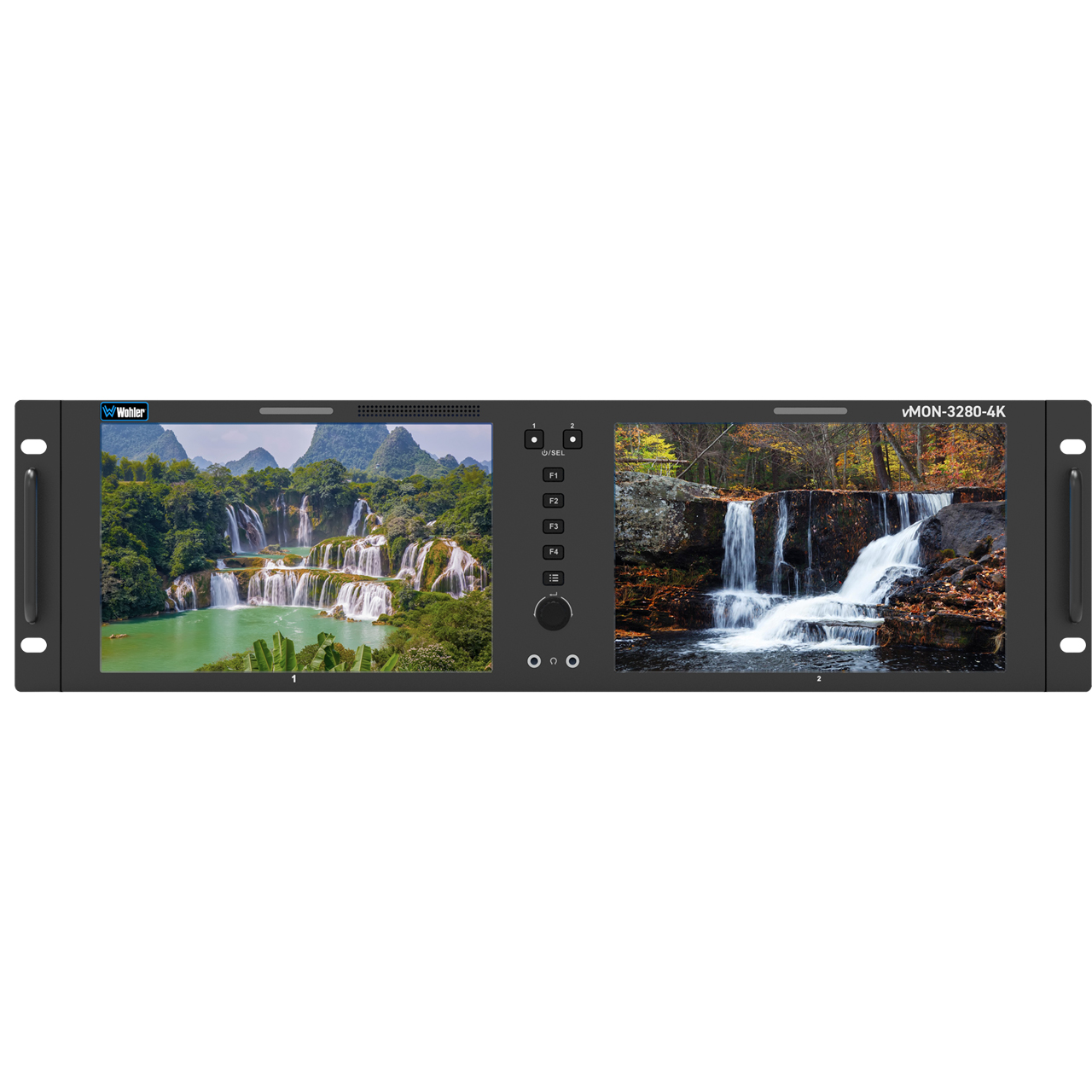

The Wohler vMON-3280-4K is a fully featured in-rack video monitor ideal for mobile trucks, news and transmission control rooms, production/post-production and video surveillance applications. These tilting monitors come standard with in-monitor level metering, selectable video vectorscope, waveform, histogram, safe area and aspect ratio markers, IMD labeling and tally.

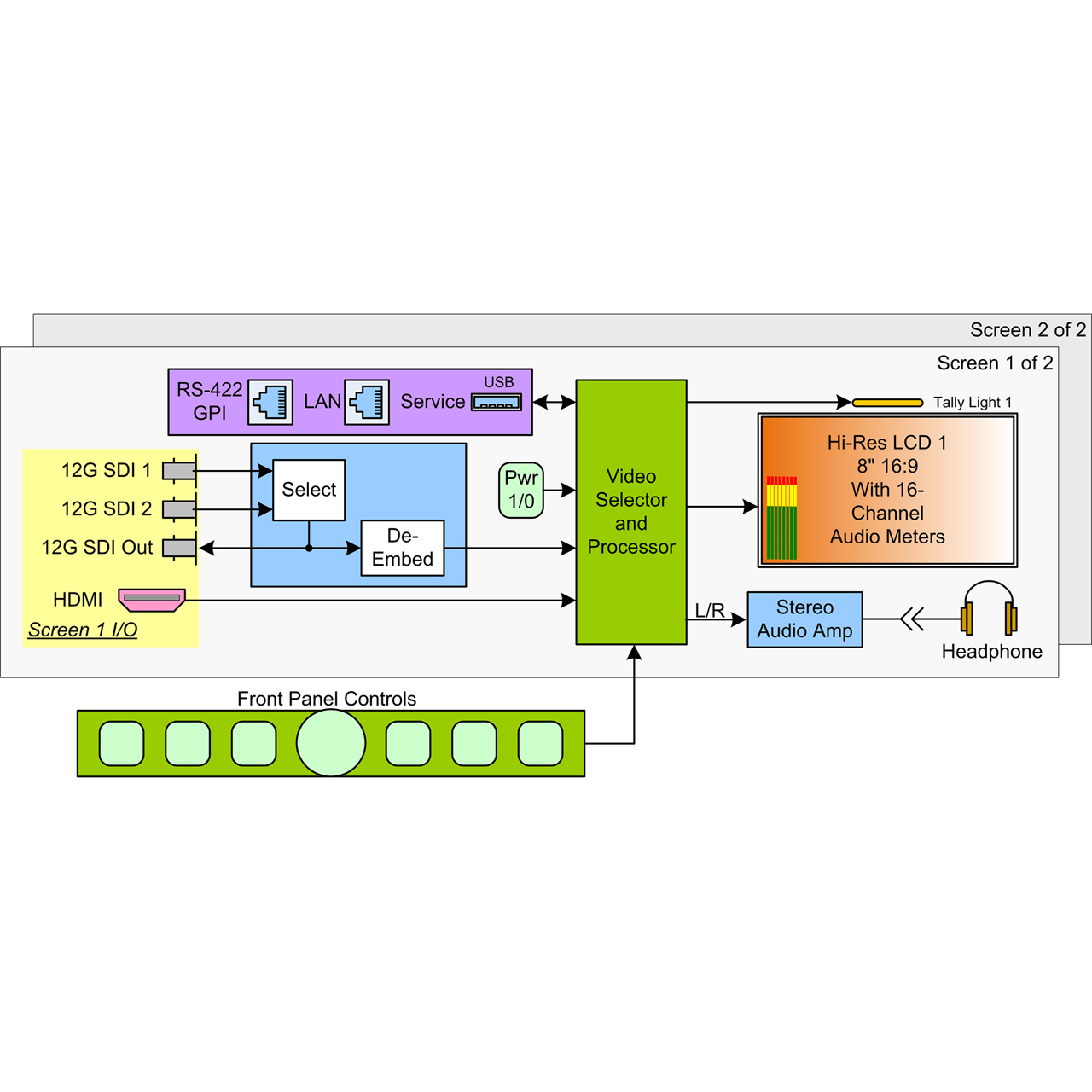

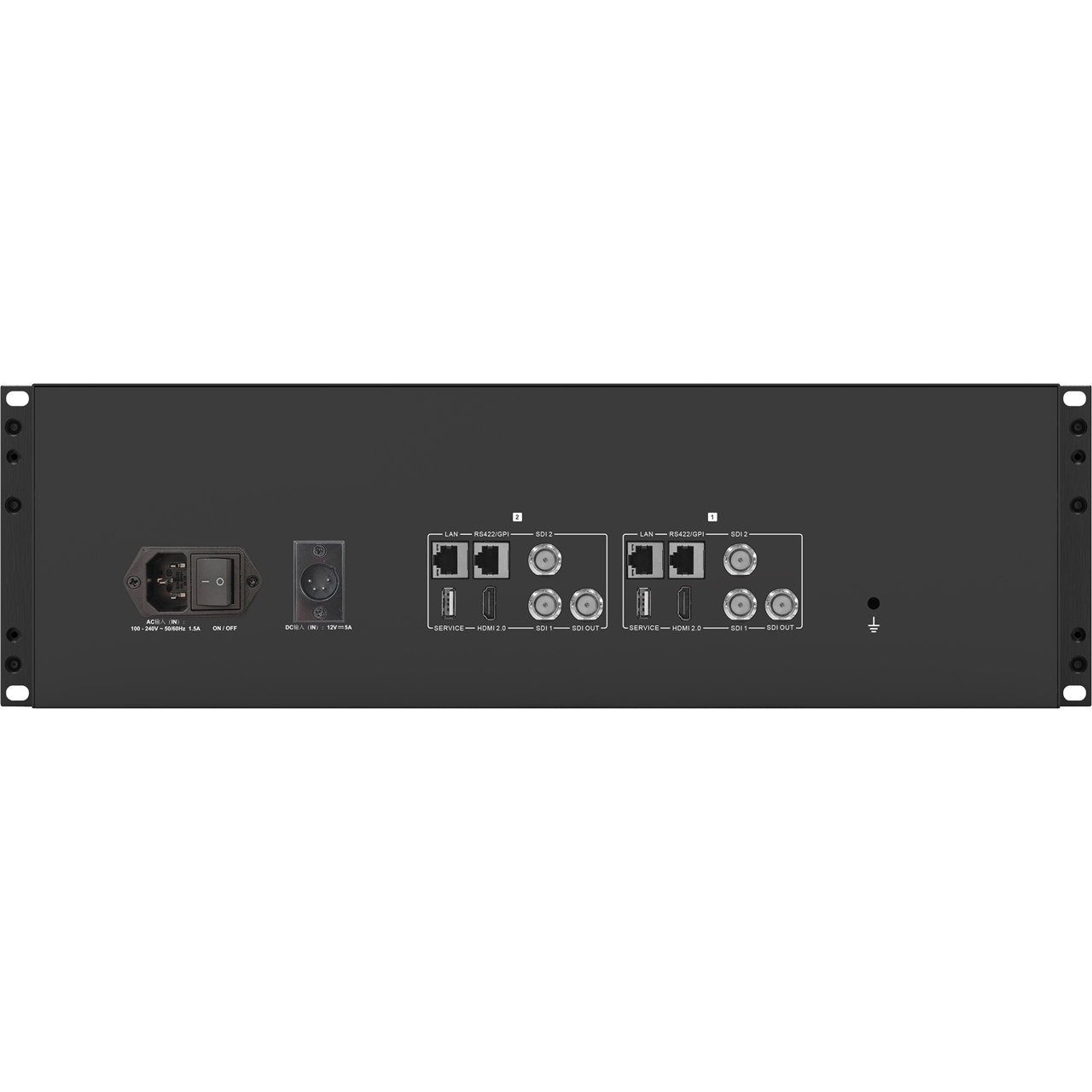

As well as including a HDMI Level 2 input, all the standard frame rates and resolutions are supported 12G/6G/3G-SDI. The 12G-SDI input signal is Auto-detected and compatible with 6G/3G/HD/SD-SDI. Up to 16 audio channels may be selected for visual monitoring using on-screen bar graph style level meters. Monitoring speakers to the rear of the unit allow the selected screen to be audibly monitored, while a 3.5mm headphone socket provides optional private monitoring.
Each of the high-resolution LCD screens displays high-definition or standard-definition video in a range of aspect ratios. Parameters are selected and adjusted using an on-screen display menu.
