3-Conductor 22 AWG Flexible Plenum Audio and Control Cable - 1000 Foot

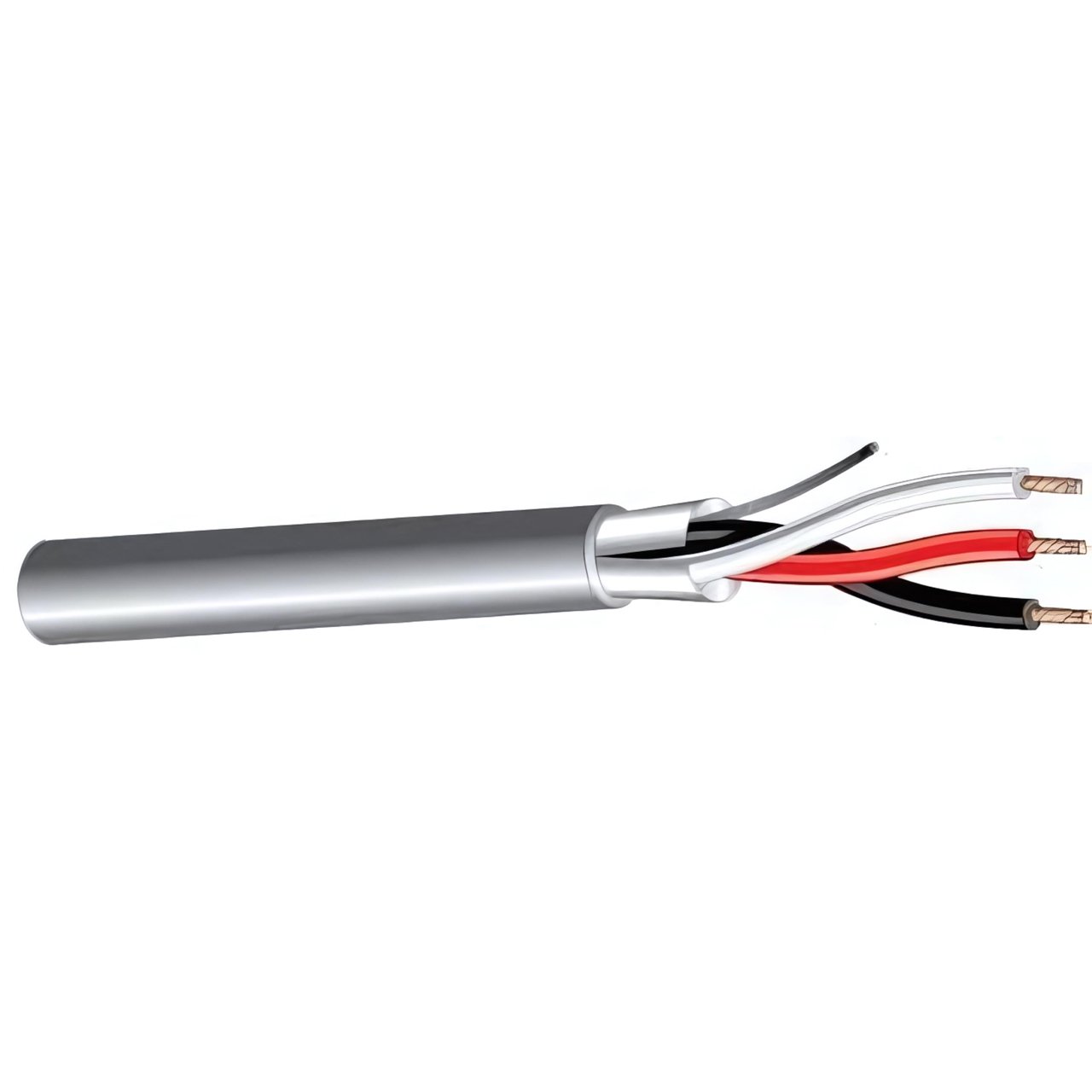

The West Penn 25301B is a 3-conductor 22 AWG bare copper Plenum communication cable. This cable features bare copper conductors along with a flexible Plenum Jacket, and is RoHS compliant.
-
- Construction and Physical
- Number of Conductors: 3
- AWG Size: 22
- Conductor Stranding: 7x30
- Conductor Type: Bare copper
- Nominal DCR: 17 Ohm/1000ft
- Insulation Type: Plenum PVC
- Insulation Thickness: 0.007 in
- Insulation Color Code: 1.Black, 2.Red, 3.White
- Shield Type: Overall 100% Aluminum Foil
- Drain Wire Type: Tinned Copper
- Drain Wire AWG: 24 AWG
- Nom. Cap. Between Conductors: 54 pF/ft
- Nom. Cap. Conductor to Shield: 97 pF/ft
- Jacket Type: Flexible Plenum
- Jacket Thickness: 0.015 in
- Nominal Cable O.D.: 0.13 in
- Plenum: Yes
- NEC UL Rating: CMP
- RoHS Compliant: Yes
- Pull Tension: 30 lbs
- Bend Radius: 1.17 in
- Cable Weight: 18 lbs
Electrical/Optical - UL Flammability: NFPA 262 Plenum
- Operating Range: -0 to 60°C
- UL Voltage Rating: 300
-
