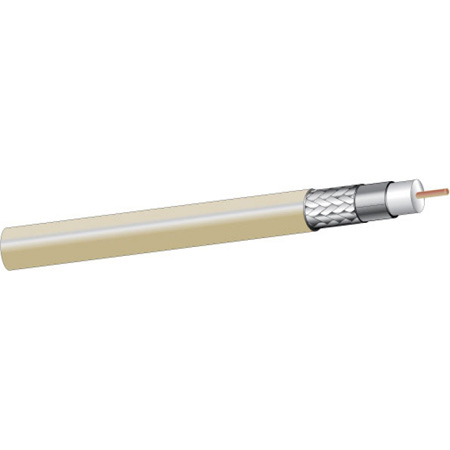

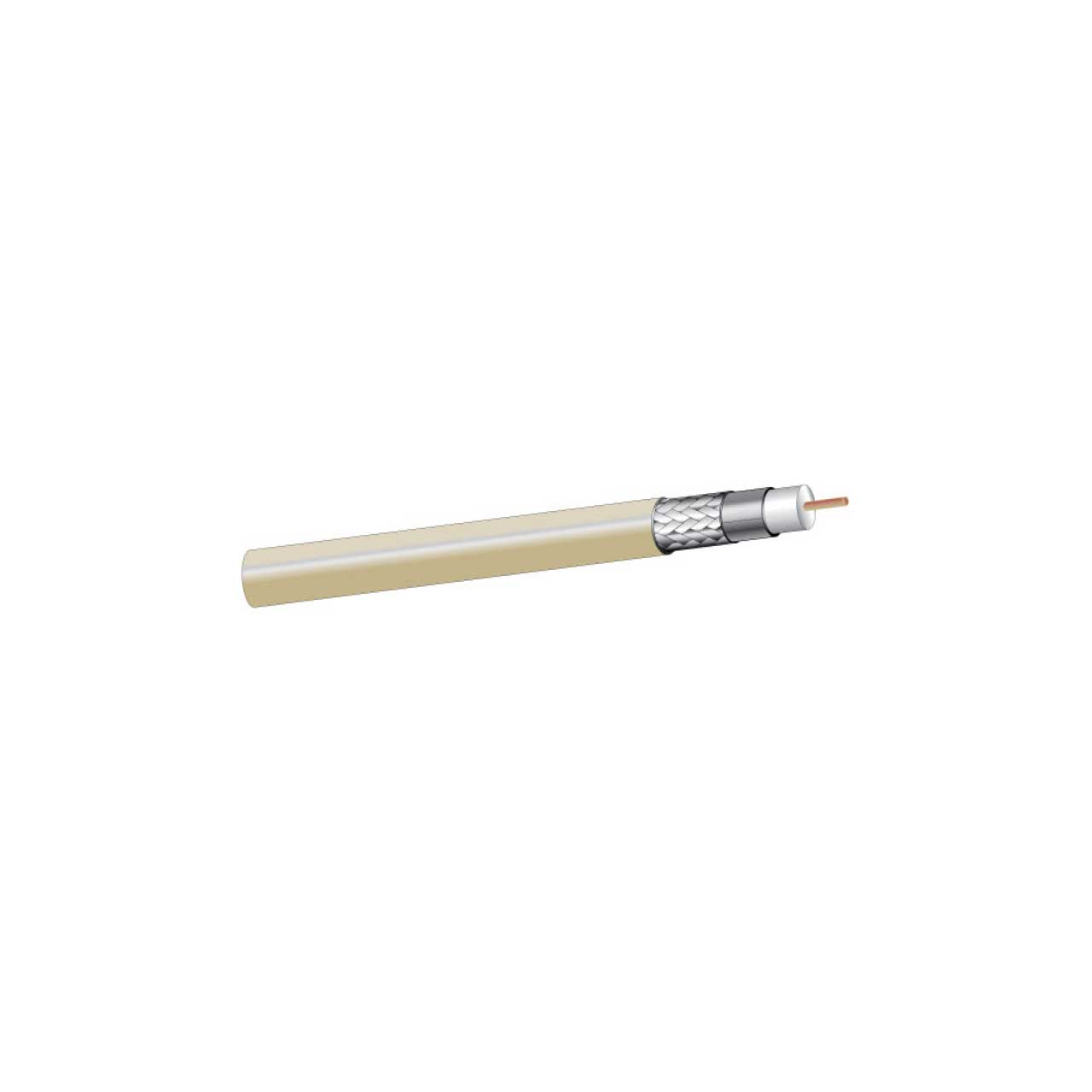

West Penn 256100 RG6/U CCS CATV Dual Shield Plenum Cable - 1000 Foot Ivory

ITEM #: WP-256100 MFG #: 256100

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

List Price:

$554.30

Our Price:

$554.18

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

256100 - Overview

The West Penn 256100 is a RG6/U CCS CATV Dual Shield Plenum Cable with 1 Conductor 18 AWG Solid, 100% Al. Foil + 61% Al. Braid and an overall Plenum PVC Jacket. West Penn has designated their CN-F6MCV "F" connector as 100% compatable with the 2556100. Must use the proprietary tool and strpper in order to properly crimp. Strip Tool: TL-CSST, Compression Tool: TL-548G.

  • Specifications:

    • Construction & Dimensions
    • Number of Conductors: 1
    • AWG Size: 18
    • Conductor Stranding: Solid
    • Conductor Type: Copper Covered Steel -CCS
    • Nominal DCR: 28 Ohm/1000ft

      Insulation Parameter
    • Insulation Type: Foam FEP
    • Insulation Thickness: 0.17 in

      Shielding Parameter
    • Shield Type: Overall 100% Aluminum Foil
    • Shield Type 2: Aluminum Braid

      Electrical Characteristics
    • Nominal Impedance: 75 Ohm
    • Nom. Cap. Between Conductors: 16.2 pF/ft

      Overall Construction Parameters
    • Jacket Type: Flexible Plenum
    • Nominal Cable O.D.: 0.237 in
    • Plenum: Yes
    • NEC UL Rating: CATVP
    • RoHS Compliant: Yes
    • Pull Tension: 70 lbs
    • Bend Radius: 2.37 in
    • Cable Weight: 29 lbs


  • GTIN:

    0612825050094
