West Penn 25819 Plenum RG59 HD/SDI Digital Coaxial Cable 1000 Ft Ivory

ITEM #: WP-25819-1000-IY MFG #: 25819

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$597.79

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

25819 - Overview

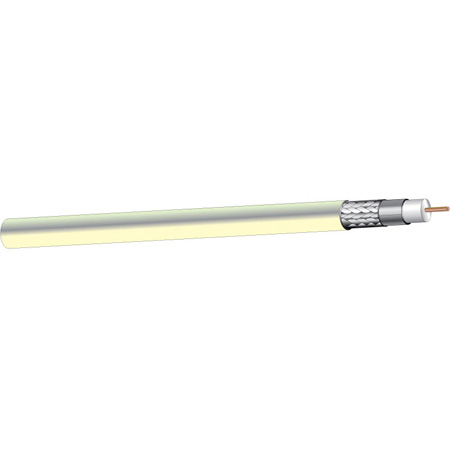

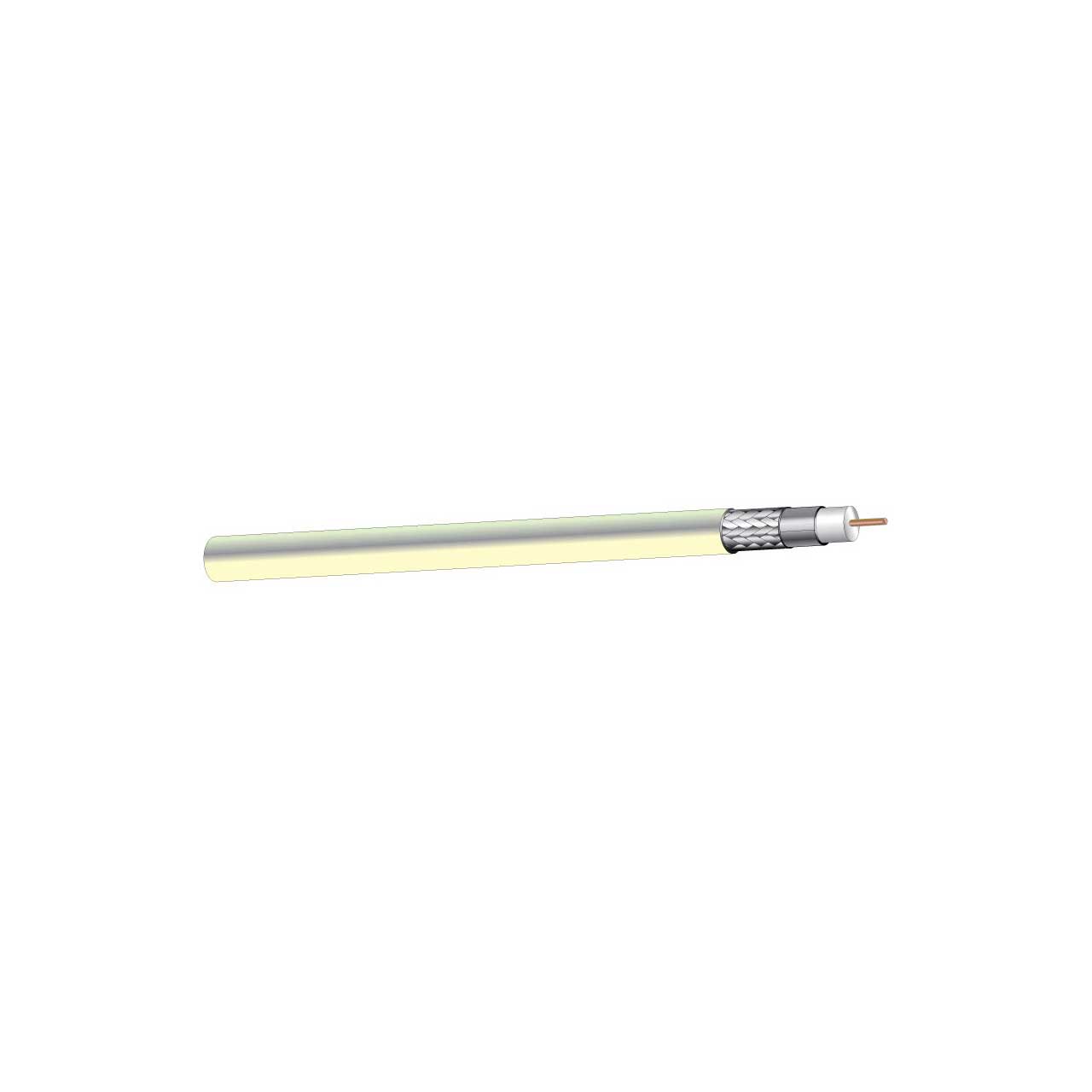

West Penn 25819 RG59/U - 1 Conductor 20AWG Solid, 100% Aluminum Foil + 95% Tinned copper braid and an overall Flex Plenum Jacket. Use indoor for: Pro-Video, SDI, Digital Audio, CCTV and CATV.

  • Specifications:

    • Number of Conductors: 1
    • AWG Size: 20
    • Conductor Stranding: Solid
    • Conductor Type: Bare Copper
    • Nominal DCR: 10.1 Ohm/1000f
    • Insulation Type: Foam FEP
    • Insulation Thickness: 0.135 in
    • Jacket Type: Flexible Plenum
    • Nominal Cable O.D.: 0.2 in
    • Plenum: Yes
    • NEC UL Rating: CMP
    • RoHS Compliant: Yes
    • Pull Tension: 55 lbs
    • Bend Radius: 2 in
    • Cable Weight: 35 lbs


  • Applications

    :

    • Pro-Video
    • SDI
    • Digital Audio
    • CCTV and CATV


  • GTIN:

    0612825050773
