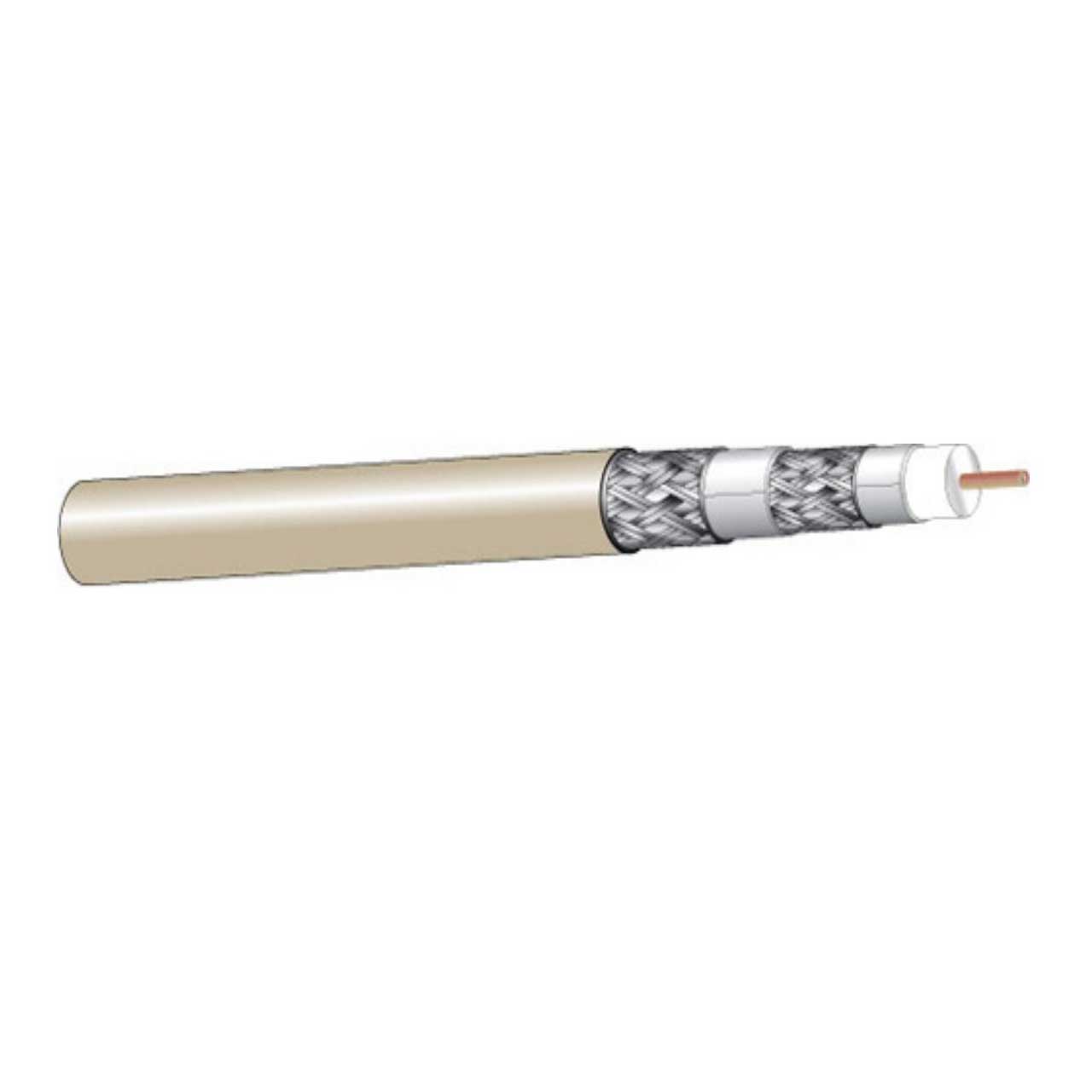

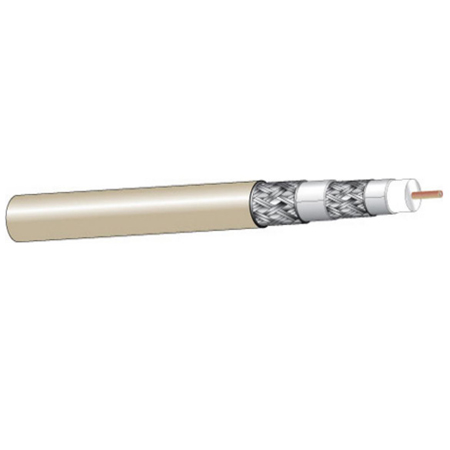

West Penn 25Q841 RG6/U Type CATV Coaxial Cable Plenum - Ivory - 500 Foot

25Q841IV0500 - Overview

• Specifications:

  • Construction Parameters
  • Conductor: 18 AWG Bare Copper
  • Stranding: Solid
  • Insulation Material: Foam FEP
  • Insulation Thickness: .170” Nom.
  • Number of Conductors: 1 Center Conductor
  • Shield: Quad-Shield- 100% Al foil + 65% Al. Braid + 100% Al. Foil + 55% Al. Braid
  • Jacket Material: Flexible Plenum PVC
  • Overall Cable Diameter: 0.273" Nom.
  • Approximate Cable Weight: 36 Lbs/1M' Nom.
  • Flame Rating: NFPA 262
    Electrical and Environmental Properties
  • Temperature Rating: -20°C to 60°C
  • Max.Capacitance Between Conductors at 1 KHz: 16.2 pf/ft Nom.
  • Velocity of Propagation: 82% Nom.
  • Impedance: 75 ohms Nom.
  • DC Resistance per Conductor at 20°C: 6.5 Ohms/1M' Nom.
  • Jacket Color: Ivory
  • RoHS Compliant: Yes
    Mechanical Properties
  • Maximum Recommended Pull Tension: 125 lbs.
  • Minimum Bend Radius (Install): 2.7”


• GTIN:

  0612825044819
