West Penn 3271GY1000 8C 22G Stranded Shielded Communication Cable - Gray - 1000 Feet

ITEM #: WP-3271GY1000 MFG #: 3271GY1000

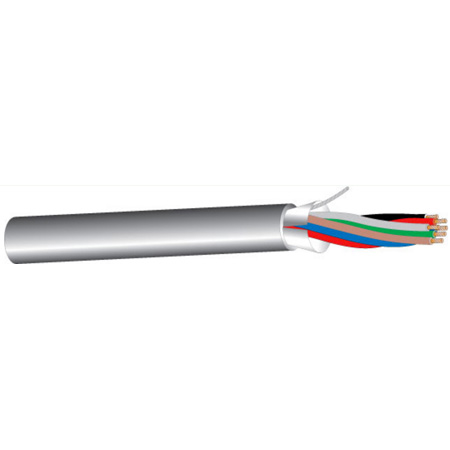

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

List Price:

$358.20

Our Price:

$288.62

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

3271GY1000 - Overview

The West Penn 3271GY1000 is a 22/8C AWG communication cable with stranded bare copper conductors and shielded with an overall jacket.

  • Specifications:

    • Number of Conductors: 8
    • AWG Size: 22
    • Conductor Stranding: 7x30
    • Conductor Type: Bare copper
    • Nominal DCR: 17 Ohm/1000ft
    • Insulation Type: Thermoplastic
    • Insulation Thickness: 0.007 in
    • Insulation Color Code: 1.Black,2.Red,3.White,4.Green,5. Brown,6.Blue,7.Orange,8.Yellow
    • Shield Type: Overall 100% Aluminum Foil
    • Drain Wire Type: Tinned Copper
    • Drain Wire AWG: 24 AWG
    • Nom. Cap. Between Conductors: 34 pF/ft
    • Nom. Cap. Conductor to Shield: 67 pF/ft
    • Jacket Type: PVC
    • Jacket Thickness: 0.017 in
    • Nominal Cable O.D.: 0.182 in
    • Plenum: No
    • NEC UL Rating: CMR, CMG
    • RoHS Compliant: Yes
    • Pull Tension: 78 lbs
    • Bend Radius: 1.638 in
    • Cable Weight: 35 lbs


  • GTIN:

    0612825052913
