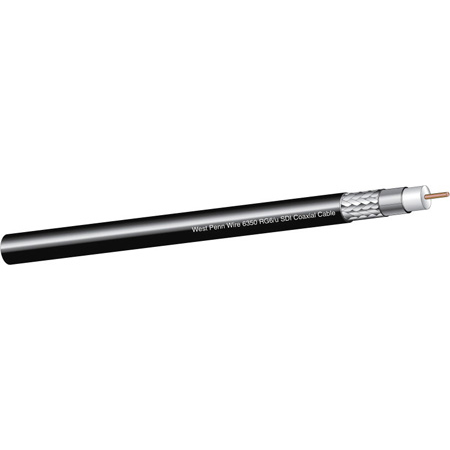

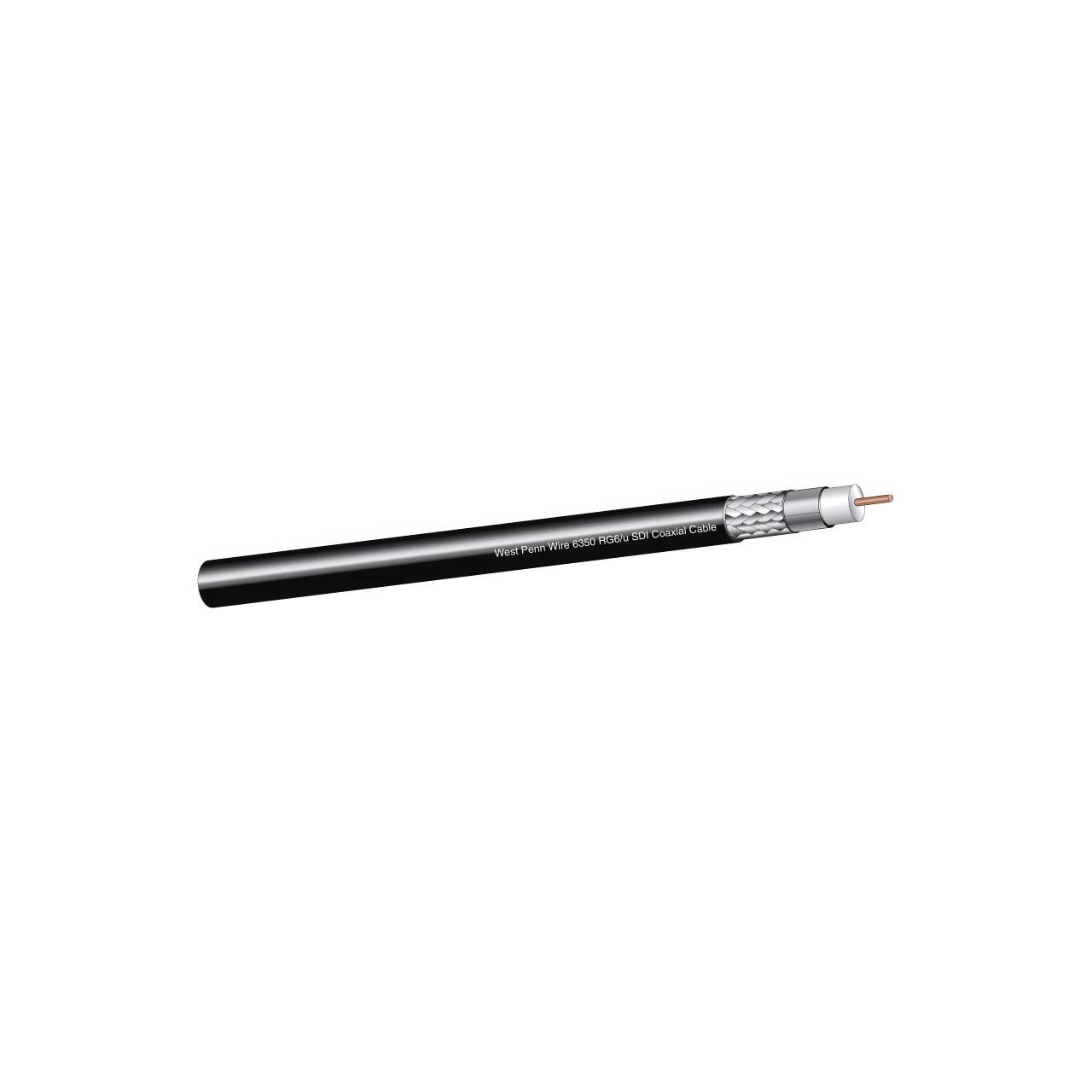

West Penn Wire 6350 CMR 18AWG 3G-SDI RG6/U Coaxial Cable - 1000 Feet - Black

Name: West Penn Wire 6350 CMR 18AWG 3G-SDI RG6/U Coaxial Cable - 1000 Feet - Black
Brand: West Penn Wire Corp
SKU: WP-6350-1000BK
Price: 428.63 USD
Availability: InStock

ITEM #: WP-6350-1000BK MFG #: 6350 BLACK

West Penn Wire Corp

List Price:

$428.70

Our Price:

$428.63

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

6350 BLACK - Overview

West Penn Wire 6350 is a low cost RG6 coaxial cable capable of carrying 3.0Gb/s SMPTE 292M signals up to 270 Feet and a 1.5Gb/s SMPTE 292M signal up to 400 feet.

The West Penn 6350 is constructed with an 18 Awg solid center conductor and 100% Bi-Foil shield and a 95% Tinned Copper Braid. It has a PVC overall jacket and a 0.275" Outside Diameter.

Specifications:
- Roll Length: 1000 Feet
- Maximum SMPTE292M Length: 270 Feet
- Conductor: 18 AWG Bare Copper
- Stranding: Solid .040"
- Insulation Material: Gas Injected Polyethylene
- Insulation Thickness: 0.180'' Nom.
- Shield: 100% Aluminum Foil + 95% Tinned Copper Braid
- Jacket Material: PVC
- Overall Cable Diameter: 0.275'' Nom.
- Approximate Cable Weight: 41 Lbs/1M' Nom.
- Flame Rating: UL1666 Vertical Shaft
- Plenum Version Part Number 256350
- Belden 1694A and Gepco VSD2001 Equivalent
- NEC RATING: CMR
- Approvals: (UL) C(UL) Listed or c(ETL)us Listed
- Applications: Indoor for: SDI, Precision Video, CCTV, CATV, Digital Audio
GTIN:
0612825057093

6350 BLACK - Required Accessories

Kings 2065-10-9 75 Ohm 12G BNC Connector for Belden 1694A/4694R & West Penn 6350 & Gepco VSD2001
2065-10-9
Our Price: $2.14
Kings KTH-2325 2065-10-9 BNC and DIN 1.0 /2.3 Connector Crimp Die For 12G Use On Belden 4694R
KTH-2325
Our Price: $239.00
Kings KTH-1000 BNC Crimp Tool with Removable Die (Die Not Included)
KTH1000
Our Price: $552.96

6350 BLACK - Recommended Accessories

Connectronics ULTRA High Speed 8K HDMI 2.1 AM/AM Cable - 6 Foot
HDMI-21-06FT
Our Price: $7.49
Laird 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 6 Foot - Black
4855R-B-B-BK-006
Our Price: $28.95
Connectronics CAT6A Snagless Molded 600MHz UTP 10 Gigabit Ethernet Patch Cable - 10 Foot - Black
CAT6A-010-BK
Our Price: $7.95
Sescom Mic Cable Canare Star-Quad 3-Pin XLR Male to 3-Pin XLR Female - Black - 25 Foot
SC25XXJ
Our Price: $26.49
Sescom Pro Audio Hum Eliminator Inline with Isolation
IL-19
Our Price: $50.49
Pelican 0915 Micro Memory Card Case - SD and MicroSD Cards
PEL-0915
Our Price: $35.95
Matthews 259535 Full Size Apple Box - 8inH x 12inW x 20inL
MSE-259535
Our Price: $67.00
Delvcam 11-Inch Articulating Camera Arm for Lights and Monitors
DELV-MAGICARM
Our Price: $19.95
JackReel-3 High Capacity Low Cost Cable Reel
JACKREEL-3
Our Price: $59.95
Morley MHUMX Hum Exterminator
EB-HUMX
Our Price: $89.00
Hosa CBT-500 Audio Cable Tester for XLR - Dante - RCA - I/4 Inch - speakON DIN - Ethernet & USB Type A & B cables
HOS-CBT-500
Our Price: $79.95
Camplex Visual Fault Locator for ST/SC/FC Fiber Connectors - 10mW Output Power 10km Max Distance
CMX-TL-1501
Our Price: $54.95
Pro Tapes 001UPCG255MBLA Pro Gaff Gaffers Tape BGT-60 - 2 Inch x 55 Yards - Black
BGT-60
Our Price: $19.95
Black 5 Inch Soft cinch VELCRO® Brand Polytie Cable Tie - 25 Pack
3105-25
Our Price: $10.18
Rip-Tie H-06-10 CableWrap 1x6 Black - 10 Pack
RT6-10
Our Price: $28.56
Techflex PTN0.75 3/4-Inch Flexo PET Expandable Tubing - Black - 100-Foot
PET4-C-BK
Our Price: $40.00
Goby Labs GLS-104 Microphone Cleaner Sanitizer - 4 Fluid Ounces
HOS-GLS-104
Our Price: $10.95
CAIG Products DeoxIT® Audio Video Survival Cleaning Kit
SK-AV35
Our Price: $42.35
Rosco Lens Cleaner 2 Ounce Bottle
ROS-LC
Our Price: $7.00
Rosco Lens Tissue 100 Sheet Pack
ROS-LT
Our Price: $6.25
CAIG Products CCS-503 Screen Cleaning Kit
CCS-503
Our Price: $16.95
Techspray 1673-10S Ozone Safe Economy Duster 10 Ounce (Flammable)
TESP-1673-10S
Our Price: $8.42

6350 BLACK - Reviews

6350 BLACK - Attachments

See West Penn 6350BK1000 Manual/Specs (PDF)
See West Penn 6350BK1000 Specifications (PDF)

Overview

6350 BLACK - Overview

West Penn Wire 6350 is a low cost RG6 coaxial cable capable of carrying 3.0Gb/s SMPTE 292M signals up to 270 Feet and a 1.5Gb/s SMPTE 292M signal up to 400 feet.

The West Penn 6350 is constructed with an 18 Awg solid center conductor and 100% Bi-Foil shield and a 95% Tinned Copper Braid. It has a PVC overall jacket and a 0.275" Outside Diameter.

Specifications:
- Roll Length: 1000 Feet
- Maximum SMPTE292M Length: 270 Feet
- Conductor: 18 AWG Bare Copper
- Stranding: Solid .040"
- Insulation Material: Gas Injected Polyethylene
- Insulation Thickness: 0.180'' Nom.
- Shield: 100% Aluminum Foil + 95% Tinned Copper Braid
- Jacket Material: PVC
- Overall Cable Diameter: 0.275'' Nom.
- Approximate Cable Weight: 41 Lbs/1M' Nom.
- Flame Rating: UL1666 Vertical Shaft
- Plenum Version Part Number 256350
- Belden 1694A and Gepco VSD2001 Equivalent
- NEC RATING: CMR
- Approvals: (UL) C(UL) Listed or c(ETL)us Listed
- Applications: Indoor for: SDI, Precision Video, CCTV, CATV, Digital Audio
GTIN:
0612825057093
