West Penn Wire 819 CMR 20AWG 3G-SDI RG59/U Coaxial Cable - 1000 Feet - Black

ITEM #: WP-819-1000BK MFG #: 819 BLACK

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$352.50

Our Price:

$339.70

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

819 BLACK - Overview

West Penn Wire 819 is a low cost RG59 coaxial cable capable of carrying 3.0Gb/s SMPTE 292M signals up to 220 Feet and a 1.5Gb/s SMPTE 292M signal up to 310 feet.

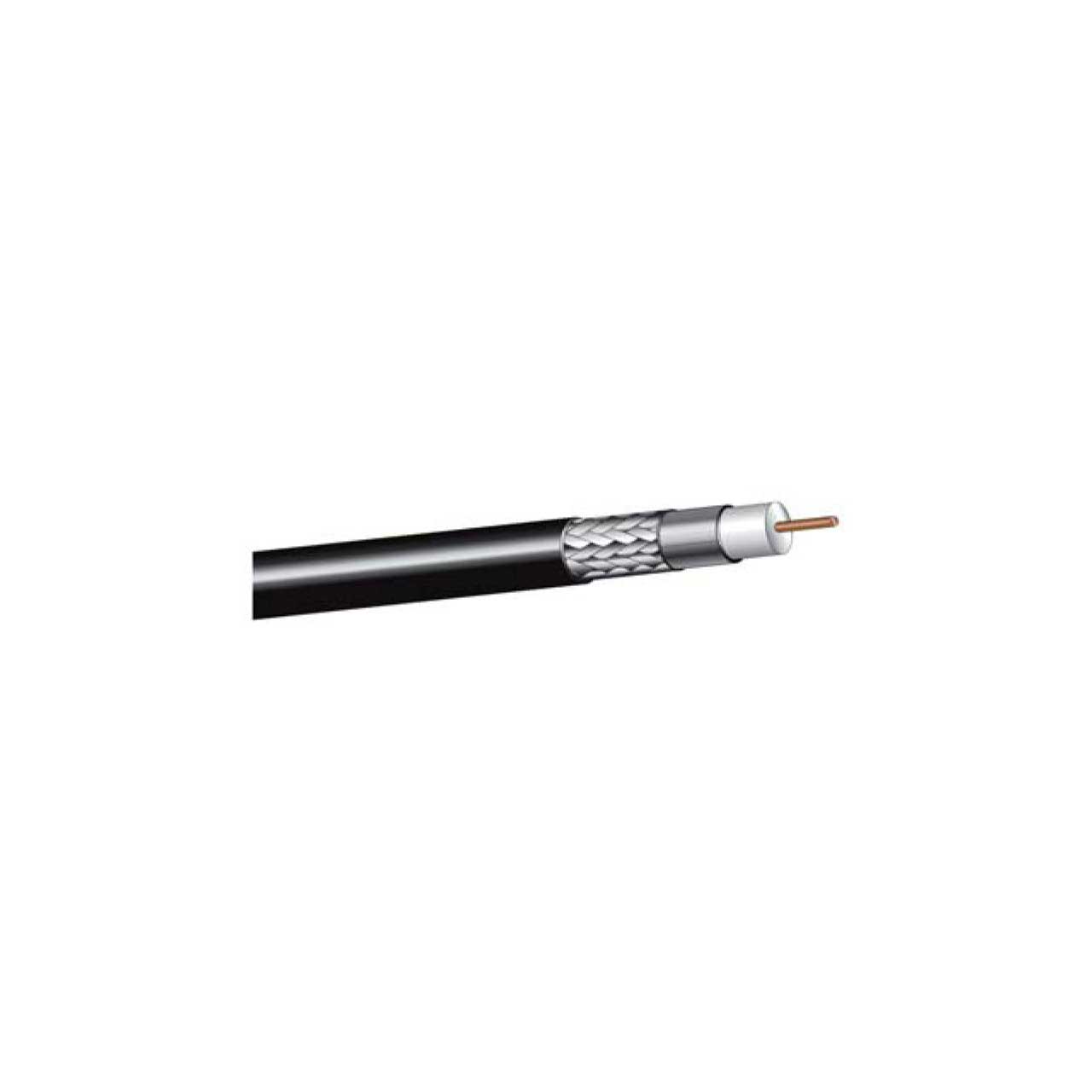

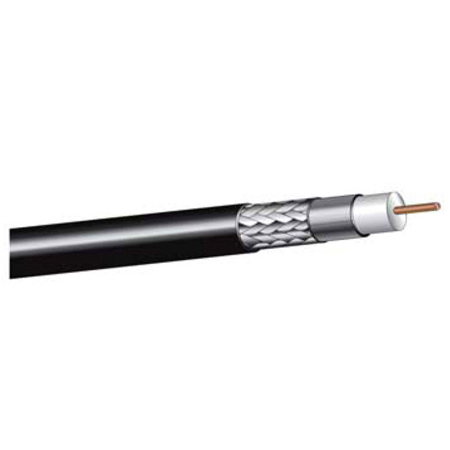

The West Penn 819 is constructed with a 20 Awg solid center conductor and 100% Bi-Foil shield and a 95% Tinned Copper Braid. It has a PVC overall jacket and a 0.232" Outside Diameter.

  • Specifications:

    • Roll Length: 1000 Feet
    • Maximum SMPTE 292M Distance: 220 Feet
    • Center Conductor: 20 AWG Solid Bare Copper
    • Stranding: Solid 0.032"
    • Insulation Material: Gas Injected Polyethylene 0.085
    • Insulation Thickness: 0.143'' Nom.
    • Shield: 100% Aluminum Foil + 95% Tinned Copper Braid
    • Jacket Material: PVC
    • Overall Cable Diameter: 0.233'' Nom.
    • Approximate Cable Weight: 31 Lbs/1M' Nom.
    • Flame Rating: UL1666 Vertical Shaft
    • Plenum Version Part Number: 25819
    • Belden 1505A Equivalent


  • GTIN:

    0612825057949
