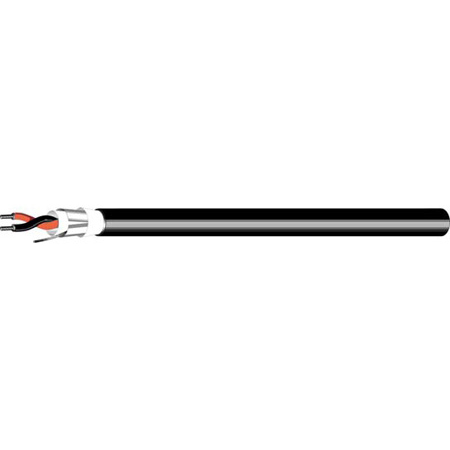

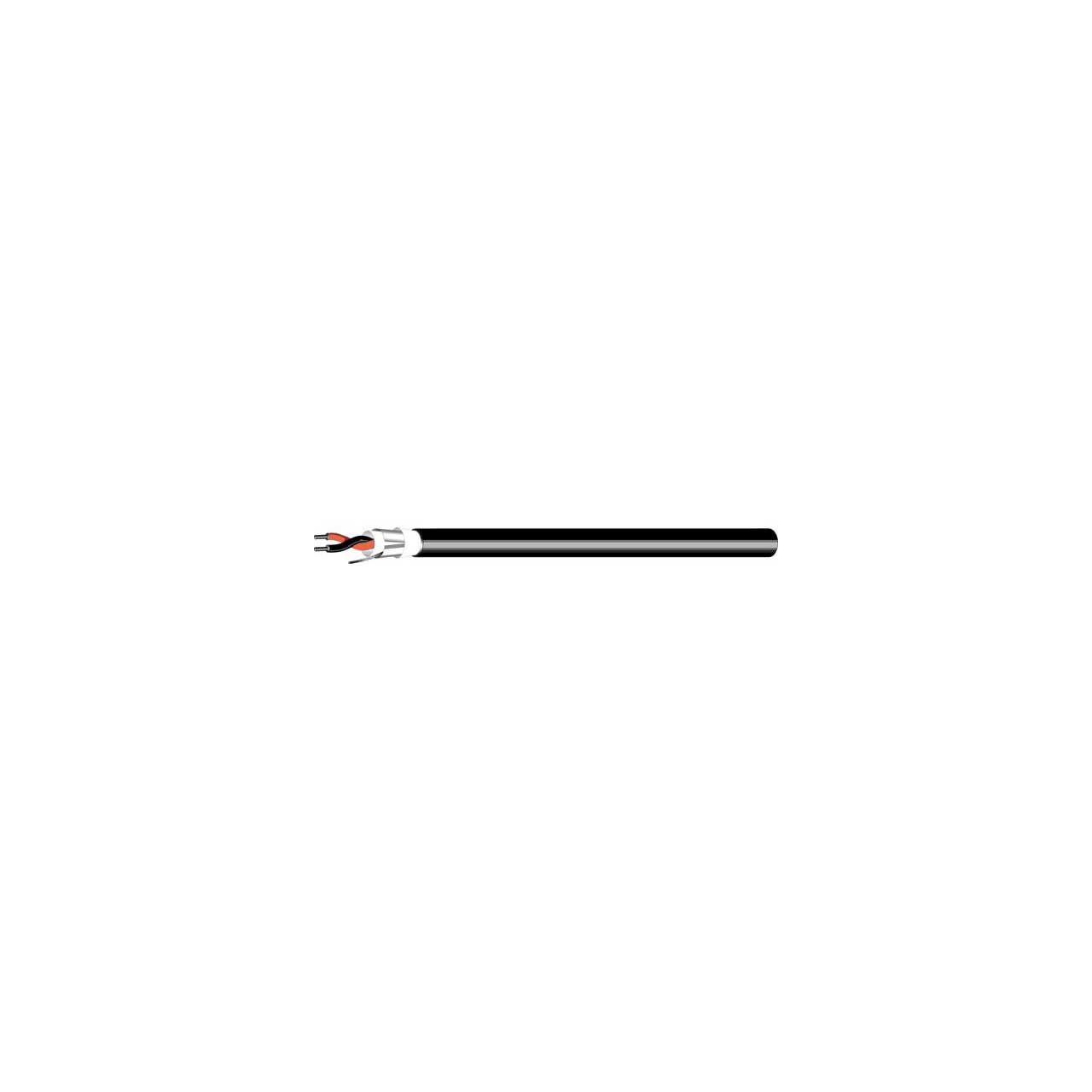

West Penn AQ293 18/2 Aquaseal Fire-Alarm Cable - Direct Burial - 1000 Feet Black

Name: West Penn AQ293 18/2 Aquaseal Fire-Alarm Cable - Direct Burial - 1000 Feet Black
Brand: West Penn Wire Corp
SKU: WP-AQ293-1000
Price: 521.92 USD
Availability: PreSale

ITEM #: WP-AQ293-1000 MFG #: AQ293

West Penn Wire Corp

List Price:

$522.00

Our Price:

$521.92

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

AQ293 - Overview

18/2 Stranded bare copper conductors, overall shield with Aquaseal tape and overall jacket.

APPLICATION: Materials suitable for outdoor use (direct burial), and indoor trays, allows a variety of uses for (Low voltage industrial process control circuits, Power-Limited circuits, Power-Limited fire alarm circuits, Power-Limited tray cable PLTC)

Features:
- Construction

  Conductor: 18 AWG Bare Copper
  Stranding: 7x26
  Insulation Material: PVC with Nylon
  Insulation Thickness: PVC 0.015'' Nom.; Nylon: .005" Nom.
  Number of Conductors: 2 (1 Pair)
  Shield: 100% Aluminum Polyester Foil
  Drain: Stranded Tinned Copper
  Water-Blocking Tape: 2 Ply water swellable tape
  Jacket Material: Sunlight/ Moisture Resistant PVC
  Jacket Thickness: 0.040'' Nom.
  Overall Cable Diameter: 0.310'' Nom.
  Approximate Cable Weight: 48 Lbs/1M' Nom.
  Flame Rating: UL 1685 Vertical Tray

  Electrical & Environmental Properties
  Temperature Rating: -20deg C to 60deg C
  Operating Voltage: 300 V RMS
  Max.Capacitance Between Conductors @ 1 KHz: 32 pf/ft Nom.
  Capacitance Between Conductors to Shield @ 1 KHz: 58 pf/ft Nom.
  DC Resistance per Conductor @ 20deg C: 6.2 Ohms/1M' Nom.
  Insulation Colors: Black, Red
  Jacket Color: Black
  TIA455-82B Water Infiltration Test Compliant: Yes
  UL 444 & 13 Compliant: Yes
GTIN:
0612825006855
