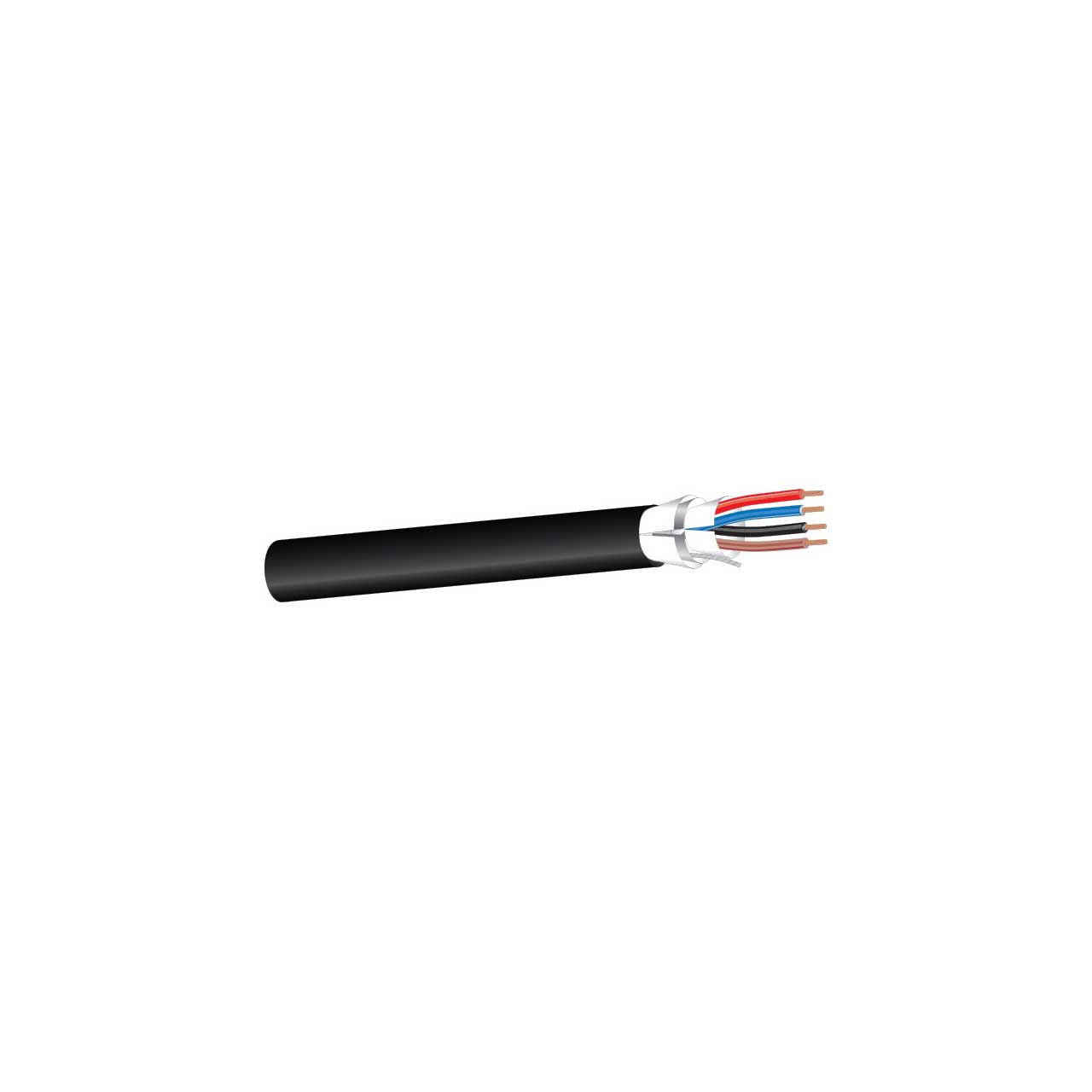

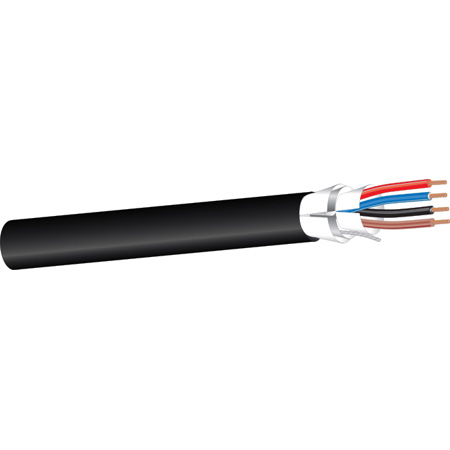

West Penn AQ3245 4 Cond. 16 AWG Aquaseal Fire-Alarm Cable - Black - 1000 Foot

AQ3245-1000BK - Overview

• Features:

  • Conductor Parameter
  • Number of Conductors: 4
  • AWG Size: 16
  • Conductor Stranding: 19x29
  • Conductor Type: Bare copper
  • Nominal DCR: 4.2 Ohm/1000ft

    Insulation Parameter
  • Insulation Type: PVC
  • Insulation Thickness: 0.02"
  • Insulation Color Code: 1.Black,2.Red,3.Blue ,4.Brown

    Shielding Parameter
  • Shield Type: Aquaseal Water Blocking Tape
  • Shield Type 2: Aquaseal Water Blocking Tape
  • Drain Wire Type: Tinned Copper
  • Drain Wire AWG: 24 AWG

    Electrical Characteristic
  • Nom. Cap. Between Conductors: 27 pF/ft
  • Nom. Cap. Conductor to Shield: 67 pF/ft

    Overall Construction Parameters
  • Jacket Type: UV Resistant PVC
  • Jacket Thickness: 0.04 in
  • Nominal Cable O.D.: 0.415 in
  • Plenum: No
  • NEC UL Rating: CL3, FPL, PLTC
  • RoHS Compliant: Yes
  • TIA Test: TIA455-82 Water Penetration Test
  • Bend Radius: 3.735 in
  • Cable Weight: 89 lbs


• GTIN:

  0612825007036
