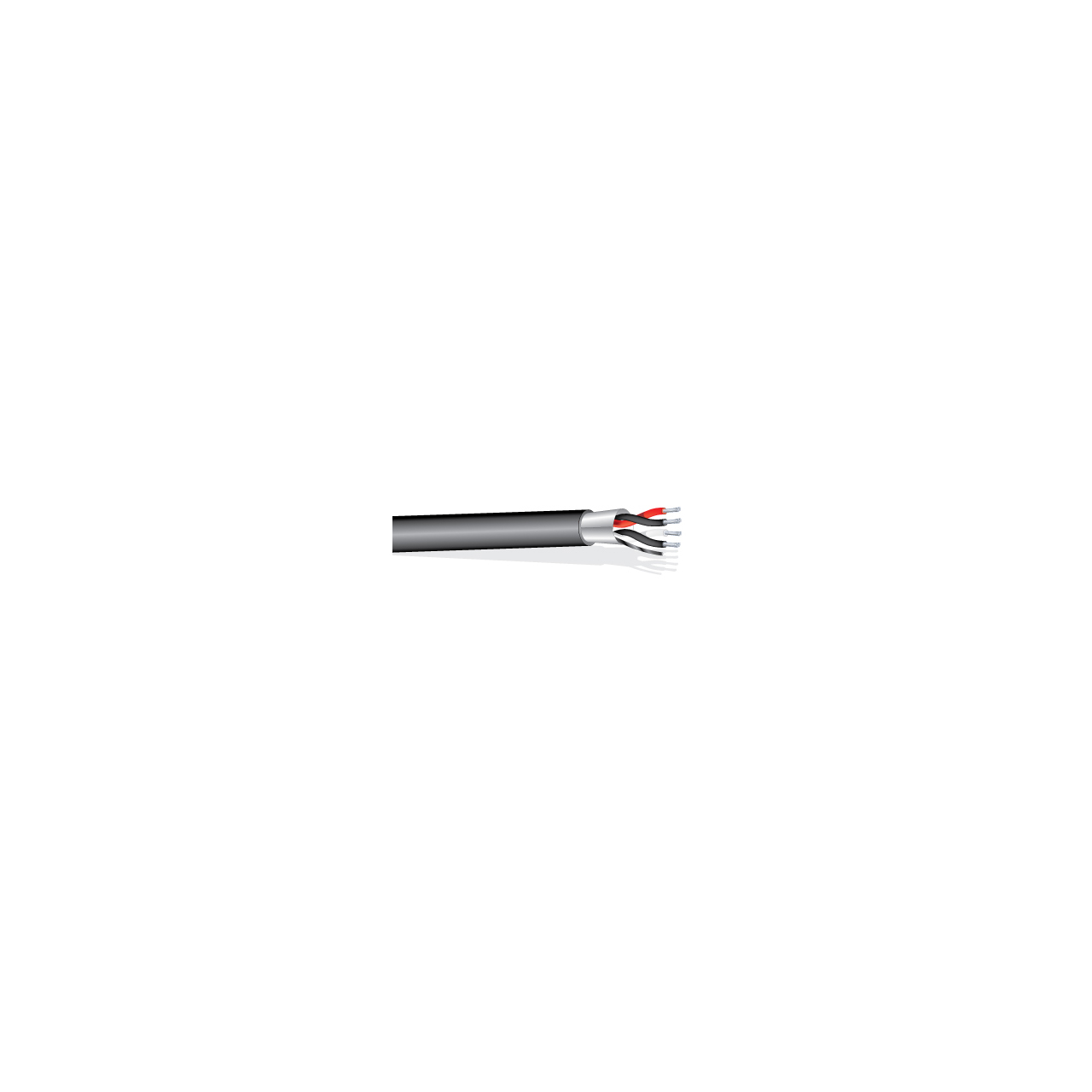

West Penn D2402 2 Pair 24 AWG Stranded Shielded CM Rated Data Cable - Black - 1000 Foot

ITEM #: WP-D2402BK1000 MFG #: D2402BK1000

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

List Price:

$253.30

Our Price:

$212.22

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

D2402BK1000 - Overview

2 pair 24AWG Shielded CM Rated Serial Data and Control Low Capacitance Cable

  • Specifications:

    • Number of Pairs: 2.
    • AWG Size: 24.
    • Conductor Stranding: 7x32.
    • Conductor Type: Tinned Copper.
    • Nominal DCR: 26 Ohm/1000ft.
    • Insulation Type: Polyolefin.
    • Insulation Thickness: 0.013 in.
    • Insulation Color Code: 1. Black-Red 2. Black-White.
    • Shield Type: Overall 100% Aluminum Foil.
    • Drain Wire Type: Tinned Copper.
    • Drain Wire AWG: 24 AWG.
    • Nominal Impedance: 100 Ohm
    • Nom. Cap. Between Conductors: 14.5 pF/ft
    • Nom. Cap. Conductor to Shield: 26 pF/ft.
    • Total Number of Conductors: 4.
    • Jacket Type: PVC.
    • Jacket Thickness: 0.030 in.
    • Nominal Cable O.D: 228 in
    • Plenum: No.
    • NEC UL Rating: CM.
    • RoHS Compliant: Yes.
    • Pull Tension: 46 lbs.
    • Bend Radius: 2,052 in.
    • Cable Weight: 23 lbs.
    • Nominal Velocity of Propagation (VP): 72 %.
    • UL Flammability: UL1685.
    • Operating Range: -20 to 60 Deg C.
    • UL Voltage Rating: 300
