West Penn Wire D25454 22/2 Plenum Miniature Line-Level Audio Cable - 1000 Ft.

ITEM #: WP-D25454-1000 MFG #: D25454

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

List Price:

$242.60

Our Price:

$242.58

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

D25454 - Overview

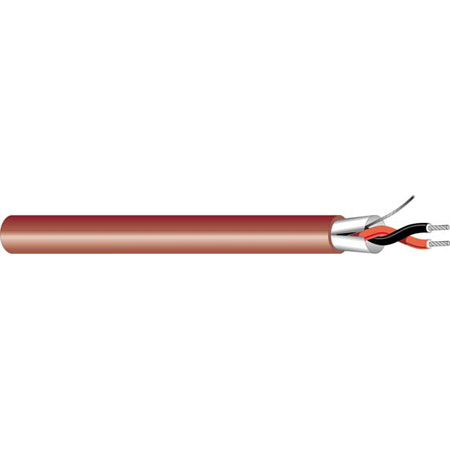

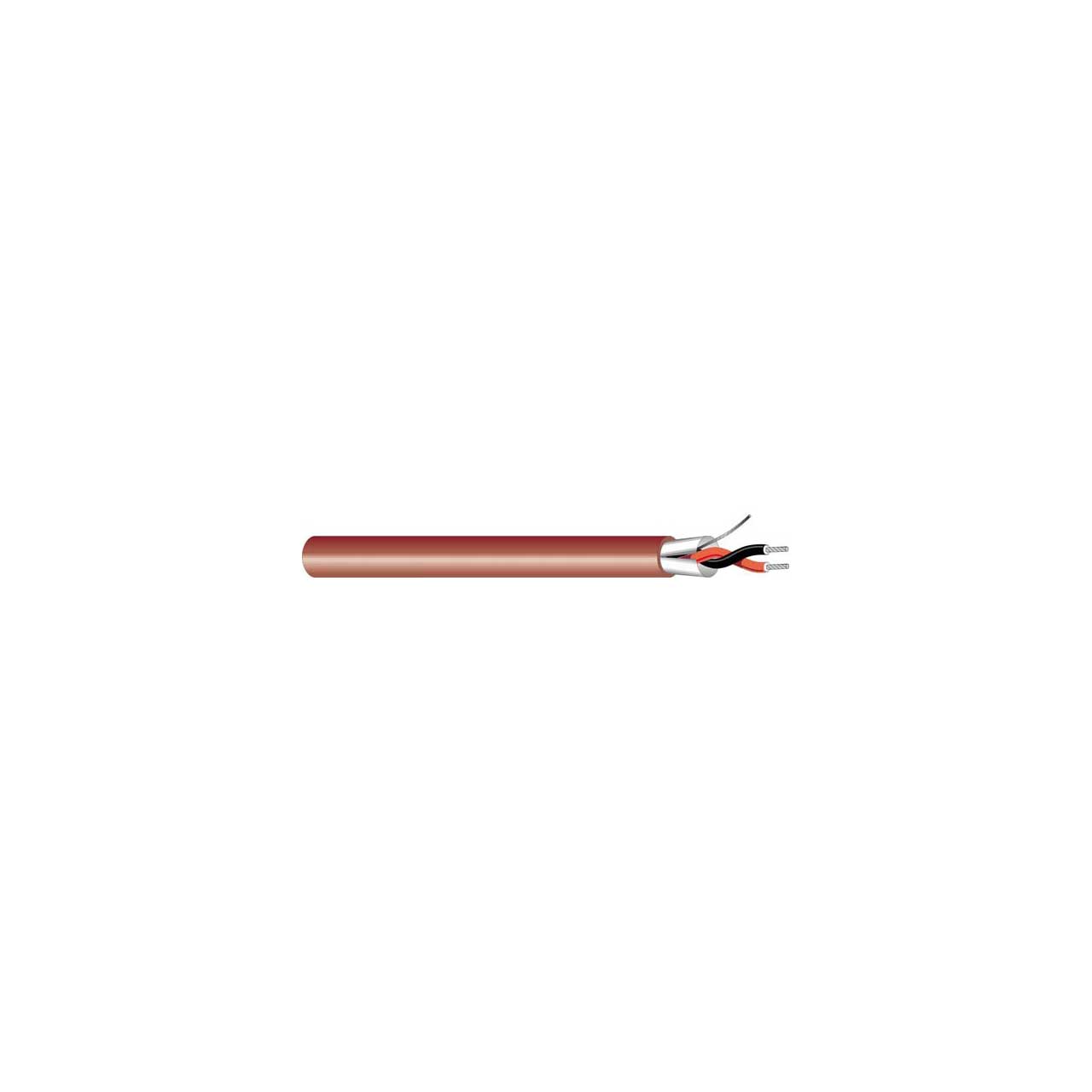

22/2 Stranded tinned copper conductors, bonded shielded with an overall jacket.

APPLICATION: Indoor Plenum for: Post Production Facilities, Recording Studio, Sound, Audio.

  • Features:

    • NEC RATING: CMP, NEC Article 800
    • APPROVALS: (UL) Listed


  • Specifications:

    • Conductor 22 AWG Tinned Copper
    • Stranding 7x30
    • Insulation Material FEP- Teflon
    • Insulation Thickness 0.007'' Nom.
    • Number of Conductors 2 (1 Pair)
    • Shield 100% Aluminum Polyester Foil-bonded
    • Drain Stranded Tinned Copper
    • Jacket Material Plenum PVC
    • Jacket Thickness 0.018'' Nom.
    • Overall Cable Diameter 0.130'' Nom.
    • Approximate Cable Weight 16 Lbs/1M' Nom.
    • Flame Rating UL NFPA-262


  • GTIN:

    0612825028222
