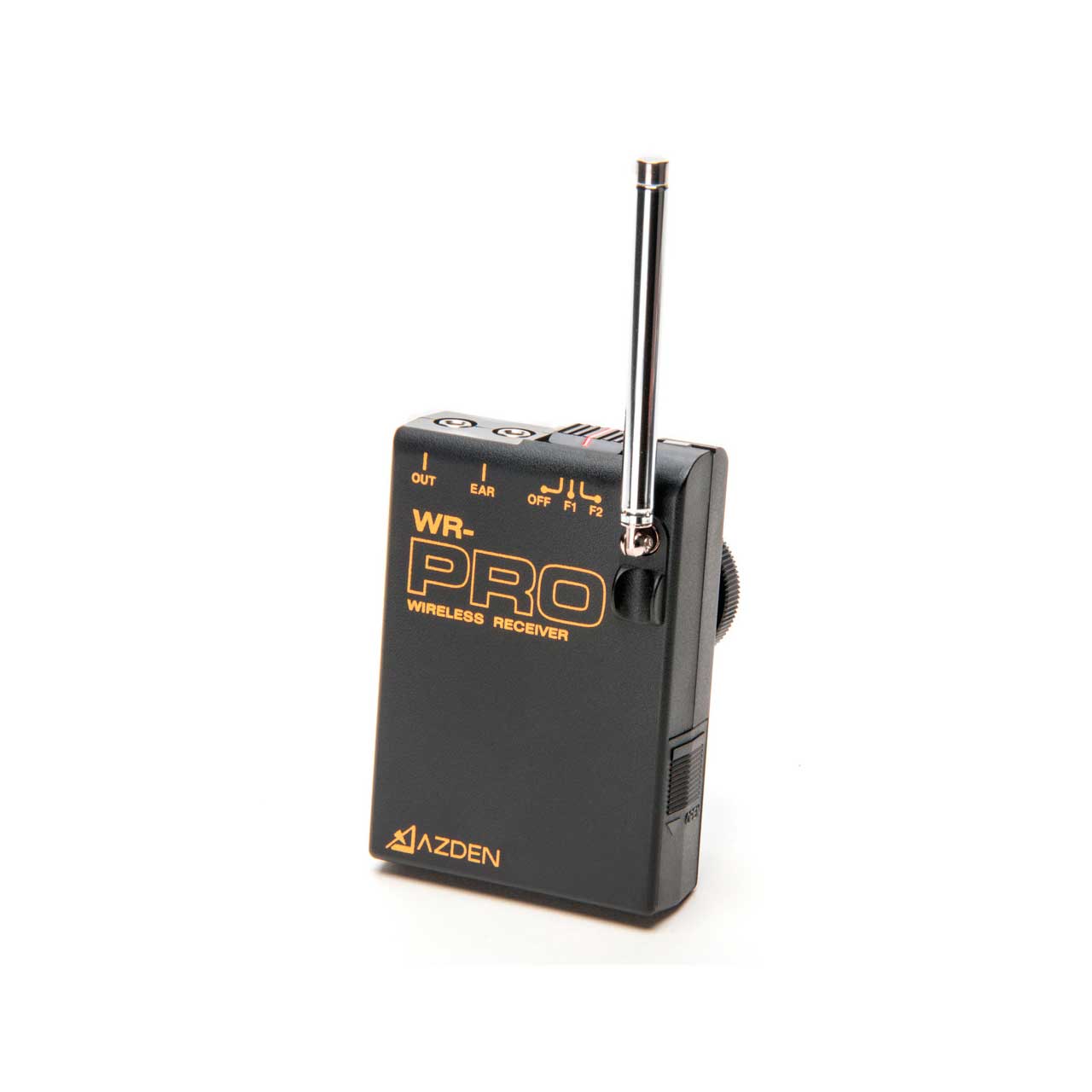

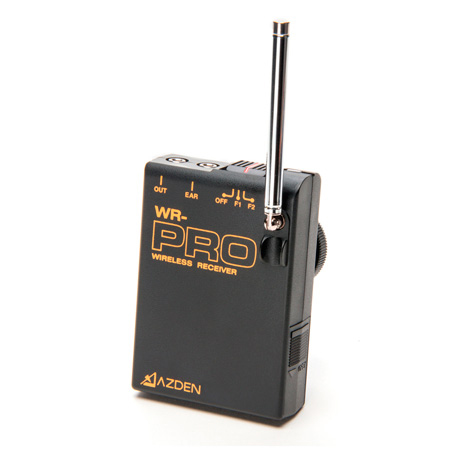

Azden WR-PRO VHF Wireless Camera Mount Receiver

ITEM #: WR-PRO MFG #: WR-PRO

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the WR-PRO

WR-PRO - Overview

The standard camera-mount receiver for any "PRO" series transmitter, the WR-PRO is a single channel receiver, but has two selectable operating frequencies to choose from (169.445MHz and 170.245MHz) giving the user an option in case one channel has interference. Comes with camera shoe mount and a 3.5mm mono to stereo microphone output cable.

  • Features:

    • Single channel, VHF receiver w/ 2 operating frequencies
    • Works seamlessly with your DSLR camera
    • Compatible with all PRO Series transmitters
    • High gain telescopic antenna
    • Powered by single 9V battery
    • Monitor (headphone) output jack
    • Comes with shoe mount & mounting strips


  • Specifications:

    • Reception Frequency: F1: 169.445MHz; F2: 170.245MHz
    • Receiver type: Double superheterodyne
    • Sensitivity: 2mV @ S/N of 40dB
    • Battery: 9V x1 Alkaline (not included)
    • Power consumption: 25mA
    • Monitor output: 1V @ 30?, Modulation frequency: 1kHz, Deviation: +/-7kHz
    • Mic output: 8mV w/10k? load, Modulation frequency: 1kHz, Deviation: +/-7kHz
    • Mic output impedance: 300?
    • Dimensions: 86(h) x 60(w) x 21.5(d) mm (3.3” x 2.4” x 0.85”)
    • Weight w/battery: 128g (4.5oz)


  • Item Includes:

    • WR-PRO receiver
    • Shoe Mount
    • Mono to stereo output cable
    • Mounting strips
    • Earphone monitor


  • GTIN:

    0095528040034
