X-Keys XK-298-232-R XK-24 RS-232 and Virtual COM Keypad

ITEM #: XK-298-232-R MFG #: XK-298-232-R

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
X-Keys
Free Shipping with $49 Minimum Order

Our Price:

$246.95

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

XK-298-232-R - Overview

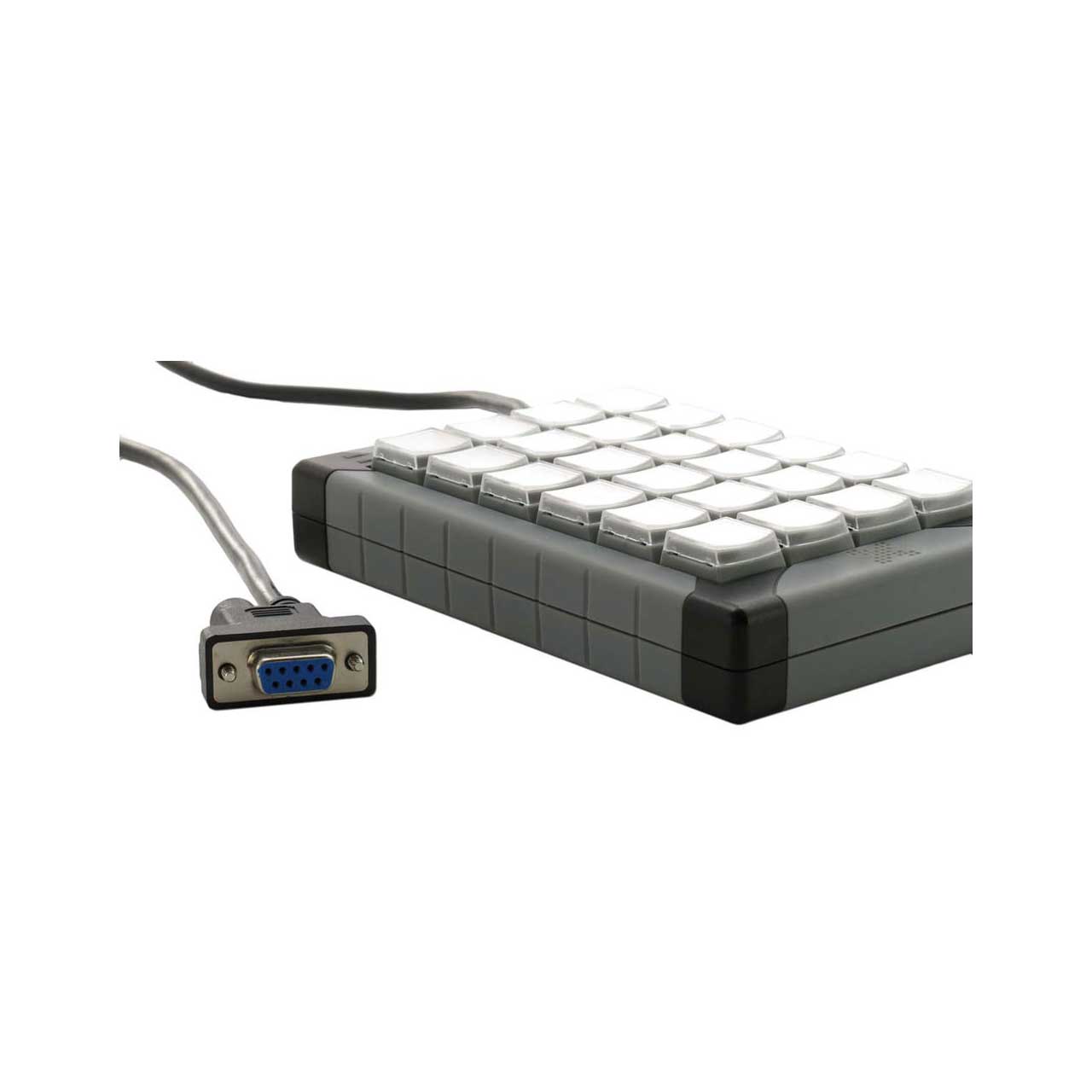

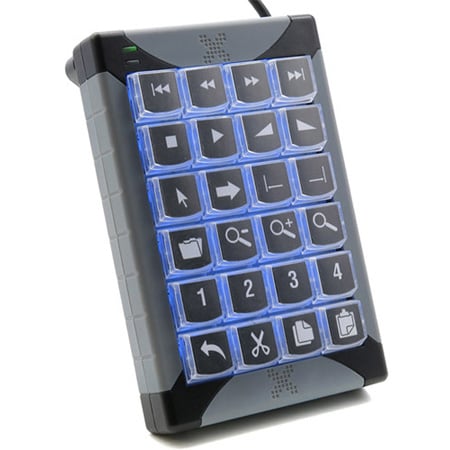

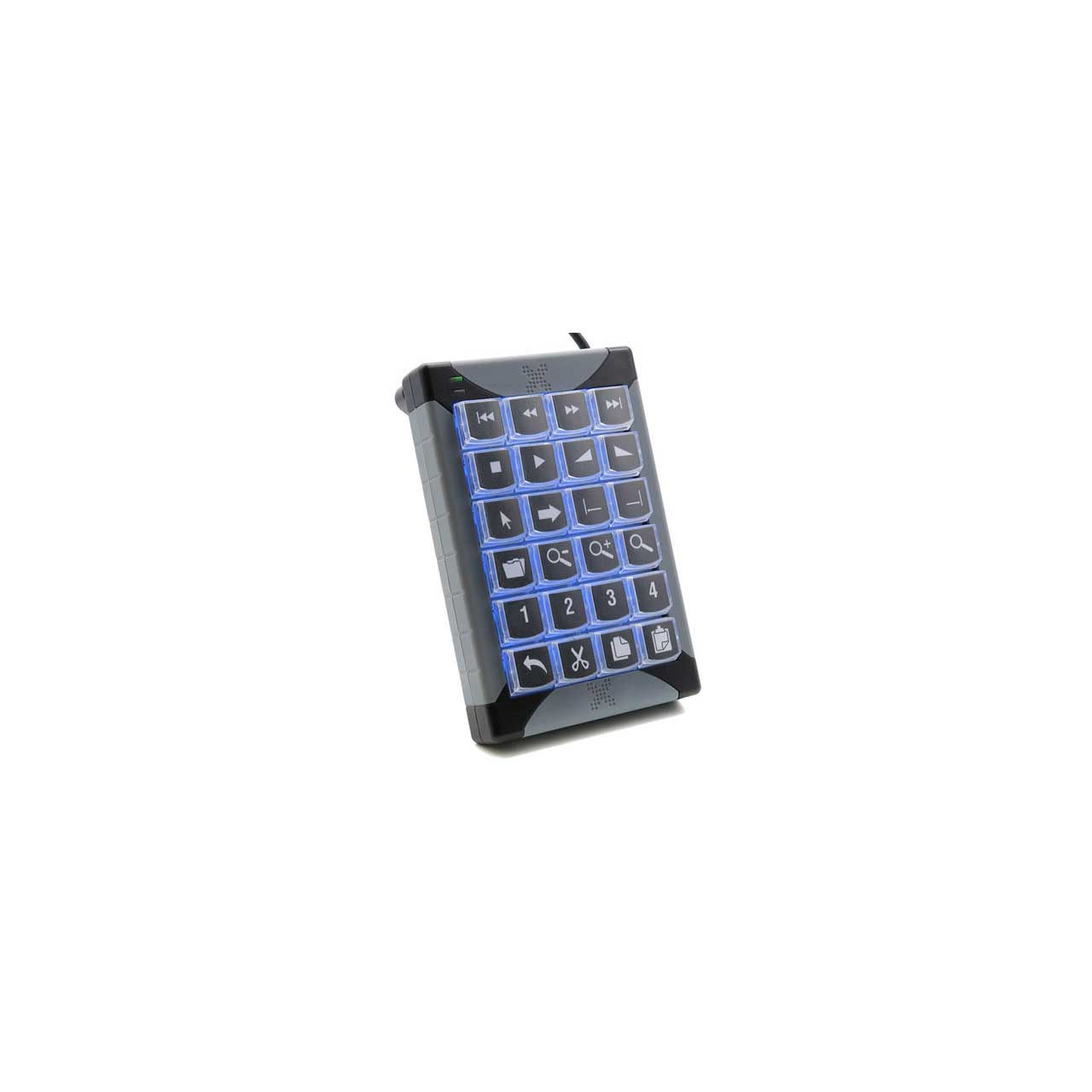

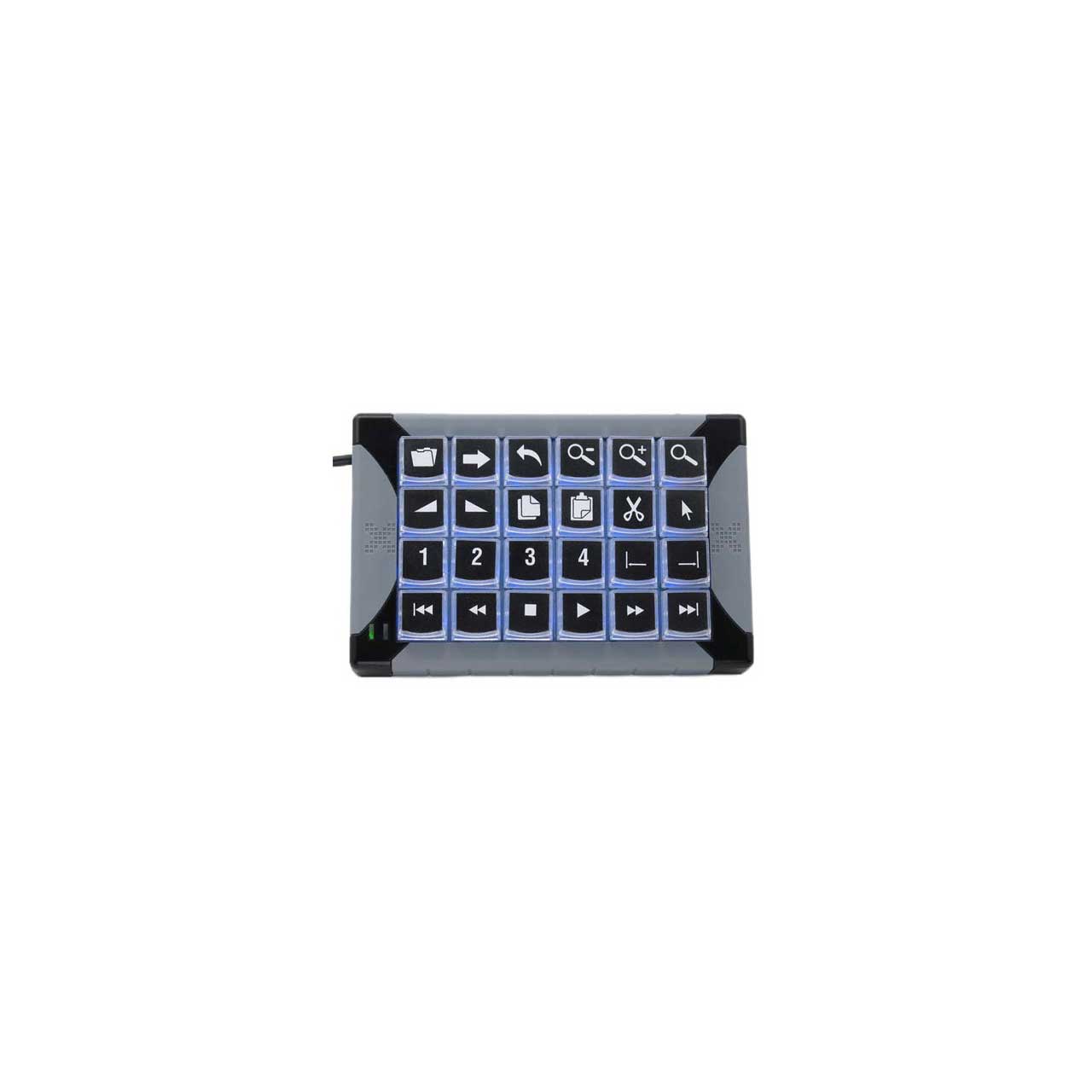

The X-keys® XK-298-232-R and virtual COM keypad offers twenty-four programmable keys to trigger macros, shortcuts, and applications, select tools or open files or directories
in a compact footprint with serial or USB connection to computer. Replace legacy serial keypads sending ASCII to a COM port. With a co-injected case equally suitable for handheld or desktop applications, the XK-24 provides a versatile control box for any computer driven application. Use key blockers and tall or wide keycaps to instantly customize the XK-24 for your specific requirements.Examples of X-keys working in studios, labs, and offices in the real world... Broadcasting, Sports Data, Trading, Live Media Control

X-keys can run specific applications in the following programs
Sketchup
MS Word
Adobe Photoshop
Adobe Illustrator

  • Features:

    • 24 relegendable keys
    • Suitable for handheld, desktop, or mounted use
    • Addressable blue and red backlighting for each key


  • Specifications:

    • Operating System: Windows XP through 10 for programming; any system that supports RS-232 for use
    • Switch Type: Full travel rubber dome, carbon on gold contacts, rated for more than 1 million operations
    • Number of Keys: 24 single keys + programming button
    • Actuation Force: Approx. 2.5 oz (72g) break-over, approx. 1.5 oz (42g) hold
    • Key Cap Type: Relegendable with Cherry MX compatible stem
    • Keycap Size: 0.625" (16mm) sq.
    • Key Spacing: 0.75" O.C.
    • Optional Keys: 2x1, 1x2, 2x2

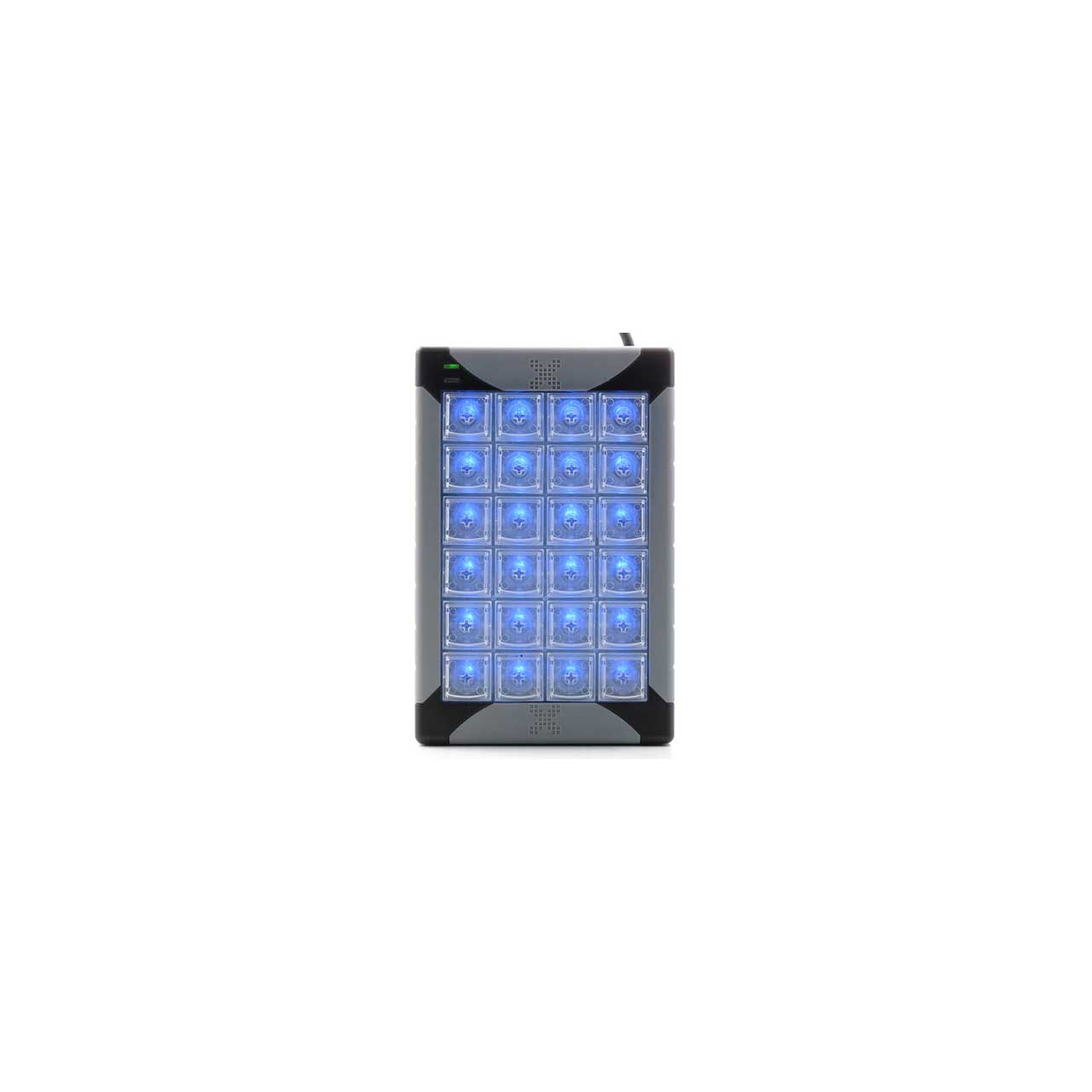

    • Backlighting: 24 blue and 24 red LEDs, individually addressable

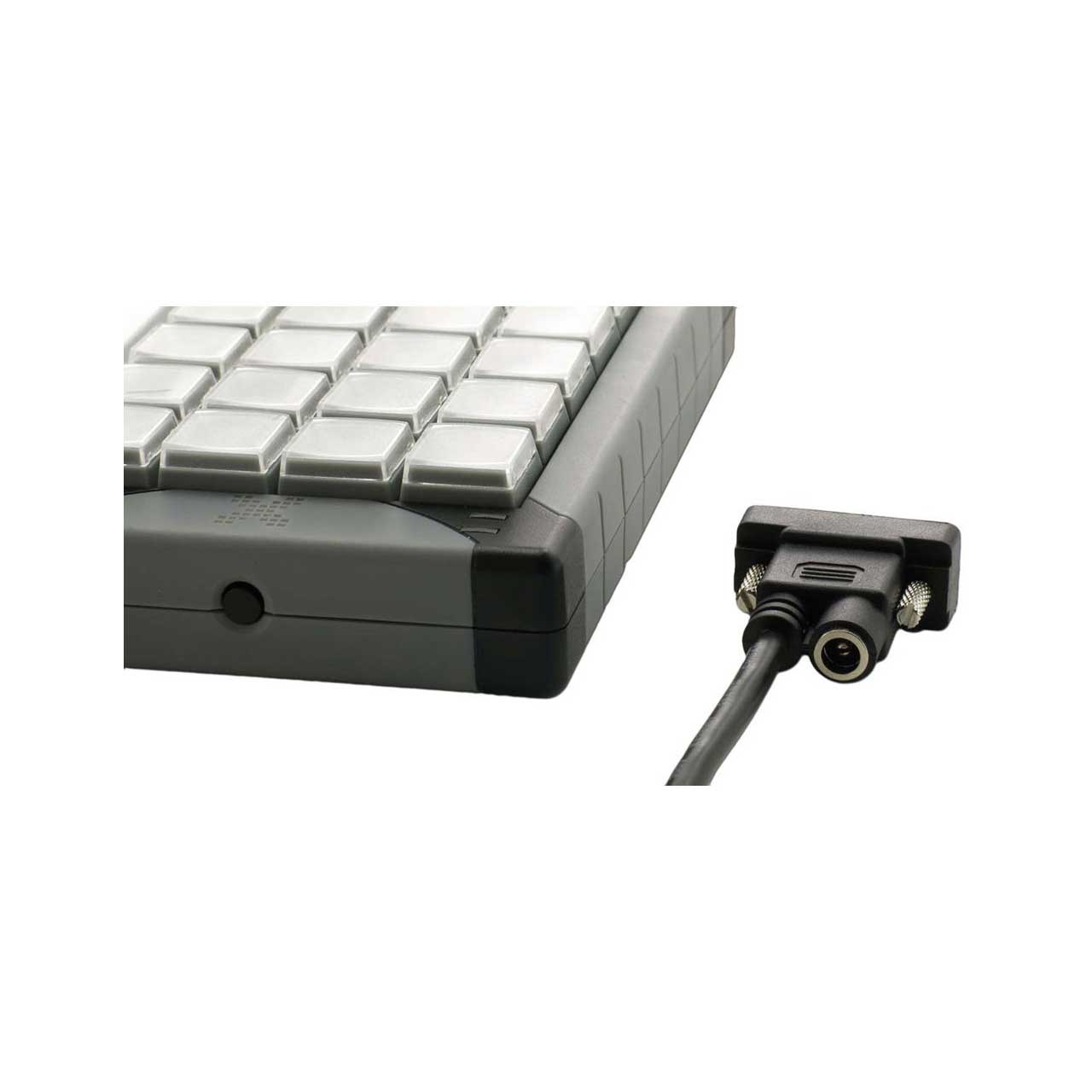

    • Connector: Wired USB 2.0 standard "A" plug (VCOM) or Serial connector (TruCom)
    • Cord Length: 56" (1.42 m)
    • Dimensions: 5.8" x 3.8" x 0.94" (147mm x 97mm x 24mm)
    • Weight: 10 oz. (285 g)
    • USB type: Compatible with USB 1.1 through 2.0
    • Power Source: USB port, nominal voltage = 5 vdc (V com) Included 5VDC Power Supply (TruCom)
    • Current Draw: NO backlight: 18 mA , Blue backlight full: 38 mA, Red backlight full: 57 mA, All backlights: 75 mA
    • Temperature Range: -20 to 60 C
    • Humidity: 80% Rh non-condensing
    • Environmental Rating: IP 40, typical indoor office environment
