Theatrixx XVVRM-FIBER2SDI12GM2 Reversible Module - Fiber to 12G-SDI - MultiMode - OpticalCON Duo

ITEM #: XVVRM-FBR2SDI12G MFG #: XVVRM-FIBER2SDI12G M2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,486.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


XVVRM-FIBER2SDI12G M2 - Overview

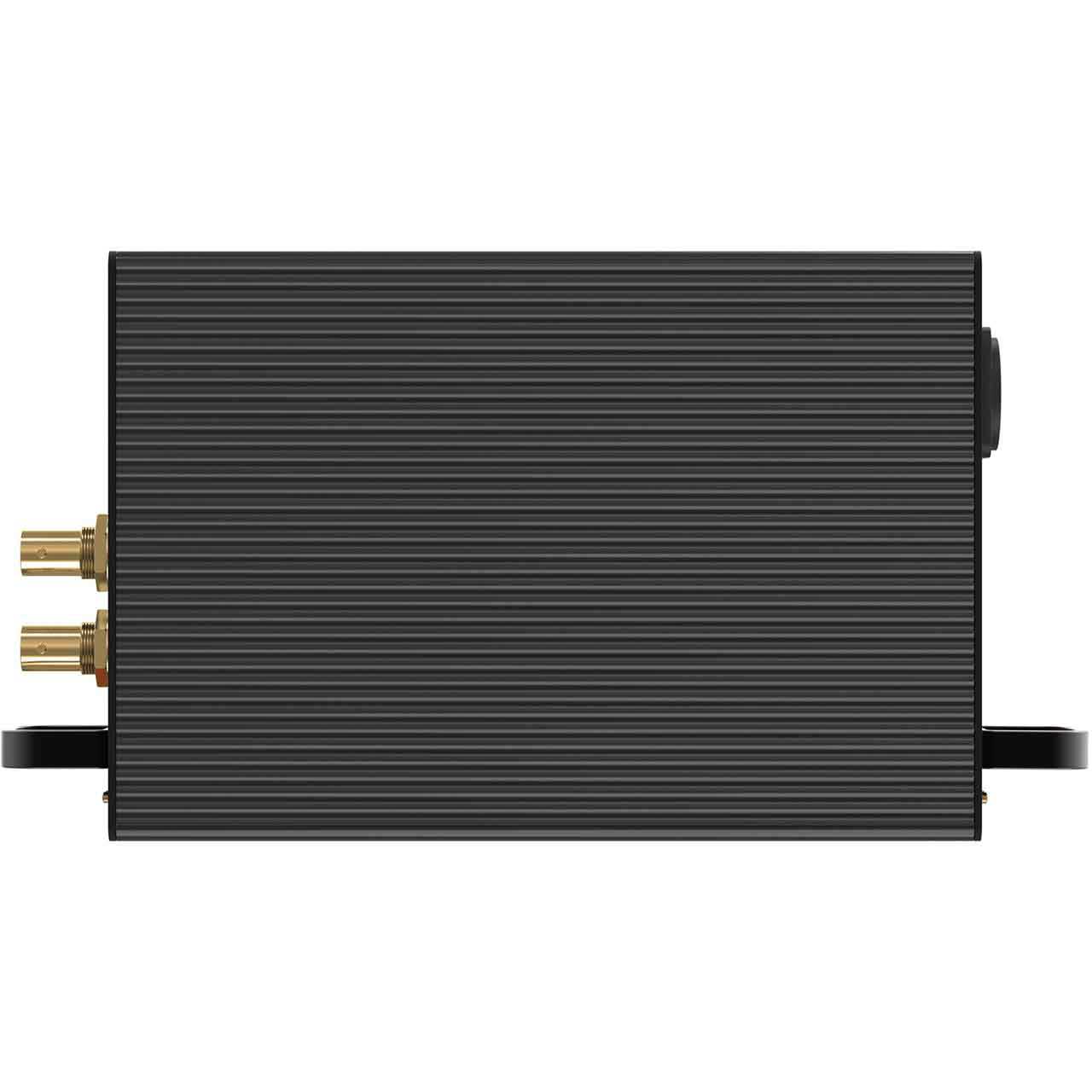

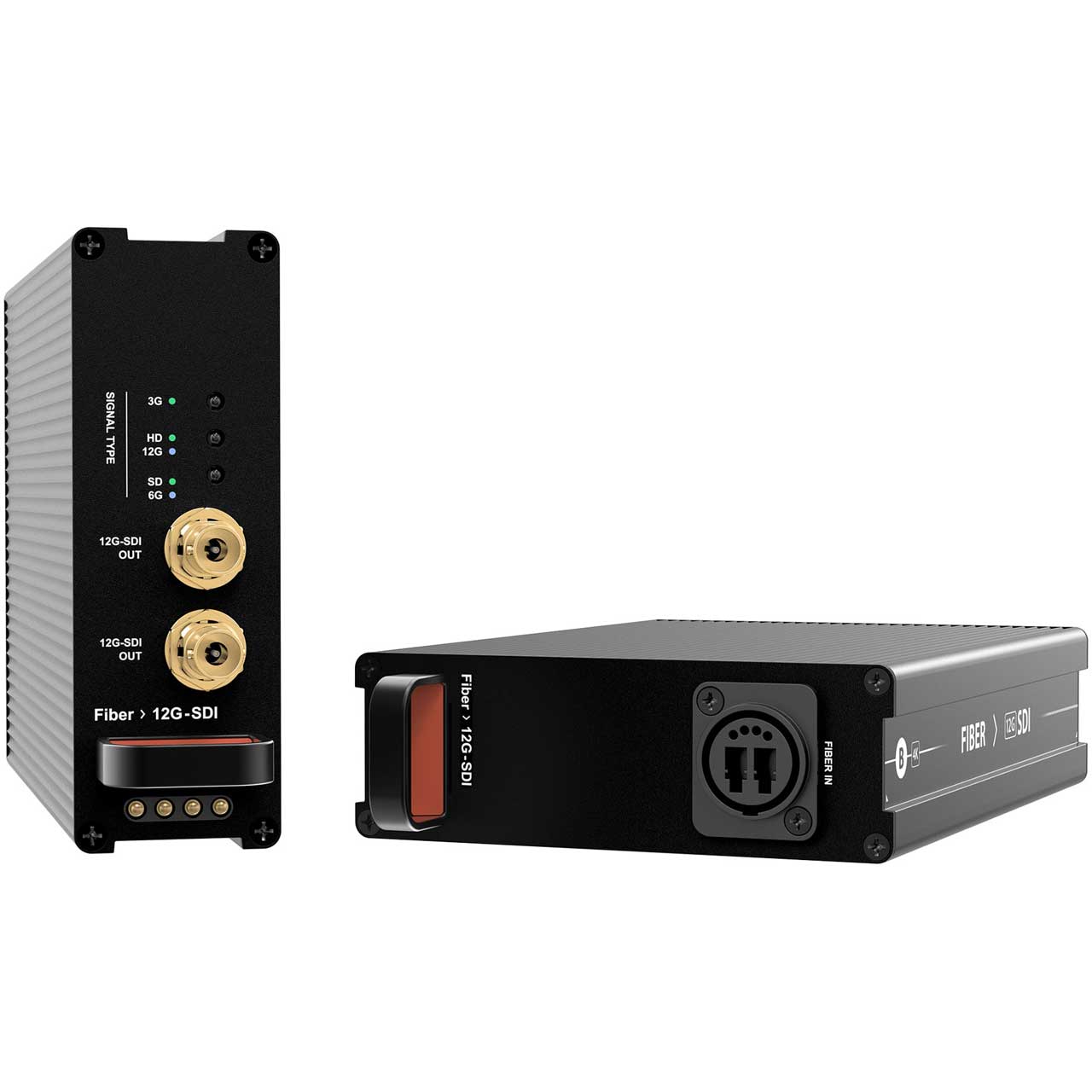

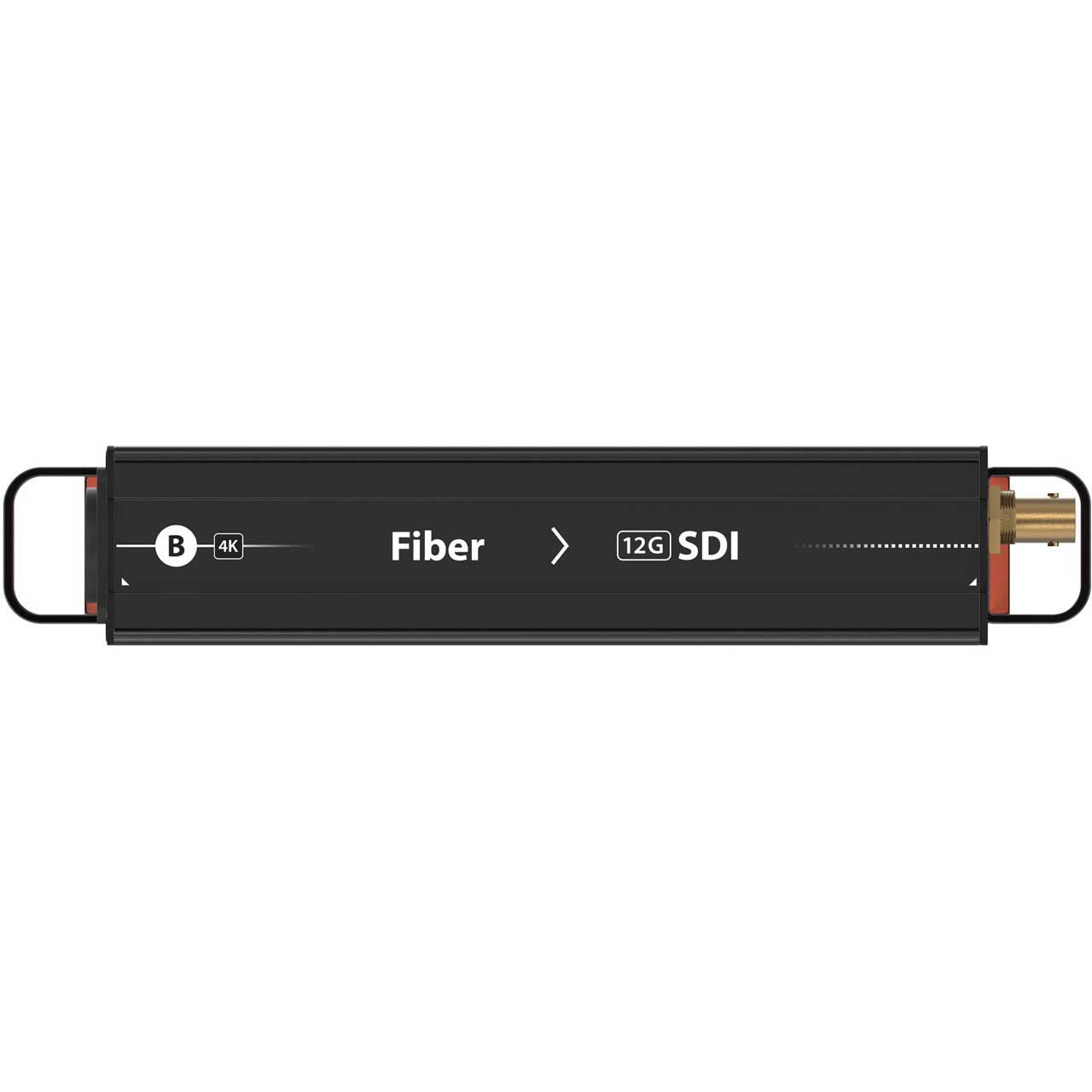

The Theatrixx XVVRM-FIBER2SDI-12G is a Fiber to 12G-SDI Reversible Module with MultiMode and OpticalCON Duo that fits in the 8-Bay Reversible Rackmount Converter system.

The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

  • Specifications:

    • Connections:

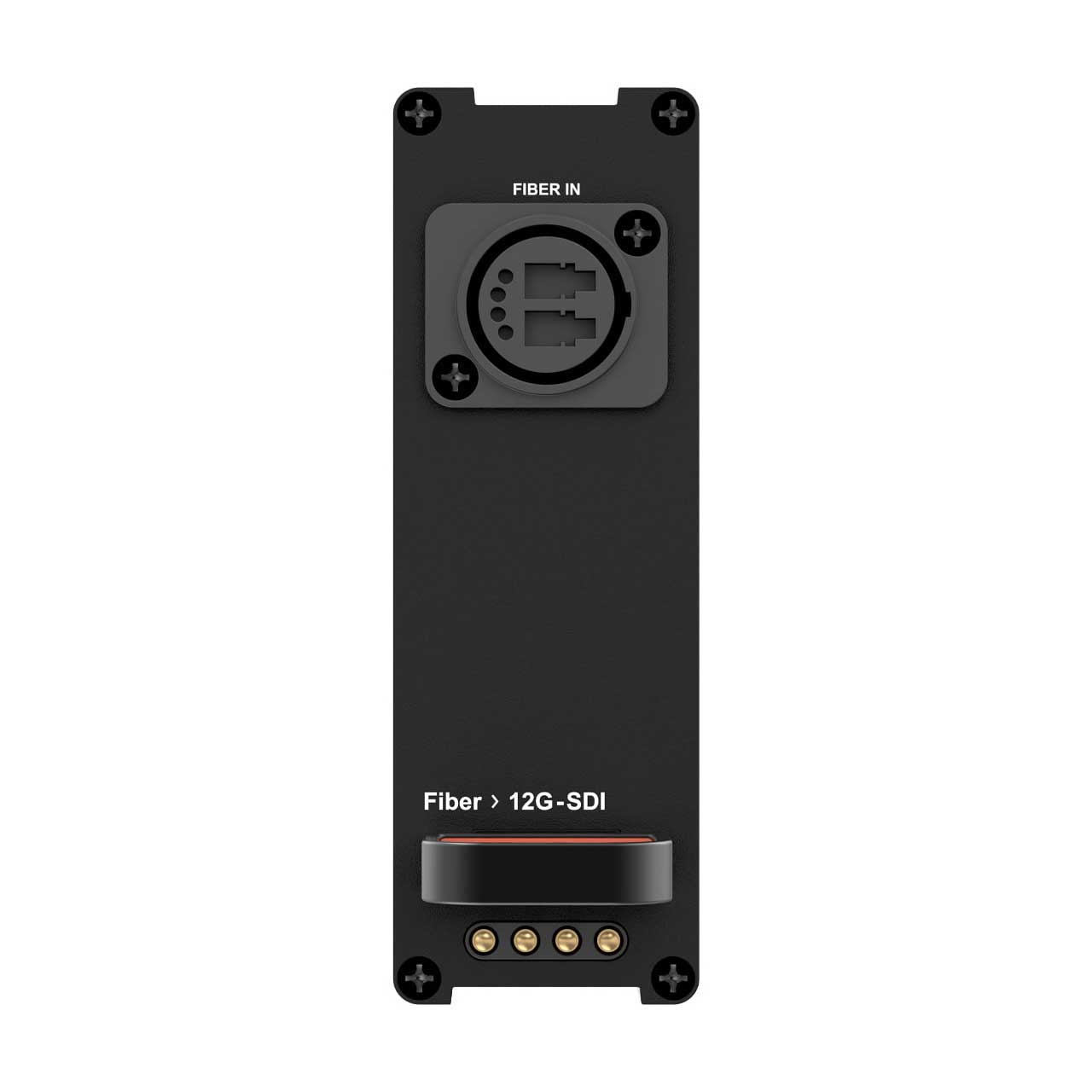

    • Video Input: Multimode / OpticalCON DUO

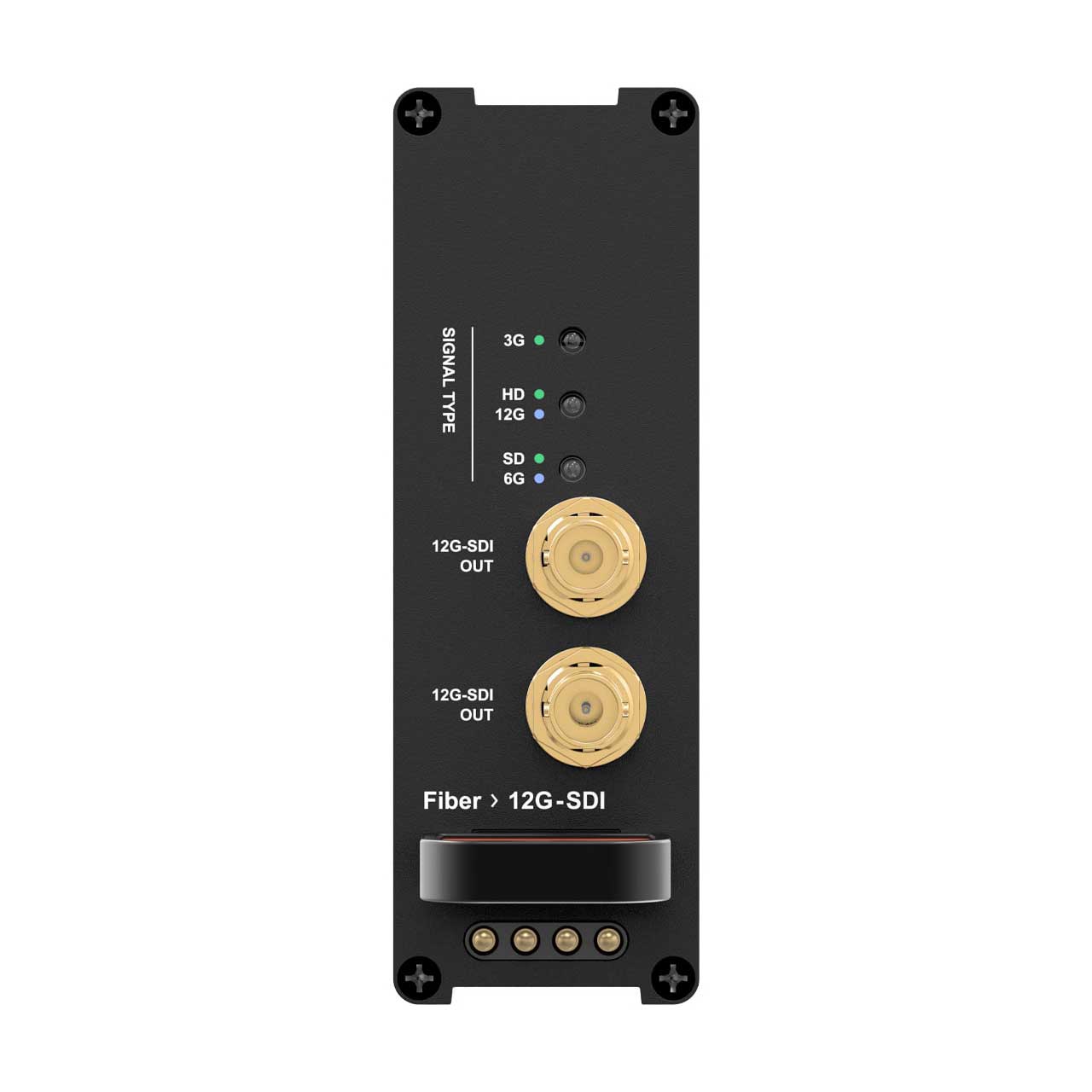

    • Video Output: 2 x 12G/6G/3G/HD/SD SDI BNC

      Supported Signals:
    • Video Format Support: 12G/6G/3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio
    • SMPTE Standards: 2082-1, 2082-10, 425 M Level A & B, 424 M, 292 M, 259 M

      Physical:
    • Height: 121.5 mm (4.78 in)
    • Depth: 225 mm (8.85 in)
    • Width: 41 mm (1.61 in)
    • Weight: 710 g (1.56 lbs)
    • Alternate Form Factor: Also available as a standalone converter

      Environmental:
    • Relative Humidity: 0% to 90% non-condensing
    • Operating Temperature: 0-40 °C

      Power Requirements:
    • Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
    • Power Consumption: 20W
    • Voltage Range: 12VDC

  • Item Includes:

    • 1x Theatrixx Reversible Module Fiber to 12G-SDI MultiMode / OpticalDUO
