Yuan High-Tech SC710-N2-12G-SDI 2 Channel 4K60 12G-SDI Capture Card

ITEM #: YN-SC710N212GSDI MFG #: YN-SC710-N2-12G-SDI

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$995.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    YN-SC710-N2-12G-SDI - Overview

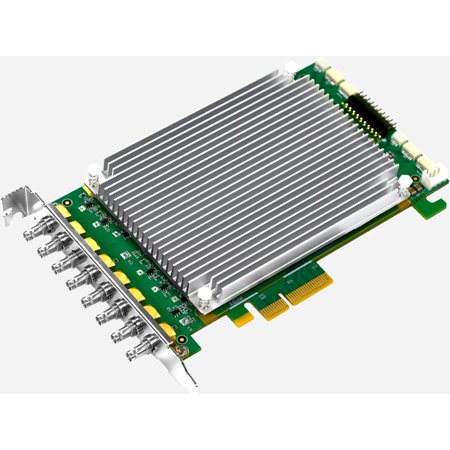

    Yuan High-Tech SC710 N2 12G-SDI is a PCI Express Gen2 x4 video capture card capable of ingesting up to eight (8) channels of simultaneous video and audio from SDI sources. With this board installed in any computer you can capture high-quality video into any supported streaming and recording software, such as vMix, OBS, Zoom, or Skype.

    Each input supports up to 4K (4096x2160) resolution at 60 fps. The SC710N2 12G-SDI also supports high color depth at up to 4:4:4 8-bit RGB32 and 4:2:0 10-bit P010. This ensures that you are able to capture the most accurate reproduction of your video sources without quality loss.

    • Specifications:

      • Max. Input Resolution
      • 4096x2160p@60/50fps

        Video Input
      • 2x12G-SDI, 2x6G-SDI, 4x3G-SDI

        Interface
      • PCIex4 (Gen2)

        Feature
      • 8K30 Dual-Link 12G-SDI
      • 8K30 Quad-Link 6G-SDI
      • Multi Instances
      • Multi Devices

        Video Input
      • Single-Link 12G-SDI
      • Dual-Link 6G-SDI
      • Quad-Link 2SI 3G-SDI
      • Quad-Link SQD 3G-SDI

        Color Format
      • Capture/Preview:
      • 4:4:4 8Bit RGB24
      • 4:4:4 8Bit RGB32
      • 4:2:2 8Bit YUY2
      • 4:2:0 8Bit YV12, NV12
      • 4:2:0 10Bit P010

        Video Processing
      • Video, Audio and VANC Capture
      • Video Cropping and Scaling
      • Auto Signal Detection
      • Deinterlace Engine
      • Multi Instances

        Video Resolutions
      • Single Channel Mode: Single Link/Dual Link/Quad Link
      • 2x12G-SDI:
      • 4096x2160@60/50fps
      • 3840x2160@60/50fps
      • 2x6G-SDI:
      • 4096x2160@30/25/24fps
      • 3840x2160@30/25/24fps
      • 2x3G-SDI:
      • 1920x1080p@60/50fps
      • 2xHD-SDI:
      • 1920x1080p@30/25/24fps
      • 1920x1080i@60/50fps
      • 1280x720p@60/50fps
      • 2xSD-SDI:
      • 720x480i@60fps
      • 720x576i@50fps
      • Multi Channel Mode: Single Link
      • 4x6G-SDI:
      • 4096x2160@30/25/24fps
      • 3840x2160@30/25/24fps
      • 8x3G-SDI:
      • 1920x1080p@60/50fps
      • 8xHD-SDI:
      • 1920x1080p@30/25/24fps
      • 1920x1080i@60/50fps
      • 1280x720p@60/50fps
      • 8xSD-SDI:
      • 720x480i@60fps
      • 720x576i@50fps

        Audio
      • Audio Input: 8xStereo Embedded Audio
      • Audio Format: Stereo/16-bit/32000~48000Hz

        Software
      • Supported Software Applications:
      • vMix
      • OBS
      • ZOOM
      • Skype
      • Teams
      • Discord
      • Slack
      • Cisco Webex
      • GoToMeeting
      • * DirectShow/V4L2 Compatable Software Supported
      • Windows and Linux SDK
      • Windows 7/Windows 8/Windows 8.1/Windows 10
      • Linux 4.8 or Higher ( 32-bit and 64-bit )
      • Linux ARM
      • nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX

        Physical
      • Weight: 1Lbs

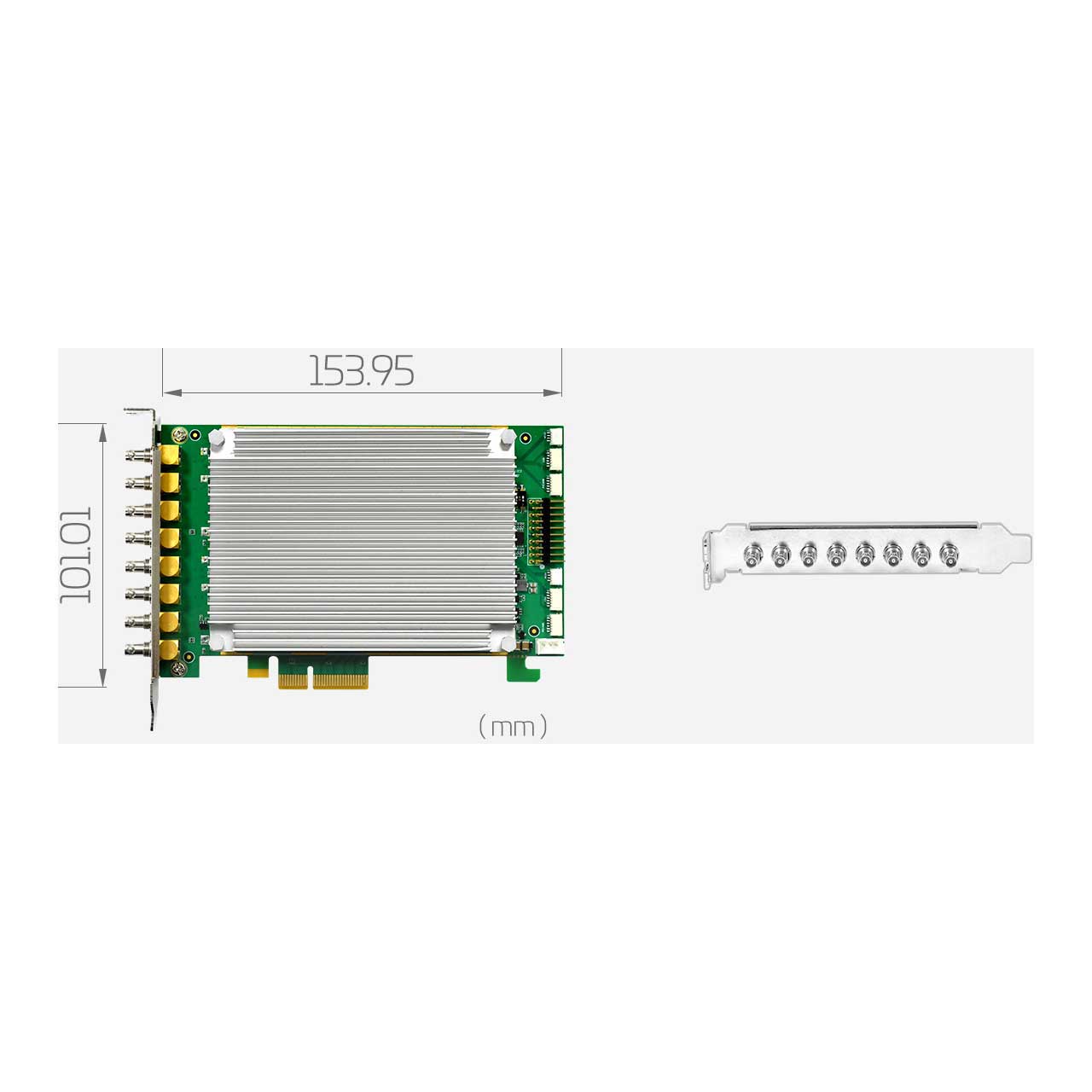

      • Dimensions: 10 x 7 x 3" (153.95 x 101.01mm)
      • PCIe Full Height

    • GTIN:

      0601946495556
