ZOOM EXH-6e H6essential Dual XLR/TRS Input Capsule with 3.5mm Stereo Mic/Line Input - Phantom Power Supported

ITEM #: ZOOM-EXH-6E MFG #: EXH-6E

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
ZOOM
Free Shipping with $49 Minimum Order

Our Price:

$109.99

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    EXH-6E - Overview

    Expand Your Recording
    The ZOOM EXH-6e features 2 XLR/TRS inputs and a 3.5mm stereo mic/line input for an added level of flexibility in your recording. Plug in microphones, instruments, mixers, and more.

    Input Types

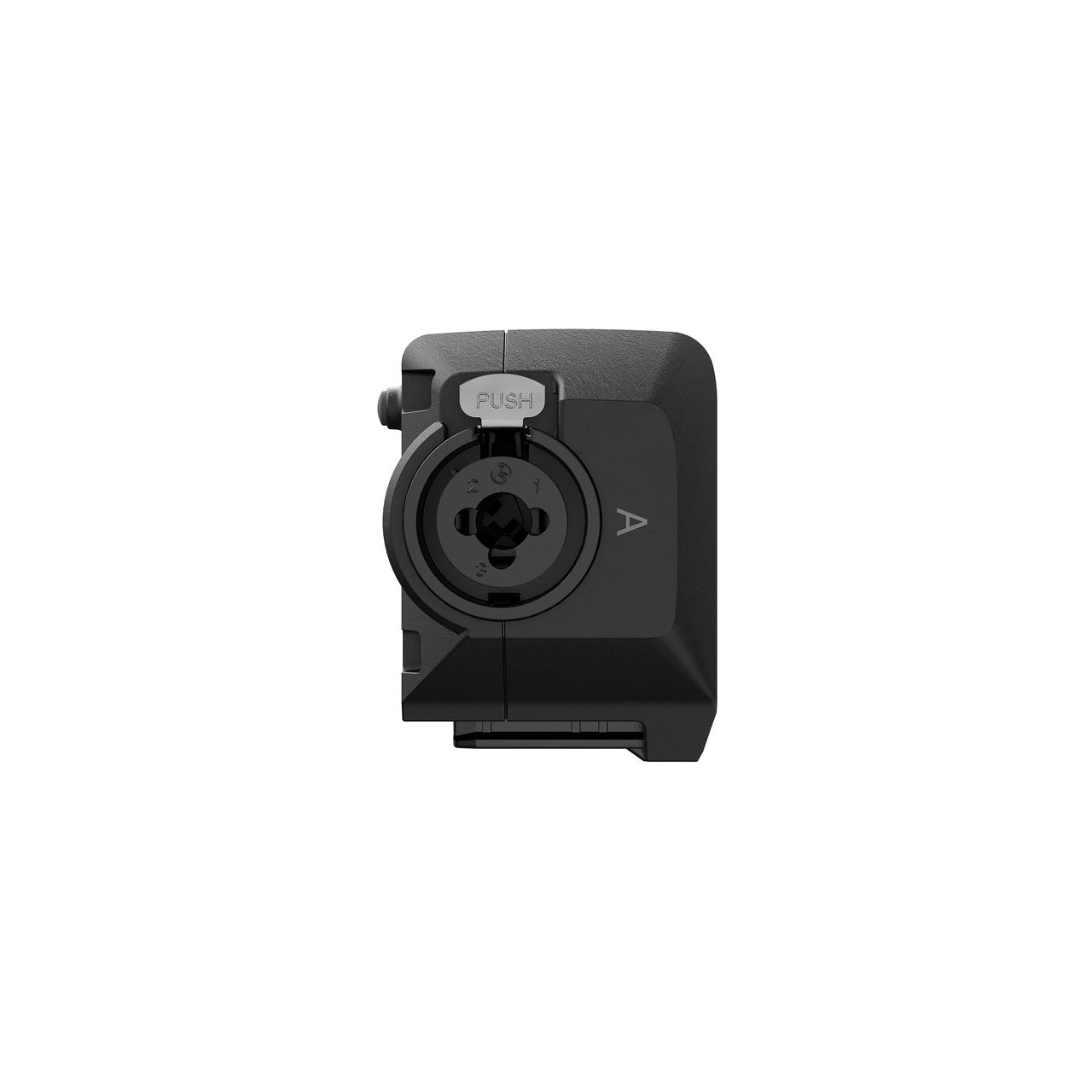

    The EXH-6e features 2 XLR/TRS inputs with locking connectors to accept mic or line level input. Additionally, a 3.5 mm stereo mic/line input is available for lavalier microphones or stereo feeds.

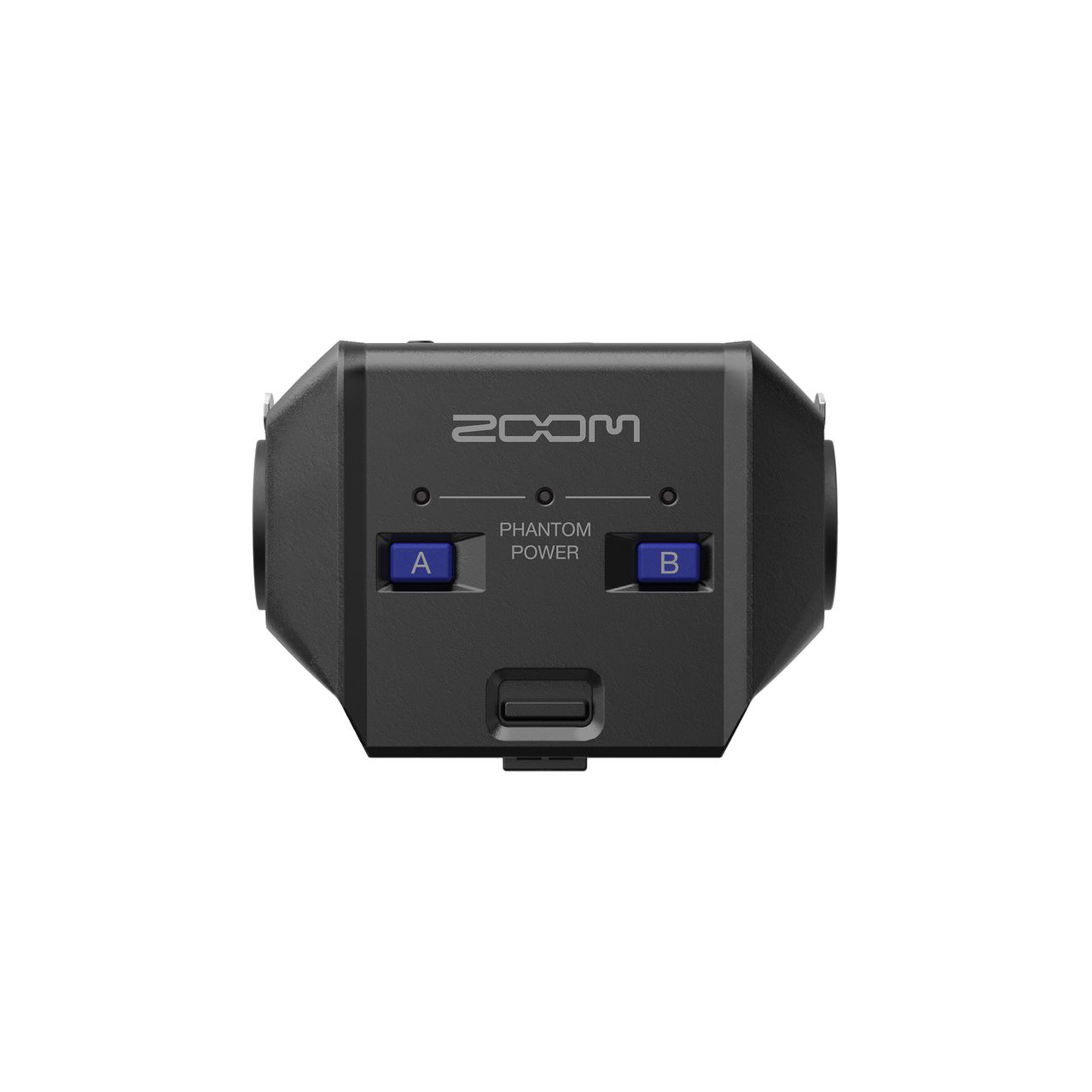

    Phantom Power

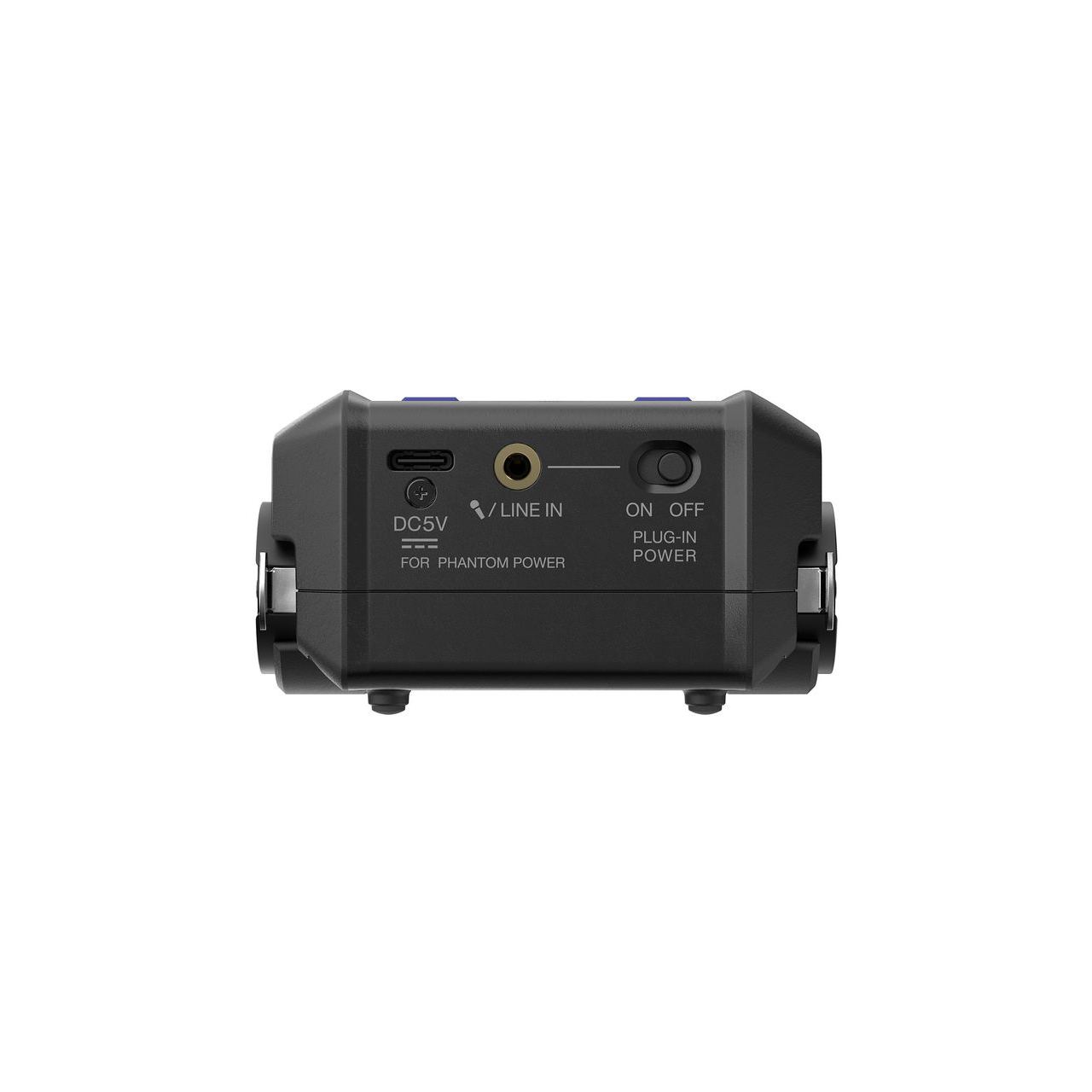

    The EXH-6e can provide phantom power for the 2 XLR/TRS combo inputs. Connect the USB-C port of the capsule to an AC outlet or USB battery to power condenser mics. Plug-in power is also available for lavalier mics connected to the 3.5mm input.

    Capsule System 3.0
    The EXH-6e utilizes Zoom's Capsule System 3.0. This new connector provides a stable connection and allows for 32-bit float recording.

    • Features:

      • Capsule that adds 2 lockable XLR/TRS input jacks to the recorder
      • Input gain adjustment is unnecessary, and equipment ranging from mics to line level devices can be connected
      • Phantom power supply is supported, and condenser mics can be used
      • MIC/LINE stereo mini input jack also built in (supports plug-in power)


    • Specifications:

      • Connectors
      • 2x XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
      • Input Gain: Adjustment unnecessary
      • Input Impedance: 3.8kΩ or higher (MIC)/+16 dBu (LINE)
      • Phantom Power: +48 V, 10 mA maximum per channel
      • Equivalent Input Noise: -120 dBu or less (IHF-A) at 150Ω input

        MIC/LINE Jack
      • Connector: 1x 3.5mm stereo mini jack
      • Input Gain: Adjustment unnecessary
      • Input Impedance: 2kΩ or higher

        Physical
      • Dimensions: 4.7" x 3.3" x 2.1" (78.1mm x 56.7mm x 43.9mm)
      • Weight: 0.4lbs (9g)


    • Item Includes:

      • 1x ZOOM EXH-6e H6essential Dual XLR/TRS Input Capsule with 3.5mm Stereo Mic/Line Input
