ZOOM H1 XLR Handy Recorder with two Locking XLR/TRS Combo Inputs - 32-bit Float and Dual AD Converters

ITEM #: ZOOM-H1-XLR MFG #: H1-XLR

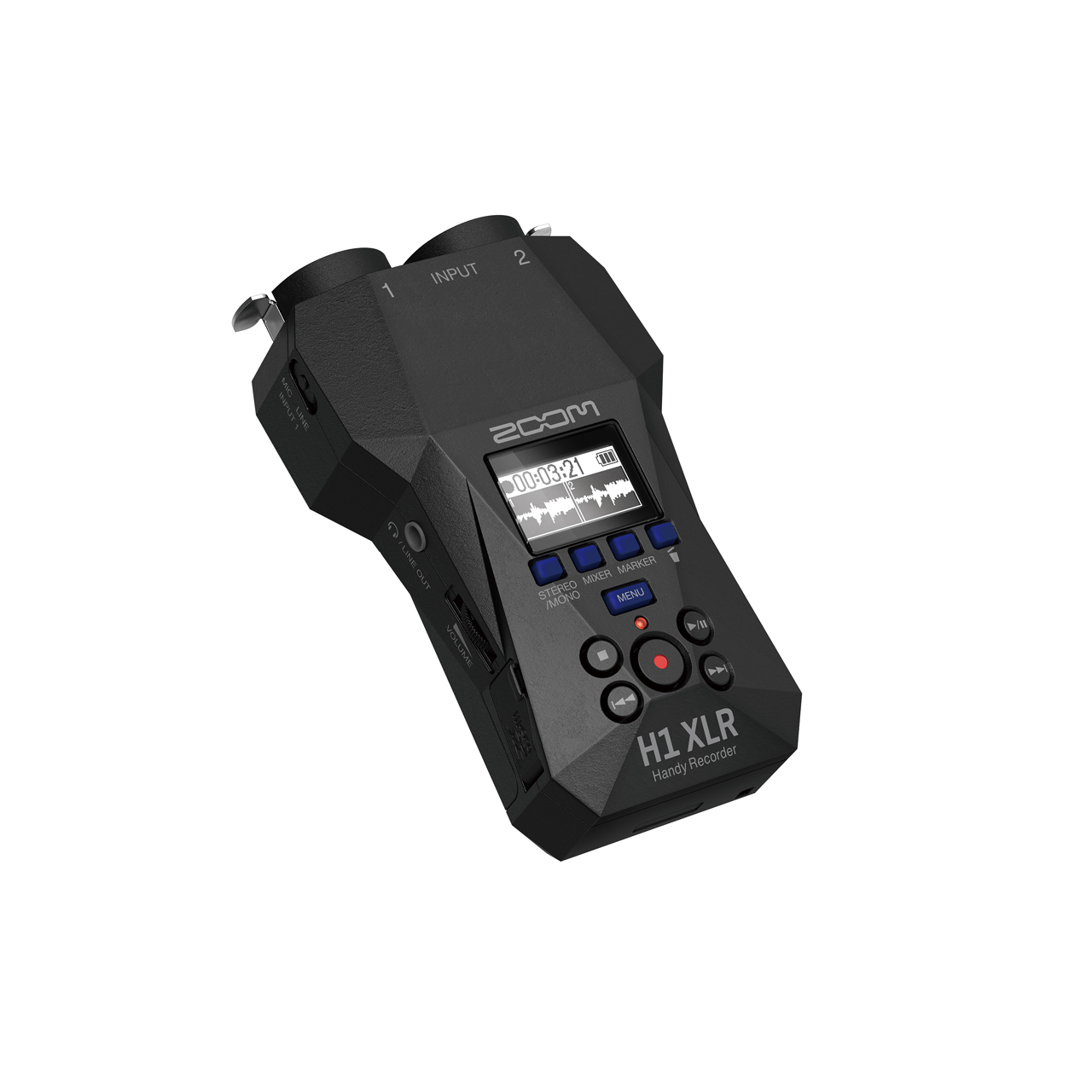

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$149.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    H1-XLR - Overview

    Go-Anywhere, Record-Anything
    The ZOOM H1 XLR is the recorder for creators who have no limits. Capture audio for video, direct feeds from mixers, songwriting and more.

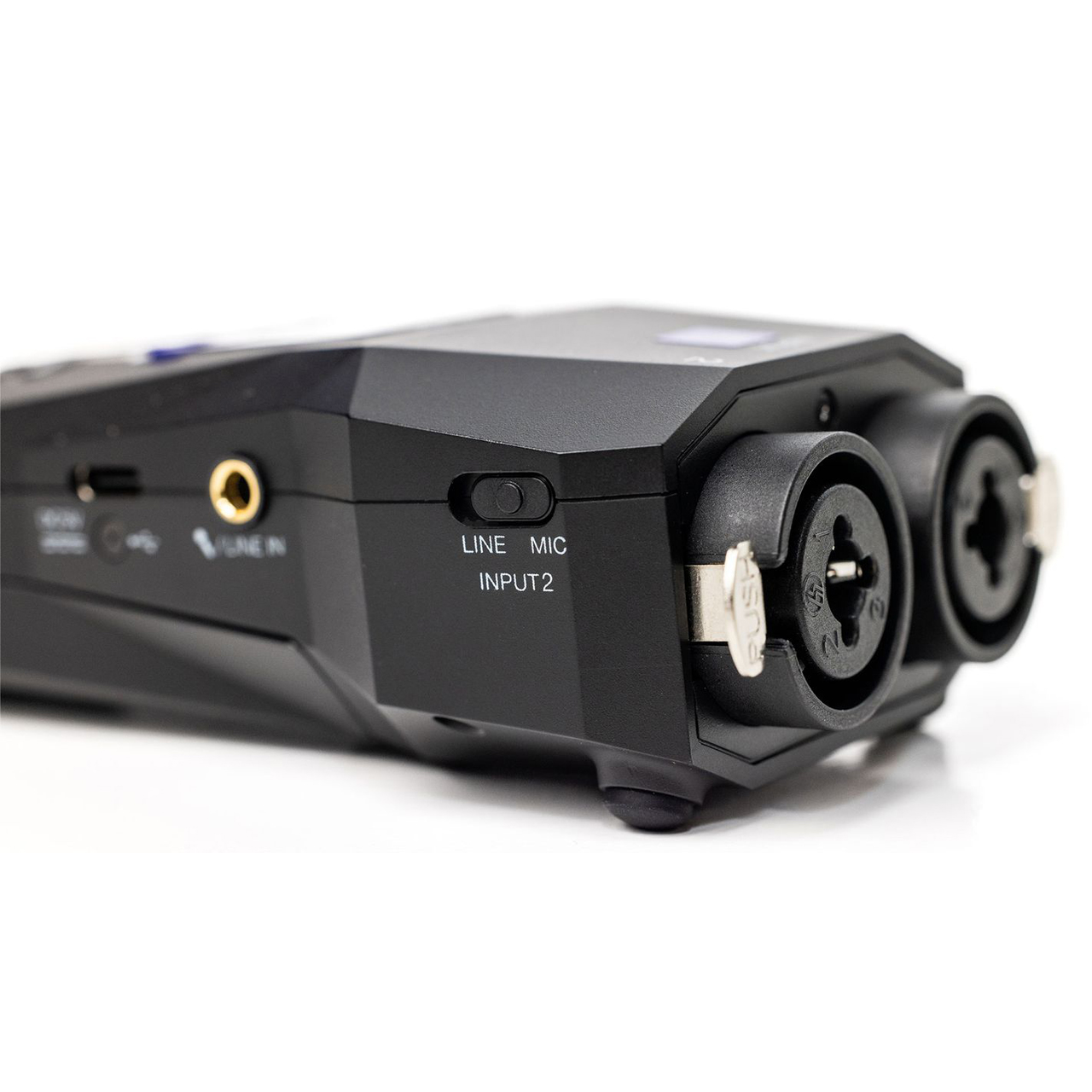

    Input Flexibility
    Equipped with two locking XLR/TRS combo inputs the H1 XLR is ready to record microphones, stereo board feeds, instruments and more.

    The 3.5mm stereo input allows you to record on-camera mics, lavaliers, phones and other sources.

    Never Worry About Gain... Again
    Plug in, hit record, and capture your audio worry-free. With 32-bit float and dual AD converters, the H1 XLR's vast dynamic range preserved details in both quiet and loud recordings.

    Ultra-Clean Preamps
    The H1 XLR's preamps give you crystal clear audio with a -122dB EIN and sample rates up to 96khz.

    Line Level Like a Pro
    Capture +4dBu professional line level signals to record clip-free audio from any mixer orline output.

    Stereo or Mono
    The H1 XLR can record both stereo and mono files depending on your application.

    Attention Musicians
    Capture live band performances or DJ sets by taking a stereo feed from your mixing board

    Perfect On Camera
    The H1 XLR is perfect for mounting on your rig to record great audio from shotgun or wireless mics.

    The Sound Designer's Companion
    With 32-bit float recording, you can capture the roar of the loudest engines and the delicate whispers of nature in stunning quality.

    Podcast Anywhere
    With the H1 XLR and 2 of your favorite mics it's easy to record podcasts anywhere you go.

    Perfect Audio for your Mobile Video
    Connect the H1 XLR to your mobile device via the USB-C port and record professional audio directly onto your phone's video. Perfect for video podcasts, live streams, and more.

    Accessibility
    The H1 XLR is designed with Accessibility for the blind and visually impaired. Navigate the menu with audible descriptions through the built-in speaker or headphones. Creators can choose English, Spanish, French, Japanese, German, Italian or Chinese.*

    • Features:

      • Capture audio for video, direct feeds from mixers, songwriting and more.
      • Equipped with two locking XLR/TRS combo inputs
      • Crystal clear audio with a -122dB EIN and sample rates up to 96khz
      • Capture +4dBu professional line level signals to record clip-free audio from any mixer orline output.
      • Stereo or Mono
      • Capture live band performances or DJ sets by taking a stereo feed from your mixing board
      • H1 XLR is perfect for mounting on your rig to record great audio from shotgun or wireless mics.

    • Specifications:

      • Inputs
      • Channels: 2x (XLR/TRS mono inputs)
      • XLR/TRS In:
        - Connectors: 2x XLR/TRS combo jacks (Balanced, XLR: 2 HOT, TRS: TIP HOT)
        - Input Gain: Adjustment unnecessary
        - Input Impedance: MIC: 3.8kΩ or more; LINE: 39kΩ or more
        - Maximum Input Level: MIC: 4dBu; LINE: 24dBu
        - Phantom Power: 48 V Channel total 10mA or less
        - Equivalent Input Noise: MIC: -122 dBu or less (IHF-A) @150Ω input; LINE: -95 dBu or less (IHF-A) @ 600Ω input
      • MIC/LINE In:
        - Connectors: 1x 3.5mm stereo mini jack
        - Input Gain: Adjustment unnecessary
        - Input Impedance: 2kΩ or higher input impedance
        - Plug In Power: plug-in power (2.5 V) supported

        Outputs
      • Line Out/Phones:
        - Connector: 1x 3.5mm stereo mini jack 0 Combined LINE/HEADPHONE
        - Maximum Output Level: 20 mW +20 mW (32Ω load)
        - Output Impedance: 10Ω
      • Built-In Speaker
        - Type: 20mm x 30mm elliptical dynamic speaker
        - Effective maximum output: 250mW

        Recording
      • Recording Media: 4GB-32GB microSDHC cards, 64GB-1TB microSDXC cards (Not support SD card 1.5TB~)
      • WAV Supported Formats: 44.1/48/96kHz, 32-bit float mono/stereo BWF and iXML

        Display
      • 0.96" monochrome OLED (128x64)

        USB
      • Connector: 1x USB Type-C
      • Mass Storage Class: USB 2.0 High Speed
      • Audio Interface With REC:
        - Class: USB class compliant. Transfer method: asynchronous
        - Sampling Rate: 44.1/48kHz
        - Bit Rate: 16-bit integer/32-bit float
        - Channels: 2 in/2 out

        Power
      • Batteries: 2x AA (alkaline, NiMH or lithium)
      • AC Adapter: ZOOM AD-17 (DC 5 V/1 A) USB bus power is supported.
      • Estimated Continuous Operation Time Using Batteries: 2ch recording to microSDHC card: Approximately 10 hours (alkaline batteries, using stereo line input, 48 kHz/32-bit float)

        Physical
      • Dimensions: 5.8" x 3.8" x 1.9"
      • Weight: 0.30lbs

    • Item Includes:

      • 1x ZOOM H1 XLR Handy Recorder with two Locking XLR/TRS Combo Inputs & 32-bit Float and dual AD Converters

    • GTIN:

      0451526002989
