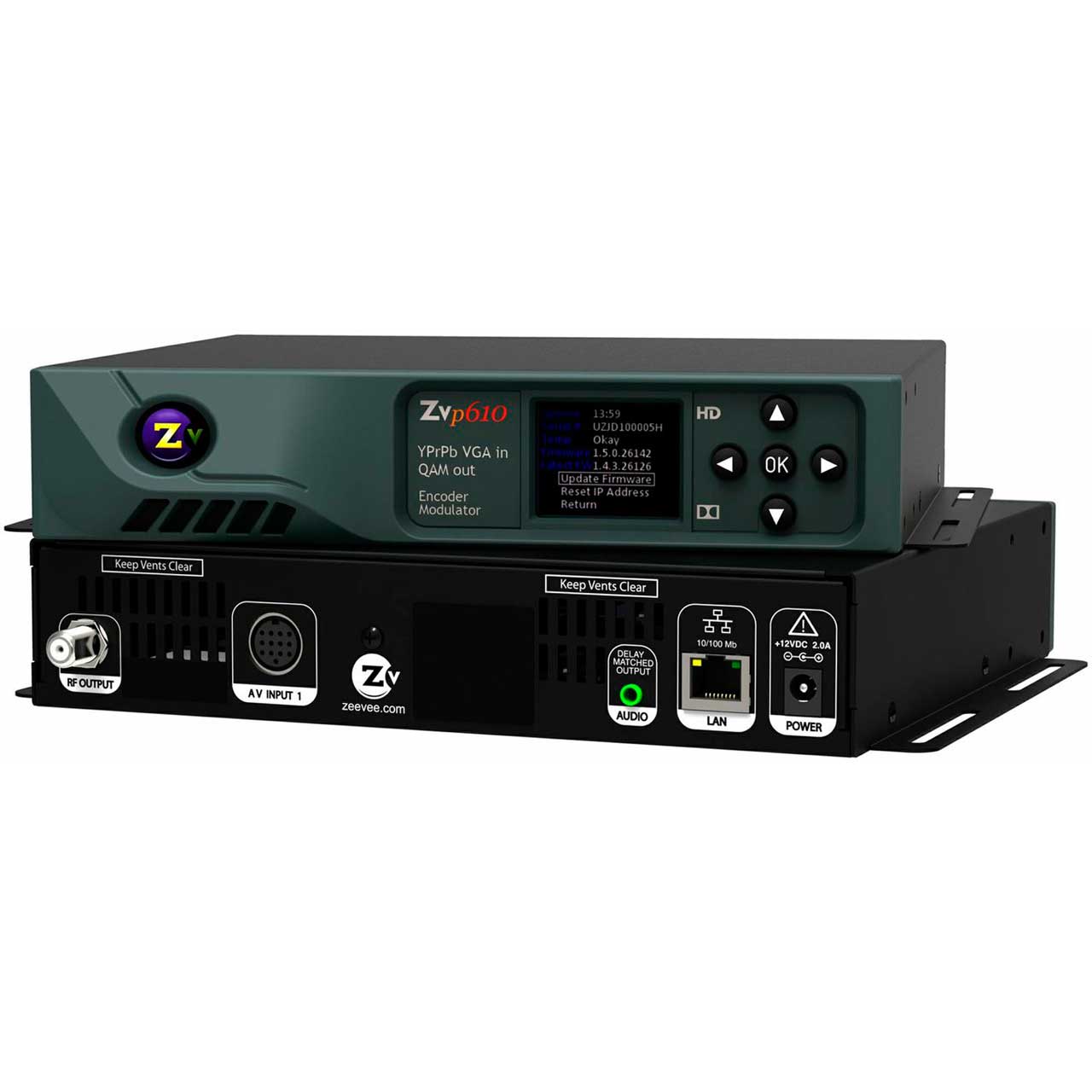

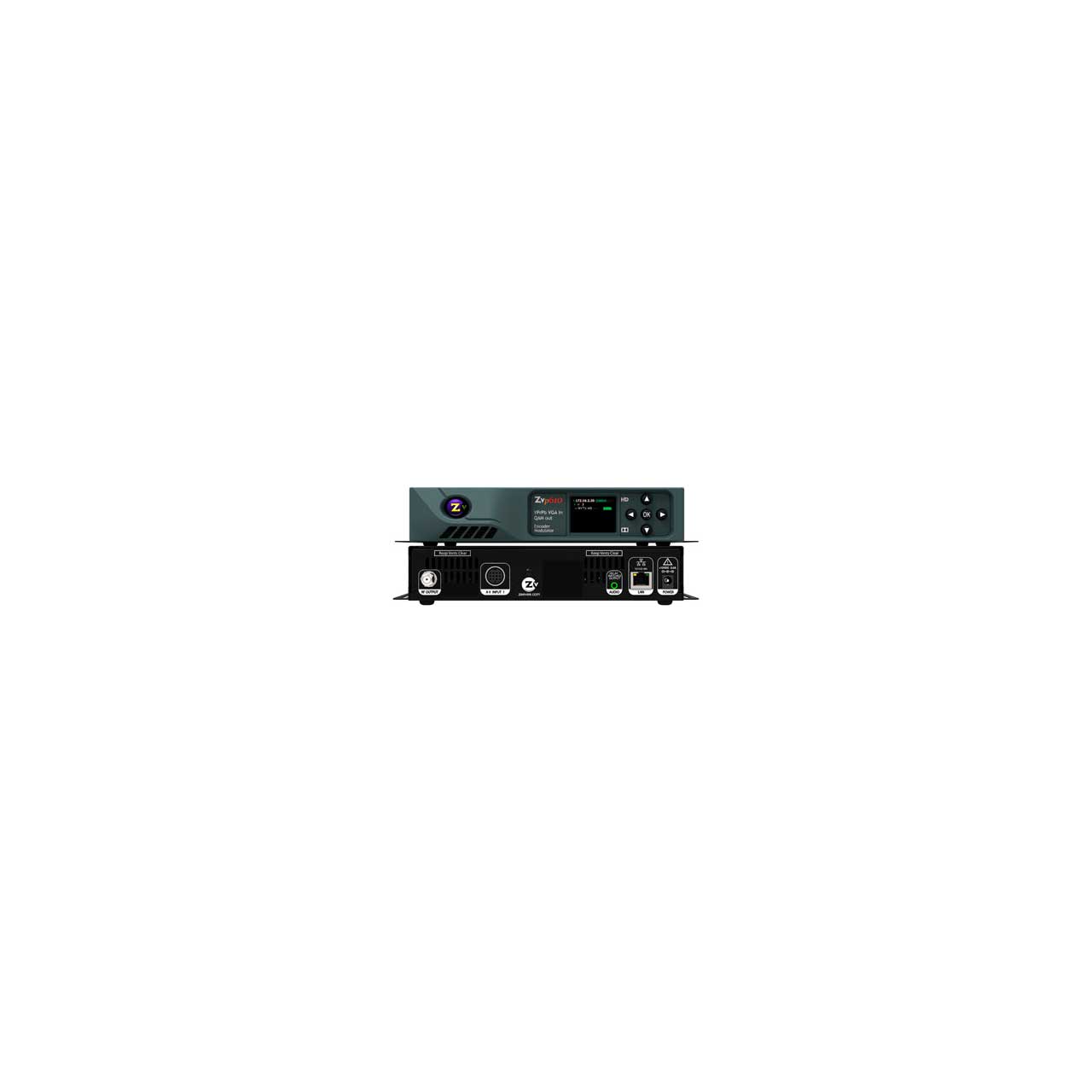

ZeeVee ZvPro 610 Single Channel Component/VGA Encoder/QAM Modulator

ZVPRO610 - Overview

Create Your Own HDTV Cable Channel & Broadcast VGA or Component Using Coax Wiring!

• Features:

  • Dual Component/Composite or VGA with Audio Input (Hydra AV Breakout Cable Required- sold separately)
  • Power web-based interface for configuring and monitoring
  • Color front panel configuration and status at a glance
  • Compact, fan-cooled package
  • High power 45dBmv output
  • Shelf or rack mount - via integral flanges or optional mounting kit
  • Front-Panel Color LCD - for Configuration and Status
  • Web-based mangement - local or remote setup and monitoring
    Component/VGA input - two choices, from a full sized DIN connector:
  • Hydra cables with 7 inputs (component HD video, analog and digital audio) for clean wiring, easy diagnostics and maximum flexibility
  • VGA with analog audio input
    Analog and Digital Audio - internally encoded and broadcast as AC-3 or MPEG1 Layer 2 Audio Encoding (varies by region)
  • Integrated Closed Caption support - required for ADA compliance in many applications.
  • High power output - up to 45dBmV
  • Strong retention force power connector
  • Two year warranty
  • Proudly designed in Massachusetts and Built in the USA


• Specifications:

  • Video Inputs
    YPrPb or RGB Video 1 port - DIN connector HDbridge end, RCA connectors for HD source
  • Computer VGA (Analog) - HD-15 connector, 75 Ohm RGB 0 to 0.7V, Separate H and V sync
  • VGA Resolutions Supported - 640x480, 720x480, 800x600, 1024x768, 1152x864, 1176x664, 1280x720, 1280x768, 1280x800, 1280x960, 1280x1024, 1360x768, 1440x900 at 60 70, 72, 75, 85 Hz. 1680x1050 and 1920x1080 at 60 Hz. VGA resolutions are broadcast centered in the best vertical fit into 1920x1080p30 or 1280x720p60.
  • Closed Caption - EIA/CEA-608 captions accepted over composite video input
    Audio Inputs
    Analog Audio Input - 75 Ohm 0 to 0.7v at Line-level input, RCA R/W Connectors on DIN->RCA Cable, Combined 3.5mm stero connector on DIN-> VGA cable
  • Digital Audio - Digital S/PDIF on DIN->RCA Cable (N/A on DIN->VGA cable)
  • Encoding - Internally encoded into Dolbyr Digital AC-3 or MPEG1 Layer 2 (varies by region)


• Warranty:

  • Five Year


• GTIN:

  0812254010397
