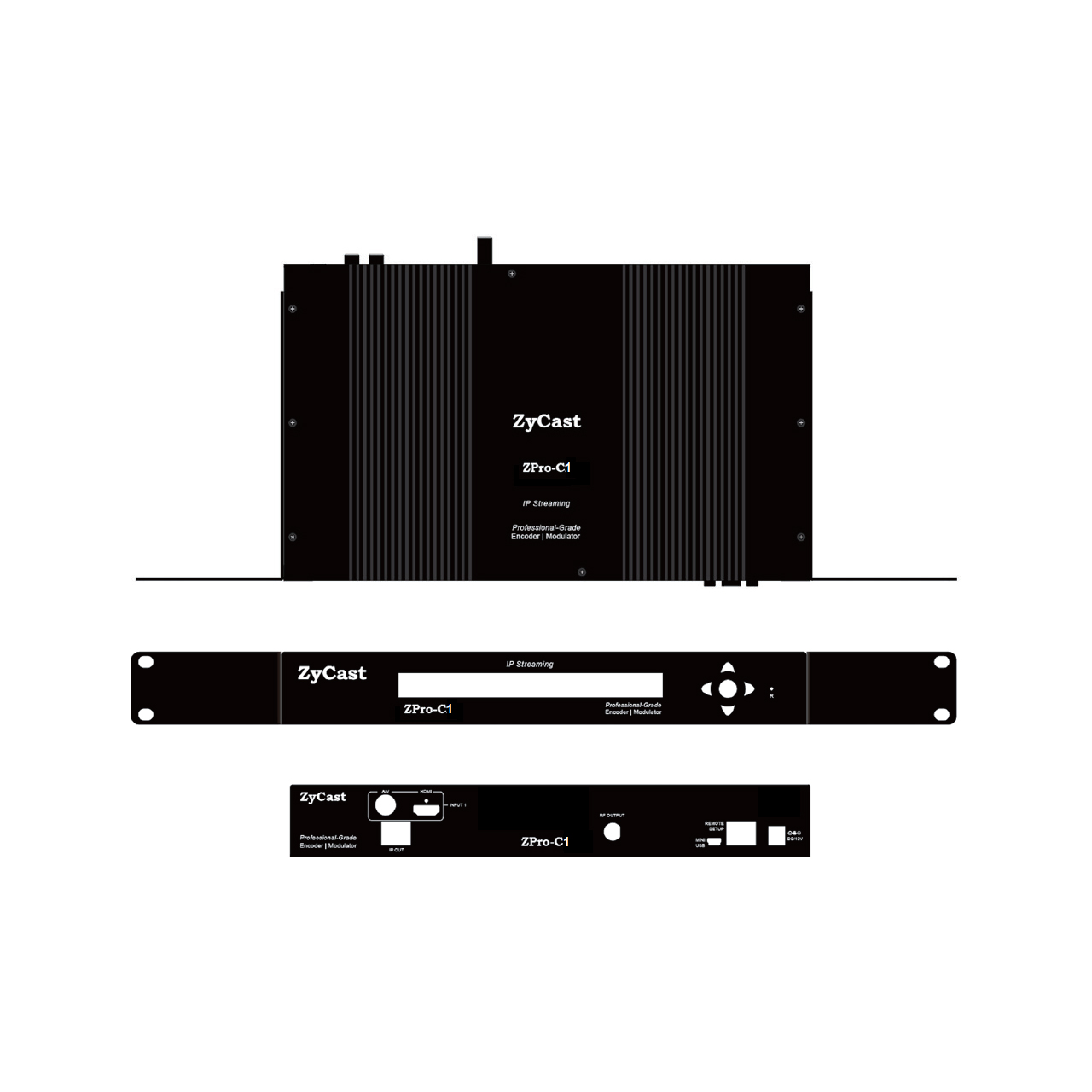

ZyCast ZPro-C1 Single Channel HD Encoder-Modulator with MPEG-2 or H.264 Output

ITEM #: ZYC-ZPRO-C1 MFG #: ZPRO-C1

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,600.00

Our Price:

$1,440.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    ZPRO-C1 - Overview

    The ZyCast ZPro-C1 single input Professional Grade Encoder-Modulator is engineered to meet the high demands of commercial, hospitality, higher education, and advanced video systems. This encoder-modulator series delivers broadcast-quality video all within a sleek and compact 1RU design.

    Equipped with a robust set of features, the ZPro Series offers performance and flexibility. Key functionalities include IP streaming capabilities, GOP control (factory set), and separate RJ-45 ports for IP streaming and remote setup. Users can also choose between MPEG-2 and H.264 outputs, ensuring compatibility with diverse video systems and requirements. Whether you're looking to enhance your RF video infrastructure or expand your IP streaming capabilities, the ZPro Series provides a comprehensive, high-quality solution.

    • Features:

      • Simultaneous QAM/IP Outputs
      • HD/SD Video Bitrate Control
      • H.264/MPEG-2 Video Encoding (Selectable)
      • HDMI In/DIN Input (Component/Composite)
      • UDP/RTP MultiCast/Unicast Streaming
      • Rack Mountable with Available Rack Mount Kit

    • Specifications:

      • Inputs
      • HDMI 1.4: Single Connector
      • Component/Composite: Single/Dual-Input Mini DIN to 6x RCA (Y, Pb, Pr) or (Video, Audio L & R)
      • Audio: HDMI: Embedded PCM; Component/Composite: Analog

        Encoding Profile
      • Resolution: 1080p (H.264 Only)/1080i/720p/480p/576i/480i
      • Video Codecs MPEG-2: MP@HL
      • Video Codecs H.264 (HD):
        - 1920 x 1080p60 High Profile @Level 4.2
        - 1920 x 1080p30 High Profile @Level 4
        - 1280 x 720p60 Main Profile @Level 3.2
        - 1280 x 720p30 Main Profile @Level 3.1
      • Video Codecs H.264 (SD):
        - 720 x 480p60 Base Profile @Level 3
        - 720 x 480p30 Base Profile @Level 3
        - 720 x 576p50 Base Profile @Level 3
        - 720 x 576p25 Base Profile @Level 3
      • Video Bitrate (per video): MPEG-2: 10.0-15.7 Mbps (HD)/ 2.0-8.0 Mbps (SD), H.264: 2.0-10.0Mbps (HD) / 1.0-4.0 Mbps (SD)
      • Audio Codecs: MPEG-1 Layer II/MPEG-4 AAC/AC-3 Pass Through
      • Closed Captioning: Composite/EIA-608
      • GOP: Open/Closed (Options Available while Ordering, Factory Setting not User Adjustable)

        RF Output
      • RF Connector: 1x "F" Female
      • Modulation: 64-QAM / 256-QAM
      • Standard: J.83 Annex B
      • Frequency Range: 57 to 861 MHz (Under STD Mode)
      • Channels' Bandwidth: 6 MHz
      • Output Level: 98 dBµV Typical
      • Level Adjustment: 0 to 20dB
      • Carrier Suppression: 55 dB
      • VCN: Auto (Major & Minor)/Manual (Major & Minor)/Manual (One Part)
      • Output Return Loss: 10 dB Typical
      • MER: 41 dB Typical

        IP Output
      • Connector: Single RJ45
      • Standard: Web Management: 100Base-T Ethernet , Full Duplex
      • IP Streaming Output: 1000Base-T Ethernet, Full Duplex
      • UDP/RTP: Unicast/Multicast Supported

        General
      • Power Supply: 12VDC 3A
      • Consumption: 13W Typical for Single-Input Model; 18W Typical for Dual-Input Model
      • Fan Cooled: Internal
      • Weight: approx. 4.58 lb/approx. 4.63 lb

    • Item Includes:

      • 1x ZyCast ZPro-C1 Single Channel HD Encoder-Modulator with MPEG-2 or H.264 Output
