Angry Audio BUTTON GIZMO RJ45 Four Button Control Panel - Avionics-grade Switches with LED

ITEM #: AA-BUTTON-GIZMO MFG #: BUTTON GIZMO

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$129.00

Our Price:

$122.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


BUTTON GIZMO - Overview

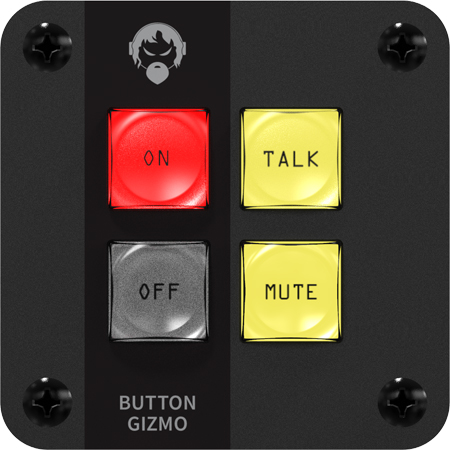

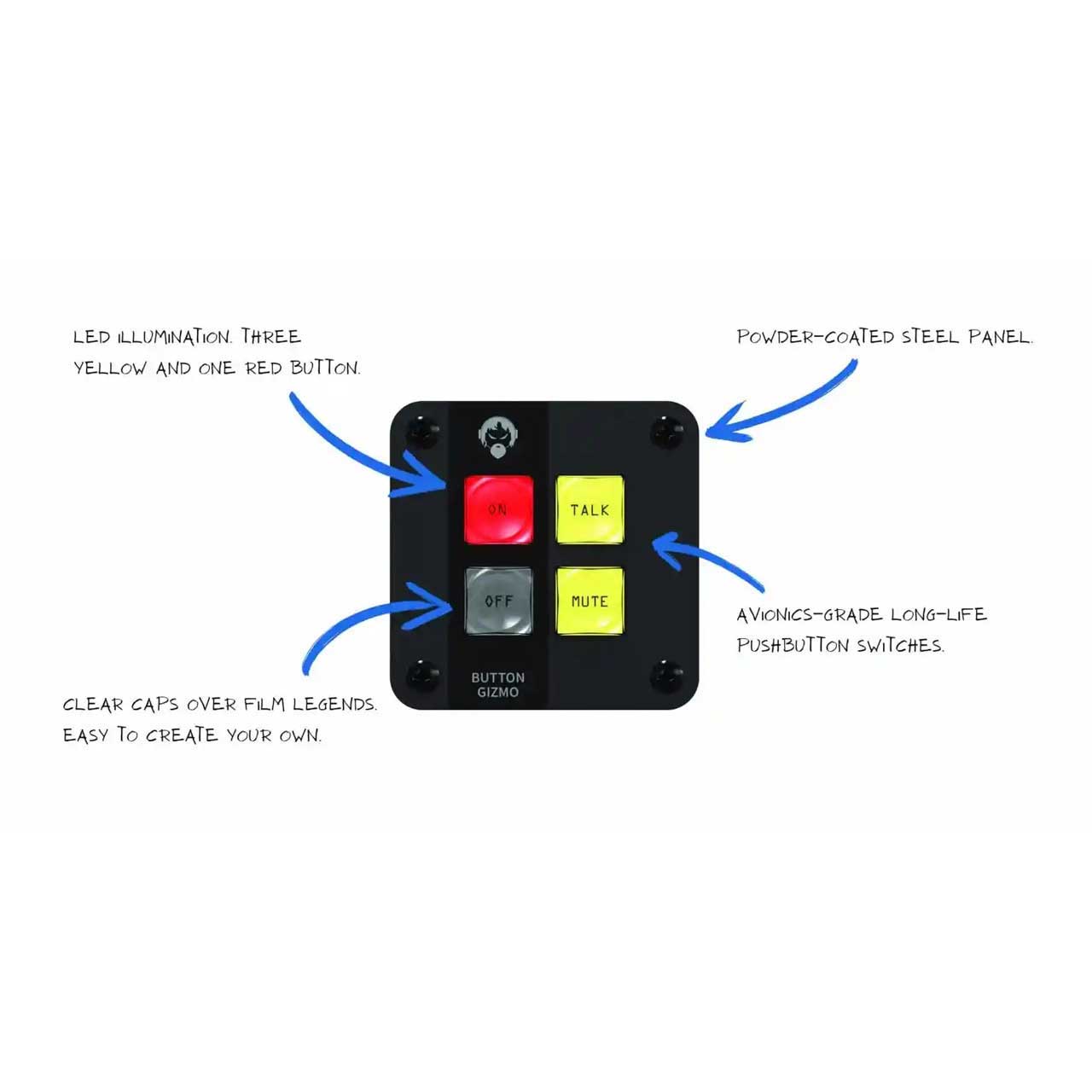

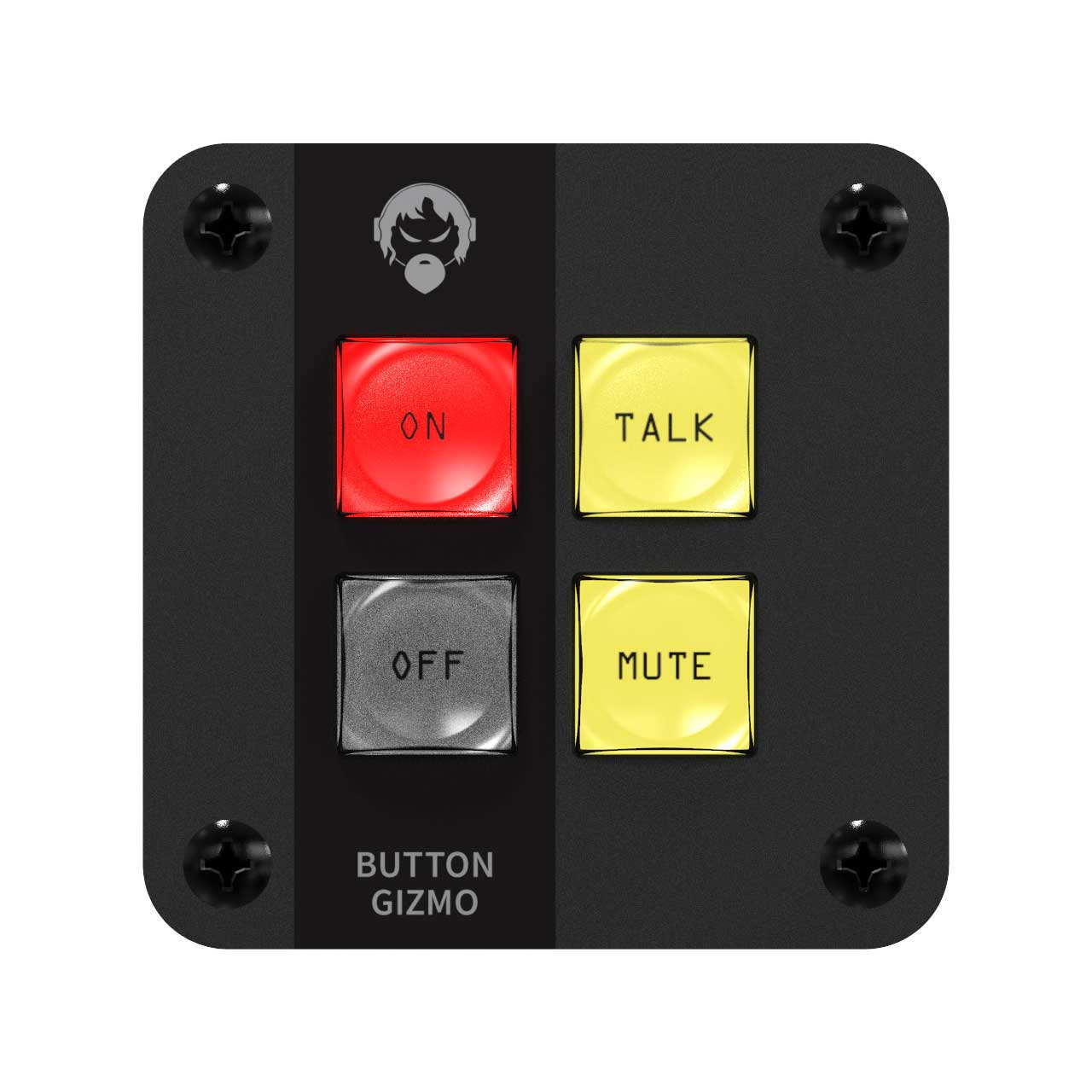

Introducing Angry Audio's simplest idea yet: the Button Gizmo. Four avionics-grade, LED illuminated pushbuttons in a powder-coated steel panel. Mounts easily in your countertop for an elegant, finished look.

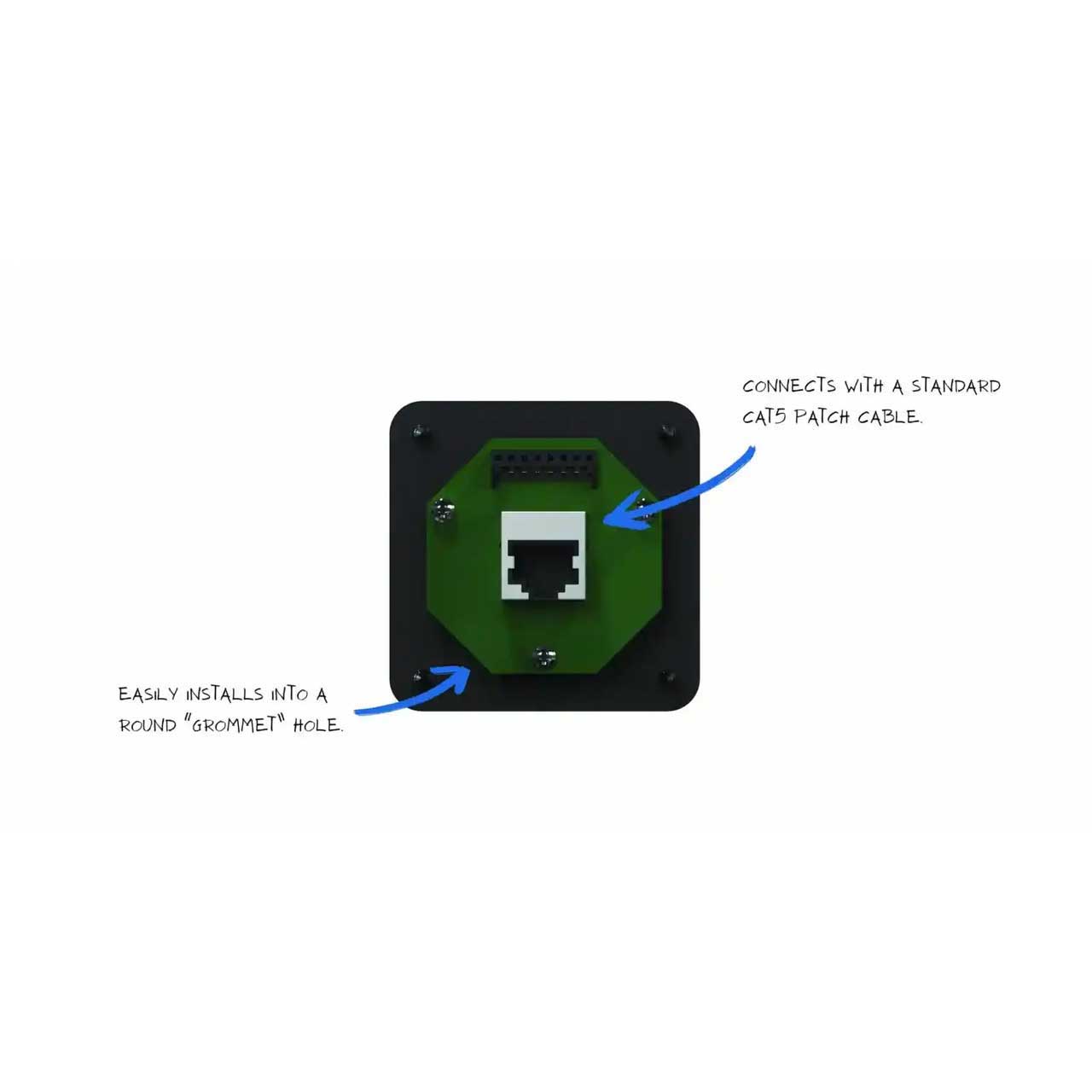

You can use the Button Gizmo with other consoles too. Any console with GPIO logic will easily interface. We include an RJ45 to screw terminal breakout adapter to make it easy to access the contacts.

Of course, you might have other ideas for those buttons. Great. You can easily remove the button caps and replace our labels with your own. So instead of ON, OFF, MUTE and TALK, maybe your Button Gizmo will read COFFEE, LIGHTS, DOOR and EJECT for the guest who overstays. Our buttons, your vision.

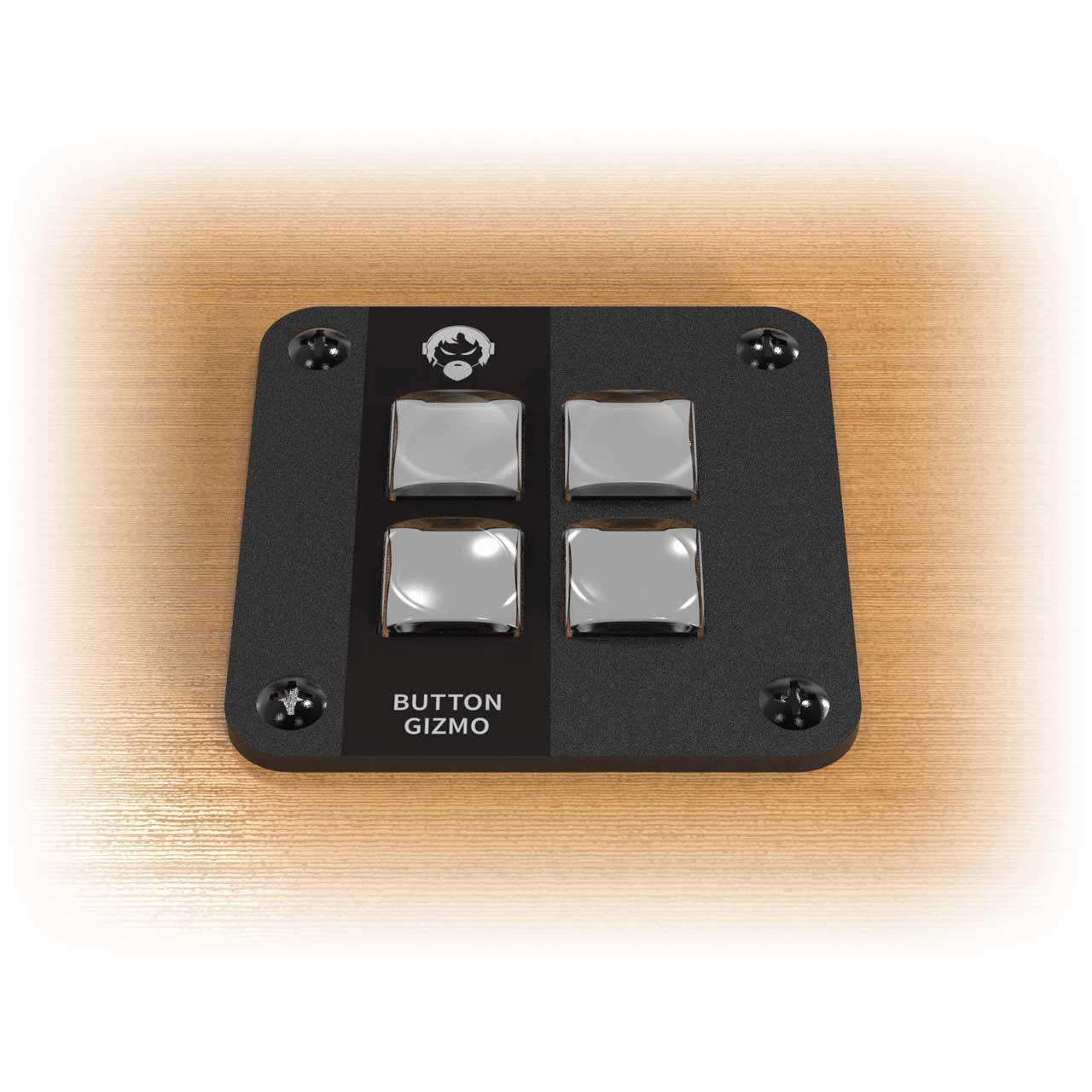

You won't need a carpenter to install the Button Gizmo in your furniture. Even if you're not that handy, you can handle a hole saw. A 2-1/8 inch hole is as easy as installing a desk grommet. Your studios will look amazing and you'll look brilliant.

  • Specifications:

    • Button Gizmo
    • Switch: Contacts Short to Common
    • Button 3: LED Activates with Button 3
    • Button 4: LED Activates with Button 4
    • Button 1: LED Short to common Activates
    • Button 2: LED Short to common Activates
    • Voltage: +5VDC to +12VDC

      Power and Environmental
    • Power Consumption: 250mW at 5VDC
    • Power Consumption: 500mW at 12VDC
    • Operating Temperature: 32° to 104° F
    • Storage Temperature: -4° to 113° F
    • Relative Humidity: 0% to 90% non-condensing
    • Mounting hole diameter: 2-1/8 inch

      Product Weight & Dimensions
    • Shipping box 4in x 4in x 3in, 1 pound

  • Item Includes:

    • 1x Button Gizmo
    • 1x RJ45F to DB15M Axia logic adapter
    • 1x RJ45F to screw terminal adapter
