Angry Audio Rave Radio Mixing Console - 8 Line Inputs/4 Microphone Inputs

RAVE - Overview

Radio Ready, Cost Effective, Broadcast Quality Mixing Console!

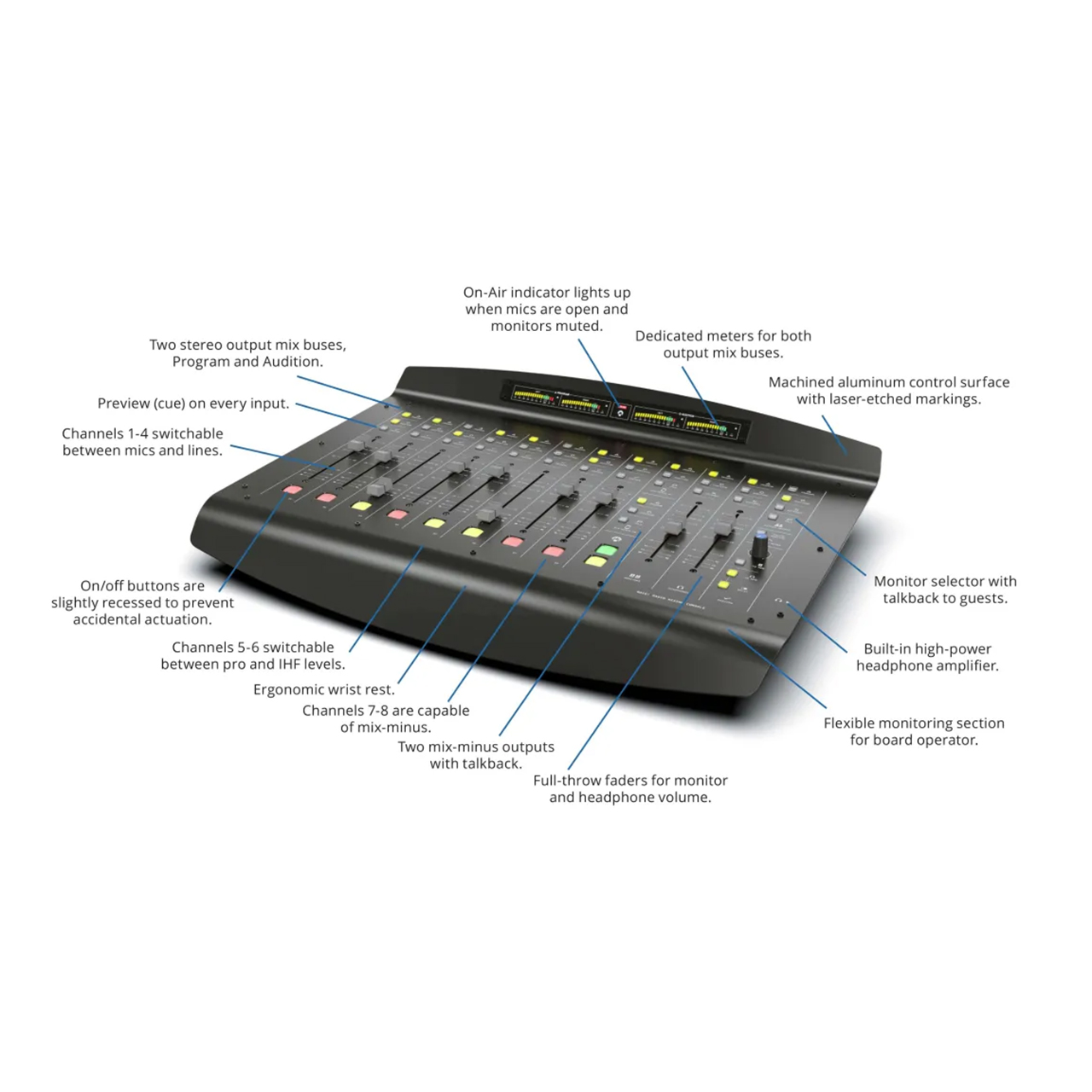

• Features:

  • Two stereo output mix buses, Program and Audition
  • Preview (cue) on every input
  • Channels 1-4 switchable between mics and lines
  • On/off buttons are slightly recessed to prevent accidental actuation
  • Channels 5-6 switchable between pro and IHF levels
  • Ergonomic wrist rest
  • Channels 7-8 are capable of mix-minus
  • Two mix-minus outputs with talkback
  • Full-throw faders for monitor and headphone volume
  • Flexible monitoring section for board operator
  • Built-in high-power headphone amplifier
  • Monitor selector with talkback to guests
  • Machined aluminum control surface with laser-etched markings
  • Dedicated meters for both output mix buses
  • On-Air indicator lights up when mics are open and monitors muted


• Specifications:

  • Power & Environmental
  • Power Input: 115 VAC 50/60Hz
  • Power Consumption: VA
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 113°F (-20°C to 45°C)
  • Relative Humidity: 0% to 90% non-condensing
  • Cooling: Venting chassis (fanless)

    Performance Specifications:
  • Nominal Levels:
    - Line Inputs/Line Outputs: +4 dBu
    - Mic Inputs: -50 dBu
  • Maximum Levels:
    - Line Inputs/Line Outputs: +24 dBu
  • Frequency Response:
    - Line Input to Program Output: +0 dB, -0.5 dB, 20 Hz - 20 kHz
    - Mic Input to Program Output: +0 dB, -0.5 dB, 20 Hz - 20 kHz
  • SNR: Line Input to Program Output: > 88 dB. 20 Hz - 20 kHz
  • EIN: Mic Input to Program Output: -128 dBU, 150Ω Source
  • THD+N:
    - Line Input to Program Output: < 0.002%
    - Mic Input to Program Output: < 0.007%
  • Stereo Separation: > 80 dB, 10 kHz
  • Bus Crosstalk: > 90 dB, 10kHz

    Weight and Dimensions
  • Power Supply Dimensions: 8.25" x 6.25" x 1.75" (20.9cm x 15.87cm x 4.44cm)
  • Power Supply Weight: 5 lbs (2.26 kg)
  • Console Dimensions: 21" x 16" x 3.75" (53.34cm x 40.64cm x 9.52cm)
  • Console Weight: 19 lbs (8.61 kg)


• Item Includes:

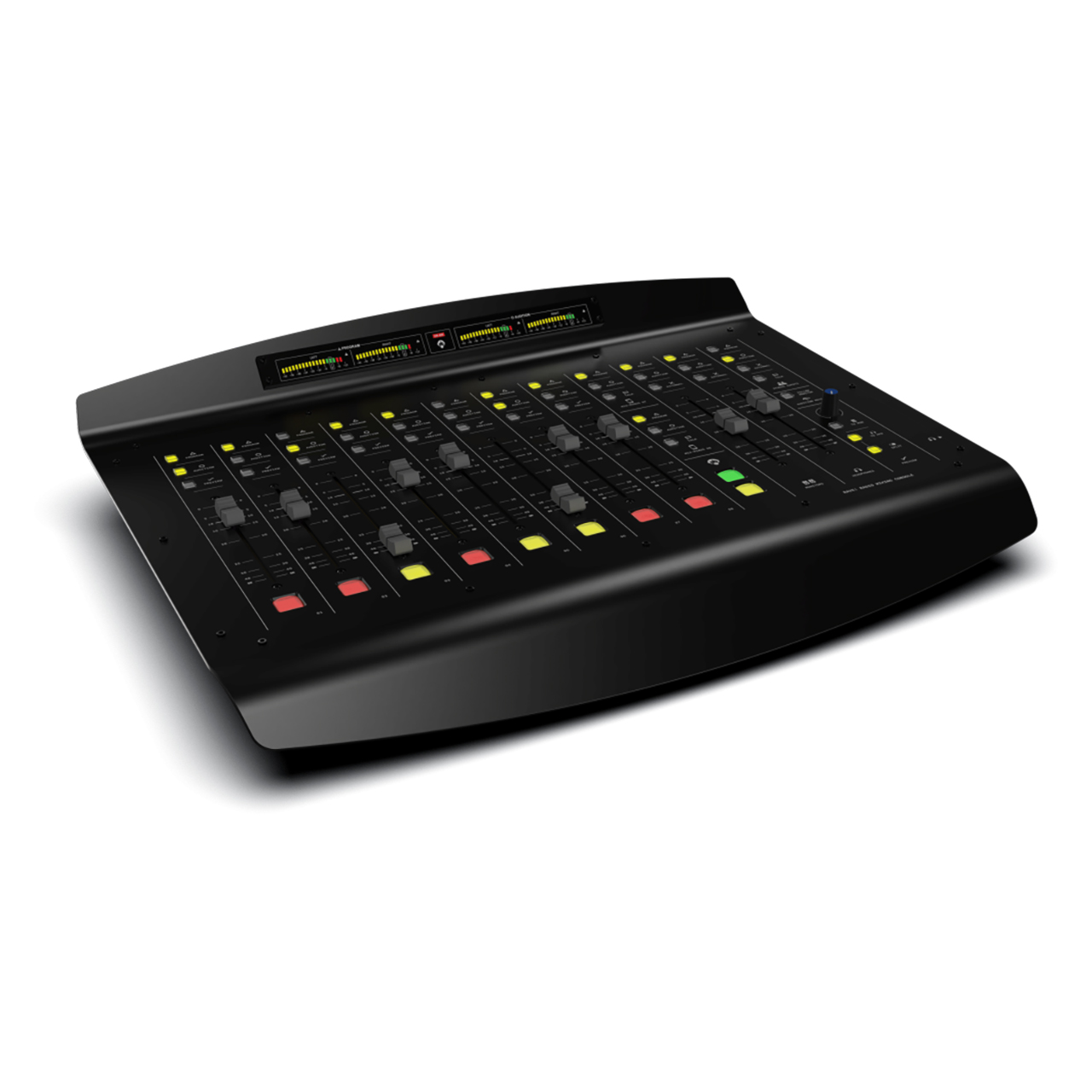

  • 1x RAVE! Radio Mixing Console

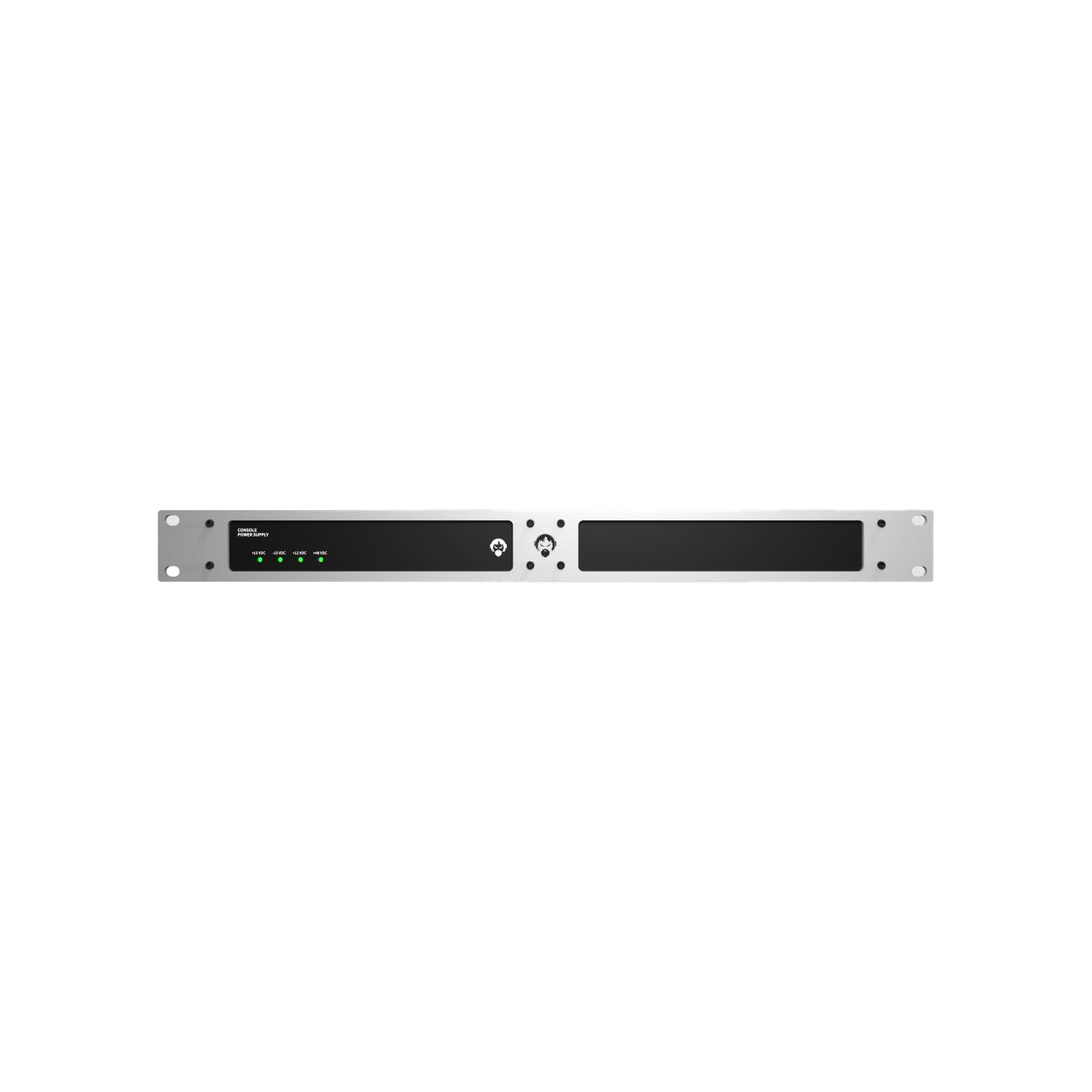

  • 1x Console Power Supply
  • 1x AC Power Cord (connects power supply to AC mains)
  • 1x DC Cable (connects console to power supply)


• Warranty:

  • 2-Year Limited Warranty
