AVPro Edge AC-FRESCO-CAP-4 Fresco 4 Video Wall Processor

ITEM #: AC-FRESCO-CAP-4 MFG #: AC-FRESCO-CAP-4

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,999.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


AC-FRESCO-CAP-4 - Overview

Easy to use and ready to go, the Fresco 4 from AVPro Edge gives you the stable video wall solution every integrator has been looking for. Directly out of the box you are able to connect a source and 4 displays for a plug-in-play video wall.

Video walls give sports bars, retail stores, entertainment venues, and hotels an opportunity to `WOW' their customers with big, bold and bright messaging. With the Fresco 4 you are able to process 4K video throughout your video wall, delivering a dynamic effect no one will soon forget. We included robust scaling features inside this processor that allows you to not only input 18Gbps 4K60 signals, but output them as well to each display.

Fully expandable, you are able to cascade multiple units to create video walls far beyond 2x2, if you had 10 AC-FRESCO-CAP-4's you could create a video wall with 40 displays!

Capture regions are very important in a video wall set up, when installing the Fresco 4 setting up your capture regions has never been easier. By installing this free software, and connecting the Fresco 4 to your PC, you are able to enter all the measurements of your bezels and the software will layout your video wall perfectly, compensating for every bezel of every screen.

  • Features:

    • HDMI 2.0(a/b)
    • 18Gbps Bandwidth Support
    • 4K60 4:4:4 Support
    • Plug-in-Play 2x2 video wall
    • HDCP 2.2 (and all earlier versions supported)
    • Web GUI
    • PC Software
    • USB, RS-232 and LAN Control Options
    • Digital Coax Audio Out (6CH PCM, DD, DTS)
    • Built in Resolution Scaling
    • Able to Cascade

  • Specifications:

    • Video
    • Video Resolutions: up to 4K 60HZ 4:4:4
    • VESA Resolutions: up to DCI 4K (4096X2160) 5k (UP TO 5120X3200)
    • Color Space: YUV (Component), RGB (CSC: REC. 601, REC. 709, BT2020, DCI, P3 D6500)
    • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0 Supported
    • Deep Color: up to 16 BIT (1080p) up to 12 Bit (4K)

      Audio
    • Audio Formats Supported HDMI: PCM 2.0 CH, LPCM 5.1 & 7.1 Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TRUEHD, DTS-HD Master Audio, DTS-X, Dolby ATMOS
    • Audio Formats Supported Extracted (2CH Port): PCM 2CH

      Distance
    • HDMI In/Out (4K60 4:4:4): up to 50' (Using Bullet Train HDMI)
    • HDMI In/Out (w/AOC Cable)(4K60 4:4:4): up to 130' (Using Bullet Train AOC)

      Other
    • Bandwidth: 18Gps
    • HDCP: HDCP 2.2 & Earlier
    • Control
    • Ports: LAN, RS232, IR Window
    • LAN Webos: Yes

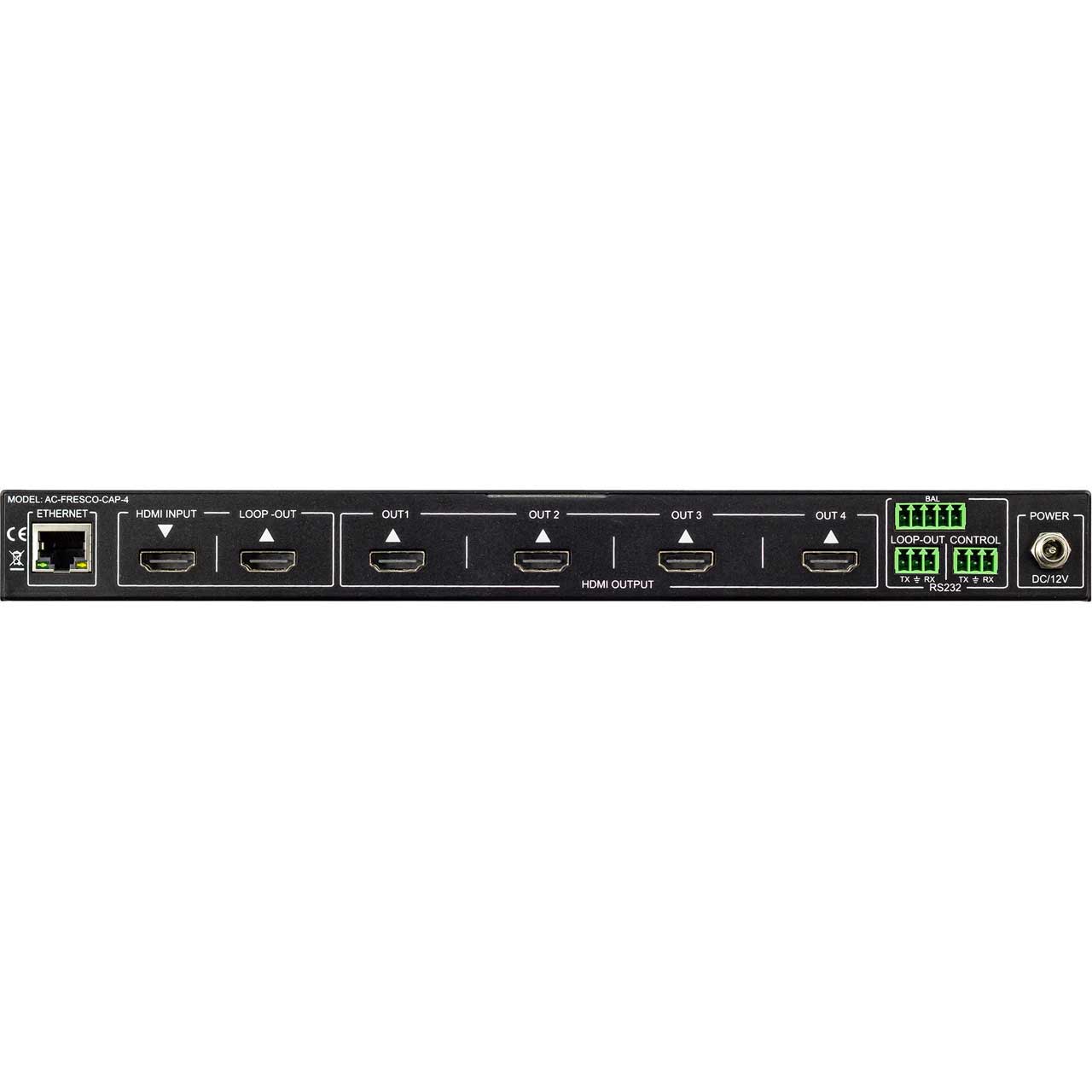

      Ports
    • HMDI: Type A
    • LAN: RJ45 with web interface/control
    • Audio (Extracted Analog): 5 Pin Terminal Block (Balanced)
    • IR RX: window only (remote included)
    • RS232: 3 Pin Terminal Block

      Environmental
    • Operating Temperature: 23° to 125°F (-5° to 51°C)
    • Storage Temperature: -4° to 140°F (-20° to 60°C)
    • Humidity Range: 5 to 90% RH (non-condensing)

      Power
    • Power Consumption (Total): 6 Watts Max

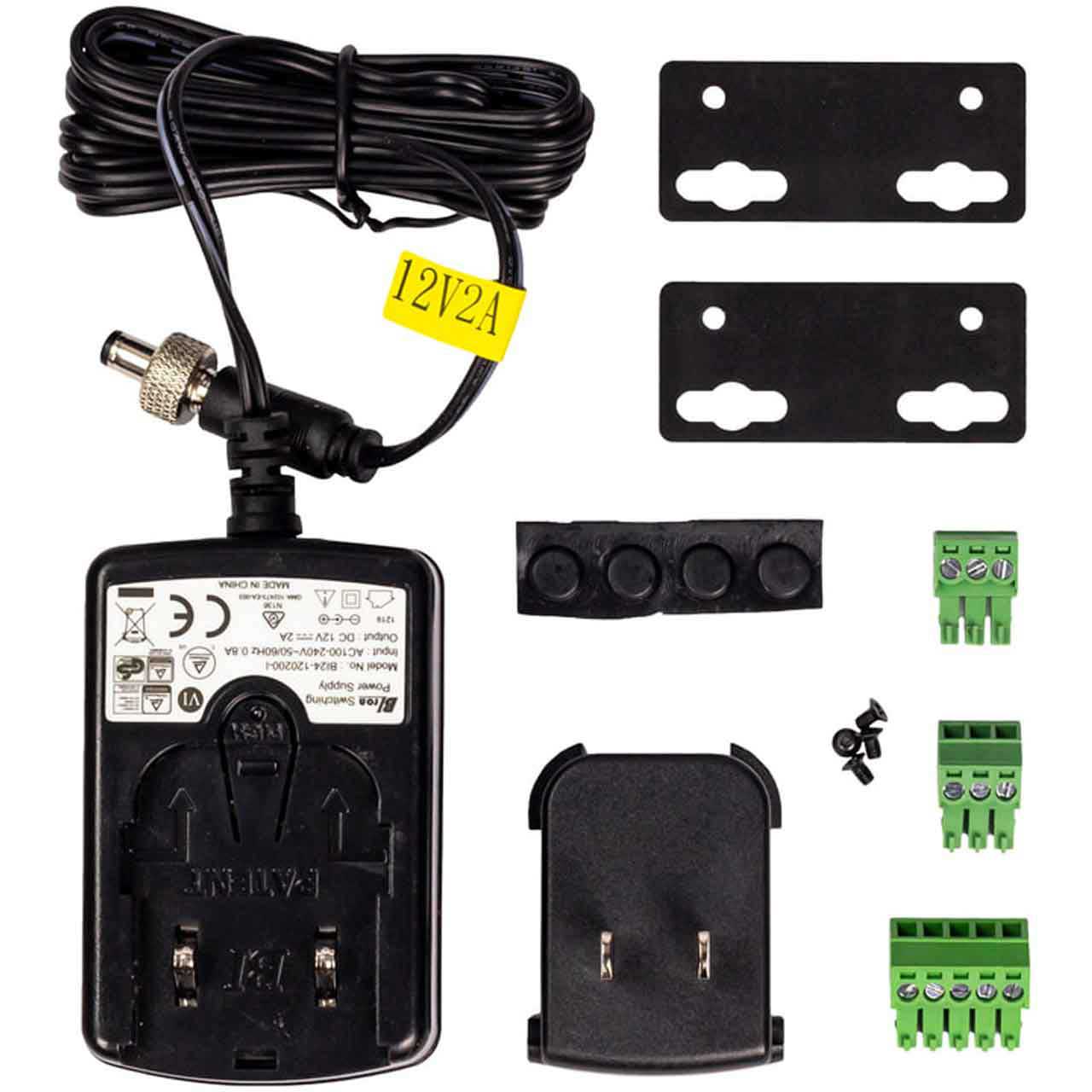

    • Power Supply:
    • Input: AC 100-240V - 50/60HZ
    • Output: DC 12V 2A

      Physical
    • Dimensions:
      Unit (LxWxH): 1.2 x 5.45 x 11.69" (30.5 x 138.3 x 296.9mm)
      Shipping (LxWxH): 3 x 7.25 x 12.5" (184.2 x 316 x 79.5mm)
    • Weight:
      Unit: 2.5Lbs (1.13kg)
      Shipping: 3.5Lbs (1.59kg)

  • GTIN:

    0850001710695
