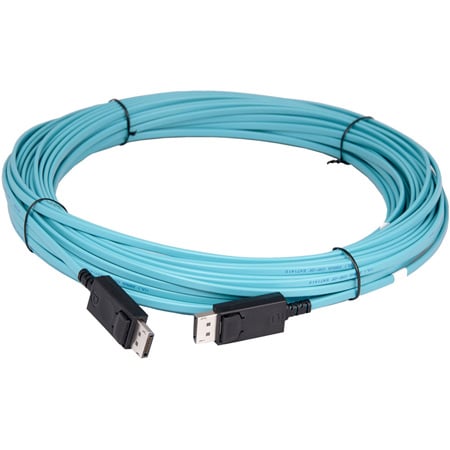

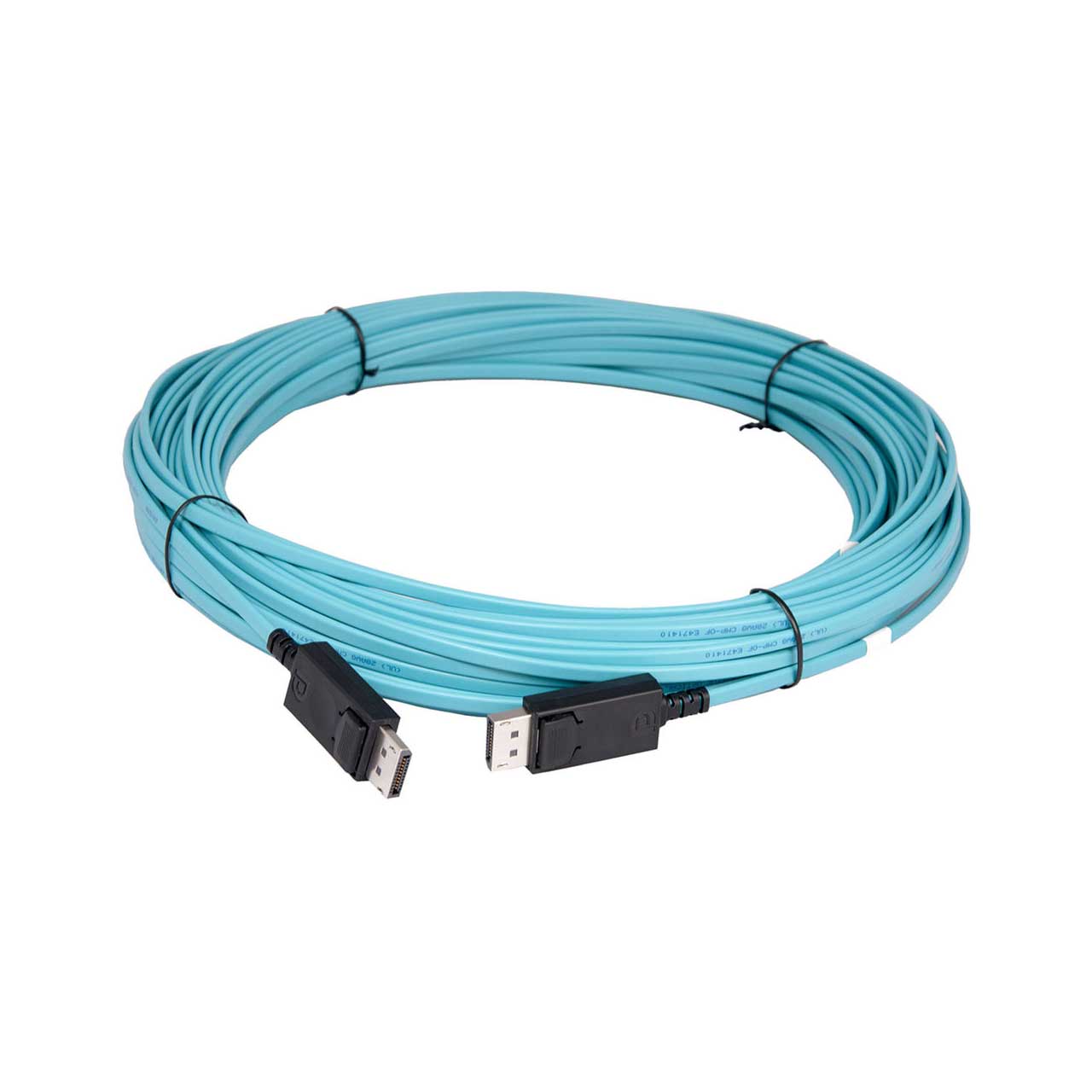

DATAPATH ACDP12CAB/50 ActiveConnect DisplayPort 1.2 with 164 Foot (50m) Cable

ITEM #: ACDP12CAB-50 MFG #: ACDP12CAB/50

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$1,100.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ACDP12CAB/50 - Overview

The 164' ACDP12CAB/50 ActiveConnect Fiber Optic Extender Cable from DATAPATH features DisplayPort 1.2 connectors on both sides. It is designed to connect a 4K media player to Vision Capture cards, or from ImageDP4 graphics cards to DisplayPort-capable monitors and projectors. This cable supports 3840 x 2160 resolution at 60 Hz and 4096 x 2160 resolution at 691.2 MB/s data transfer rate with HDCP compliance within a DATAPATH system. It does not require any additional power and is 0.28" thick allowing installers to easily deploy large numbers of screens. This cable is Plenum-rated and can be safely installed into building cavities such as walls, floors, or ceilings.

  • Features:

    • Maximum bend radius of 0.24"
    • The fiber is made from high quality plastics
    • Active and flexible
    • Supports audio/video device, transmitter, receiver, graphics card,
      monitor, and projector

  • Specifications:

    • Connector 1: 1 x DisplayPort Male
    • Connector 2: 1 x DisplayPort Male
    • Cable Length: 164.04' / 50.00 m
    • DisplayPort: Version 1.2
    • Weight: 1.6 lb / 750 g
    • Maximum Resolution Support: 4096 x 2160 at 60 Hz
    • Certifications: Plenum, as per Manufacturer
    • Package Weight: 2.075 lb
    • Box Dimensions (LxWxH): 12.5 x 11.05 x 2.15
      Inches
