ADDERLink ALAV100T-US VGA AV KVM Extender for Digital Signage - Point-to-Point Transmitter

ALAV100T-US - Overview

Point-to-Point Transmitter

• Features:

  • Sold individually or as a pair
  • Extends high-resolution video and high fidelity audio up to 300m
  • Local port on transmitter to connect local screen and speakers or for cascading other AdderLink AV100T transmitter units
  • AdderLink AV100R duplicates input from transmitter allowing for 2 video and 2 audio outputs
  • Can be used as a receiver up to 300m from AdderLink AV100T or AdderLink AV104T transmitters (sold separately)


• Specifications:

  • Video Resolutions:
  • HD 1920x1080 at distances up to 100 meters/325 feet, 1280 x 1024 at distances up to 300 meters/1000 feet. Extension distance Up to 300 meters/1000 feet using CATx (x=5,5e,6,7).


  • Extension technology:
  • Differential analog signaling for video signals.


  • Cable Equalization:
  • Finely adjustable cable equalization amplifiers enable the video sharpness and brightness to be independently adjusted using the dials on the side of the receiver units.


  • Indicators:
  • The remote and local units are fitted with two indicators; red shows the presence of power into the module, green indicates the presence of a video input.


  • Audio:
  • Transmitted as digital signals to ensure high fidelity and low noise levels. Phase locked sampling clocks ensure that there are no unwanted clicks when no sound is being played.


  • Rack mount options:
  • Both the local (computer-end) and remote (display-end) units may be rack mounted in the ADDER Link AV Series rack mount chassis. The chassis enable 16 units to be mounted in 3U of 19-inch rack space. The units are rack mounted using the optional rack mount faceplate


  • Connectors:

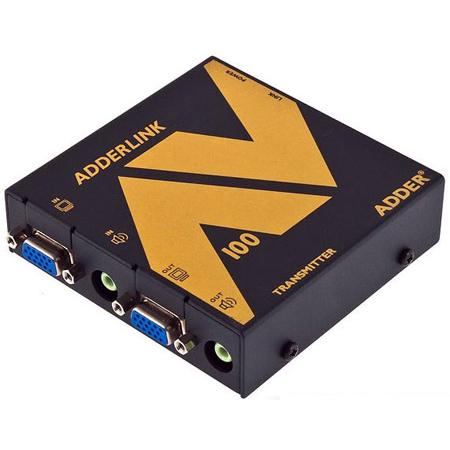

  • 1 x blue 15-pin high-density D-type female connector for video input
  • 1 x light green 3.5mm audio jack for audio input.
  • 1 x blue 15-pin high-density D-type female connector for video output
  • 1 x light green 3.5mm audio jack for audio output or cascade to additional ADDER Link AV100T.
  • 1 x RJ45 connector for CATx cable connection.
  • 1 x 2.5mm DC jack for power adapter.


  • Optional accessories:
  • ALAV - Series rack mount chassis (part code: ALAV-RMK-CHASSIS), rack mount plate for local/remote unit (part codes: ALAV-RMK-FACIA). Adder 4amp power supply and "squid" cable to power 4 ALAV units (part code ALAV-PDM-KIT).


  • Approvals:
  • FCC class A, CE marked.


  • Operating Voltage:
  • 100-240VAC


  • Power Frequency:
  • 50-60Hz


  • Usage:
  • 5VDC at 500mAh


  • Temperature Tolerance:
  • 0 - 40 deg C (32 to 104 deg F)


  • Humidity Tolerance:
  • 5 to 60% non-condensing


• Item Includes:

  • 1x ALAV100T-US transmitter
  • 1x Power Supply with US cord


• Warranty:

  • 2 Year Limited


• GTIN:

  0609385900266
