ADDERLink ALAV104T-US VGA AV KVM Extender for Digital Signage - 4-Way Point-to-Multipoint Transmitter

ALAV104T-US - Overview

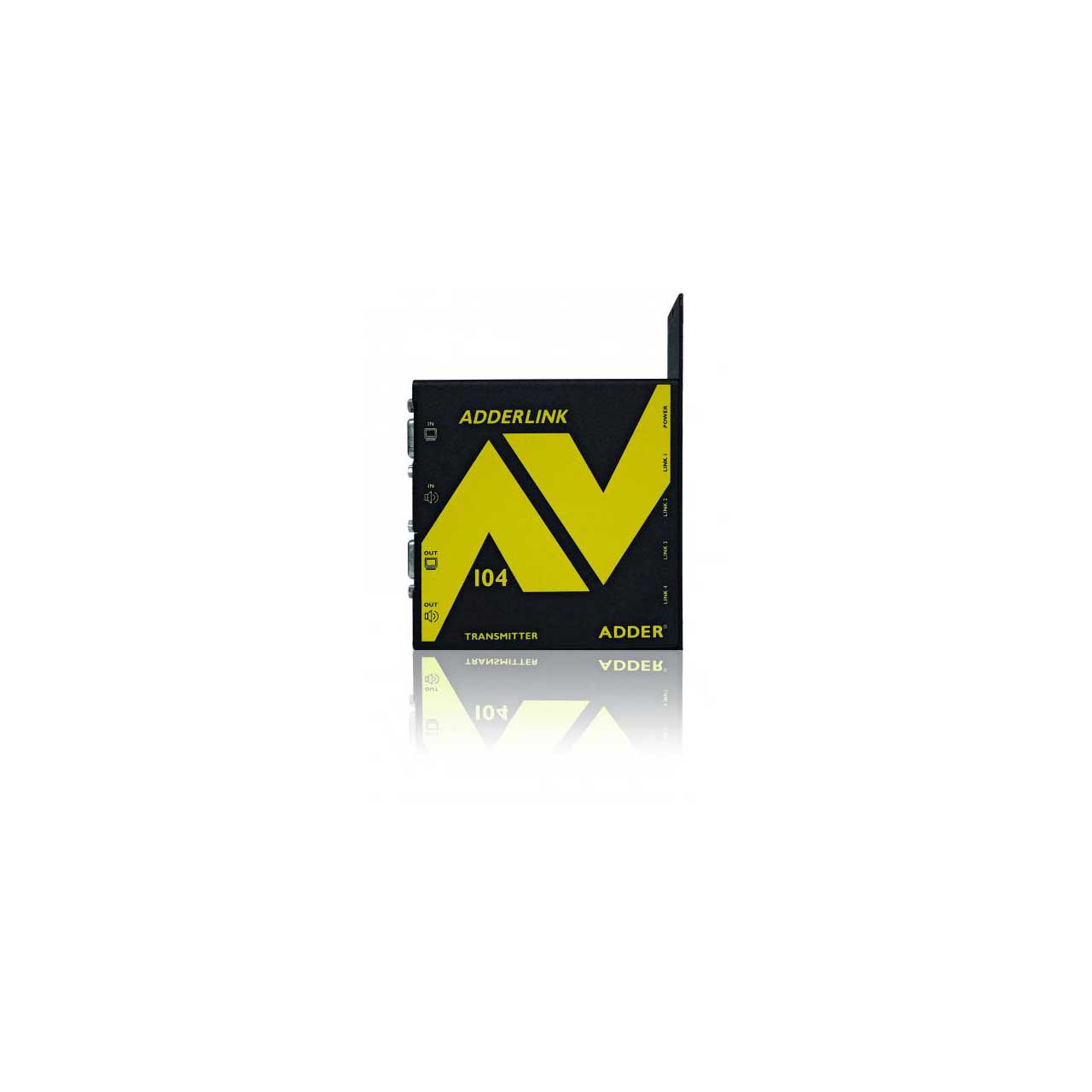

4-Way Point-to-Multipoint Transmitter

• Features:

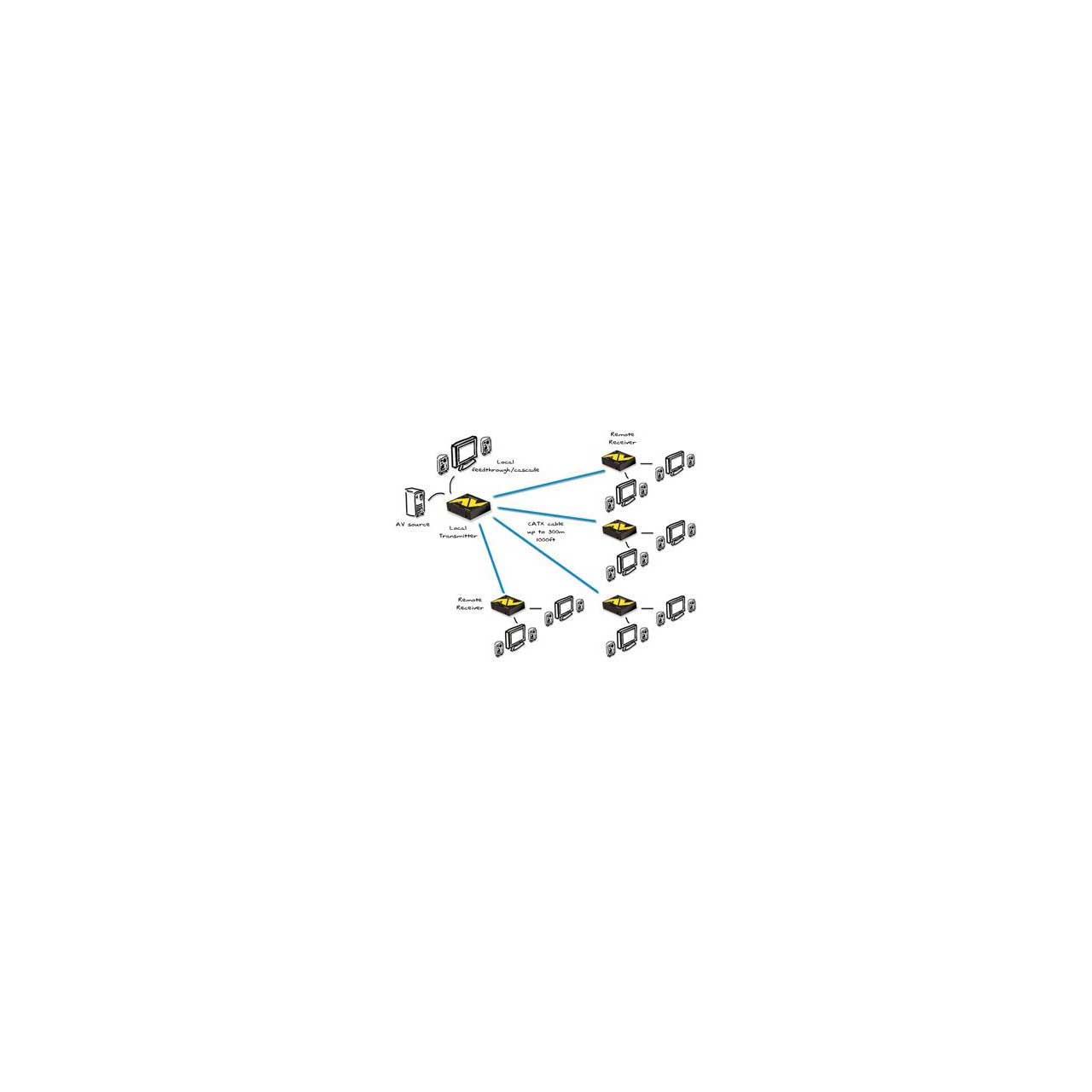

  • Extends a single high-resolution video and high fidelity audio signal to 4 different receivers (sold separately)
  • Local port to connect local screen and speakers or to cascade to other AdderLink AV104T transmitter units


• Specifications:

  • Video Resolutions: HD 1920x1080 at distances up to 100 meters/325 feet, 1280 x 1024 at distances up to 300 meters/1000 feet. Extension distance Up to 300 meters/1000 feet using CATx (x=5,5e,6,7).


  • Extension technology: Differential analog signalling for video signals.


  • Cable Equalization: Finely adjustable cable equalisation amplifiers enable the video sharpness and brightness to be independently adjusted using the dials on the side of the receiver units.


  • Indicators: The remote and local units are fitted with two indicators; red shows the presence of power into the module, green indicates the presence of a video input.


  • Audio: Transmitted as digital signals to ensure high fidelity and low noise levels. Phase locked sampling clocks ensure that there are no unwanted clicks when no sound is being played.


  • Rack mount options: Both the local (computer-end) and remote (display-end) units may be rack mounted in the ADDERLink AV Series rack mount chassis. The chassis enable 16 units to be mounted in 3U of 19-inch rack space. The units are rack mounted using the optional rack mount faceplate.

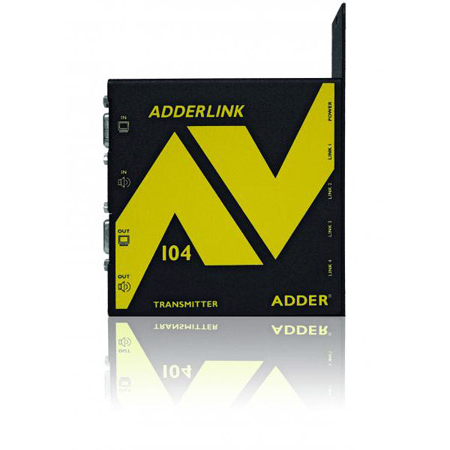

  • Connectors: (ADDERLink AV104T)
  • 1 x blue 15-pin high-density D-type female connector for video input
  • 1 x light green 3.5mm audio jack for audio input.
  • 1 x blue 15-pin high-density D-type female connector for video output
  • 1 x light green 3.5mm audio jack for audio output or cascade to additional AdderLink AV104T.

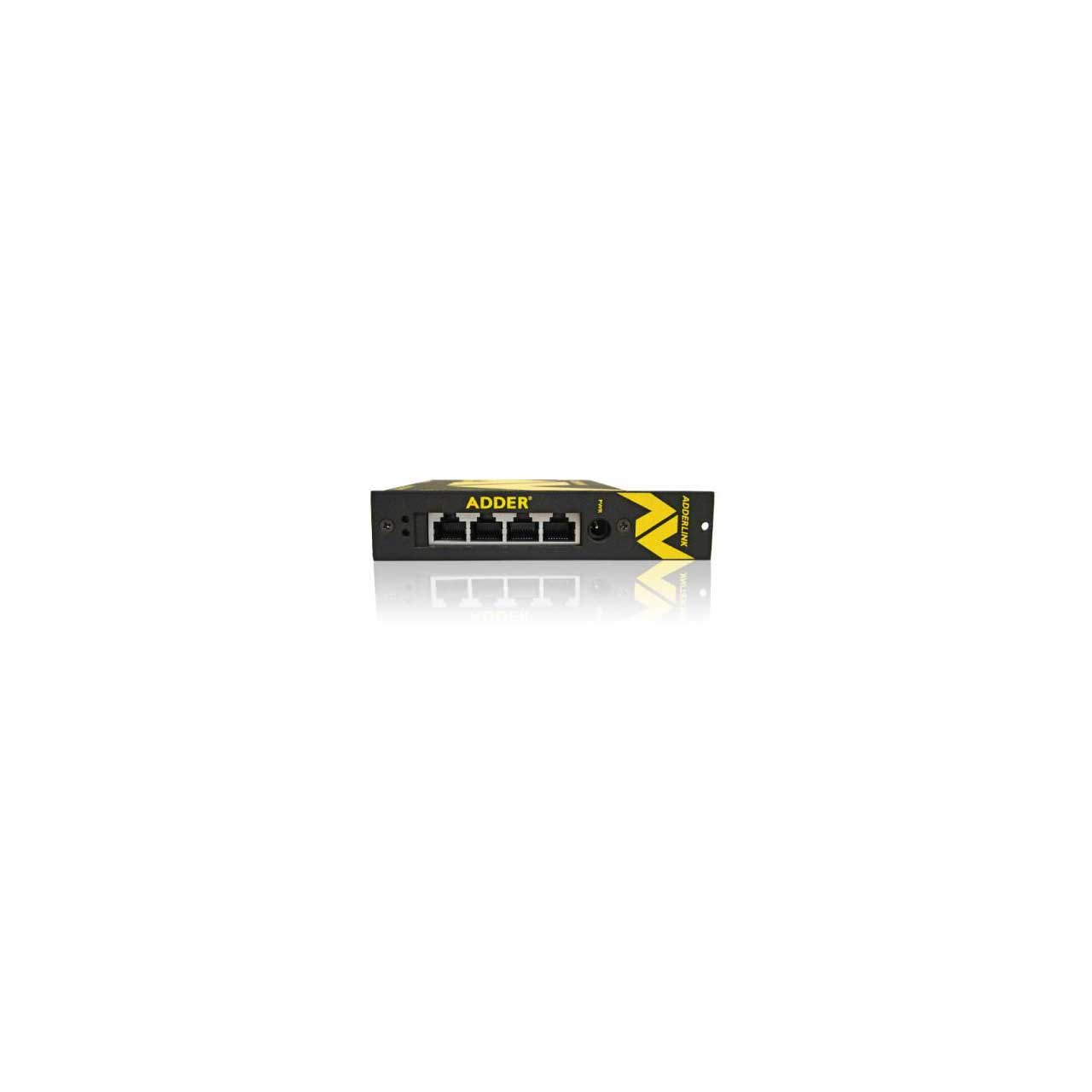

  • 4 x RJ45 connectors for CATx cable connections.
  • 1 x 2.5mm DC jack for power adapter.


  • Physical (All ADDERLink AV units): Metal case (steel and stainless steel), 98mm x 95mm x 25mm.


  • Power: All AdderLink AV units are powered by an external 5V DC, 2A power supply with IEC power cable connection. A country specific power cord is provided. Alternatively 4 units can be powered using a 4amp power supply and the Adder "squid" cable.


  • Spike suppression: All AdderLink AV units are fitted with spike suppression circuits.


  • Display Data Channel: DDC signalling is supported to enable the computer to communicate with the local monitor and thus configure its video card for optimal operation.


  • Optional accessories: ALAV - Series rack mount chassis (part code: ALAV-RMK-CHASSIS), rack mount plate for local/remote unit (part codes: ALAV-RMK-FACIA). Adder 4amp power supply and "squid" cable to power 4 ALAV units (part code ALAV-PDM-KIT).


  • Approvals: FCC class A, CE marked.


  • Power:
  • Operating Voltage: 100-240VAC
  • Power Frequency: 50-60Hz
  • Usage: 5VDC at 500mA.


  • Temperature Tolerance: 0 - 40 deg C (32 to 104 deg F)


  • Humidity Tolerance: 5 to 60% non-condensing


• Item Includes:

  • 1x ALAV104T-US transmitter
  • 1x Power Supply with US cord


• Warranty:

  • 2 Year Limited


• GTIN:

  0609385498770
