ADDERLink ALIF2020T-US INFINITY Dual Head Digital USB2.0 IP KVM A/V Extender - Transmitter

ALIF2020T-US - Overview

• Features:

  • Perfect digital video: uncompressed video extension and pixel perfect digital video up to 24 bits per color at a maximum of 1920x1200 over 60Hz with real time control
  • Digital Stereo Audio: digitally delivered crystal clear audio across the network

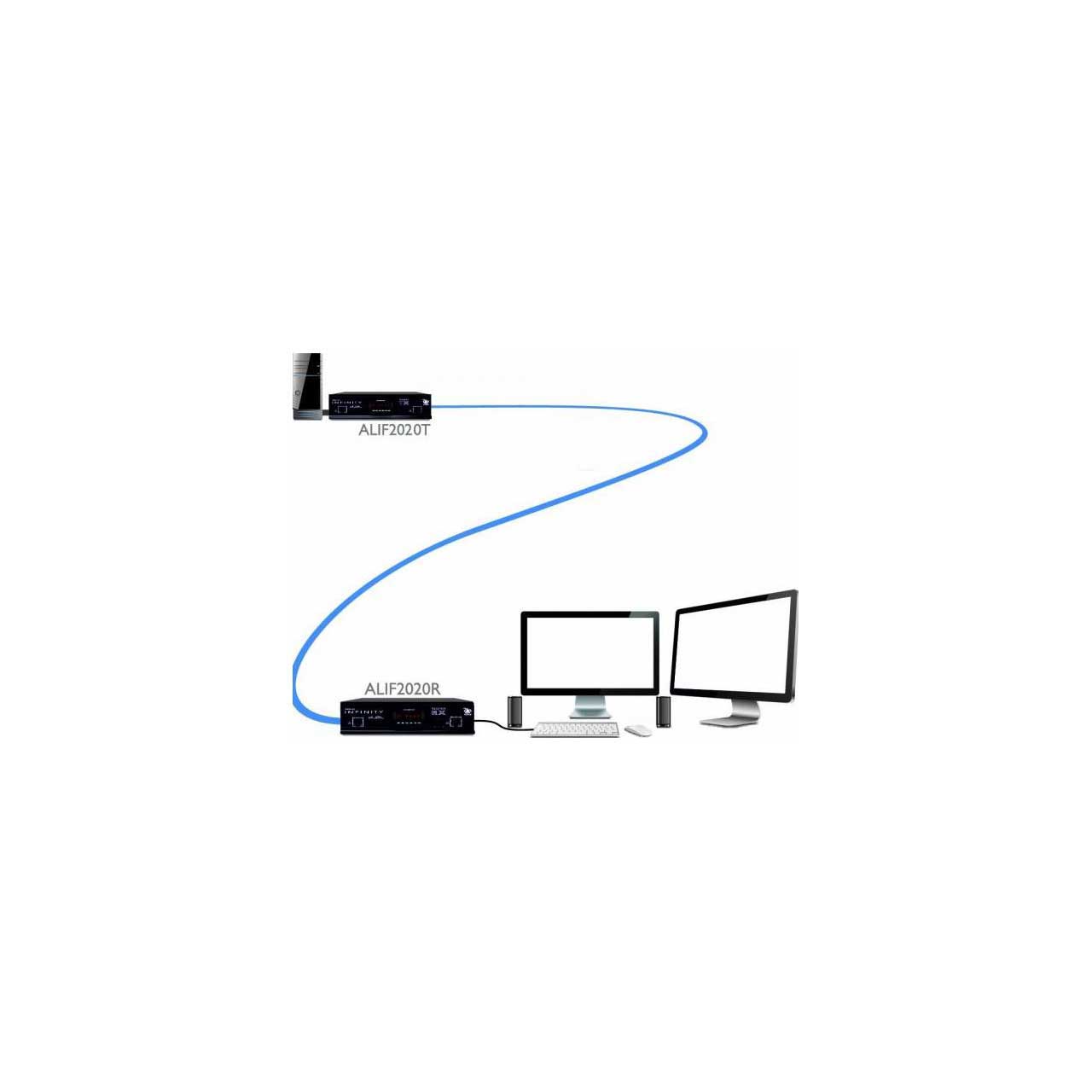

  • Distribution: DVI, USB, audio and bidirectional RS232 across up to 6.2 miles/10km
  • Power redundancy: the units can detect whether the network is in operation and will utilize the second network port is failure detected
  • EDID management: Extended Display Identification Data (EDID) enables the remote system to exactly mirror the date coming from the source monitor
  • Plug and Play: the ADDERLink INFINITY range is delivered in a zero config state so they work as soon as they are connected, without the need for drivers or software
  • Robust yet lightweight: small form factor, rack mountable device
  • USB True Emulation: USB 2.0 enables connection to any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers


• Specifications:

  • Hardware compatibility
  • All computers with DVI-D, USB, audio, RS232 - requirement dependent.


  • DVI-D - Digital Visual Interface (digital only)
  • The system supports two Single Link DVI-D resolutions to a maximum of 1920 x 1200 @ 60Hz.


  • USB 2.0 with class control
  • Supports USB2.0 devices (low, full and high speed). Security feature allows the blocking of non HID devices. Isochronous devices are not supported (e.g. USB audio or video devices).


  • Digital stereo audio
  • The system transfers analog stereo audio (Line In/Line Out) via digital signaling between any transmitter/receiver pair. Additionally, the audio output of any transmitter can be multicast to many receivers.


  • RS232
  • RS232 can be passed between the units to a maximum baud rate of 115,200. RS232 is a point to point connection technology cannot be multi-cast


  • Software compatibility
  • All known operating systems

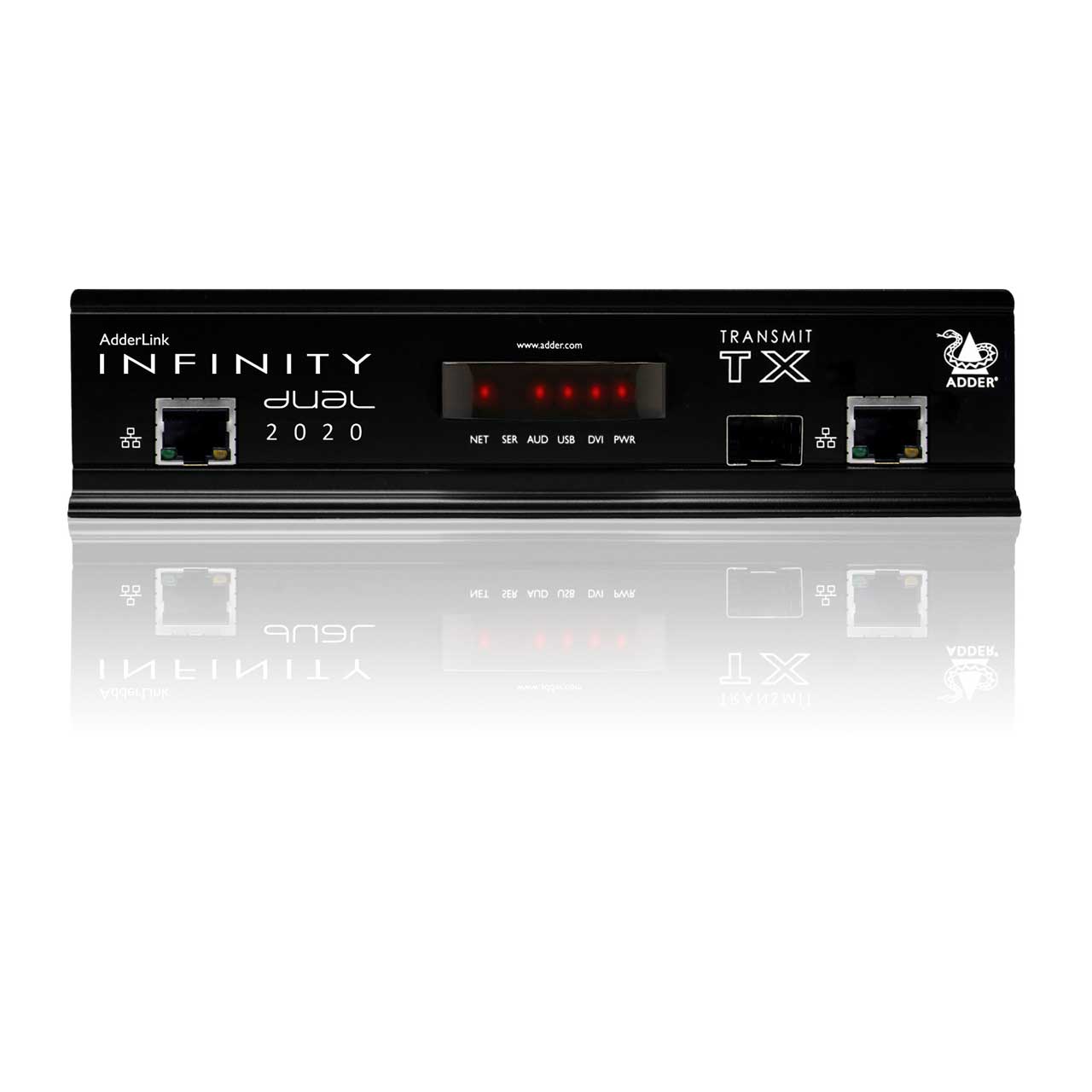

  • Computer connections transmitter (TX)
  • 2 x DVI-D
  • Audio 3.5mm in
  • Audio 3.5mm out
  • USB type B
  • RS232 9-pin D-type
  • 1 x 8p8c
  • 1 x SFP for AdderLink
  • Infinity network connections

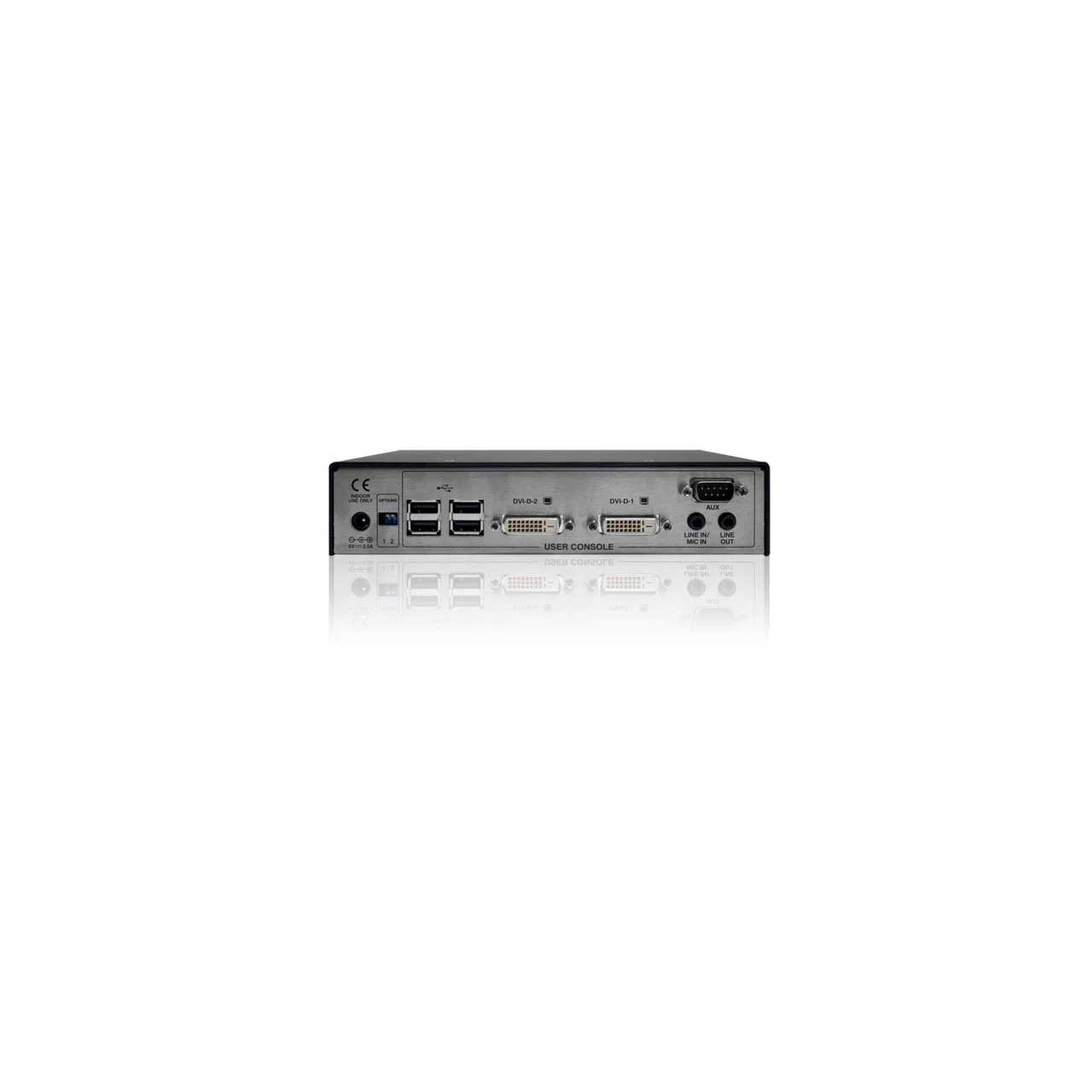

  • Peripheral connections receiver (RX)
  • 2 x DVI-D
  • 4 x USB type A, RS232 9-pin D-type
  • 1 x 8p8c
  • 1 x SFP for AdderLink
  • Infinity network connections
  • Audio 3.5mm in
  • Audio 3.5mm out


  • Physical design
  • Dimensions (WxHxD): 7.92 x 1.76 x 6" (198 x 44 x 150mm)
  • Weight: 1.1kg/2.7lbs
  • Case: 1U Case
  • Material: Robust Metal Construction


  • Power
  • 2.5mm DC jack (power adapter included),100-240VAC 50/60Hz, 0.8A
  • Input to power adapter. 5VDC 20W
  • Output from power adapter


  • Operating temperature
  • 0° to 40°C / 32° to 104°F


  • Approvals
  • CE, FCC


• Item Includes:

  • 1x ALIF2020T unit
  • 1x Power adapter and power cord
  • 1x Single Link DVI-D to DVI-D video cable
  • 1x Combined DVI-D and USB cable (1.8m)
  • 2x Audio cable 2m (3.3mm stereo jacks)
  • 1x Serial null modem cable 2m


• Warranty:

  • 2 Year Limited


• GTIN:

  0609385498794
