ADDERView AVX5016IP-US CATx 5000 IP - 5 User - 16 Port CATx IP KVM Extender

AVX5016IP-USA - Overview

• Features:

  • Serial Console Support: connection via CATx-CONSOLE CAM (sold separately)

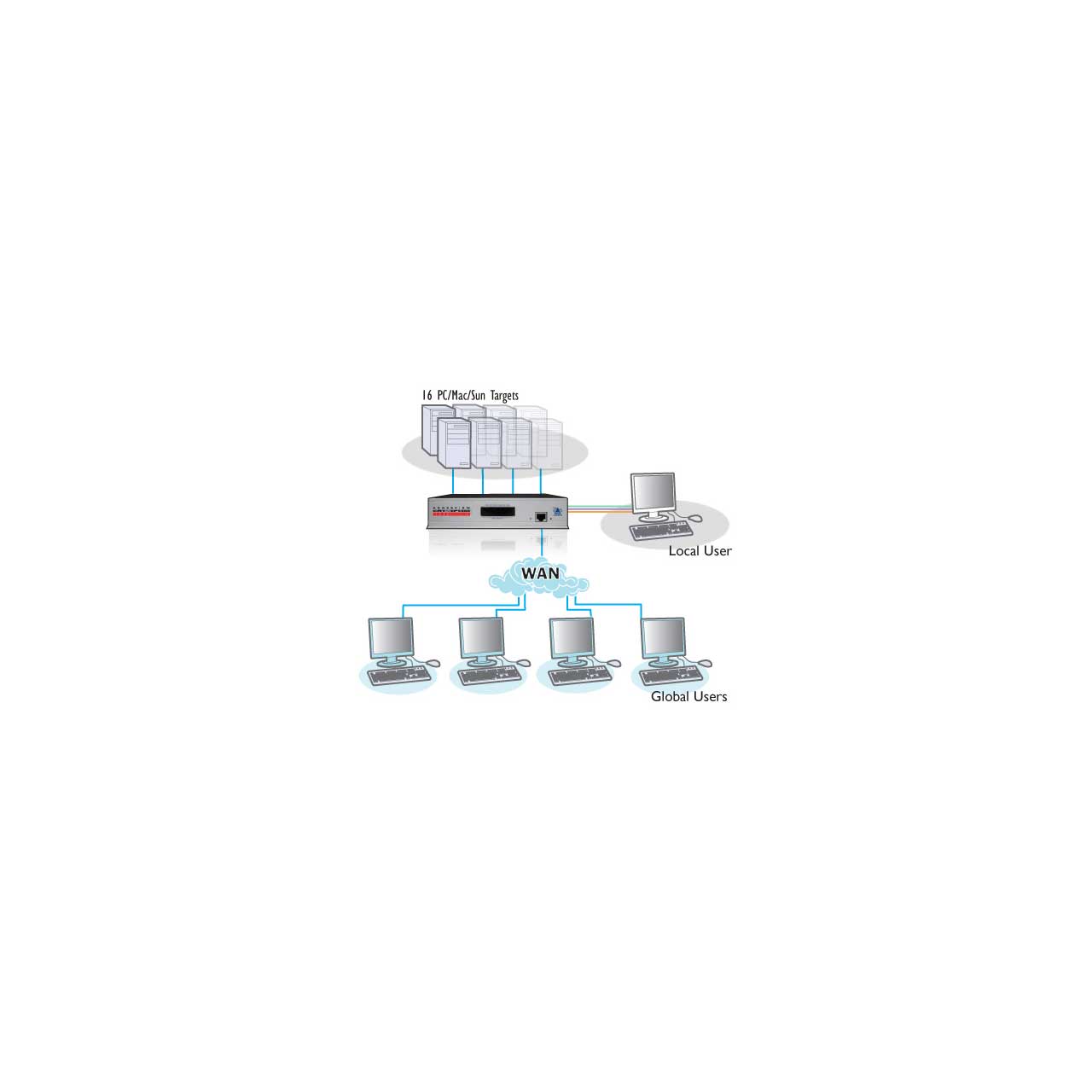

  • 4 simultaneous global IP users: connect via IP to any of the 16 connected devices.
  • Local user support: direct connection for 1 local user to connect straight into the switch via CATx cabling
  • User access control: Up to 16 different user profiles can be created and access rights for each user can be defined
  • Global User (IP): compatibility with Real VNC client software (or alternative browser), designed specifically for secure, high performance KVM over IP applications
  • Encryption and Authentication: AES128 bit encryption and RSA2048 authentication ensure your control system remains secure at all times
  • USB keyboard and mouse control: any USB style keyboard and mouse can be used to control the ADDERView CATx 5000 switch. Full keyboard re-mapping is supported to ensure seamless cross-platform functionality.
  • Faultless video quality: resolutions up to 1600 x 1200 @ 60Hz resolutions with Display Data Channel (DDC) emulation
  • True multi-platform support: support for any computer platforms with PS/2, USB and Sun keyboard and mouse interfaces. Country code reporting, DDC and continuous keyboard and mouse emulation ensure faultless operation
  • Easy cascade: automatically detects cascade connections to support up to 256 computers
  • Optional audio: 44.1kHz digital stereo audio using audio-enabled CAM modules
  • Options port:
  • Integration with RS232 controlled power switches to provide a complete hard reboot function
  • Flash upgrade
  • Sync with other CATx 1000 switches for multi-video applications
  • Upload/download CATx 1000 user and host information
  • Remote control
  • Computer Access Modules(sold separately): Flash upgradeable CAMs are available for PS/2, USB and Sun keyboard and mouse support with optional audio
  • Standard Transmission Distance: KVM communication from switch to target devices can be up to 50m (165ft)
  • Rack mounting / Rack drawers: One or two CATxIP 5000 switches can be mounted in 1U of rack height giving a maximum of 32 ports per U.
  • Embedded KVM option: CATxIP 5000 technology can be embedded within rack drawers and industrial equipment
  • Power control functions: supported via dedicated serial port
  • LDAP integration: optional features to authenticate users against your existing LDAP infrastructure
  • Integrated RS232: to control other external devices such as power management products
  • Configuration: 16 separate users internally with unique access privileges stored within the switch
  • ADDER.net: network management software, automating the task of managing your network control hardware


• Specifications:

  • Approvals / Compliance
  • CE
  • FCC


  • Standards
  • Hardware compatibility:
  • Video, mouse, keyboard and optional audio support for PC, Sun, Mac, RS/6000, Alpha and SGI computers using PS/2, USB or Sun Flash upgradable Computer Access Modules (CAMs)


  • OS compatibility:
  • Operates with all currently known software and operating systems including all Windows versions, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare


  • Video modes:
  • Support for standard PC, Sun and Mac video modes up to a resolution of 1920 x 1200 @ 60Hz. DDC emulation supported via connected Computer Access Modules (CAMs)


  • Cable Guidelines
  • CAT5e or CAT6 cabling is recommended


  • Environmental
  • 0 to 40°C / 32 to 104°F

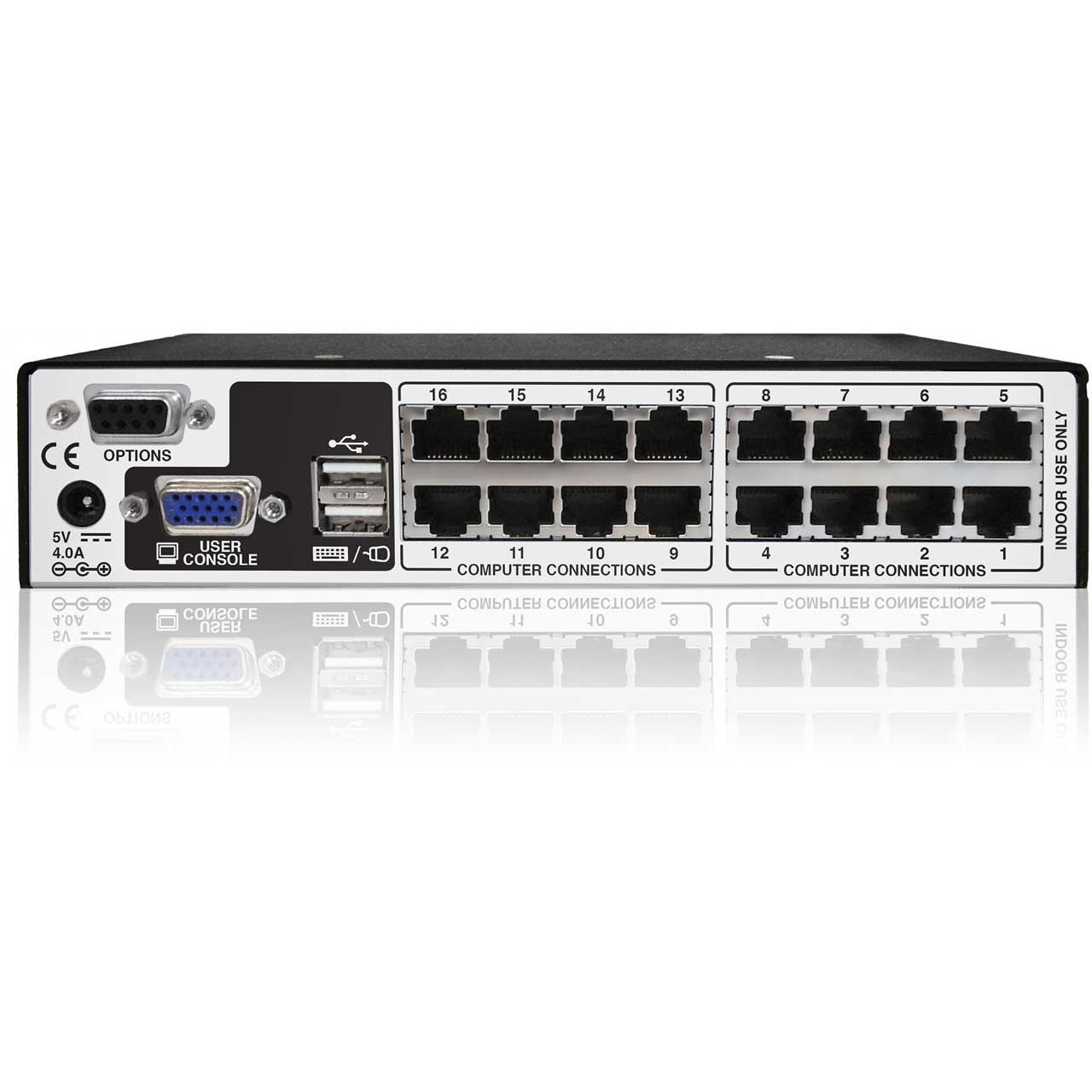

  • Computer Connections at Switch
  • RJ45 (8p8c)


• Item Includes:

  • 1x ADDER View CATx 5000 IP - 5x16 CATx IP switch
  • 1x Power supply with US cord


• Warranty:

  • 2 Year Limited


• GTIN:

  0616983375211
