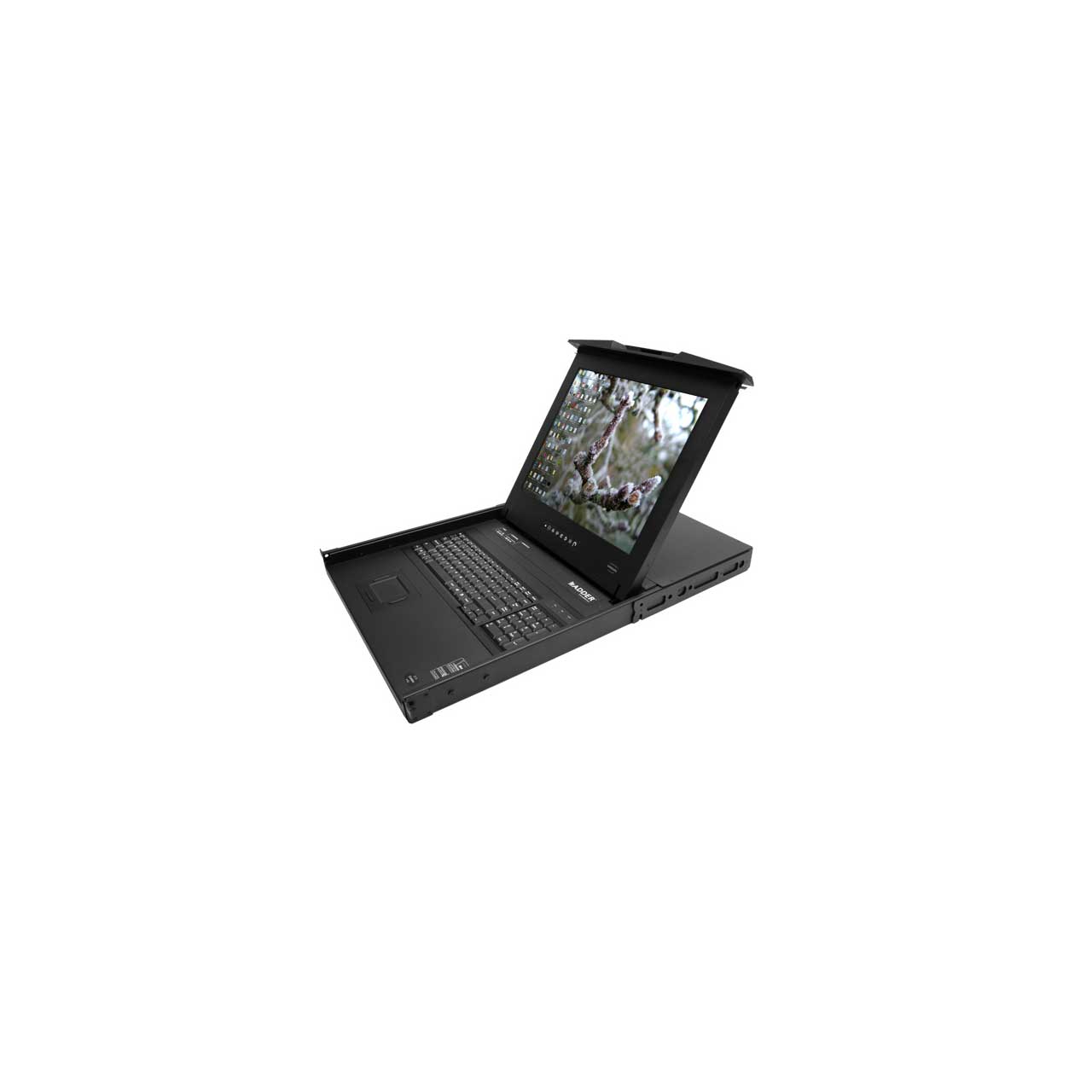

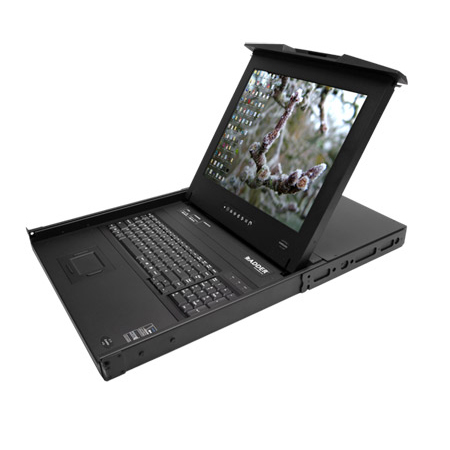

ADDERView RD1716-US RDX 1000 KVM Rack Tray - 17 inch TFT LCD Screen & AVX1016 KVM Switch

RD1716-US - Overview

• Features:

  • One local and remote user: Enables a remote user to contect via a CATx cable and share access to the 16 computers with the local user.
  • Integrated CATx extender: The RDX 1000 can be controlled by a user from up to 300m away over CATx cable using the ADDERLink® X200 or X100 receiver and the integrated CATx extender.
  • True multi-platform capability and connectivity: The RDX 1000 supports any computer platforms with PS/2, USB and Sun keyboard and mouse interfaces. Country code reporting, DDC and continuous keyboard and mouse emulation ensure faultless operation.
  • Faultless video quality: The RDX 1000 provides exceptionally high video performance to local and remote users alike, supporting up to 1920 x 1200 resolutions with DDC emulation which is further enhanced by DC balancing to ensure full and true color.
  • RS232 port: Integrated RS232 gives you the ability to control other external devices such as power management devices.
  • Configuration and extension: The RDX enables you to configure 16 separate users internally with unique access privileges all of which are stored within the switch. Cascading a single CATx1000 will enable control of 31 computers from the RDX or via remote connection. Expand further simply by cascading addition CATx1000 switches. RDX 1000 automatically detects cascade connections to support up to 256 computers.
  • Computer access modules: Flash upgradeable CAMs available for PS/2, USB and Sun keyboard and mouse support.
  • Locking power supply: The RDX1000 features a locking power supply to ensure continuous robust operation in busy rack environments.
  • Extensive keyboard options: A range of country specific keyboard and power configurations are available to suit a user's specific needs.


• Specifications:

  • Video Modes:
  • Support for standard PC, Sun and Mac video modes.


  • Operating System and Software Compatibility Software:
  • All commonly known software and operating systems including Windows®, Linux®, macOS®, and Sun OS.


  • Extendable platform:
  • Cascade a CATx 1000 to extend the system to 256 computers.


  • Connections:
  • 16 CATx computer connections: all RJ45 style. 1 CATx RJ45.style for remote connection. Power connection: Locking 3 pin connector (12V DC, 5A).
  • RS232 triggered power switching and syncing: DB9 plug.


  • Physical design:
  • Compact 1U high metal case construction for rack mounting
  • Width: 589mm/17.4",
  • Height: 44mm/1.76",
  • Depth: 650mm/25.6".
  • Weight: RD1716XX 15kg/33lbs,RD1916XX 17Kg/37lbs.


  • Power supply:
  • Mains adapter with IEC style power lead (included).


  • Input:
  • 100-240VAC 0.5A 50-60Hz


  • Output:
  • 12VDC 5A


  • Operating temperature:
  • 0 to 35°C


  • Approvals:
  • CE, FCC, UKCA


• Warranty:

  • 2 Year Limited


• GTIN:

  0609385922459
