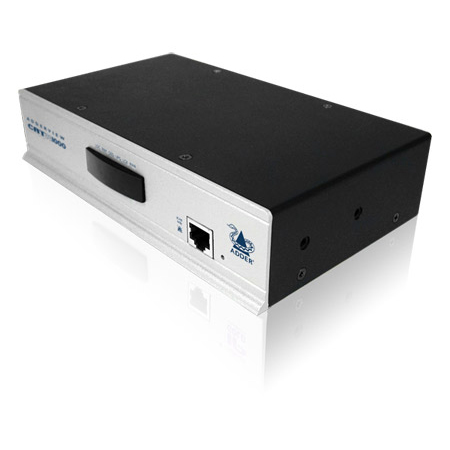

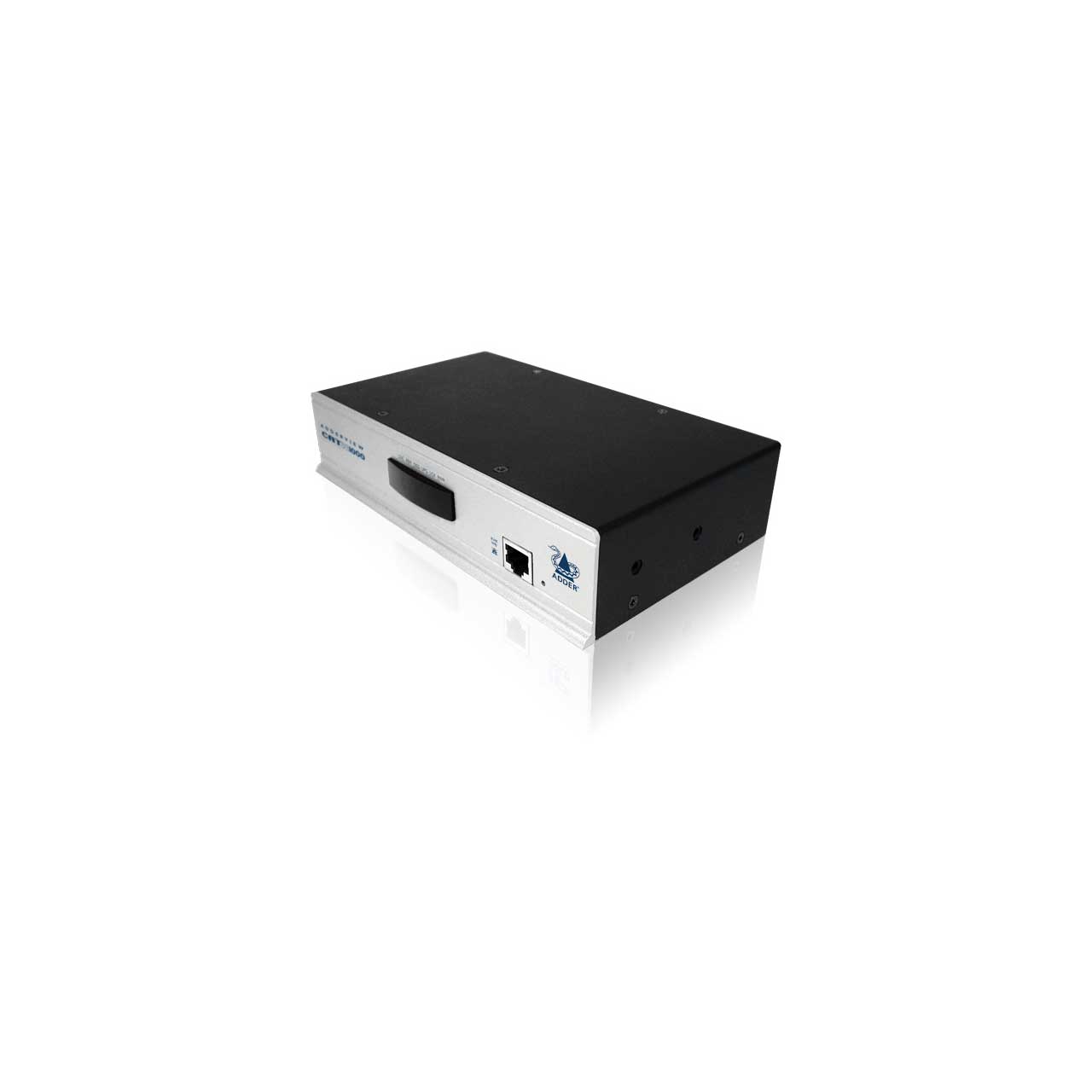

ADDERView AVX1008-USA CATx KVM Extender for 1 Local User to 8 Computers

AVX1008-USA - Overview

• Features:

  • USB keyboard and mouse control: Any USB style keyboard and mouse (PC, Mac or Sun) can be used to control the ADDERView CATx 1000 switch. Full keyboard re-mapping is supported to ensure seamless cross platform functionality

  • Faultless video quality: The ADDERView CATx series provides exceptionally high video performance to local and remote users alike, supporting up to 1600 x 1200 @ 85 Hz resolutions with DDC emulation which is further enhanced by DC balancing to ensure full and true color.

  • True multi-platform support: The ADDERView CATx 1000 supports any computer platforms with PS/2, USB and Sun keyboard and mouse interfaces. Country code reporting, DDC and continuous keyboard and mouse emulation ensure faultless operation

  • Easy cascade: Expand simply by using just CATx cable to link units. The ADDERView automatically detects cascade connections to support up to 256 computers

  • Optional CD quality audio: ADDERView CATx 1000 switches support CD quality 44.1kHz digital stereo audio when optional audio enabled CAM modules are used

  • Options port
  • Integration with RS232 controlled power switches to provide a complete hard reboot function
  • Flash upgrade
  • Sync with other CATx 1000 switches for multi-video applications
  • Upload/download CATx 1000 user and host information
  • Remote control

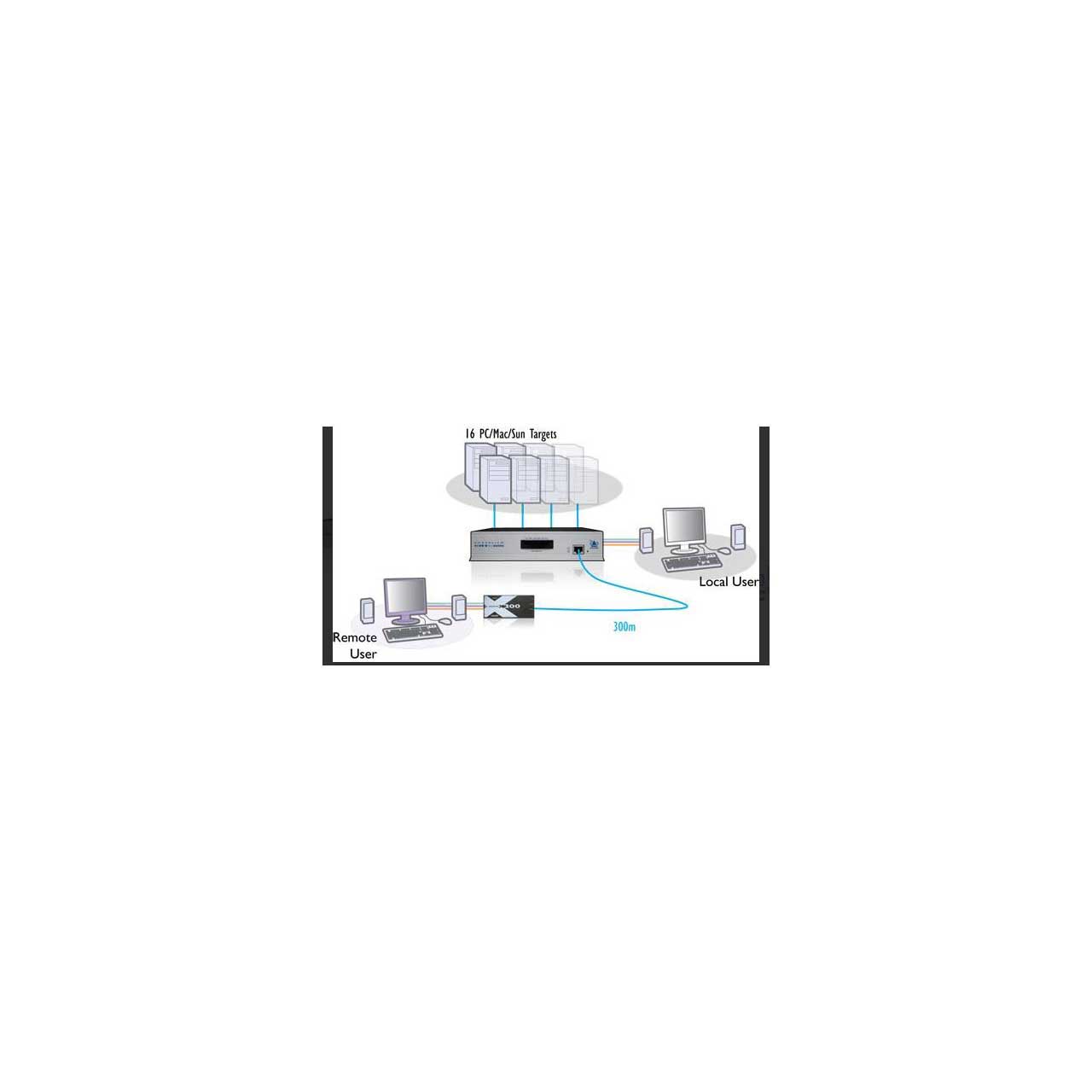

  • Integrated CATx extender: The ADDERView CATx 1000 can be controlled by a user from up to 300m away over CATx cable using the ADDERLink X200 or X100 receiver and the integrated CATx extender. (all sold separately)

  • Computer Access Modules:(sold separately) Flash upgradeable CAMs available for PS/2, USB and Sun keyboard and mouse support with optional audio

  • Rack mount / rack drawers: One or two CATx 1000 switches can be mounted in 1U rack height giving a maximum of 32 ports per 1U. Small size also makes the units ideal for mounting behind KVM rack drawers

  • User access control: Up to 16 different user profiles can be created and enables access rights for each user to be defined

  • Embedded KVM option: CATx 1000 technology is available in for embedding within other equipment through an interconnected header.


• Specifications:

  • Operating Systems and Software compatibility Software: All commonly known software and operating systems including Windows®, Linux®, macOS®, and Sun OS.

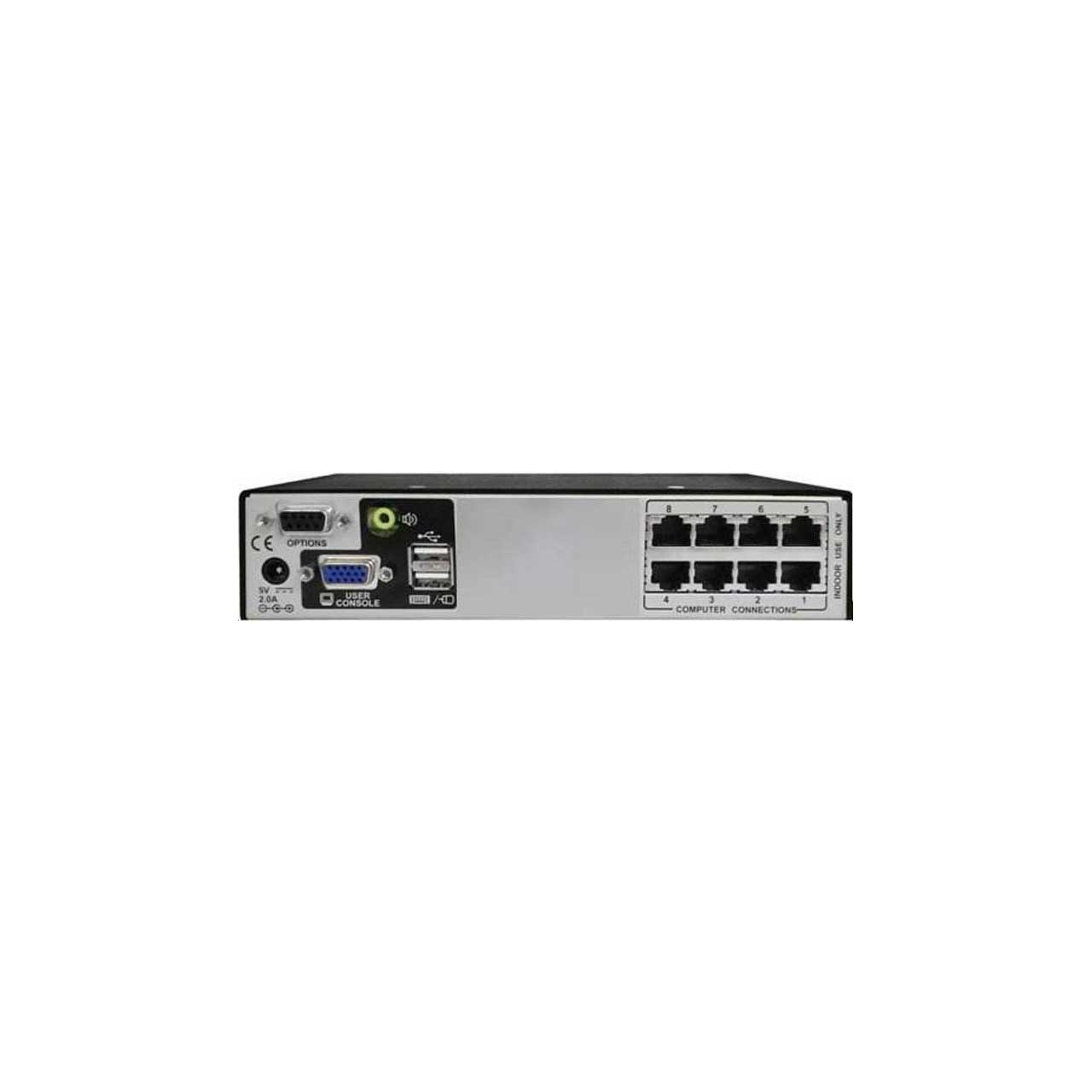

  • Computer connections at switch: RJ45


  • Computer connections at computer
  • Video: HDD15 / VGA
  • Keyboard/Mouse: choice of USB, PS/2 and Sun MiniDin8
  • Audio (optional): 3.5mm stereo jack


  • Local KVM console connection
  • Video: HDD15 / VGA
  • Keyboard/Mouse: USB type A
  • Audio: 3.5mm stereo jack


  • Physical design:
  • 1U high 198mm / 7.92" (w), 44mm /
  • 1.76" (h), 120mm / 4.8" (d), 750g / 1.65 lbs.


  • Power connection:
  • 2.5mm DC jack, power adapter included


  • Other connectors:
  • Remote KVM console: RJ45
  • Options (flash upgrade, sync with other CATx1000 and RS232 triggered power switches): DB9 female


  • Power:
  • 100-240VAC 50/60Hz input to power adapter
  • 5VDC 2A output from power adapter


  • Operating temperature:
  • 0°C to 40°C / 32°F to 104°F


  • Approvals:
  • CE, FCC, UKCA


• Item Includes:

  • 1x AVX1008 KVM Extender
  • 1x 10W power adapter with US cord


• Warranty:

  • 2 Year Limited


• GTIN:

  0990171849792
